Mesa Safe MF53E U.L. Classified Fire Safe

Ọrọ Iṣaaju

This manual provides essential instructions for the proper setup, operation, and maintenance of your Mesa Safe MF53E U.L. Classified Fire Safe. Please read these instructions carefully before using your safe to ensure optimal performance and security.

The Mesa Safe MF53E is designed to protect valuables from fire and unauthorized access, featuring U.L. Classified 1-hour fire rating and robust steel construction.

Alaye Aabo

Awọn iṣọra Aabo pataki:

• Ma ṣe fi awọn bọtini pajawiri pamọ si inu ailewu. Pa wọn mọ ni aabo, ipo ọtọtọ.
• Ensure the safe is placed on a level, stable surface.
• Keep children away from the safe and its locking mechanism.
• This safe is not water-resistant. Protect contents from water damage by using waterproof bags if necessary.

Unpacking ati Ibẹrẹ Iṣeto

Upon receiving your Mesa Safe MF53E, carefully unpack it and inspect for any shipping damage. Report any damage to your carrier immediately.

Awọn akoonu:

• Mesa Safe MF53E Fire Safe
• Electronic Lock Keypad (pre-installed)
• Emergency Keys (2 included)
• External Power Pack
• AA Batteries (4 for electronic lock, included)
• Ohun elo Oran
• Adjustable/Removable Shelf (1 included)
• Removable Storage Tray

Battery Installation for Electronic Lock:

1. Locate the battery compartment on the electronic lock keypad.
2. Insert the 4 AA batteries provided, ensuring correct polarity.
3. Pa ideri iyẹwu batiri naa.

Battery Installation for Interior Light:

1. The interior light requires 2 AA batteries (not included).
2. Open the interior light cover inside the safe.
3. Insert 2 AA batteries, observing polarity.
4. Pa ideri naa.

Anchoring the Safe:

The safe includes one anchor hole and an anchor kit for securing it to a floor or wall. Anchoring is recommended to prevent unauthorized removal.

1. Yan ipo to dara fun ailewu.
2. Mark the position of the anchor hole on the floor or wall.
3. Drill a pilot hole using an appropriate drill bit for your surface type.
4. Secure the safe using the provided anchor bolt and hardware.

Aworan: inu view of the Mesa Safe MF53E, displaying the adjustable shelf, removable storage tray, and the internal components of the electronic lock on the door. Various items are shown stored inside, demonstrating the safe's capacity.

Ṣiṣẹ Titiipa Itanna

Your Mesa Safe MF53E is equipped with a battery-operated electronic lock (MUL100).

Opening the Safe for the First Time:

1. The safe is typically shipped in an unlocked state or with a factory default code. Refer to the sticker on the safe or the lock for the default code if applicable.
2. Enter the default code (e.g., "123456") on the keypad.
3. The display will show "OPEN" and the lock will disengage.
4. Tan imudani si ọna aago lati ṣii ilẹkun.

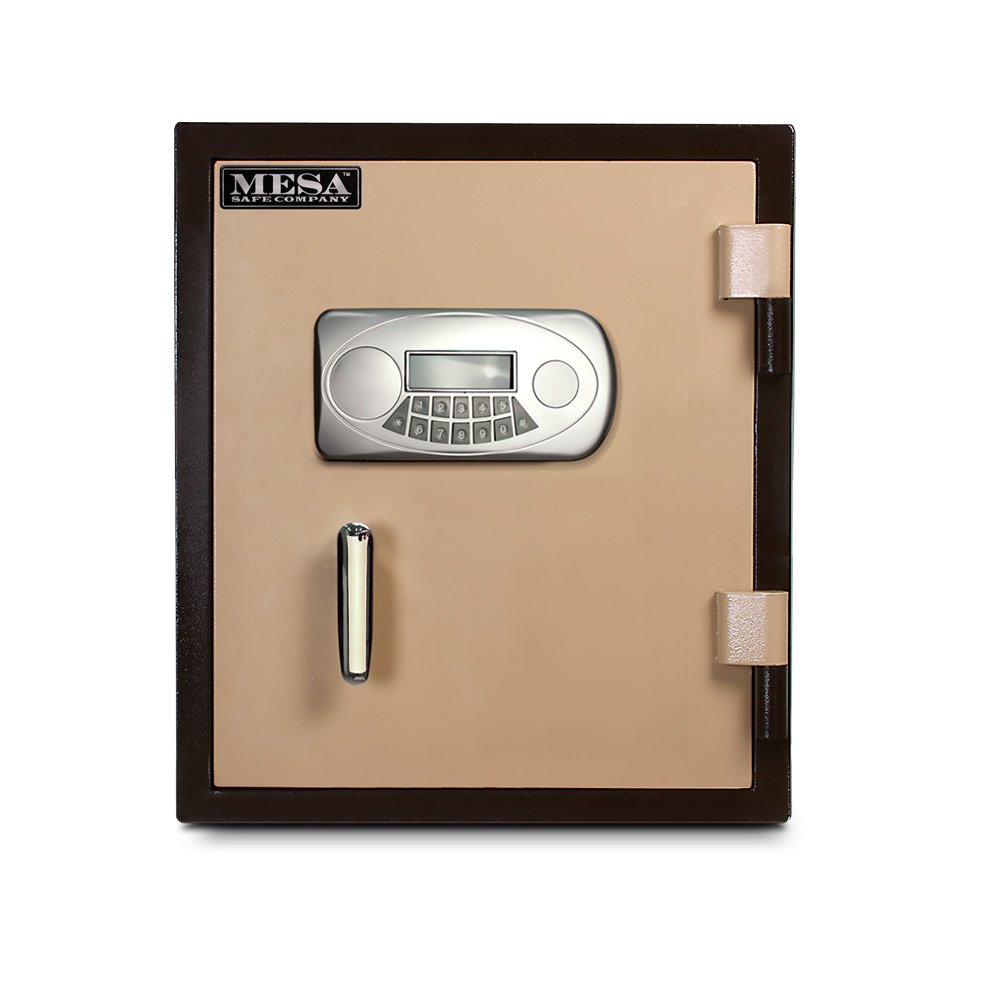

Aworan: Iwaju view of the Mesa Safe MF53E, showcasing the electronic keypad lock with an illuminated display and the sturdy handle for opening the door.

Changing the User Code:

1. With the door open, press the "PROGRAM" button located inside the safe door.
2. Tẹ koodu oni-nọmba 4-8 tuntun rẹ sii.
3. Press the "ENTER" button to confirm.
4. Dán koodu tuntun wò ní ọ̀pọ̀ ìgbà pẹ̀lú ìlẹ̀kùn tí ó ṣí sílẹ̀ kí o tó ti i.

Pipade ati Titiipa Ailewu:

1. Pa ẹnu-ọna ailewu duro.
2. Turn the handle counter-clockwise to engage the locking bolts.
3. The safe will automatically lock after a few seconds.

Using the Emergency Key System:

In case of electronic lock failure or dead batteries, the safe can be opened using the emergency key.

1. Locate the concealed emergency key system cover on the electronic lock panel.
2. Yọ ideri kuro.
3. Insert one of the provided emergency keys and turn it to unlock.
4. Tan imudani lati ṣii ailewu.

Using the External Power Pack:

If the internal batteries are depleted and you do not have the emergency key, the external power pack can be used.

1. Connect the external power pack to the port on the electronic lock keypad.
2. Enter your user code as usual.
3. Tan imudani lati ṣii ailewu.

Itoju

Regular maintenance ensures the longevity and proper functioning of your safe.

• Rirọpo Batiri: Replace the electronic lock batteries annually or when the low battery indicator appears on the display. Use only high-quality AA alkaline batteries.
• Ninu: Nu ita ti ailewu pẹlu asọ, damp asọ. Yago fun abrasive ose tabi epo.
• Lubrication Mita: Periodically apply a small amount of light lubricant to the door hinges to ensure smooth operation.
• Bolt Mechanism: Keep the locking bolts and bolt holes clear of obstructions.

Laasigbotitusita

Awọn pato

• Awoṣe: MF53E
• Brand: Mesa Safe Co.
• Titiipa Iru: Electronic (MUL100), Key
• Idiwọn Ina: U.L. Classified Class 350 - 1 Hour
• Idiwon Ipa: 2 Story (factory tested)
• Ikole: Gbogbo Irin
• Sisanra ilekun: 4 inches (overall, enclosing fire resistant material)
• Sisanra ara: 2.5 inches (overall, enclosing fire resistant material)
• Àwọn Bọ́lù Títìpa: 4 massive 1-inch diameter solid steel live-locking bolts, 3/4-inch x 3-1/2-inch steel deadbolts
• Awọn isunmọ: Heavy-duty solid steel
• Internal Capacity: 1.3 Ẹsẹ onigun
• Awọn ibi ipamọ: 1 high strength adjustable and removable shelf
• Agbara: 4 AA batteries for electronic lock (included), 2 AA batteries for interior light (not included)
• Wiwọle pajawiri: Concealed emergency key system (2 keys included), External power pack
• Iṣagbesori: One anchor hole provided (anchor kit included)
• Omi Resistance: Ko Omi Resistant

Alaye atilẹyin ọja

Mesa Safe Co. provides a one-year warranty covering parts and labor for the MF53E safe. For detailed warranty terms and conditions, please refer to the official warranty document included with your purchase or contact Mesa Safe Co. customer service.

Onibara Support

For technical assistance, warranty claims, or any questions regarding your Mesa Safe MF53E, please contact Mesa Safe Co. customer support.

Ibi iwifunni:

Please refer to the contact details provided on the Mesa Safe Co. official website or in your product packaging for the most current support information.

Note: Always have your model number (MF53E) and purchase date available when contacting support.
