Airaid 721-243 Universal Clamp-On Air Filter User Manual

1. Ifihan

Every Airaid Premium Filter is hand-built using the finest materials available today. Each Airaid Premium Filter comes with a Lifetime Guarantee. We start with multiple layers of cotton gauze combined with our unique filtration technology resulting in a superior filtration system. All Airaid Premium Filters trap the smallest dirt particles that ordinary cotton-gauze "performance" filters can't capture.

Awọn ẹya pataki:

• Premium Air Filter
• Multi layer construction
• Ṣe ni USA
• Washable And Reusable
• Lifetime No Hassle Warranty

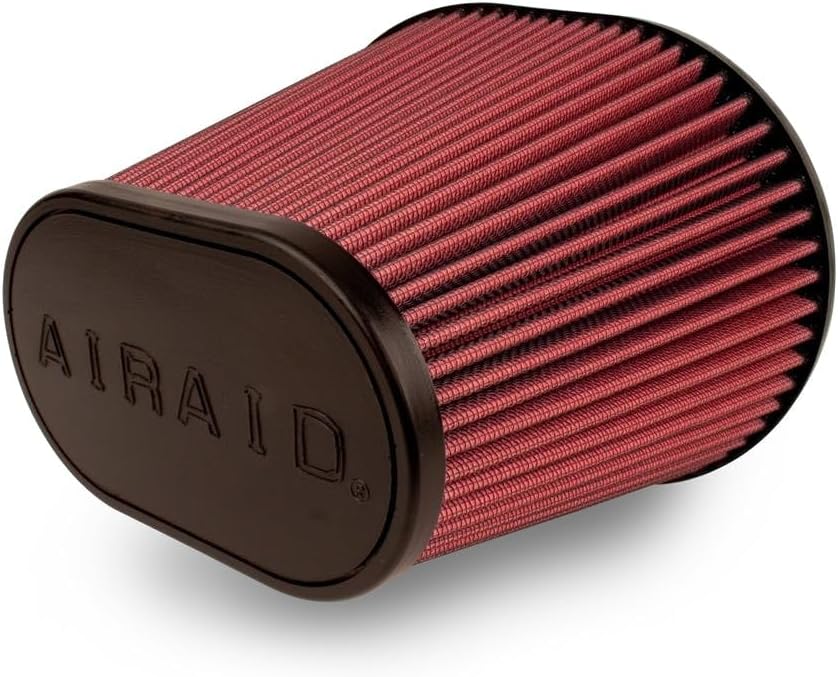

Figure 1: Airaid 721-243 Universal Clamp-On Air Filter. This image shows the main product, an oval tapered air filter with a red filtration medium and a black base, designed for universal clamp-on applications.

2. Itọsọna fifi sori ẹrọ

This section provides general guidelines for installing your Airaid Universal Clamp-On Air Filter. Specific installation procedures may vary depending on your vehicle or application. Always refer to your vehicle's service manual for detailed instructions.

Awọn iṣọra Aabo:

• Ensure the engine is off and cool before beginning installation.
• Ge asopọ ebute batiri odi lati yago fun awọn kukuru itanna lairotẹlẹ.
• Wọ ohun elo aabo ti ara ẹni ti o yẹ, gẹgẹbi awọn ibọwọ ati aabo oju.

Awọn igbesẹ fifi sori ẹrọ:

1. Locate Existing Air Intake System: Identify the current air filter housing or intake tube where the new filter will be installed.
2. Yọ Ajọ atijọ kuro (ti o ba wulo): Carefully detach and remove the existing air filter or intake components. Loosen any clamps or bolts securing the old filter.
3. Ṣetan Ilẹ Iṣagbesori: Ensure the mounting surface or intake tube is clean and free of debris.
4. Install Airaid Filter: Slide the Airaid Universal Clamp-On Air Filter onto the intake tube or adapter. Ensure a snug fit.
5. Ni aabo Clamp: Mu clamp on the filter's flange to secure it firmly in place. Do not overtighten.
6. Batiri Atunso: Once the filter is securely installed, reconnect the negative battery terminal.
7. Jẹrisi fifi sori ẹrọ: Double-check all connections and ensure the filter is stable before starting the engine.

3. Isẹ

The Airaid Universal Clamp-On Air Filter is designed to optimize airflow to your engine while providing superior filtration. Once installed, the filter operates continuously as part of your vehicle's air intake system.

The multi-layered cotton gauze material allows for increased air volume to enter the engine, which can contribute to improved engine efficiency and performance. Simultaneously, its advanced filtration technology effectively captures dirt, dust, and other airborne contaminants, preventing them from entering the engine and causing wear.

No specific user interaction is required for the filter's operation after installation. Regular maintenance, as described in the next section, is crucial to ensure optimal performance and longevity of the filter.

4. Itọju ati Itọju

Your Airaid Premium Air Filter is washable and reusable, designed for long-term use. Proper cleaning and re-oiling are essential to maintain its filtration efficiency and performance.

Ilana Mimọ ti a ṣeduro:

1. Yọ Ajọ kuro: Fi pẹ̀lẹ́pẹ̀lẹ́ yọ àlẹ̀mọ́ afẹ́fẹ́ kúrò nínú ètò gbígbà ọkọ̀ rẹ.
2. Brush Off Loose Dirt: Gently tap the filter or use a soft brush to remove any large, loose debris from the filter surface.
3. Waye Isenkanjade: Spray a specialized air filter cleaning solution (e.g., Airaid Filter Cleaner) evenly onto both sides of the filter. Allow it to soak for 10-15 minutes.
4. Fi omi ṣan Ajọ: Rinse the filter from the clean side (inside) to the dirty side (outside) with low-pressure water until the water runs clear. This pushes dirt out of the filter pleats.
5. Gbẹ ni kikun: Allow the filter to air dry completely. Do not use compressed air or heat guns, as this can damage the filter media. Drying can take several hours.
6. Re-oil Filter: Once completely dry, apply a thin, even coat of specialized air filter oil (e.g., Airaid Filter Oil) to the filter pleats. Apply just enough oil to turn the pleats a uniform color. Do not over-oil.
7. Tun Ajọ sori ẹrọ: Reinstall the clean and oiled filter into your vehicle's intake system, ensuring it is securely clamped.

Igbohunsafẹfẹ: The cleaning frequency depends on driving conditions. In dusty environments, more frequent cleaning may be necessary. A general guideline is every 10,000 to 15,000 miles, or annually.

Figure 2: Airaid 721-243 Universal Clamp-On Air Filter. This image highlights the pleated filtration media, which requires regular cleaning and re-oiling for optimal performance.

5. Laasigbotitusita

If you experience issues after installing your Airaid air filter, consider the following common troubleshooting steps:

If problems persist after attempting these solutions, contact Airaid customer support or a qualified mechanic.

6. Imọ ni pato

7. Atilẹyin ọja ati Support

Lifetime No Hassle Warranty:

Airaid Premium Filters are backed by a Lifetime No Hassle Warranty. This warranty covers defects in materials and workmanship for the life of the product. For specific terms and conditions, please refer to the official Airaid warranty policy available on their webojula tabi olubasọrọ onibara iṣẹ.

Atilẹyin Onibara:

For technical assistance, warranty claims, or general inquiries regarding your Airaid product, please contact Airaid customer support:

• Webojula: Visit the official Airaid webojú òpó wẹ́ẹ̀bù fún àwọn ìbéèrè tó máa ń wáyé nígbà gbogbo, ìwífún nípa ọjà, àti àwọn fọ́ọ̀mù ìbánisọ̀rọ̀.
• Foonu: 1-800-498-6951
• Adirẹsi: Airaid Inc., 1604 O'Dell Street, Riverside, CA 92507

When contacting support, please have your product model number (AIR-721-243) and purchase information readily available.
