RYOBI 2300W Metal Chop Saw ECO2335HG Instruction Manual

1. Ifihan

This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your RYOBI 2300W Metal Chop Saw, model ECO2335HG. Please read these instructions carefully before using the tool and keep them for future reference. This powerful tool is designed for precise and rapid cutting of various metal materials, including tubes, profiles, and flat metals, making it suitable for both construction sites and workshops.

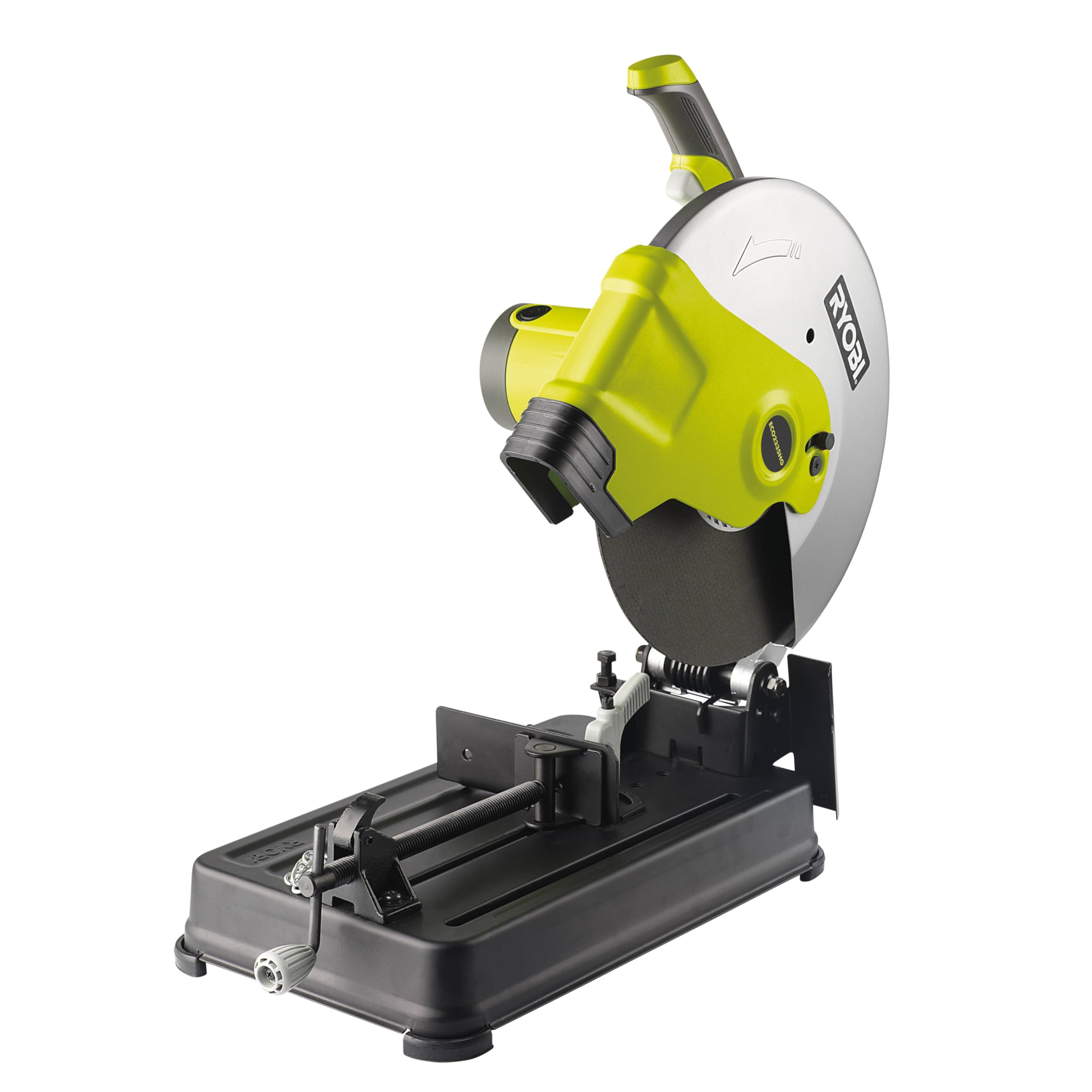

Figure 1: RYOBI ECO2335HG Metal Chop Saw. This image shows the overall view of the chop saw, highlighting its robust construction and design.

2. Gbogbogbo Aabo Alaye

Nigbagbogbo tẹle awọn iṣọra aabo ipilẹ lati dinku eewu ina, mọnamọna, ati ipalara ti ara ẹni. Jeki afọwọṣe yii ni ọwọ fun itọkasi ni kiakia.

2.1. Aabo Agbegbe Iṣẹ

• Jẹ ki agbegbe iṣẹ jẹ mimọ ati itanna daradara. Awọn agbegbe idamu tabi awọn agbegbe dudu n pe awọn ijamba.
• Ma ṣe ṣiṣẹ awọn irinṣẹ agbara ni awọn bugbamu bugbamu, gẹgẹbi niwaju awọn olomi ina, gaasi, tabi eruku. Awọn irinṣẹ agbara ṣẹda awọn ina ti o le tan eruku tabi eefin.
• Pa awọn ọmọde ati awọn alafojusi kuro lakoko ti o nṣiṣẹ ohun elo agbara kan. Awọn idamu le fa ki o padanu iṣakoso.

2.2. Aabo Itanna

• Awọn pilogi irinṣẹ agbara gbọdọ baramu iṣan. Maṣe yi plug naa pada ni ọna eyikeyi.
• Yago fun olubasọrọ ara pẹlu ilẹ tabi ilẹ roboto, gẹgẹ bi awọn paipu, imooru, awọn sakani, ati firiji. Ewu ti o pọ si ti mọnamọna ina mọnamọna ti ara rẹ ba wa ni ilẹ tabi ti ilẹ.
• Ma ṣe fi awọn irinṣẹ agbara han si ojo tabi awọn ipo tutu. Omi ti nwọle ọpa agbara yoo mu eewu ti mọnamọna mọnamọna pọ si.
• Maṣe ṣe ilokulo okun naa. Maṣe lo okun fun gbigbe, fifa tabi yọọ ohun elo agbara. Jeki okun kuro lati ooru, epo, eti to mu, tabi awọn ẹya gbigbe.
• The Livetool Indicator™ light will illuminate when the tool is connected to power, indicating it is live. This helps prevent accidental startup.

2.3. Aabo ti ara ẹni

• Nigbagbogbo wọ aabo oju. Lo awọn gilaasi ailewu pẹlu awọn apata ẹgbẹ tabi awọn goggles.
• Wọ aabo igbọran nigbati o nṣiṣẹ ọpa fun awọn akoko ti o gbooro sii.
• Mura daradara. Maṣe wọ aṣọ ti ko ni tabi ohun ọṣọ. Pa irun rẹ, aṣọ, ati awọn ibọwọ kuro lati awọn ẹya gbigbe.
• Duro ni iṣọra, wo ohun ti o n ṣe, ati lo ọgbọn ti o wọpọ nigbati o nṣiṣẹ ohun elo agbara kan.
• Use safety equipment such as dust masks, non-skid safety shoes, hard hats, or hearing protection for appropriate conditions.
• Ensure the large blade guard is always in place and functioning correctly to protect against debris.

3. Ọja Ipariview ati irinše

Familiarize yourself with the main parts of your RYOBI ECO2335HG Metal Chop Saw before operation.

• Cutting Wheel (Blade): 355 mm abrasive wheel for metal cutting.
• Blade Ṣọ: Large protective cover for user safety.
• Motor Housing: Contains the powerful 2300W motor.
• GripZone™ Handle: Bi-material handle for ergonomic and comfortable grip.
• Quick-Release Vise: Secures workpieces for cutting.
• Adjustable Miter Fence: Allows for straight and angle cuts up to 45°.
• Non-Slip Work Table: Provides stability for workpieces.
• Spindle Lock System: For quick and secure blade changes.
• Livetool Indicator™: Power-on indicator light.
• Power Cord Locking Clip: Secures the power cord.
• Accessible Safety Brushes: For easy maintenance.

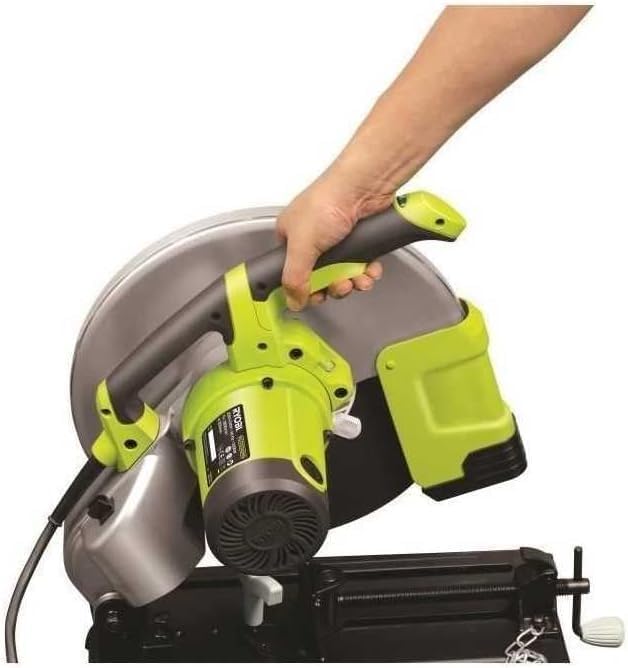

olusin 2: Apa view of the chop saw, showing the GripZone™ handle for comfortable operation.

Figure 3: Close-up of the quick-release vise and non-slip work table, essential for securing materials during cutting.

4. Eto ati Apejọ

Before initial use, ensure the chop saw is properly assembled and secured.

4.1. Unpacking

• Ni ifarabalẹ yọ gbogbo awọn paati kuro ninu apoti.
• Verify that all included items are present: chop saw unit, 355 mm cutting wheel, and service wrench.
• Inspect the tool for any damage that may have occurred during shipping. Do not operate if damaged.

4.2. Mounting the Chop Saw

For optimal stability and safety, it is recommended to mount the chop saw to a sturdy workbench using appropriate fasteners (not included).

4.3. Installing/Changing the Cutting Wheel

1. Ge Agbara: Always unplug the tool from the power source before performing any adjustments or maintenance.
2. Access the Spindle: Loosen the screws and open the blade guard to access the cutting wheel.
3. Engage Spindle Lock: Tẹ bọtini titiipa spindle ki o si di mu lati ṣe idiwọ fun spindle lati yi pada.
4. Yọ Kẹkẹ atijọ kuro: Use the provided service wrench to loosen the arbor nut. Remove the outer flange and the old cutting wheel.
5. Fi Kẹkẹ Tuntun sori ẹrọ: Place the new 355 mm cutting wheel onto the spindle, ensuring it is correctly seated. The arrow on the wheel should match the rotation direction indicated on the tool.
6. Kẹkẹ to ni aabo: Replace the outer flange and tighten the arbor nut firmly with the service wrench while holding the spindle lock. Do not overtighten.
7. Ẹṣọ timọ: Pa ati aabo oluso abẹfẹlẹ.

olusin 4: Ẹyìn view of the chop saw, showing the motor housing and power cord connection point.

Figure 5: Close-up showing the accessible safety brushes, which are important for motor maintenance.

5. Awọn ilana Iṣiṣẹ

Follow these steps for safe and effective operation of your metal chop saw.

5.1. Ṣíṣe Àwòrán Iṣẹ́ náà

• Rí i dájú pé iṣẹ́ náà mọ́ tónítóní, kò sì ní ìdènà kankan.
• Mark the cutting line clearly on the material.
• Place the workpiece firmly against the miter fence and secure it with the quick-release vise. Ensure the material is stable and will not shift during cutting.

5.2. Adjusting for Angle Cuts

The miter fence can be adjusted up to 45° for angle cuts.

1. Loosen the locking mechanism for the miter fence.
2. Pivot the fence to the desired angle (up to 45°).
3. Tighten the locking mechanism securely to fix the fence in position.
4. Always perform a test cut on scrap material to verify the angle before cutting your final workpiece.

5.3. Ṣiṣe Ge

1. So agbara: Plug the tool into a suitable power outlet. The Livetool Indicator™ will light up.
2. Fi ara rẹ si ipo: Stand to the side of the cutting line, away from the path of the blade and any potential sparks or debris.
3. Bẹrẹ Ọpa naa: Press the trigger switch to start the motor. Allow the cutting wheel to reach full speed before beginning the cut.
4. Lower the Blade: Slowly and steadily lower the cutting wheel into the workpiece. Apply even pressure. Do not force the cut.
5. Pari Ge: Continue lowering until the cut is complete.
6. Itusilẹ Nfa: Release the trigger switch and allow the blade to stop completely before raising it from the workpiece.
7. Yọ Iṣẹ-iṣẹ kuro: Once the blade has stopped and is raised, carefully unclamp and remove the cut workpiece.

WARNING: Sparks and hot debris will be generated during cutting. Ensure proper ventilation and keep flammable materials away from the work area.

6. Itọju

Regular maintenance ensures the longevity and safe operation of your RYOBI ECO2335HG Metal Chop Saw.

6.1. Ninu

• Ge Agbara: Yọọ ọpa nigbagbogbo ṣaaju ṣiṣe mimọ.
• Clean the tool regularly with a soft, damp asọ. Maṣe lo awọn kẹmika ti o lewu tabi awọn afọmọ abrasive.
• Remove any metal dust or debris from the motor vents and around the blade guard using compressed air or a brush.
• Keep the non-slip work table clean to ensure proper workpiece stability.

6.2. Erogba fẹlẹ Rirọpo

The motor's carbon brushes are wear items and will need replacement over time. The ECO2335HG features accessible safety brushes for easy replacement.

1. Ge Agbara: Yọọ ọpa naa kuro.
2. Wa Awọn fila Fẹlẹ: Identify the brush caps on the motor housing (refer to Figure 5).
3. Remove Caps: Use a screwdriver to unscrew the brush caps.
4. Replace Brushes: Remove the old carbon brushes and insert new, genuine RYOBI replacement brushes.
5. Àwọn ìbòrí tó ní ààbò: Replace and tighten the brush caps.
6. After replacing brushes, run the tool at no-load for a few minutes to allow the new brushes to seat properly.

6.3. Àyẹ̀wò àti Rírọ́pò Abẹ́

• Regularly inspect the cutting wheel for wear, cracks, or damage. A worn or damaged wheel can be dangerous and reduce cutting efficiency.
• Replace the cutting wheel as described in Section 4.3 when it becomes dull or damaged.
• Only use 355 mm abrasive cutting wheels designed for metal.

7. Laasigbotitusita

This section addresses common issues you might encounter with your chop saw.

If you encounter problems not listed here or if solutions do not resolve the issue, contact RYOBI customer service or a qualified service center.

8. Imọ ni pato

9. Atilẹyin ọja ati Support

9.1. Atilẹyin ọja to lopin

This RYOBI product is covered by a limited warranty. Please refer to the warranty card included with your product or visit the official RYOBI website for full terms and conditions. Keep your proof of purchase for warranty claims.

9.2. Apoju Awọn ẹya ara wiwa

Spare parts for the ECO2335HG model are generally available for up to 5 years from the date of purchase. Contact your local RYOBI service center for spare parts inquiries.

9.3. Onibara Support

For technical assistance, service, or questions regarding your RYOBI Metal Chop Saw, please contact RYOBI customer support through their official webaaye tabi alaye olubasọrọ ti a pese ninu iwe ọja rẹ.
