Schwinn Fitness A20 Recumbent Bike User Manual

Ọja Pariview

The Schwinn Fitness A20 Recumbent Bike is designed to provide an effective cardiovascular workout in a home environment. This model combines quality construction with user-friendly features, offering a comfortable and efficient exercise experience.

Image: A man demonstrating the use of the Schwinn Fitness A20 Recumbent Bike.

Key Awọn ẹya ara ẹrọ

• Awọn ipele 8 ti resistance: Adjustable magnetic resistance for varied workout intensity.
• Large LCD Console: Displays speed, time, RPM, distance, calories, and heart rate.
• Isẹ Dan ati idakẹjẹ: Achieved through a high-speed, high-inertia perimeter weighted flywheel.
• 7 Awọn eto tito tẹlẹ: Includes 6 profile programs and 1 quick start option for diverse workouts.
• Grip Heart Rate Monitors: Ergonomically placed sensors for heart rate tracking.
• Awọn kẹkẹ gbigbe: Facilitates easy movement and storage of the bike.
• Padded and Contoured Seat: Designed for user comfort during extended workouts.
• Agbara iwuwo: Ṣe atilẹyin awọn olumulo to 275 lbs.

Image: Close-up of the padded and contoured seat with handlebars, designed for comfort.

Eto ati Apejọ

The Schwinn Fitness A20 Recumbent Bike requires assembly. A detailed instruction manual is included with the product to guide you through each step. It is recommended to follow the instructions carefully to ensure proper and safe assembly.

For operation, the bike can be powered by 4 D-size batteries (not included) or an optional AC power adapter (sold separately). Ensure the correct power source is used as specified in the assembly guide.

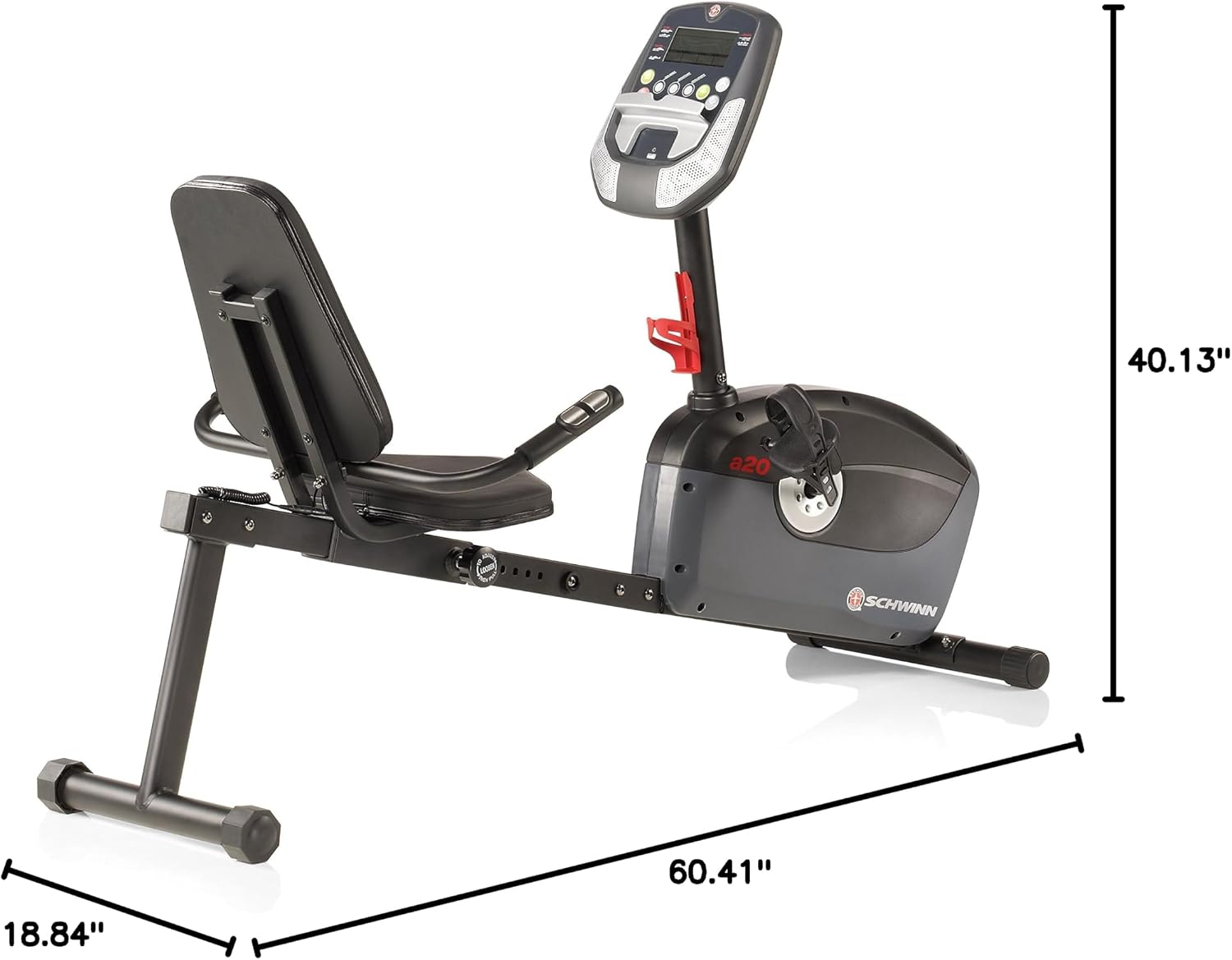

Image: Diagram showing the dimensions of the Schwinn A20 Recumbent Bike (Length: 60.41", Width: 18.84", Height: 40.13").

Awọn ilana Iṣiṣẹ

The A20 Recumbent Bike features an intuitive console for managing your workout. Familiarize yourself with the console buttons and display readings before starting your exercise routine.

Awọn iṣẹ console:

• Ibẹrẹ kiakia: Begin a workout immediately without setting specific parameters.
• Aṣayan Eto: Choose from 6 pre-programmed workout profiles (e.g., Fun Rides, Mountains, Challenges) to vary your routine.
• Iṣatunṣe Resistance: Use the up/down arrows to select one of the 8 magnetic resistance levels during your workout.
• Abojuto Oṣuwọn Ọkàn: Grip the heart rate sensors on the handlebars to display your current heart rate on the console.
• Display Readings: The large LCD window shows real-time data including speed, time, RPM, distance, calories burned, and heart rate.

Aworan: Alaye view of the A20 console, showing the LCD display, program buttons, and heart rate sensors.

Workout Video:

Video: Official product video demonstrating the features and usage of the Schwinn A20 Recumbent Bike. This video provides a visual guide to the bike's operation and benefits.

Itoju

Regular maintenance ensures the longevity and optimal performance of your Schwinn A20 Recumbent Bike. Perform the following checks periodically:

• Ninu: Pa keke naa kuro pẹlu ipolowoamp asọ lẹhin lilo kọọkan lati yọ lagun ati eruku kuro. Yago fun abrasive ose.
• Ṣiṣayẹwo ohun elo: Periodically inspect all nuts, bolts, and moving parts to ensure they are securely fastened. Tighten any loose components.
• Lubrication: Consult the detailed assembly manual for any specific lubrication requirements for moving parts.
• Rirọpo Batiri: If using batteries, replace them when the console display becomes dim or unresponsive.

Laasigbotitusita

If you encounter issues with your Schwinn A20 Recumbent Bike, refer to the troubleshooting section in the comprehensive user manual provided with your product. Common issues and their solutions are typically covered there. If the problem persists, contact customer support.

Awọn pato

Alaye atilẹyin ọja

The Schwinn Fitness A20 Recumbent Bike comes with the following limited warranty:

• Férémù: ọdun meji 2
• Awọn ẹya: 6 osu
• Awọn ẹrọ itanna: 6 osu
• Wọ Awọn Ẹya: 30 ọjọ

Please retain your proof of purchase for warranty claims. For full details and terms, refer to the warranty documentation included with your product.

Onibara Support

For assistance with assembly, operation, maintenance, or warranty claims, please contact Schwinn customer support. Refer to the contact information provided in your product packaging or visit the official Schwinn webojula fun support oro.
