Ọrọ Iṣaaju
This manual provides detailed instructions for the installation, operation, and maintenance of your Lowrance HST-WSU Transom Mount Depth Transducer. This transducer is designed for precise fish finding and depth measurement, featuring a 200KHz frequency, a 20° beam angle, and an integrated temperature sensor. Its transom mount 'Skimmer' design ensures reliable performance for various marine applications.

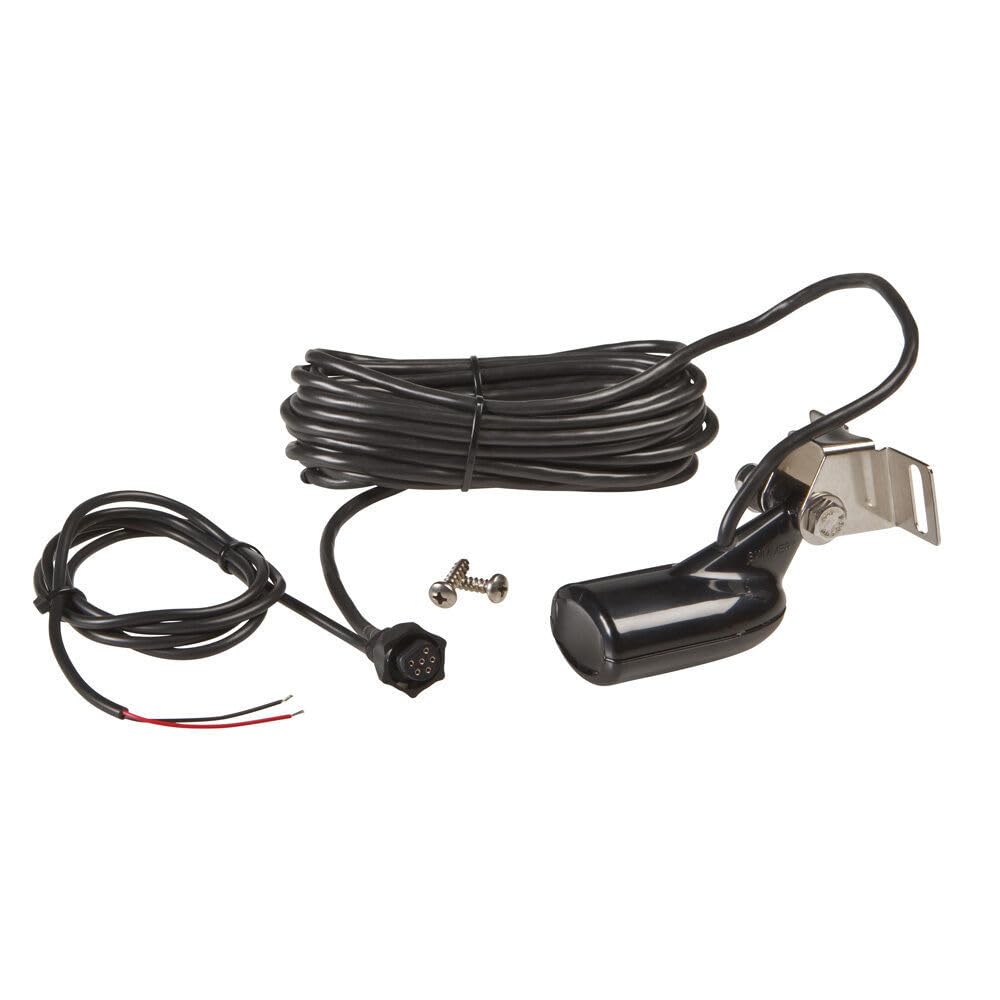

Figure 1: Lowrance HST-WSU Transom Mount Depth Transducer with cable.
Eto ati fifi sori
The HST-WSU transducer is designed for easy transom mounting. Proper installation is crucial for optimal performance. The unit includes a 20-foot cable with a Uni-plug connector for convenient integration with compatible Lowrance fish finders.
Mounting the Transducer
Mount the transducer on your boat's transom, ensuring it is positioned to provide a clear view of the water beneath the hull, free from obstructions or turbulent water flow. Refer to the detailed instructions provided in the packaging for specific mounting hardware and procedures.
Nsopọ USB
Connect the 20-foot cable from the transducer to the appropriate port on your Lowrance fish finder unit. Ensure the Uni-plug connector is securely fastened to maintain a waterproof seal.
Visual fifi sori Itọsọna
For a visual guide on the components and installation process, please refer to the product overview fidio ni isalẹ.
Fidio 1: Ọja Pariview and Installation Guide for Lowrance Dual Frequency Transducer. This video demonstrates the components and basic installation steps for the transducer.
Figure 2: Components of the Lowrance HST-WSU Transducer, including the main unit, mounting brackets, and cable.
Operating the Transducer
Once installed and connected, the transducer works in conjunction with your Lowrance fish finder to provide accurate depth readings, fish detection, and water temperature data.
Dual Frequency Operation
The transducer operates at dual frequencies: 50KHz and 200KHz. The 200KHz frequency provides excellent detail and target separation in shallower waters, while the 50KHz frequency offers deeper penetration for offshore or deeper water fishing.
Awọn igun tan ina
With beam angles of 35° and 12°, the transducer provides a wide coverage area for detecting fish and underwater structures, enhancing your ability to locate productive fishing spots.
Sensọ iwọn otutu
The built-in temperature sensor provides real-time water temperature readings, which can be a critical factor in locating fish.
Figure 3: Illustration of the transducer's beam angles for wide coverage.
Itoju
Regular maintenance ensures the longevity and optimal performance of your transducer.
- Ninu: Periodically clean the transducer's surface with mild soap and water to remove marine growth, dirt, or oil. Avoid abrasive cleaners or solvents that could damage the transducer face.
- Ayewo: Regularly inspect the transducer cable for any signs of wear, cuts, or damage. Ensure the mounting hardware is secure and free from corrosion.
- Igba otutu: If storing your boat in freezing temperatures, ensure the transducer is either removed or protected from ice formation, which can cause damage.
Laasigbotitusita
If you experience issues with your transducer, consider the following common troubleshooting steps:
- No Depth Reading: Check all cable connections for security. Ensure the transducer is properly submerged and free from air bubbles or obstructions. Verify the fish finder unit is powered on and configured correctly.
- Awọn kika ti ko pe: Ensure the transducer is mounted correctly and not experiencing turbulence. Check for any interference from other electronic devices. Adjust the sensitivity settings on your fish finder.
- Awọn kika igba diẹ: Inspect the cable for damage or loose connections. Ensure the power supply to the fish finder is stable.
If problems persist, consult the full fish finder manual or contact Lowrance customer support.
Awọn pato
| Ẹya ara ẹrọ | Ẹ̀kúnrẹ́rẹ́ |
|---|---|
| Brand | Lowrance |
| Orukọ awoṣe | Low-000-0106-48 |
| Iṣagbesori Iru | Gbigbe gbigbe |
| Nọmba awoṣe | LOW-000-0106-48 |
| Olupese Apá Number | LOW-000-0106-48 |
| Igbohunsafẹfẹ | 200 kHz |
| Igun tan ina | 20° |
| Sensọ | Sensọ iwọn otutu |
| USB Ipari | 20 ẹsẹ |
| Asopọmọra Iru | Uni-plug |
Atilẹyin ọja
This Lowrance product is covered by a manufacturer's warranty. For specific warranty terms, conditions, and registration information, please refer to the documentation included with your product or visit the official Lowrance webojula.
Atilẹyin
For additional support, technical assistance, or to explore other Lowrance products, please visit the official Lowrance store or contact their customer service directly.
