Hitachi R-W720FPND1X 638 L Side-by-Side Refrigerator User Manual

1. Alaye Aabo pataki

Please read this instruction manual thoroughly before operating your new Hitachi refrigerator. Keep this manual for future reference. Failure to follow these instructions may result in property damage, personal injury, or death.

• Aabo Itanna: Ensure the refrigerator is connected to a grounded power outlet. Do not use extension cords or adapters.
• Afẹfẹ: Maintain adequate space around the refrigerator for proper ventilation.
• Awọn ohun elo ina: Ma ṣe tọju awọn nkan ibẹjadi tabi awọn ohun elo ina si inu tabi nitosi firiji.
• Aabo ọmọde: Keep children away from the refrigerator, especially when the doors are open. Prevent children from playing with the controls.
• Gbigbe Ẹka naa: Always use proper lifting techniques and assistance when moving the refrigerator to prevent injury.

2. Ọja Ipariview ati Awọn ẹya ara ẹrọ

The Hitachi R-W720FPND1X is a 638-liter frost-free side-by-side refrigerator designed for efficient food storage. It features an Inverter Compressor for energy efficiency and reduced noise, along with a dual cooling system for uniform temperature distribution.

Awọn ẹya pataki:

• Agbara: 638 Liters, suitable for large families.
• Ọfẹ Frost: Automatic defrosting prevents ice build-up.
• Konpireso inverter: Provides precise cooling control, energy efficiency, and durability.
• Awọn selifu gilasi ti o ni lile: Spill-proof and capable of holding heavy items.
• Olufunni omi: Convenient access to chilled water.
• Ẹlẹda Ice Aifọwọyi: Ṣe agbejade yinyin laifọwọyi.
• Igbimọ Iṣakoso oni nọmba: Easy temperature adjustment and mode selection.
• Titiipa ọmọ: Ó ń dènà àwọn àyípadà tí a kò rò sí sí àwọn ètò.
• Ipo Ifipamọ Agbara: Ṣe iṣapeye agbara lilo.
• Large Vegetable Compartment with Moisture-Guard: Maintains optimal humidity for fresh produce.

Awọn Irinṣẹ Ọja:

Nọmba 2.1: Water Dispenser. This image shows a hand holding a glass under the water dispenser on the refrigerator door, ready to receive chilled water.

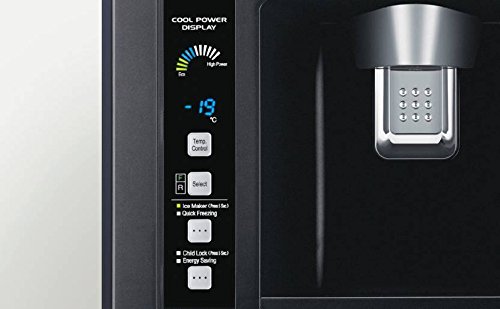

Nọmba 2.2: Digital Control Panel. This image displays the internal digital control panel with options for temperature control, ice maker, quick freezing, child lock, and energy saving mode, showing a temperature of -19°C.

Nọmba 2.3: Refrigerator Interior. This image shows the spacious interior of the refrigerator with both French doors open, displaying multiple shelves, door bins, and drawers organized with food items.

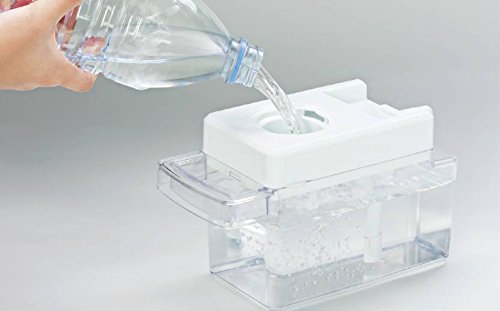

Nọmba 2.4: Filling Water Tank. This image illustrates the process of refilling the internal water tank, with a hand pouring water from a bottle into the designated reservoir.

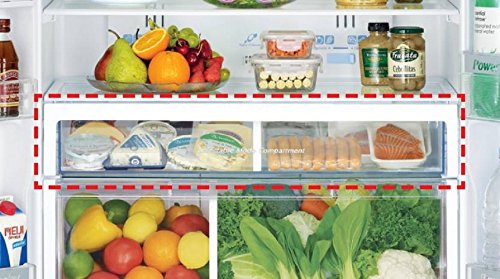

Nọmba 2.5: Chilled Compartment. This image highlights a specific chilled compartment or multi-purpose drawer within the refrigerator, suitable for storing items like cheese and deli meats.

3. Eto ati fifi sori

3.1 Ṣiṣii silẹ

• Yọ gbogbo awọn ohun elo apoti kuro, pẹlu teepu ati awọn fiimu aabo.
• Ṣayẹwo awọn firiji fun eyikeyi sowo bibajẹ. Jabọ eyikeyi ibaje lẹsẹkẹsẹ si alagbata rẹ.

3.2 Ibi

• Gbe awọn firiji lori kan duro, ipele pakà.
• Ensure adequate clearance (at least 10 cm) around the sides and back for proper air circulation.
• Avoid direct sunlight or heat sources (e.g., stoves, radiators).
• Iwọn otutu ayika yẹ ki o wa laarin 10°C ati 43°C.

3.3 Ipele ipele

• Adjust the leveling feet at the bottom front of the refrigerator to ensure it is stable and level.
• A slight tilt backward (about 2-3 degrees) helps the doors close properly.

3.4 Itanna Asopọ

• Plug the power cord into a dedicated, grounded 3-prong outlet.
• Ma ṣe lo ohun ti nmu badọgba tabi okun itẹsiwaju.

3.5 Water Supply (for Dispenser & Ice Maker)

• Fill the internal water tank as shown in Figure 2.4. Ensure the tank is securely placed.
• Fun lilo akọkọ, tu ọpọlọpọ awọn gilaasi omi lati fọ eto naa.

3.6 Isẹ ibẹrẹ

• After plugging in, allow the refrigerator to run for at least 4 hours before loading food. This allows the interior to reach the set temperature.

4. Awọn ilana Iṣiṣẹ

4.1 Digital Iṣakoso Panel

The digital control panel (Figure 2.2) allows you to adjust settings. Press the 'Temp Control' button to cycle through temperature options for the refrigerator and freezer compartments. Use the 'Select' button to confirm.

4.2 Eto iwọn otutu

• Iyẹwu Firiji: Recommended setting is typically 3°C to 5°C.
• Iyẹwu firisa: Recommended setting is typically -18°C to -20°C.

4.3 Ẹlẹda Ice Aifọwọyi

• Rii daju pe ojò omi ti kun.
• Activate the ice maker function via the digital control panel.
• The first batch of ice may take several hours to produce. Discard the first few batches of ice.

4.4 Omi Dispenser

• Place a glass under the dispenser nozzle.
• Press the dispenser lever to release chilled water.

4.5 Quick Freezing Mode

• Select 'Quick Freezing' on the control panel to rapidly freeze newly added items. This mode will automatically deactivate after a set period.

4.6 Agbara Nfi Ipo

• Activate 'Energy Saving' mode from the control panel to optimize power consumption, especially during periods of low usage or when away from home.

4.7 Ọmọ Titiipa

• Engage the 'Child Lock' feature on the control panel to prevent accidental changes to settings.

5. Itọju

5.1 Ninu ilohunsoke

• Igbohunsafẹfẹ: Clean regularly, or as needed.
• Ilana: Unplug the refrigerator. Remove all food items. Wash shelves, drawers, and interior surfaces with a mild detergent and warm water. Rinse and dry thoroughly.
• Akiyesi: Do not use abrasive cleaners, solvents, or hot water.

5.2 Ninu Ode

• Mu ese ita pẹlu asọ asọ dampened with mild detergent. Dry with a clean, soft cloth.
• Mọ awọn gasiketi ilẹkun nigbagbogbo lati rii daju idii ti o muna.

5.3 Omi ojò Cleaning

• Remove the water tank and wash it with mild soap and water. Rinse thoroughly to remove any soap residue.
• Clean the water dispenser nozzle with a small brush if necessary.

5.4 Defrosting

• This refrigerator is frost-free and automatically defrosts. Manual defrosting is not required.

5.5 Agbara okun Ayewo

• Máa ṣàyẹ̀wò okùn iná mànàmáná lẹ́ẹ̀kọ̀ọ̀kan fún ìbàjẹ́ èyíkéyìí. Tí ó bá bàjẹ́, kàn sí àwọn òṣìṣẹ́ iṣẹ́ tó péye fún àtúnṣe.

6. Laasigbotitusita

Ṣaaju ki o to kan si iṣẹ, jọwọ ṣayẹwo awọn ọran ti o wọpọ wọnyi:

If the problem persists after checking these points, please contact authorized Hitachi service personnel.

7. Awọn pato

8. Atilẹyin ọja ati Support

8.1 atilẹyin ọja Alaye

This Hitachi refrigerator comes with a Atilẹyin ọja kikun ọdun meji lori ọja naa ati a 5-odun atilẹyin ọja lori konpireso lati ọjọ ti o ra. Jọwọ ṣe idaduro iwe rira rẹ bi ẹri atilẹyin ọja.

The warranty covers manufacturing defects under normal use. It does not cover damage caused by improper installation, misuse, accidents, unauthorized repairs, or natural disasters.

8.2 Onibara Support

For technical assistance, service requests, or warranty claims, please contact Hitachi customer support. Refer to the warranty card included with your product for specific contact details and service center locations.

When contacting support, please have your model number (R-W720FPND1X) and purchase date readily available.
