Waring Commercial Heavy Duty Blender CB15TSF Instruction Manual

Ọrọ Iṣaaju

Ọja Pariview

The Waring Commercial Heavy Duty Blender CB15TSF is engineered for high-volume commercial kitchens, offering robust performance for a variety of blending tasks. Equipped with a powerful 3.75 HP motor, a 1-gallon stainless steel jar with a convenient spigot, and a variable speed timer, this blender ensures consistent and efficient results for smoothies, soups, sauces, and more.

Key Awọn ẹya ara ẹrọ

• Agbara: 3.75 HP commercial motor delivers professional-grade performance for high-volume blending.
• Agbara: 1-gallon stainless steel jar with spigot and handles provides efficient large-batch processing.
• Aago: 3-minute countdown feature with automatic shutoff allows efficient multitasking.
• Ikole: Heavy-duty design with stainless steel container, secure lid clamps, and removable cap for adding ingredients during operation.
• Iṣakoso Iyara Ayipada: Adjustable speeds ranging from 1,700 to 18,000 RPM for precise consistency control.

Alaye Aabo pataki

Please read all instructions carefully before operating the blender. Failure to follow these safety guidelines may result in injury or damage to the appliance.

• Yọọ alapọpo nigbagbogbo lati iṣan agbara ṣaaju ṣiṣe mimọ tabi nigbati o ko ba wa ni lilo.
• Ma ṣe fi omi mimọ sinu omi tabi awọn olomi miiran.
• Keep hands and utensils out of the container while blending to prevent serious injury.
• Rí i dájú pé ideri náà wà ní ipò tó dájú kí o tó lo ẹ̀rọ ìdàpọ̀ náà.
• Do not blend hot liquids without proper ventilation through the lid cap to prevent pressure buildup.
• Ohun elo yii kii ṣe ipinnu fun lilo nipasẹ awọn eniyan ti o dinku ti ara, imọlara, tabi awọn agbara ọpọlọ, tabi aini iriri ati imọ, ayafi ti wọn ba ti fun wọn ni abojuto tabi itọnisọna nipa lilo ohun elo nipasẹ eniyan ti o ni iduro fun aabo wọn.
• Yago fun olubasọrọ pẹlu gbigbe awọn ẹya ara.

Awọn eroja

The Waring Commercial Heavy Duty Blender CB15TSF includes the following main components:

• Ipilẹ Blender pẹlu Panel Iṣakoso
• 1-Gallon Stainless Steel Jar with Spigot and Handles
• Lid with Removable Cap

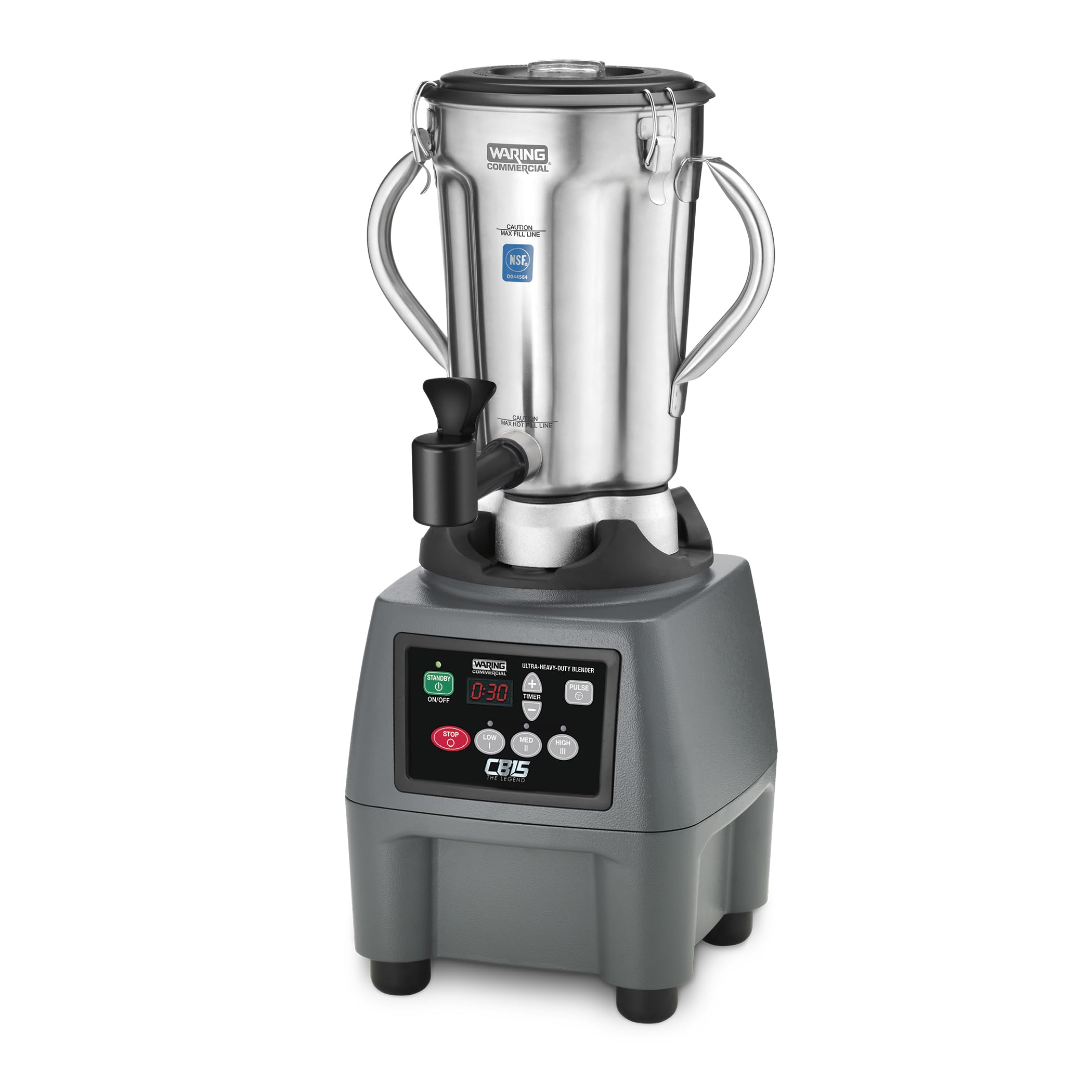

Figure 1: Waring Commercial Heavy Duty Blender CB15TSF with its main components.

Figure 2: Diagram showing the 1-gallon stainless steel container with spigot and the 3.75 HP motor base with touchpad controls.

Ṣeto

Ṣiṣi silẹ

1. Ni ifarabalẹ yọ gbogbo awọn paati kuro ninu apoti.
2. Inspect the blender for any signs of damage. If damaged, do not operate and contact customer support.
3. Gbe ipilẹ idapọmọra sori mimọ, gbẹ, ati dada iduroṣinṣin.

Apejọ

1. Ensure the blender base is unplugged from the power outlet.
2. Place the 1-gallon stainless steel jar onto the blender base, aligning it properly until it sits securely.
3. Place the lid onto the jar and ensure it is firmly seated. The removable cap can be inserted into the lid opening.

Awọn ilana Iṣiṣẹ

Ibi iwaju alabujutoview

Awọn bọtini iṣakoso naa ni o ni awọn bọtini ti o rọrun lati ṣiṣẹ:

• STANDBY (Green Button): Ṣe agbara kuro / pipa.
• STOP (Red Button): Stops any active blending cycle.
• LOW, MED, HIGH Buttons: Selects continuous blending speeds.
• Bọtini PULSE: Ó ń pèsè ìdàpọ̀ oníyára kíákíá fún gígé tàbí ìdàpọ̀ kíákíá.
• TIMER (+/- Buttons): Adjusts the countdown timer for automatic shutoff.

Figure 3: Close-up of the blender's control panel, showing Standby, Stop, Low, Med, High, Pulse buttons, and the 3-minute countdown timer.

Basic Blending

1. Add ingredients to the stainless steel jar. Do not overfill beyond the maximum fill line.
2. Securely place the lid on the jar and insert the lid cap.
3. Plug the blender into a suitable electrical outlet.
4. Tẹ awọn DURO DIE bọtini lati agbara lori kuro.
5. Select your desired speed by pressing the LỌWỌ, MED, tabi GIGA button. For quick bursts, press and hold the PULSE bọtini.
6. Once blending is complete, press the DURO button or allow the timer to complete its cycle.

Lilo Aago

The integrated 3-minute countdown timer allows for precise blending without constant monitoring.

1. After selecting a blending speed, use the +/- buttons next to the TIMER display to set the desired blending duration (up to 3 minutes).
2. The blender will operate for the set time and automatically shut off when the countdown reaches zero.

Dispensing with Spigot

The integrated spigot allows for easy and controlled dispensing of blended contents.

1. Ensure blending is complete and the motor has stopped.
2. Position a serving container under the spigot.
3. Open the spigot lever to dispense the contents. Close the lever when finished.

Itọju ati Cleaning

Ninu deede ati itọju yoo rii daju igbesi aye gigun ati iṣẹ ti o dara julọ ti idapọmọra rẹ.

Daily Cleaning

1. Yọọ idapọmọra nigbagbogbo ṣaaju ṣiṣe itọju.
2. Remove the jar and lid from the base.
3. Wash the stainless steel jar, lid, and lid cap with warm, soapy water. Rinse thoroughly and dry immediately. The jar is dishwasher safe.
4. Mu ese idapọmọra mimọ pẹlu ipolowoamp asọ. Maṣe fi ipilẹ sinu omi.

Jin Cleaning

For stubborn residue or odors:

1. Fill the jar halfway with warm water and a few drops of dish soap.
2. Secure the lid and place the jar on the base.
3. Run the blender on a medium speed for 30-60 seconds.
4. Empty the jar, rinse thoroughly, and dry.

Ibi ipamọ

Store the blender in a clean, dry place when not in use. Ensure all parts are dry before storing.

Laasigbotitusita

If you encounter issues with your blender, refer to the table below for common problems and solutions.

Awọn pato

Detailed technical specifications for the Waring Commercial Heavy Duty Blender CB15TSF:

• Brand: Ikilọ
• Awoṣe: CB15TSF
• Mọto: 3.75 HP Commercial
• Agbara: 1 Gallon (Stainless Steel Jar)
• Awọn iyara: Variable (1,700 to 18,000 RPM), Low, Medium, High, Pulse
• Aago: 3-minute countdown with automatic shutoff
• Voltage: 120V
• Wattage: 1800W
• Ohun elo abẹfẹlẹ: Irin ti ko njepata
• Ìwọ̀n Nkan: 41.1 iwon
• Ailewu Apoti: Yes (Jar)

Figure 4: Waring Commercial Heavy Duty Blender CB15TSF with dimensions labeled: Width 15", Height 22.25", Depth 15".

Atilẹyin ọja ati Support

Your Waring Commercial Heavy Duty Blender CB15TSF comes with a limited 3-year warranty, covering defects in materials and workmanship under normal use.

For warranty claims, technical support, or replacement parts, please contact Waring Commercial customer service. You can find more information and contact details on the official Waring Commercial webojula.

Awọn fidio ọja

Watch these official product videos for additional information and demonstrations.
