1. Ifihan
This manual provides essential information for the proper installation, operation, and maintenance of your Geberit CleanLine20 Shower Channel Grille, model 154.450.00.1. This product is designed for draining floor-level showers and is suitable for installation in the room or on the wall, specifically for composite sealing and thin-bed mortar applications. Please read these instructions carefully before proceeding with installation or use.
Awọn ẹya pataki:
- Designed for floor-level showers.
- Suitable for installation in the room or on the wall.
- Compatible with composite sealing.
- Constructed from brushed stainless steel.
- Easy to clean design.
2. Eto ati fifi sori
The Geberit CleanLine20 shower channel grille is designed for precise integration into your shower area. Proper installation is crucial for optimal performance and longevity.

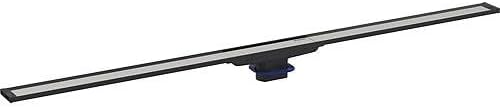

Figure 1: Geberit CleanLine20 Shower Channel Grille (Model 154.450.00.1)
This image displays the complete Geberit CleanLine20 shower channel grille, highlighting its linear design and brushed metal finish. The grille is 90 cm in length, suitable for various shower configurations.
Awọn igbesẹ fifi sori ẹrọ:
- Igbaradi: Ensure the subfloor is clean, level, and prepared for composite sealing. The shower channel requires a raw kit (not included) for initial setup.
- Ipo: The shower channel can be aligned in height, tilt, and offset to match the floor structure. It accommodates tile structures between 8-40 mm.
- Ìdàpọ̀: Install the shower channel within the thin-bed mortar, ensuring it is flush with the surrounding floor level. The inlet socket with a compensation ring assists in proper alignment.
- Ididi: Apply the composite seal around the channel according to manufacturer guidelines to ensure a watertight installation.
- Grille Placement: Once the base is secure and sealed, place the stainless steel grille into the channel. The comb insert and two pluggable end pieces (not included) complete the assembly.

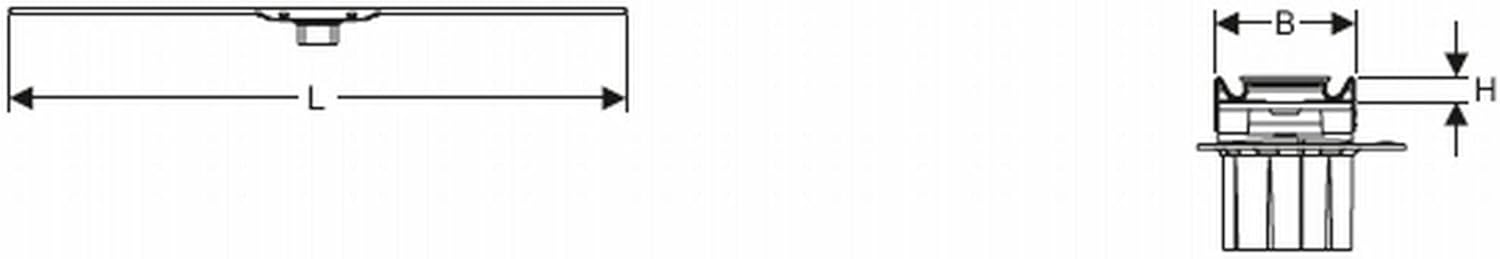

olusin 2: Agbelebu-apakan view illustrating dimensions and components.
Aworan yii pese alaye kan view of the shower channel's internal structure and key dimensions (L, B, H), which are critical for planning the installation. It shows how the grille integrates with the channel body and the underlying drainage system.
3. Awọn ilana Iṣiṣẹ
The Geberit CleanLine20 shower channel grille operates passively by allowing water to drain efficiently from your floor-level shower. Once installed correctly, it requires no active user interaction for its primary function.
- Ensure the grille is properly seated in the channel to prevent debris from entering the drain directly.
- The design facilitates water dissipation above the composite seal, directing water effectively into the drainage system.
4. Itọju
Regular cleaning of the Geberit CleanLine20 shower channel grille is essential to maintain optimal drainage performance and hygiene. The design allows for easy cleaning.
Awọn Igbesẹ mimọ:
- Yọ Grille: Carefully lift the stainless steel grille from the shower channel.
- Clean Comb Insert: Remove any hair or debris accumulated in the comb insert. Rinse it thoroughly under running water.
- Ikanni mimọ: Wipe down the inside of the shower channel to remove any residue. A mild, non-abrasive cleaner can be used if necessary. Avoid harsh chemicals that may damage the stainless steel or sealing materials.
- Rinse and Replace: Rinse all components with clean water and ensure they are free of cleaning agents. Carefully place the comb insert and then the grille back into the channel, ensuring it is properly seated.
5. Laasigbotitusita
If you encounter issues with your Geberit CleanLine20 shower channel, consider the following common problems and solutions:
- Ìṣàn omi lọra: This is typically caused by blockages. Follow the maintenance steps to remove the grille and clean the comb insert and channel thoroughly. Ensure no large debris has entered the main drain pipe.
- Awọn õrùn ti ko dara: Odors can indicate a dry trap or accumulated debris. Ensure the trap always contains water. Clean the channel and comb insert as per maintenance instructions.
- Omi n jo: If water is leaking around the channel, this indicates an installation issue with the composite sealing. This requires professional attention to re-evaluate and repair the sealing.
For persistent issues, it is recommended to contact a qualified plumber or Geberit customer support.
6. Awọn pato
| Iwa | Iye |
|---|---|
| Brand | Geberit |
| Nọmba awoṣe | 154.450.00.1 |
| Orukọ ọja | Grille CleanLine20 |
| Gigun | 90 cm |
| Ohun elo | Irin ti ko njepata |
| Pari Iru | Fẹlẹ |
| Ara | Igbalode |
| Iru fifi sori ẹrọ | Freestanding (for floor-level showers) |
| Tile Structure Floor Compatibility | 8-40 mm |
| Olupese Apá Number | 154.450.00.1 |
7. atilẹyin ọja Information
Specific warranty details for the Geberit CleanLine20 Shower Channel Grille are typically provided with your purchase documentation or can be found on the official Geberit website. Please retain your proof of purchase for any warranty claims. Geberit products are manufactured to high-quality standards and are subject to quality control according to EN 1253-3.
8. Onibara Support
For further assistance, technical support, or inquiries regarding your Geberit CleanLine20 Shower Channel Grille, please contact Geberit customer service or visit their official website. Contact information can usually be found on the product packaging or the manufacturer's webojula.
