Roca AV0022400R Float Valve for Concealed Cisterns

1. Ifihan

This manual provides comprehensive instructions for the installation, operation, and maintenance of the Roca AV0022400R float valve. This component is specifically designed for use in Roca and Gala concealed cisterns, ensuring efficient and reliable water filling.

2. Alaye Aabo

Before proceeding with installation or maintenance, please refer to the official Safety Information PDF provided by the manufacturer for important safety guidelines and warnings. View Alaye Aabo (PDF)

3. Ọja Ipariview

The Roca AV0022400R is a high-quality float valve featuring a 12x17 side-feed connection. It is engineered to provide quick, quiet, and dependable water replenishment in compatible concealed cisterns, ensuring optimal performance of your toilet system.

olusin 1: A sunmọ-soke view of the Roca AV0022400R float valve, showing its white plastic body, brass threaded connection, and internal float mechanism.

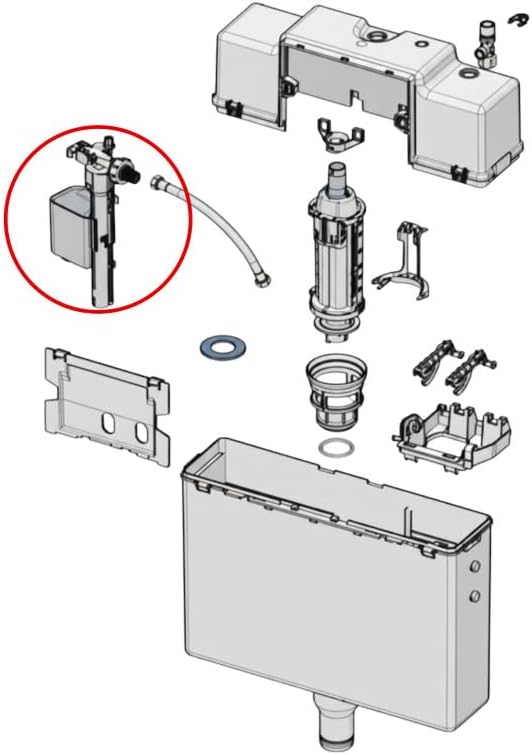

Figure 2: An exploded diagram illustrating the various components of a concealed toilet cistern, with the Roca AV0022400R float valve circled in red, indicating its position within the assembly for installation.

4. Awọn pato

5. fifi sori

Follow these steps for proper installation of the Roca AV0022400R float valve:

1. Pa Ipese Omi: Locate the main water shut-off valve for your toilet or the entire household and turn it off.
2. Empty the Cistern: Flush the toilet to drain the water from the cistern. If necessary, use a sponge to remove any remaining water.
3. Remove Old Valve (if replacing): Disconnect the water supply line from the old float valve. Unscrew any retaining nuts or clips holding the old valve in place and carefully remove it from the cistern.
4. Position New Valve: Insert the new Roca AV0022400R float valve into the designated opening in the cistern, ensuring the side feed connection is correctly oriented. Refer to Figure 2 for visual guidance.
5. Secure and Connect: Secure the valve with any provided retaining nuts or washers, ensuring a snug fit. Connect the 12x17 lateral water supply line to the valve's inlet. Hand-tighten first, then use a wrench for a final quarter-turn, being careful not to overtighten.
6. Mu Ipese Omi pada: Slowly turn the main water supply back on. Check all connections for leaks.
7. Ṣatunṣe Ipele Omi: Allow the cistern to fill. If the water level is not at the desired height, adjust the float mechanism on the valve according to the manufacturer's instructions (usually by rotating a screw or sliding a clip on the float arm).

6. Isẹ

The float valve operates by sensing the water level within the cistern. When the toilet is flushed, the water level drops, causing the float to descend. This action opens the valve, allowing fresh water to flow into the cistern. As the cistern refills, the float rises with the water level. Once the preset water level is reached, the float mechanism closes the valve, stopping the water flow. This precise mechanism ensures a rapid, silent, and reliable refill cycle, maintaining the correct water volume for efficient flushing.

7. Itọju

To ensure the longevity and optimal performance of your Roca AV0022400R float valve, periodic maintenance is recommended:

• Ayẹwo igbagbogbo: Periodically inspect the float valve for any visible signs of wear, damage, or mineral deposits (limescale).
• Ninu: If mineral buildup or debris is observed, turn off the water supply and carefully clean the valve components. Use a soft brush and a mild, non-abrasive cleaning solution suitable for plumbing fixtures.
• Ìṣíkiri léfòó: Ensure that the float moves freely along its arm and is not obstructed by any part of the cistern or other components.
• Ṣayẹwo edidi: Inspect the valve's internal seal for wear or damage. A worn seal can lead to continuous water running.

Akiyesi: Information regarding the availability of individual spare parts for this specific model is currently unavailable.

8. Laasigbotitusita

If you encounter issues with your float valve, consider the following troubleshooting steps:

• Slow Filling:
  • Check the water supply pressure to your toilet.
  • Ensure the valve inlet is not obstructed by debris or mineral buildup. Turn off the water and inspect the inlet screen.
• Omi Nṣiṣẹ Tesiwaju:
  • Inspect the float for obstruction or damage. Ensure the float arm is correctly positioned and not catching on any part of the cistern.
  • Check if the valve seal is worn, dirty, or improperly seated, preventing a complete shut-off. Cleaning or replacing the seal may resolve the issue.
• No Filling:
  • Verify that the water supply to the toilet is turned on.
  • Check for a complete blockage at the valve inlet.

9. Atilẹyin ọja ati Support

For detailed warranty information or technical support regarding your Roca AV0022400R float valve, please contact Roca customer service directly or refer to the official Roca webojula. Tọju iwe-ẹri rira rẹ bi ẹri rira.

Akiyesi: Information regarding the availability of individual spare parts for this specific model is currently unavailable.
