Legrand 067001 Céliane VMC Switch Instruction Manual

1. Ifihan

This instruction manual provides essential information for the safe installation, operation, and maintenance of the Legrand 067001 Céliane VMC Switch. This device is designed for controlling Ventilation Mécanique Contrôlée (VMC) systems, operating at 230V with a 10AX current rating.

2. Alaye Aabo

WARNING: Risk of electric shock. Installation and maintenance should only be performed by a qualified electrician in accordance with national and local electrical codes.

• Always disconnect power at the main circuit breaker before installing or servicing the switch.
• Rii daju pe gbogbo awọn asopọ wa ni aabo ati idabobo daradara.
• Má ṣe lo ìyípadà náà pẹ̀lú ọwọ́ tó tutu tàbí ní damp awọn ipo.
• This product is designed for indoor use only (IP20 rating).
• Maa ko koja volum pàtótagìwọ̀n e (230V) tàbí ìwọ̀n lọ́wọ́lọ́wọ́ (10A).

3. Package Awọn akoonu

• 1 x Legrand 067001 Céliane VMC Switch Module

Note: Faceplate and mounting frame are typically sold separately and are required for complete installation.

4. Eto ati fifi sori

The Legrand 067001 switch is designed for wall or surface mounting. Proper installation is crucial for safety and functionality.

1. Ge asopọ agbara: Before beginning any installation, ensure the main power supply to the circuit is turned off at the circuit breaker. Verify with a voltage idanwo.
2. Iṣagbesori: Install the switch module into a compatible mounting box or frame (not included). This switch supports wall or surface mounting configurations.
3. Awọn isopọ onirin:
   • Identify the Line (L) and Neutral (N) wires from your electrical supply.
   • Connect the electrical wires to the corresponding terminals on the switch module. The connection type is crimping. Ensure a secure and tight connection for each wire.
   • Refer to the wiring diagram provided with your VMC system or consult a qualified electrician for specific connection requirements.
4. Ṣe aabo Module naa: Once wired, secure the switch module within its mounting frame or box.
5. Fi sori ẹrọ Faceplate: Attach the decorative faceplate (not included) over the switch module.
6. Pada Agbara pada: Once installation is complete and all components are securely in place, restore power at the main circuit breaker.

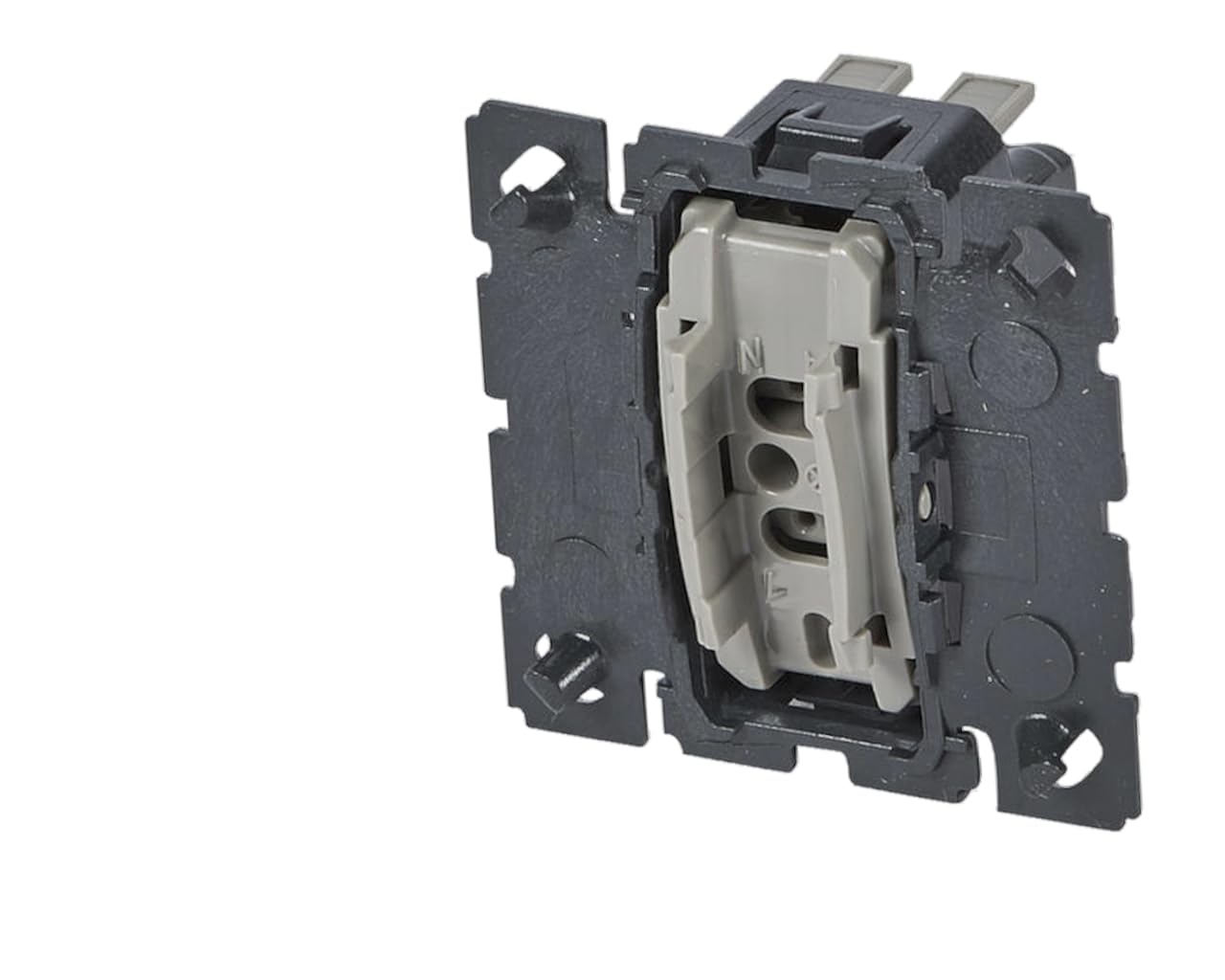

Image: Legrand 067001 Céliane VMC Switch module. This image displays the grey plastic housing, the internal mechanism, and the terminals for electrical connections, including 'N' for Neutral and 'L' for Line, indicating its wiring points.

5. Awọn ilana Iṣiṣẹ

The Legrand 067001 is a push-button type switch with an ON-OFF operating mode, designed for controlling VMC systems. It features a call button with a luminous indicator.

• Titan/Pa: Press the push-button to toggle the connected VMC system between ON and OFF states.
• Luminous Indicator: The integrated luminous indicator provides visual feedback on the switch's status or can be used as a call button depending on the specific VMC system configuration.

6. Itọju

The Legrand 067001 VMC Switch requires minimal maintenance.

• Ninu: To clean the switch, gently wipe the surface with a soft, dry cloth. Do not use abrasive cleaners, solvents, or excessive moisture, as this can damage the switch or create an electrical hazard.
• Ayewo: Periodically inspect the switch for any signs of damage, loose connections, or discoloration. If any issues are observed, disconnect power and consult a qualified electrician.

7. Laasigbotitusita

If the switch or connected VMC system is not functioning correctly, consider the following:

• Ko si Agbara: Check if the circuit breaker for the switch is tripped. Reset if necessary.
• Yipada Ko Dahun: Ensure all wiring connections are secure. Loose connections can prevent proper operation.
• Luminous Indicator Not Working: Verify the wiring for the indicator light is correctly connected according to your VMC system's specifications.
• Awọn oran ti o duro: If troubleshooting steps do not resolve the issue, disconnect power and contact a qualified electrician for further assistance. Do not attempt repairs yourself.

8. Awọn pato

9. Atilẹyin ọja ati Support

For warranty information and technical support, please refer to the documentation provided with your purchase or contact Legrand customer service directly. Warranty terms may vary based on region and retailer.

You can find more information on the official Legrand webojula: www.legrand.com
