Sunkko 788H LED Dual Pulse Spot Welder & Battery Charger User Manual

1. Awọn Ilana Aabo pataki

Read all safety warnings and instructions carefully before operating this device. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Ibi ti ina elekitiriki ti nwa: The Sunkko 788H requires a robust power supply. The rated current of the leakage protection switch should be over 60A. Use of this device with standard household circuits (typically 20A maximum) is not recommended and may cause circuit breakers to trip or damage to the electrical system.
• Afẹfẹ: Operate the welder in a well-ventilated area to prevent overheating and accumulation of fumes.
• Idaabobo Oju: Always wear appropriate eye protection (e.g., welding goggles or face shield) to protect against sparks and intense light.
• Aabo Itanna: Ma ṣe ṣiṣẹ ẹrọ naa pẹlu ọwọ tutu tabi ni damp conditions. Ensure all connections are secure before powering on.
• Electrode Handling: Electrodes can become hot during operation. Allow them to cool before handling or adjusting.
• Awọn ọmọde ati awọn ohun ọsin: Jeki ẹrọ naa kuro ni arọwọto awọn ọmọde ati awọn ohun ọsin.
• Lilo daradara: Use the device only for its intended purpose of spot welding and battery charging/testing.

2. Package Awọn akoonu

Daju pe gbogbo awọn ohun ti a ṣe akojọ rẹ si isalẹ wa ninu package rẹ. Ti awọn ohun kan ba nsọnu tabi bajẹ, jọwọ kan si olupese rẹ.

Aworan: Pariview of the Sunkko 788H spot welder and its standard included parts.

1. Sunkko 788H Spot Welder Unit (1 set)
2. Ilana olumulo (1 pc)
3. Hex Wrench (1 pc)
4. Fuse Tube (2 pcs)
5. Welding Pins (2 pairs)
6. Charging Wires (2 pcs)
7. Fixture for 6 Batteries (1 pc)
8. Nickel Sample Strips (100 pcs)
9. Foot Pedal Switch (1 pc)
10. Okun Agbara (1 pc)

3. Ọja Ipariview

The Sunkko 788H is a versatile dual-pulse spot welder and battery charger designed for assembling battery packs, particularly 18650 cells, and for general spot welding applications. It features precise microcomputer control for welding parameters and an adjustable charging function.

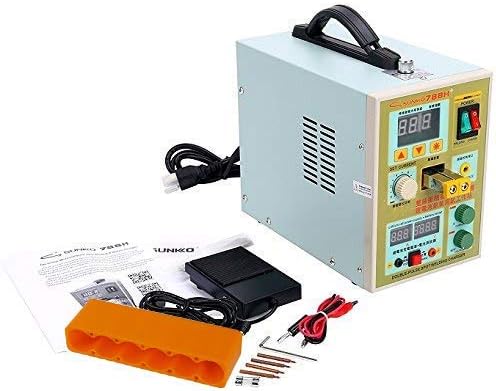

Image: The Sunkko 788H LED Dual Pulse Spot Welder and its accessories.

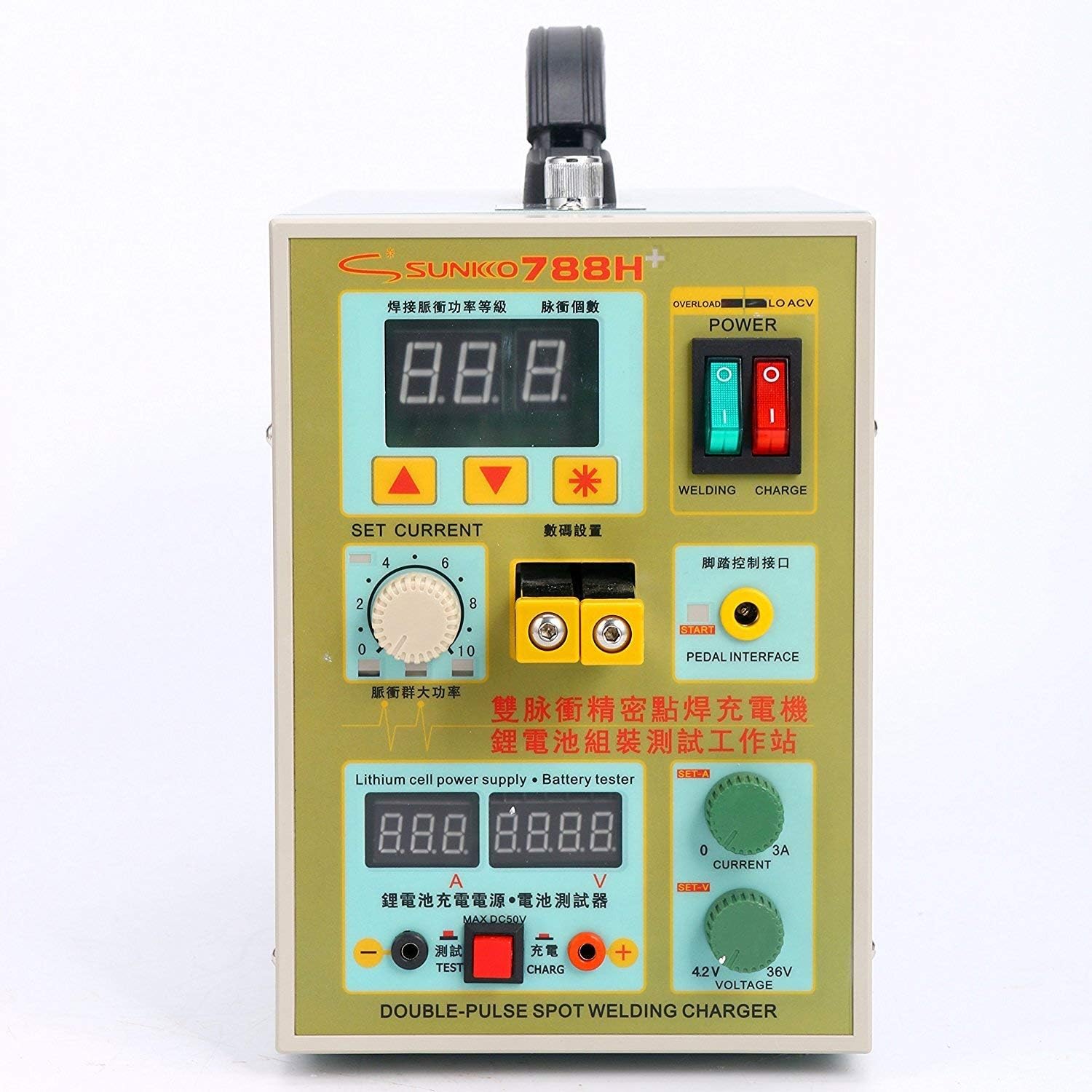

Image: Close-up of the Sunkko 788H front control panel, showing displays and adjustment knobs.

Awọn ẹya pataki:

• Microcomputer controlled dual-pulse spot welding.
• Adjustable welding current (50-800A) and pulse time (1ms-19ms).
• Integrated battery charger with adjustable voltage (4.2-36V) and current (0-3A).
• Battery testing function to measure voltage.
• Foot pedal for precise welding control.
• Adjustable welding pressure knob for consistent welds.

4. Eto

Follow these steps to set up your Sunkko 788H unit before first use.

1. Ṣii silẹ: Ni ifarabalẹ yọ gbogbo awọn paati kuro ninu apoti. Ṣe idaduro apoti fun ibi ipamọ iwaju tabi gbigbe.
2. Ibi: Place the unit on a stable, flat, and non-flammable surface in a well-ventilated area. Ensure there is adequate space around the unit for air circulation.
3. Asopọ agbara: Connect the power cable to the unit and then to a suitable 110V AC, 60Hz power outlet. Ensure the circuit can handle the required current (over 60A recommended).

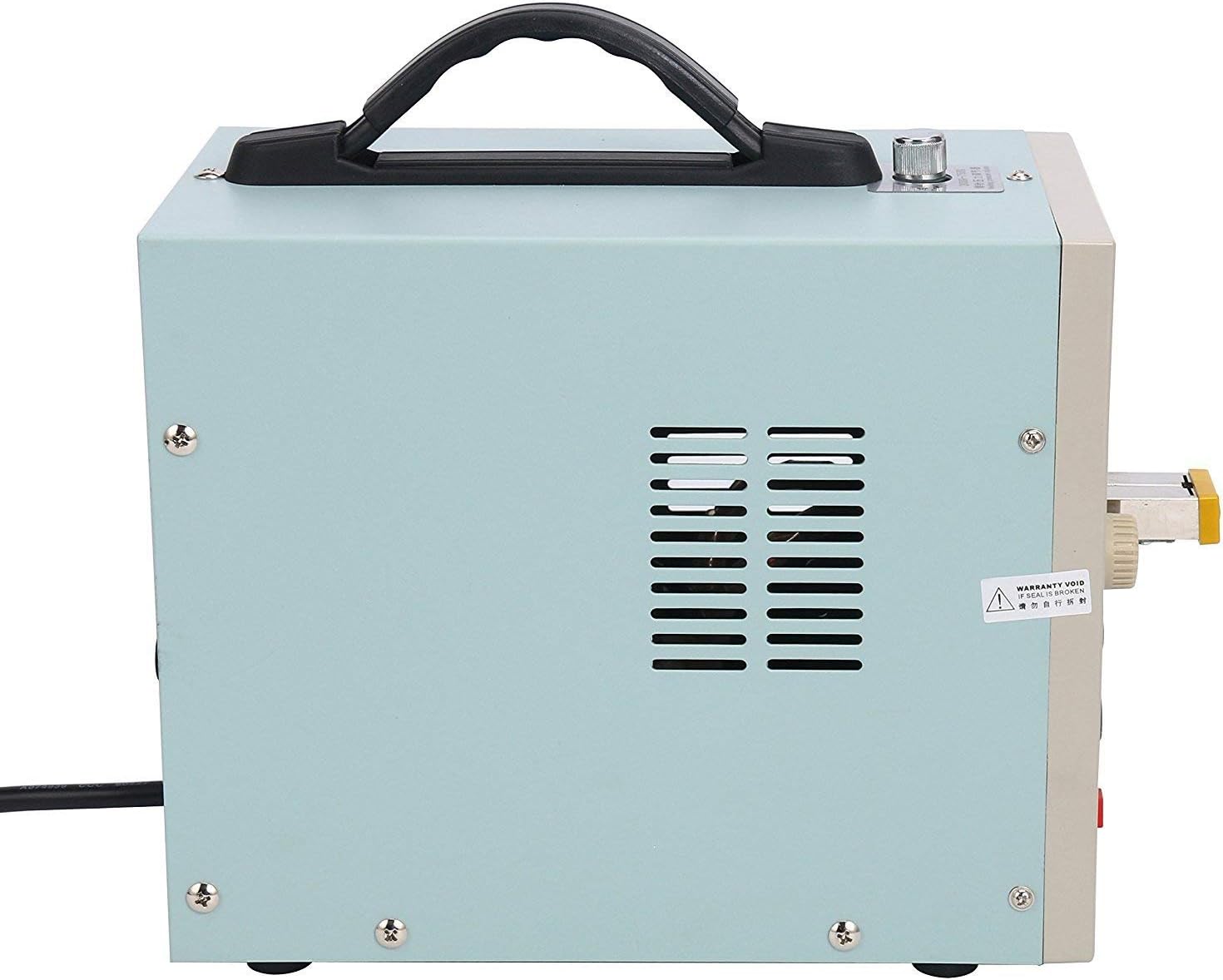

   Aworan: Apa view of the Sunkko 788H, showing ventilation and power input location.

4. Install Welding Pins: Insert the welding pins into the designated slots on the front of the unit. Secure them firmly using the provided hex wrench. Ensure the tips are aligned and clean.


   Image: Close-up of the welding terminals on the Sunkko 788H, where welding pins are inserted.
5. So Ẹsẹ Pẹdalu: Plug the foot pedal switch into the 'PEDAL INTERFACE' port on the front panel.
6. Adjust Welding Pressure: Use the knob on top of the unit to adjust the welding pressure. This knob controls the force applied by the welding pins. A typical range is 300g-750g. Adjust based on material thickness and desired weld quality.


   Image: Close-up of the welding pressure adjustment knob located on the top of the Sunkko 788H unit.

5. Awọn ilana Iṣiṣẹ

5.1 Spot Welding Function

The 788H offers precise control over welding parameters for various materials, primarily nickel strips for battery pack assembly.

1. Agbara Tan: Flip the 'POWER' switch to the ON position. The display will illuminate.
2. Yan Ipo Alurinmorin: Ensure the 'WELDING / CHARGE' switch is set to 'WELDING'.
3. Ṣètò Ìsinsìnyí: Use the 'SET CURRENT' knob to adjust the welding current. The display shows the current level (e.g., 0-99). Start with lower settings and increase gradually. For 0.1-0.2mm nickel strips, typical settings range from 50-800A.
4. Set Pulse Mode: The unit supports single or dual pulse welding. Adjust the pulse setting based on the material thickness and desired weld strength. Dual pulse is generally recommended for stronger, more consistent welds.
5. Mura Awọn ohun elo: Clean the surfaces to be welded. Place the nickel strip over the battery terminal or other material.
6. Position Electrodes: Carefully position the welding pins onto the nickel strip, ensuring both pins make firm contact with the strip and the underlying material.
7. Bẹ̀rẹ̀ ìṣẹ́po: Press the foot pedal to initiate the weld. The unit will deliver the set pulse(s).
8. Ṣayẹwo Weld: After welding, inspect the joint for strength and appearance. Adjust current and pulse settings as needed. For pure nickel strips, 0.1-0.15mm thickness is typically supported effectively.

5.2 Battery Charging Function

The 788H can also function as an adjustable battery charger.

1. Yan Ipo Gbigba agbara: Flip the 'WELDING / CHARGE' switch to 'CHARGE'.
2. Batiri Sopọ: Use the provided charging wires to connect the battery to the 'CHARGE' terminals (red for positive, black for negative).
3. Ṣeto Voltage: Use the 'VOLTAGE' knob to set the desired charging voltage (4.2V - 36V). Ensure this matches the battery's nominal voltage.
4. Ṣètò Ìsinsìnyí: Use the 'CURRENT' knob to set the desired charging current (0A - 3A). A common charging rate is 0.5C to 1C of the battery's capacity.
5. Abojuto gbigba agbara: Awọn àpapọ yoo fi awọn ti isiyi voltage and current. Monitor the charging process and disconnect the battery once fully charged to prevent overcharging.

Image: Close-up of the battery charging and testing terminals on the Sunkko 788H.

5.3 Battery Testing Function

The unit can also test the voltage of connected batteries.

1. Yan Ipo Idanwo: Ensure the 'WELDING / CHARGE' switch is set to 'CHARGE'.
2. Batiri Sopọ: Connect the battery to the 'TEST' terminals using the charging wires.
3. Ka Voltage: Awọn àpapọ yoo fi awọn ti isiyi voltage of the connected battery. This can be used to check the battery's state of charge or identify faulty cells.

6. Itọju

Regular maintenance ensures the longevity and optimal performance of your Sunkko 788H.

• Ninu: Jeki ẹyọ naa di mimọ ati ofe kuro ninu eruku ati idoti. Lo asọ ti o gbẹ, asọ fun mimọ. Maṣe lo awọn olutọpa olomi.
• Abojuto elekitirodu: Regularly inspect the welding pins for wear or carbon buildup. Clean or sharpen the tips as needed to ensure good contact and consistent welds. Replace worn-out pins promptly.
• Afẹfẹ: Rii daju pe awọn iho atẹgun lori ẹyọ naa ko ni idinamọ lati ṣe idiwọ igbona.
• Ibi ipamọ: When not in use, store the unit in a dry, cool place away from direct sunlight and moisture.

7. Laasigbotitusita

This section addresses common issues you might encounter with the Sunkko 788H.

8. Imọ ni pato

9. Atilẹyin ọja ati Support

Specific warranty information for the Sunkko 788H is not provided in the product details. For any warranty claims, technical support, or service inquiries, please contact the original seller or manufacturer directly. Retain your proof of purchase for any potential claims.
