smarTrike Swing Deluxe 650-0900 Tricycle Instruction Manual

Ọrọ Iṣaaju

Welcome to the smarTrike Swing Deluxe 650-0900 Tricycle instruction manual. This guide provides essential information for the safe assembly, operation, and maintenance of your new tricycle. Please read these instructions carefully before use and retain them for future reference. This tricycle is designed to grow with your child, offering multiple stages of use from 10 months up to 36 months.

Alaye Aabo

Your child's safety is paramount. Always ensure the tricycle is used under adult supervision. Adhere to the following safety guidelines:

• Ọjọ ori ati Awọn idiwọn iwuwo: Suitable for children aged 10 to 36 months. Maximum child weight is 17 kg (37 lbs).
• Ijanu Aabo: Always secure your child with the 3-point Y-belt harness.
• Safety Bar: Ensure the safety bar is properly engaged when in use.
• Awọn ibi ẹsẹ: Use the non-slip footrests or pedals appropriate for your child's stage.
• Aṣayan aṣọ ile: Utilize the extendable canopy for sun protection.
• Abojuto Agba: Never leave a child unattended on the tricycle.
• Apejọ: Ensure all parts are correctly assembled and securely fastened before each use.

Ọja Pariview ati Awọn ẹya ara ẹrọ

The smarTrike Swing Deluxe 650-0900 is a versatile tricycle designed for comfort and ease of use, adapting through various stagàwọn ìdàgbàsókè ọmọ rẹ.

Awọn ẹya pataki:

• Touch Steering: Patented touch steering technology allows for easy maneuverability with a light touch on the parent handle.
• Parent/Child Control Switch: A red button on the front wheel fender allows you to switch control between the parent and the child.
• Developmental Stages: Designed to support key developmental skills such as motor function, confidence, and curiosity.
• Awọn ẹya Aabo: Includes a 3-point Y-belt harness, extendable canopy, safety bar, and non-slip pedals.
• Ibi ipamọ to rọ: Features a storage basket for essentials.
• Gígùn Dára: Equipped with patented front wheel shock absorbers for a comfortable experience.

Image: The smarTrike Swing Deluxe 650-0900 Tricycle in its full configuration.

Awọn ilana Apejọ

The smarTrike Swing Deluxe 650-0900 is designed for easy, tool-free assembly. Follow these general steps to set up your tricycle. Refer to the detailed diagrams in the manufacturer's packaging for specific part identification.

1. Yọ awọn ohun elo kuro: Fara yọ gbogbo awọn ẹya kuro ninu apoti. Daju pe gbogbo awọn paati ti a ṣe akojọ si ninu atokọ iṣakojọpọ wa.
2. Attach Front Wheel Assembly: Secure the front wheel assembly to the main frame. Ensure it clicks into place.
3. Install Rear Wheels: Attach the two rear wheels to the axle until they are firmly seated.
4. Mount Seat Unit: Slide the seat unit onto the frame and lock it into position.
5. Insert Parent Handle: Insert the parent handle into the designated slot at the rear of the tricycle. Ensure it is securely locked.
6. So Ibori so: Connect the extendable canopy to the seat unit.
7. Attach Safety Bar and Footrests/Pedals: Install the safety bar and the appropriate footrests or pedals for your child's current stage.
8. Ṣayẹwo Ipari: Before first use, double-check all connections and locking mechanisms to ensure they are secure.

Image: Product dimensions, weight, and "No tools assembly" feature.

Image: Visual representation of the smarTrike Swing 3-in-1 Trike transforming from push trike to independent tricycle.

Awọn ilana Iṣiṣẹ

Parent Control Mode:

In parent control mode, the adult guides the tricycle using the parent handle. The patented touch steering allows for intuitive navigation with minimal effort.

• Itọnisọna: Gently touch the parent handle in the desired direction, and the tricycle will respond.
• Aabo: Ensure the child is securely fastened with the harness and the safety bar is in place.
• Awọn ibi ẹsẹ: For younger children, ensure their feet are placed on the footrests.

Image: A parent demonstrating the patented touch steering technology.

Image: A parent pushing a child in the smarTrike Swing Deluxe tricycle.

Switching Control (Parent/Child):

To transfer steering control between the parent and the child, locate the red button on the front wheel fender.

• To engage child control: Press the red button and rotate the front wheel fender 180 degrees. This unlocks the child's handlebars for steering.
• To engage parent control: Press the red button and rotate the front wheel fender back 180 degrees. This locks the child's handlebars, allowing the parent to steer.

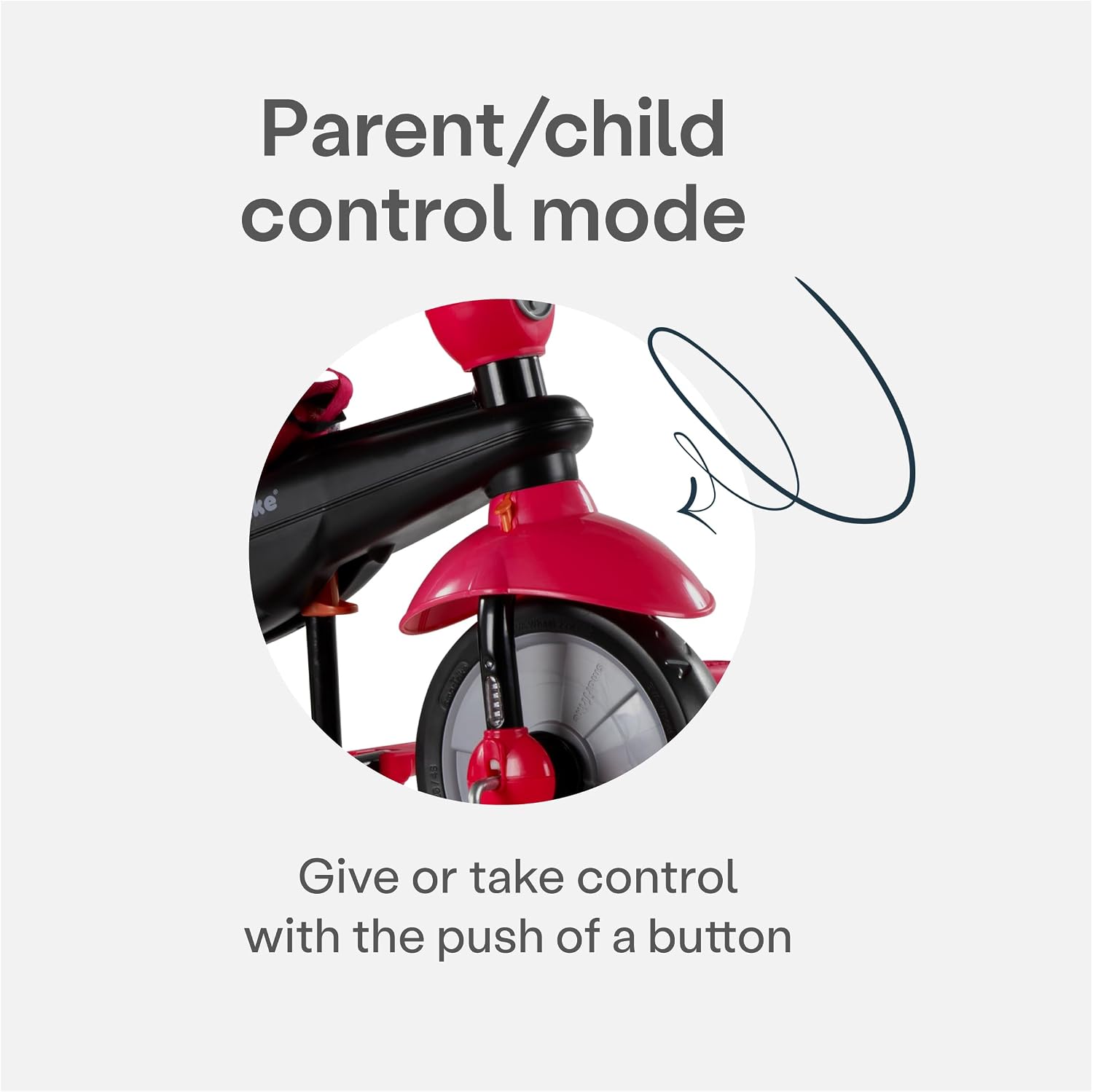

Image: Close-up of the red button on the front wheel fender for switching control modes.

Child Control Mode (Independent Tricycle):

As your child grows and develops, they can transition to independent pedaling and steering. Ensure the parent handle is removed or adjusted, and the child's pedals are engaged.

• Pedaling: Ensure the pedals are unlocked and the child can reach them comfortably.
• Itọnisọna: The child can now steer using the handlebars.
• Abojuto: Continue to supervise your child, especially during early stages of independent riding.

Itoju

Regular maintenance ensures the longevity and safe operation of your smarTrike Swing Deluxe 650-0900 Tricycle.

• Ninu: Wipe down the tricycle with a damp asọ ati ìwọnba ọṣẹ. Yẹra fun awọn kẹmika lile.
• Ayewo: Periodically check all screws, bolts, and locking mechanisms to ensure they are tight and secure.
• Awọn kẹkẹ: Inspect wheels for wear and tear. Ensure they spin freely.
• Ibi ipamọ: Store the tricycle in a dry, cool place away from direct sunlight when not in use.
• Awọn Ẹya Aṣọ: The canopy and seat fabric can be spot cleaned. Refer to care labels if available.

Laasigbotitusita

If you encounter any issues with your smarTrike Swing Deluxe 650-0900, please refer to the following common solutions:

• Ìṣòro Ìtọ́sọ́nà: Ensure the parent handle is correctly inserted and locked. Check the parent/child control button on the front wheel to ensure it's in the desired mode.
• Awọn ẹya alaimuṣinṣin: Nigbagbogbo ṣayẹwo ati Mu gbogbo awọn skru ati awọn boluti.
• Pedals Not Engaging: Verify that the pedal mechanism is correctly engaged for child control mode.
• Ìrìn Àjò Àìdúróṣinṣin: Ensure all wheels are securely attached and the frame is properly assembled.

Ti awọn iṣoro ba wa, jọwọ kan si atilẹyin alabara.

Awọn pato

Image: Detailed product specifications including height, width, weight, and maximum child weight.

Atilẹyin ọja ati Support

Your smarTrike Swing Deluxe 650-0900 Tricycle comes with a manufacturer's warranty. Please refer to the warranty information provided with your purchase for specific terms and conditions.

For technical support, replacement parts, or any inquiries not covered in this manual, please contact the manufacturer or the seller, "The Original smarTrike".

Ibi iwifunni: Refer to your product packaging or the official smarTrike webAaye fun awọn alaye olubasọrọ atilẹyin tuntun julọ.
