1. Ifihan ati Loriview
The Xiaomi Mi Air Purifier 2S AC-M4-AA is designed to improve indoor air quality by efficiently filtering out pollutants. This intelligent air purifier is suitable for rooms up to 37m² and features a Clean Air Delivery Rate (CADR) of 310m³ per hour. It offers smart connectivity for app control and integrates with voice assistants for convenient operation, providing real-time air quality monitoring via its OLED display.
2. Awọn ẹya Ọja
- European Version for compliance with regional standards.
- Smart air purifier with Wi-Fi connectivity and mobile app control (Mi Home app).
- Effective for rooms up to 37m² (approximately 398 sq ft).
- High air purification capacity of 310m³/h CADR.
- Integrated OLED display for real-time air quality (PM2.5), temperature, humidity, and filter status.
- Equipped with a high-efficiency HEPA filter for comprehensive air purification.
- Low noise operation, especially in Night Mode (as low as 32 dB).
- Voice control compatibility with supported smart home platforms.
3. Package Awọn akoonu
Jẹrisi pe gbogbo awọn ohun kan wa ninu package:
- Xiaomi Mi Air Purifier 2S (AC-M4-AA)
- Okun agbara
- Itọsọna olumulo
- HEPA Filter (pre-installed or separately packaged)
4. Awọn ilana aabo
To ensure safe operation and prevent damage, please read and follow these safety guidelines:
- Always unplug the air purifier before cleaning, maintenance, or moving it.
- Do not block the air inlet or outlet vents. Maintain at least 20 cm (8 inches) clearance from walls and other objects.
- Use only the power adapter provided with the device. Ensure the voltage ibaamu ti agbegbe rẹ ipese agbara.
- Do not operate the air purifier in wet or humid environments, such as bathrooms. Keep it away from water and other liquids.
- Ohun elo yii kii ṣe ipinnu fun lilo nipasẹ awọn eniyan (pẹlu awọn ọmọde) pẹlu idinku ti ara, imọlara tabi awọn agbara ọpọlọ, tabi aini iriri ati imọ, ayafi ti wọn ba ti fun wọn ni abojuto tabi itọnisọna nipa lilo ohun elo nipasẹ eniyan ti o ni iduro fun aabo wọn.
- Ma ṣe fi awọn ika ọwọ tabi awọn nkan ajeji si ẹnu-ọna afẹfẹ tabi iṣan.
- Do not use the air purifier near heat sources, flammable gases, or volatile substances.
- Ti okun agbara ba bajẹ, o gbọdọ paarọ rẹ nipasẹ olupese, aṣoju iṣẹ rẹ, tabi awọn eniyan ti o ni oye kanna lati yago fun ewu kan.
5. Eto
Follow these steps to set up your Xiaomi Mi Air Purifier 2S:
- Yọ Ẹrọ naa kuro: Carefully remove the air purifier from its packaging. Remove any protective films or tapes.
- Install/Check Filter: Open the filter compartment cover, usually located at the back or bottom of the unit. Ensure the HEPA filter is correctly seated and any plastic packaging around the filter is removed. Close the cover securely.
- Ipo Ohun-ìmọ́ náà: Place the air purifier on a flat, stable surface. Ensure there is at least 20 cm (8 inches) of clear space around all sides and above the unit for optimal air circulation.
- So agbara: Plug the power cable into the power port on the back of the purifier, then plug the other end into a suitable electrical outlet.
- Ṣe igbasilẹ ohun elo Mi Home: Scan the QR code in the manual or search for "Mi Home" in your smartphone's app store (Google Play Store or Apple App Store). Download and install the app.
- Sopọ si App: Open the Mi Home app, create an account or log in. Follow the in-app instructions to add your Xiaomi Mi Air Purifier 2S. This typically involves selecting the device, connecting to its temporary Wi-Fi hotspot, and then connecting it to your home Wi-Fi network (2.4GHz only).
Aworan: Iwaju view of the Xiaomi Mi Air Purifier 2S, showing the main body and the circular OLED display.
Aworan: Oke-isalẹ view of the Xiaomi Mi Air Purifier 2S, highlighting the fan grille and control buttons on the top surface.
6. Awọn ilana Iṣiṣẹ
Your air purifier can be operated via the physical buttons on the unit or through the Mi Home app.
6.1. Lilo Awọn bọtini Ti ara
- Bọtini agbara: Press the power button on the top of the unit to turn the air purifier on or off.
- Bọtini Ipo: Press the mode button (often integrated with the power button or a separate button) to cycle through operating modes: Automatic, Night, and Manual.
6.2. Using the Mi Home App
The Mi Home app provides comprehensive control and monitoring features:
- Isakoṣo latọna jijin: Turn the purifier on/off, change modes, and adjust fan speed from anywhere.
- Abojuto gidi-akoko: View current PM2.5 levels, temperature, and humidity in your room.
- Iṣeto: Set schedules for the purifier to turn on/off or change modes automatically.
- Ipo àlẹmọ: Monitor the remaining lifespan of your filter and receive notifications when it's time for replacement.
- Eto: Adjust display brightness, enable/disable sounds, and other device-specific settings.
6.3. Awọn ọna ṣiṣe
- Ipo Aifọwọyi: The purifier intelligently adjusts its fan speed based on the real-time air quality detected by its sensors.
- Ipo Alẹ: Operates at the lowest fan speed with minimal noise and a dimmed OLED display to ensure undisturbed sleep.
- Ipo afọwọṣe: Allows you to manually select a desired fan speed or purification intensity.
6.4. OLED Display Information
The circular OLED display provides key information at a glance:
- PM2.5 Ifojusi: Shows the current particulate matter level in µg/m³.
- Iwọn otutu: Displays the ambient room temperature.
- Ọriniinitutu: Shows the relative humidity level.
- Ipo Wi-Fi: Indicates connection status to your home network.
- Ipo Iṣiṣẹ: Shows the currently active purification mode.
- Àlẹmọ Igbesi aye: Displays the remaining percentage of the filter's life.
Image: The Xiaomi Mi Air Purifier 2S positioned in a modern living room, demonstrating its compact design and how it blends with home decor.
7. Itọju
Itọju deede ṣe idaniloju iṣẹ ṣiṣe ti o dara julọ ati ki o fa igbesi-aye igbesi aye ti purifier afẹfẹ rẹ.
7.1. Filter Rirọpo
The HEPA filter has a limited lifespan, typically 6-12 months, depending on usage and air quality. The Mi Home app and the OLED display will indicate when the filter needs replacement.
- Unplug the Purifier: Always disconnect the power before replacing the filter.
- Ṣí Àpò Àlẹ̀mọ́: Locate and open the filter compartment cover (usually at the back or bottom).
- Yọ Ajọ atijọ kuro: Carefully pull out the used filter. Dispose of it according to local regulations.
- Fi Ajọ Tuntun sii: Place a new, genuine Xiaomi HEPA filter into the compartment, ensuring it is correctly oriented and seated.
- Pade Ideri: Ni aabo pa ideri iyẹwu àlẹmọ naa.
- Reset Filter Lifespan: After replacement, open the Mi Home app and follow the prompts to reset the filter lifespan counter. This ensures accurate tracking of the new filter's usage.
Aworan: Ẹyin view of the Xiaomi Mi Air Purifier 2S, illustrating the location of the filter compartment cover for maintenance.
7.2. Cleaning the Purifier
- Ode Ninu: Wipe the exterior surfaces of the air purifier with a soft, dry cloth. Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish.
- Àwọn ibi ìgbóná afẹ́fẹ́/ìtajà: Use a soft brush or a vacuum cleaner with a brush attachment to gently clean dust and debris from the air inlet and outlet grilles.
- Laser Particle Sensor: Periodically clean the laser particle sensor, usually located on the back of the unit. Refer to the detailed manual or Mi Home app for specific instructions on how to access and clean this sensor, as it is crucial for accurate air quality readings.
8. Laasigbotitusita
Ti o ba ba pade awọn ọran pẹlu olutọpa afẹfẹ rẹ, tọka si awọn iṣoro ti o wọpọ ati awọn ojutu wọnyi:
| Isoro | Owun to le Fa | Ojutu |
|---|---|---|
| Ẹrọ naa ko ṣiṣẹ | Power cable not connected; Filter compartment not closed properly; Power outlet issue. | Ensure power cable is securely plugged in. Close the filter compartment cover completely. Test the power outlet with another device. |
| No Wi-Fi connection / App control not working | Incorrect Wi-Fi password; Router too far; 5GHz Wi-Fi network; App pairing issue. | Ensure your Wi-Fi network is 2.4GHz. Move the purifier closer to the router. Restart the purifier and your router. Follow the Mi Home app's re-pairing instructions. |
| Išẹ ìwẹnumọ ti ko dara | Filter lifespan expired; Air inlets/outlets blocked; Dirty laser particle sensor. | Check filter lifespan in the app and replace if necessary. Ensure no obstructions around the air inlets/outlets. Clean the laser particle sensor as per maintenance instructions. |
| Ariwo dani nigbati isẹ | Foreign object inside; Filter not seated correctly. | Unplug the device and check for any foreign objects. Ensure the filter is properly installed and secured. |
| OLED display not working or showing incorrect information | Temporary glitch; Sensor malfunction. | Try restarting the device by unplugging and plugging it back in. If the issue persists, contact customer support. |
9. Awọn pato
Detailed technical specifications for the Xiaomi Mi Air Purifier 2S AC-M4-AA:
| Sipesifikesonu | Iye |
|---|---|
| Nọmba awoṣe | AC-M4-AA |
| Awọn iwọn (L x W x H) | 24 x 24 x 52 cm (9.4 x 9.4 x 20.5 inches) |
| Iwọn | 4.5 kg (9.9 lbs) |
| Orisun agbara | Cable ina |
| Ti won won Agbara | 29 Wattis |
| Àlẹmọ Iru | HEPA |
| Agbegbe to wulo | Títí dé 37 m² (398 sq ft) |
| Ariwo Ipele | 32 Decibels (in Night Mode) |
| Iṣakoso Iru | Application and Physical Buttons |
| Pataki Awọn ẹya ara ẹrọ | Wi-Fi Connectivity, OLED Display |

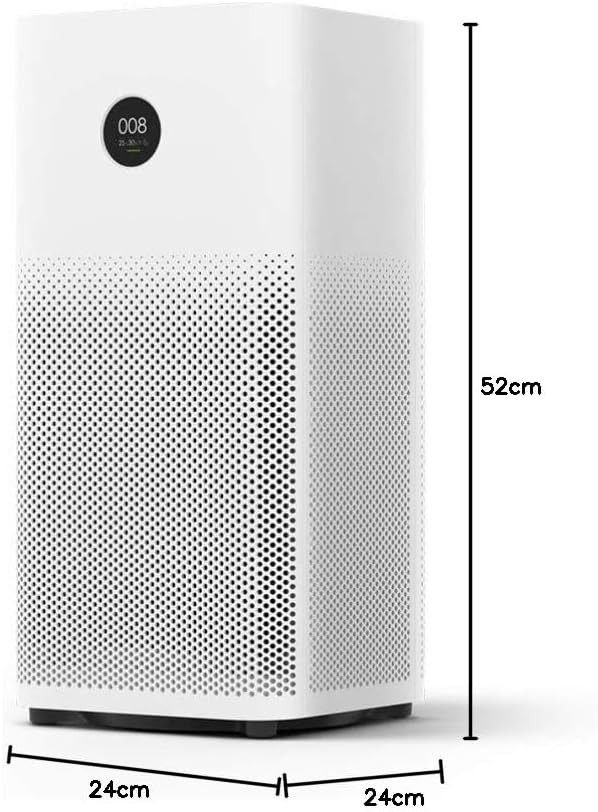

Image: Diagram illustrating the dimensions (height, width, depth) of the Xiaomi Mi Air Purifier 2S.
10. Atilẹyin ọja ati Support
For detailed warranty information, terms, and conditions, please refer to the warranty card included with your product or visit the official XIAOMI webojula. Tọju iwe-ẹri rira rẹ bi ẹri rira fun eyikeyi awọn ibeere atilẹyin ọja.
For technical support, service, or inquiries regarding your Xiaomi Mi Air Purifier 2S, please contact XIAOMI customer service or your local authorized retailer. Contact information can typically be found on the official XIAOMI webaaye tabi ninu iwe ọja rẹ.
