DreamSky DS312 Small Digital Alarm Clock User Manual

1. Ifihan

Thank you for choosing the DreamSky DS312 Small Digital Alarm Clock. This manual provides detailed instructions for setting up and operating your new alarm clock. Designed for clarity and ease of use, it features a large display, adjustable brightness, and convenient USB charging capabilities. Please read this manual thoroughly before use and retain it for future reference.

2. Package Awọn akoonu

• DreamSky DS312 Digital Itaniji Aago
• USB-C Power Adapter
• Itọsọna olumulo

3. Ọja Ipariview

The DreamSky DS312 features a sleek design with a large LED display for easy readability. Key controls are located on the back panel for intuitive operation.

Nọmba 1: Iwaju view of the DreamSky DS312 Digital Alarm Clock showing the large green time display.

Nọmba 2: Ẹyìn view of the alarm clock, highlighting the control buttons for time, alarm, volume, and dimmer settings, along with the USB power input and an additional USB charging port.

Control Buttons and Ports:

• Bọtini SINOOZE: Located on top, for temporary alarm pause.
• Bọ́tìnì ṢE ÀKÓKÒ: Tẹ mọlẹ lati tẹ ipo eto aago sii.
• Bọtini SET ALAMU: Tẹ mọlẹ lati tẹ ipo itaniji sii.
• Bọtini TAN/PA: Toggles alarm function.
• +/- Awọn bọtini: Adjust time, alarm, volume, and brightness settings.
• 12/24HR Button: Switches between 12-hour and 24-hour time display.
• LOW VOLUME/HIGH VOLUME Slider: Adjusts alarm sound level.
• LOW DIMMER/HIGH DIMMER Slider: Ṣe atunṣe imọlẹ ifihan.
• USB NI ibudo: Fun sisopọ ohun ti nmu badọgba agbara.
• USB OUT Port: Fun gbigba agbara awọn ẹrọ ita.
• Abala Batiri: For 2 x AAA backup batteries (not included).

4. Eto

4.1 Lilo Aago naa

The DreamSky DS312 is primarily powered by the included USB-C adapter. Connect the USB-C cable to the USB IN port on the back of the clock and plug the adapter into a standard electrical outlet.

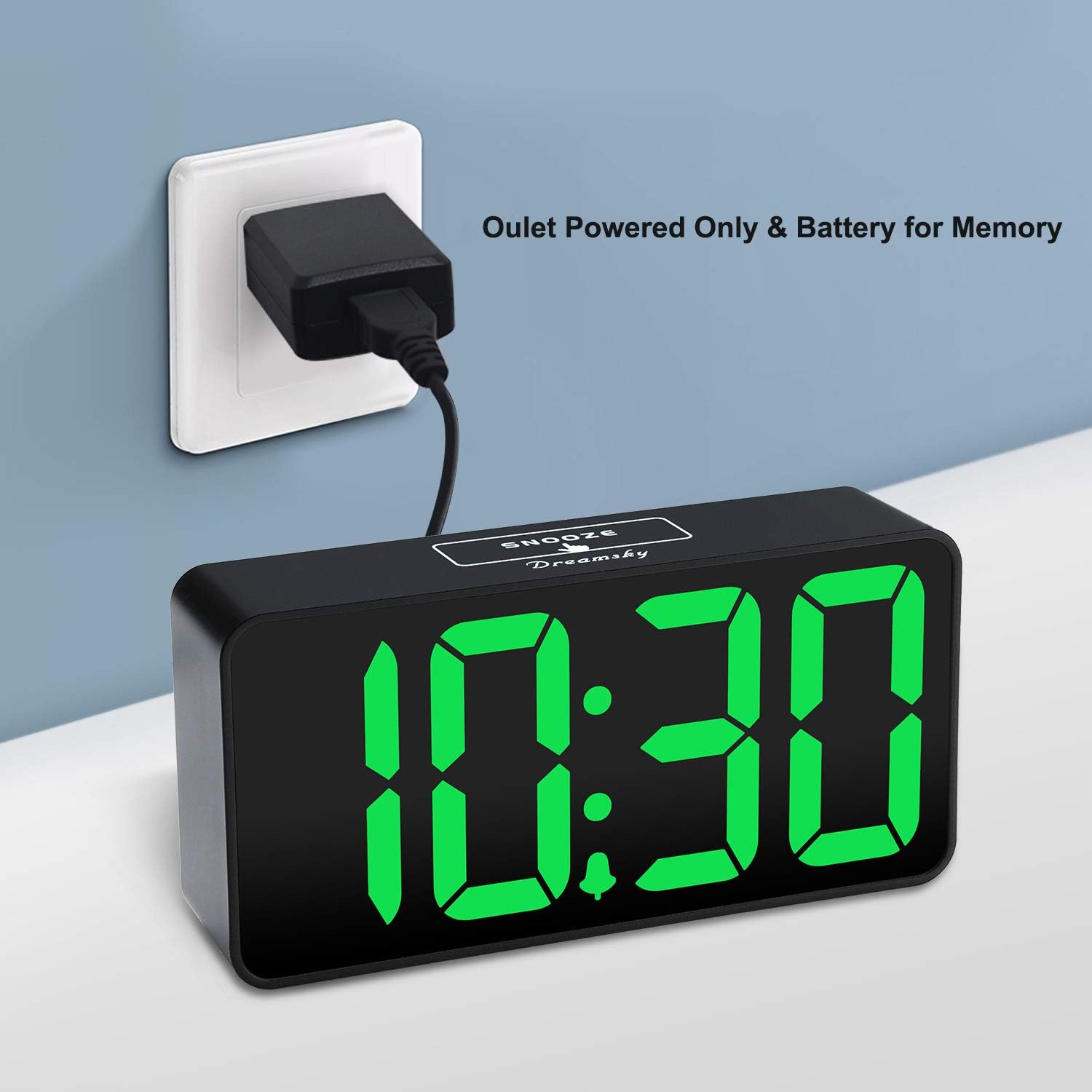

Nọmba 3: The alarm clock receiving power via its USB-C adapter plugged into a wall socket.

4.2 Afẹyinti Batiri (Iyan)

For memorizing time and alarm settings during a power outage, insert 2 x AAA batteries (not included) into the battery compartment on the back of the clock. Note that with battery power only, the screen will go blank and the alarm will not sound; batteries only retain settings until power is restored.

5. Awọn ilana Iṣiṣẹ

5.1 Ṣiṣeto Aago naa

1. Tẹ mọlẹ Akoko SET button for 2 seconds until the hour digits flash.
2. Lo awọn + or - awọn bọtini lati ṣatunṣe awọn wakati.
3. Tẹ Akoko SET lẹẹkansi lati jẹrisi wakati naa ki o si gbe si eto iṣẹju.
4. Lo awọn + or - awọn bọtini lati ṣatunṣe awọn iṣẹju.
5. Tẹ Akoko SET one more time to save the settings and exit.

5.2 Eto Itaniji

1. Tẹ mọlẹ ALAGBARA SET button for 2 seconds until the alarm hour digits flash.
2. Lo awọn + or - awọn bọtini lati ṣatunṣe aago itaniji.
3. Tẹ ALAGBARA SET again to confirm the alarm hour and move to alarm minute setting.
4. Lo awọn + or - awọn bọtini lati ṣatunṣe awọn iṣẹju itaniji.
5. Tẹ ALAGBARA SET one more time to save the alarm settings and exit.

5.3 Turning Alarm On/Off

Tẹ awọn TAN/PA button to activate or deactivate the alarm. An alarm icon will appear on the display when the alarm is active.

5.4 Siṣàtúnṣe Ifihan Imọlẹ

Lo awọn LOW DIMMER/HIGH DIMMER slider on the back of the clock to adjust the brightness of the LED display to your preference. This allows for optimal visibility during the day and minimal disturbance at night.

Nọmba 4: Illustration of the alarm clock's adjustable brightness dimmer, showing various display intensities from bright to completely off.

5.5 Ṣíṣe àtúnṣe iwọn didun itaniji

Lo awọn LOW VOLUME/HIGH VOLUME slider on the back of the clock to set the desired alarm sound level (30-90 dB). This ensures the alarm is neither too soft to wake you nor too loud to startle you.

Nọmba 5: The alarm clock displaying time with a graphic indicating adjustable alarm volume levels.

5.6 Using Snooze

Nigbati itaniji ba ndun, tẹ tobi ṢEGBE button on the top of the clock to temporarily pause the alarm for 9 minutes. The alarm will sound again after the snooze period.

5.7 12/24 Wakati kika

Tẹ awọn 12/24HR button to switch between 12-hour (with AM/PM indicator) and 24-hour time display formats.

5.8 Okun gbigba agbara USB

The clock includes a convenient USB OUT port on the back, allowing you to charge your smartphone or other small electronic devices directly from the clock, reducing the need for additional wall adapters.

Nọmba 6: A smartphone connected to the alarm clock's USB charging port, illustrating its charging capability.

6. Awọn ẹya ara ẹrọ

• Ifihan nla: 2-inch jumbo illuminated LED digits for easy visibility.
• Dimmer Imọlẹ: Adjustable display brightness to suit day or night viewawọn ayanfẹ.
• Ohun Itaniji Atunṣe: Alarm volume can be set from 30-90 dB.
• Iṣẹ́ lẹ́ẹ̀kọ̀ọ̀kan: 9-minute snooze duration.
• Ibudo Gbigba agbara USB: Conveniently charge your smartphone or other devices.
• Iṣiṣẹ Rọrun: Intuitive buttons for straightforward time and alarm setting.
• Batiri Afẹyinti: Retains time and alarm settings during power outages (requires 2 x AAA batteries, not included).

7. Laasigbotitusita

Q: Can this digital clock run on batteries alone?

A: No. Battery function only works to store the clock time and settings in the case of a main power outage. The adapter is required as the main power source for this alarm clock.

Q: How do you turn off the alarm once it wakes you up?

A: When the alarm goes off, you can press any button at the back of the clock to turn off the alarm.

Q: How long does the alarm stay on?

A: The alarm will last for 2 minutes then shut off automatically if not manually turned off or snoozed.

8. Awọn pato

9. Atilẹyin ọja ati Support

9.1 atilẹyin ọja Alaye

This DreamSky DS312 Digital Alarm Clock comes with a Limited Warranty. Please refer to the product packaging or contact customer support for specific warranty terms and conditions.

9.2 Onibara Support

For any questions, technical assistance, or warranty inquiries, please contact DreamSky Customer Support at: info@dreamsky4u.com
