1. Ifihan
This manual provides detailed instructions for the installation, operation, and maintenance of your FORTE BXF121001 Flex PVC Shower Screen. Please read this manual thoroughly before installation and keep it for future reference. This shower screen is designed for durability and practicality, featuring a flexible PVC structure and anti-limescale properties.
Image 1.1: FORTE BXF121001 Flex PVC Shower Screen (Closed)
Image 1.2: FORTE BXF121001 Flex PVC Shower Screen (Open)
2. Awọn ẹya Ọja
- Anti-Limescale Resin: Constructed from durable, UV-resistant PVC, ideal for space-saving and practical needs.
- Didara ti a fọwọsi: Conforms to CE standards, features shockproof panels, high corrosion resistance, and high stability.
- Itọju irọrun: Can be cleaned with any non-aggressive household cleaning product.
- Ohun elo Rọ: The PVC profile texture allows for installation in various shower structures.
- Made in Italy: This product is entirely manufactured in Italy, ensuring high-quality craftsmanship.
3. Awọn pato
| Sipesifikesonu | Ẹ̀kúnrẹ́rẹ́ |
|---|---|
| Nọmba awoṣe | BXF121001 |
| Brand | Forte |
| Ilekun Style | Bi-Agbo |
| Pari Iru | PVC |
| Awọn iwọn Ọja (D x W x H) | 5P x 100l x 185H centimeters (Adjustable width 100-80 cm) |
| Ohun elo | Polyvinyl kiloraidi (PVC) |
| Iru fifi sori ẹrọ | Sisun |
| Apẹrẹ | onigun merin |
| Iwọn Nkan | 9 kilo |
| Nọmba ti ilẹkun | 1 |
| Àwọ̀ | Funfun |
| Apejọ ti a beere | Bẹẹni |
| Apoju Awọn ẹya ara wiwa | ọdun meji 2 |
Image 3.1: Dimensions and Reversible Opening Feature
4. Package Awọn akoonu
Please check that all components are present and undamaged before beginning assembly.
- PVC Shower Screen Panels
- Awọn skru Irin alagbara, irin
- ABS Handle
- Awọn ilana Apejọ alaworan
- Iṣagbesori Profiles and Gaskets

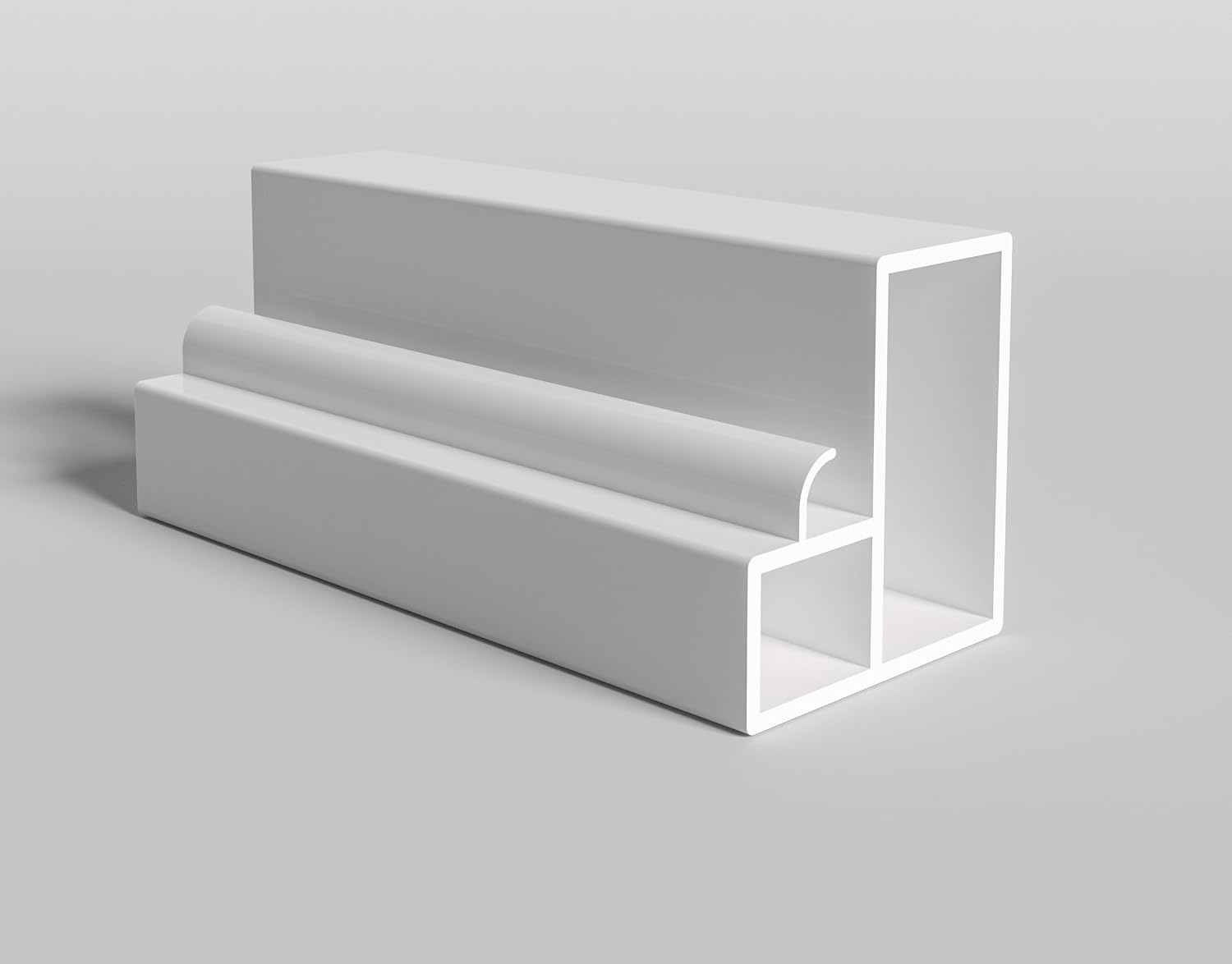

Aworan 4.1: Example of a PVC Profile Ẹya ara ẹrọ
5. Alaye Aabo
- Always wear appropriate safety gear, such as gloves and eye protection, during installation.
- Ensure the installation surface is clean, dry, and structurally sound.
- Do not overtighten screws, as this may damage the PVC material.
- Pa awọn ẹya kekere kuro ni arọwọto awọn ọmọde lati dena awọn eewu gbigbọn.
- If you are unsure about any step of the installation, consult a qualified professional.
6. Eto ati fifi sori
The FORTE BXF121001 shower screen is designed for straightforward assembly. Refer to the included illustrated assembly instructions for detailed, step-by-step guidance. Below are general steps and important considerations:
- Igbaradi: Unpack all components and verify against the package contents list. Ensure you have all necessary tools (e.g., drill, screwdriver, level, measuring tape).
- Iwọn ati Samisi: Carefully measure the desired installation area. The shower screen is adjustable in width from 100 cm down to 80 cm. Mark the positions for the wall profiles.
- Fi sori ẹrọ odi Profiles: Secure the vertical wall profiles to the wall using the provided stainless steel screws and appropriate wall plugs (not always included, check instructions). Ensure they are perfectly vertical using a spirit level.
- Ṣepọ Awọn Paneli: Connect the PVC panels according to the illustrated instructions. Pay attention to the orientation for the reversible opening feature.
- Attach Panels to Profiles: Carefully insert the assembled shower screen panels into the installed wall profiles.
- Fi sori ẹrọ Imudani: Attach the ABS handle to the designated panel.
- Awọn alafo edidi: Apply silicone sealant along the exterior joints between the wall profiles and the wall, and along the bottom edge of the shower screen where it meets the shower tray or floor, to ensure a watertight seal. Allow adequate drying time before use.
Note: The shower screen features a reversible opening, allowing it to be installed for left or right-hand opening depending on your bathroom layout.
7. Awọn ilana Iṣiṣẹ
The FORTE BXF121001 shower screen operates with a bi-fold mechanism, allowing it to fold inwards to save space when not in use.
- Nsii: Gently pull the ABS handle to unfold the panels outwards, creating an entry space into the shower area.
- Pipade: Push the panels inwards until they fully extend and meet, forming a complete enclosure for showering. Ensure the panels are properly aligned to prevent water leakage.
Image 7.1: ABS Handle Detail
8. Itọju
Regular cleaning and maintenance will ensure the longevity and optimal performance of your shower screen.
- Ninu: Clean the PVC panels and profiles regularly with a soft cloth and any non-aggressive household cleaning product. Avoid abrasive cleaners, scouring pads, or strong chemical solvents, as these can damage the PVC and anti-limescale coating.
- Ìdènà Limescale: The anti-limescale resin helps reduce buildup. For best results, wipe down the panels after each use to minimize water spots and limescale accumulation.
- Hinge and Runner Check: Periodically check the hinges and runners for smooth operation. If they become stiff, clean them and apply a small amount of silicone-based lubricant if necessary (avoid oil-based lubricants).
- Iduroṣinṣin Di: Inspect the silicone seals around the shower screen periodically. If any seals show signs of wear, cracking, or mold, they should be cleaned or replaced to prevent leaks.
9. Laasigbotitusita
| Isoro | Owun to le Fa | Ojutu |
|---|---|---|
| Water leakage from the bottom or sides. | Improper sealing during installation; worn or damaged seals; incorrect panel alignment. | Check silicone seals and reapply if necessary. Ensure panels are fully closed and aligned. Inspect bottom gaskets for damage. |
| Shower screen panels are stiff or difficult to open/close. | Accumulation of dirt or limescale in hinges/runners; misaligned panels. | Clean hinges and runners thoroughly. Apply a silicone-based lubricant. Check for proper panel alignment. |
| Panels do not close completely. | Obstruction; misaligned wall profiles; damaged panel. | Check for any objects blocking the panels. Verify wall profile alignment. Inspect panels for damage. |
10. Atilẹyin ọja ati Support
Your FORTE BXF121001 Flex PVC Shower Screen comes with a 2-odun atilẹyin ọja on spare parts availability from the date of purchase.
For technical assistance, spare parts, or warranty claims, please contact your retailer or the manufacturer directly. Ensure you have your proof of purchase and model number (BXF121001) ready when contacting support.
Manufacturer: Forte
Orilẹ-ede ti Oti: Italia
