Ìwé Ìtọ́ni fún Ìdìmú Bátírì NW 2xAA

1. Ifihan

This manual provides essential instructions for the safe and effective use of your NW 2xAA Battery Holder. This product is designed to securely hold two AA batteries, providing a reliable power source for various electronic projects and devices. Please read this manual thoroughly before use and retain it for future reference.

2. Ọja Ipariview

The NW 2xAA Battery Holder is a compact and durable case made from ABS plastic, designed to house two 1.5V AA batteries in series, providing a total output of 3V. It features pre-attached red and black wires for easy connection to your circuit.

Nọmba 1: A package of twelve NW 2xAA Battery Holders. Each holder is black with red and black wires extending from one end.

3. Eto ati fifi sori

3.1 Fi sii awọn batiri

1. Identify the positive (+) and negative (-) terminals inside the battery holder. These are typically marked or indicated by the spring (negative) and flat contact (positive).
2. Insert the first AA battery, ensuring its positive (+) end aligns with the positive (+) contact in the holder and its negative (-) end aligns with the spring.
3. Insert the second AA battery, following the same polarity guidelines. The batteries are connected in series within the holder.

Nọmba 2: Ti abẹnu view of the battery holder showing the metal springs for negative terminals and flat contacts for positive terminals. The markings '1.5V AA' are visible.

3.2 Nsopọ Awọn okun

• The battery holder comes with two pre-attached wires: a red wire and a black wire.
• Awọn okun waya pupa is the positive (+) output terminal.
• Awọn okun waya dudu is the negative (-) output terminal.
• Connect these wires to your electronic circuit or device according to its power input requirements. Ensure correct polarity to prevent damage to your device.

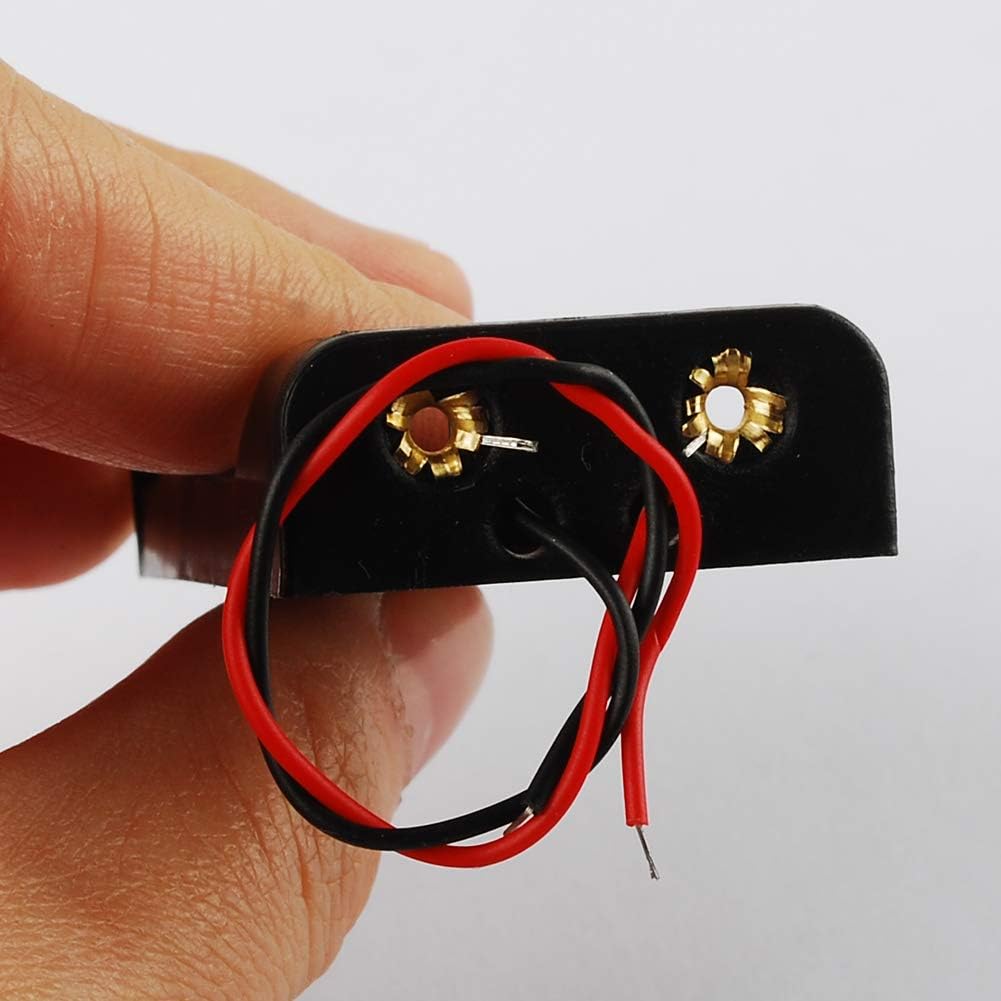

Nọmba 3: The red and black wires extending from the battery holder, ready for connection. The wires are approximately 5.7 inches long.

4. Isẹ

Once batteries are correctly inserted and the wires are connected to your device, the battery holder will supply 3V DC power. There are no additional operational controls on the holder itself.

5. Alaye Aabo

• Always observe correct battery polarity when inserting batteries. Incorrect insertion can lead to battery leakage, overheating, or damage to the holder or connected device.
• Má ṣe da àwọn bátìrì àtijọ́ àti tuntun pọ̀, tàbí oríṣiríṣi bátìrì (fún àpẹẹrẹ, àwọn bátìrì onípele adágún pẹ̀lú àwọn ohun tí a lè gba agbára).
• Remove batteries from the holder if it will not be used for an extended period to prevent leakage.
• Do not short-circuit the output wires. This can cause batteries to overheat or rupture.
• Keep the battery holder away from water, excessive heat, and direct sunlight.
• Sọ awọn batiri ti a lo ni ifojusọna ni ibamu si awọn ilana agbegbe.

6. Itọju

• Ninu: If necessary, gently wipe the battery holder with a dry, soft cloth. Do not use harsh chemicals or abrasive cleaners.
• Ibi ipamọ: Store the battery holder in a cool, dry place, away from direct sunlight and moisture. If storing for a long period, remove any batteries.
• Ayewo: Periodically inspect the battery holder for any signs of damage, such as cracked plastic or corroded contacts. Replace if damaged.

7. Laasigbotitusita

• Ko si Ijade agbara:
  • Check if batteries are inserted with correct polarity (+ and -).
  • Ensure batteries are fully charged or new.
  • Verify that the red and black wires are securely connected to your device and that the device itself is functioning correctly.
  • Inspect the battery holder for any visible damage or corrosion on the contacts.
• Agbara Laarin:
  • Ensure batteries are seated firmly within the holder.
  • Ṣayẹwo awọn asopọ okun waya alaimuṣinṣin.

8. Awọn pato

9. Atilẹyin ọja ati Support

Specific warranty information for the NW 2xAA Battery Holder is not provided within this manual. For details regarding warranty, returns, or technical support, please refer to the product's purchase documentation or contact the seller directly.
