Einhell TE-HA 18 Li Power X-Change 18V Cordless Hot Air Gun

1. Ifihan

Thank you for choosing the Einhell TE-HA 18 Li Power X-Change 18V Cordless Hot Air Gun. This tool is a versatile member of the Power X-Change family, designed for various applications such as shaping plastics, removing adhesive films, and stripping paint. This manual provides essential information for safe and efficient operation, setup, maintenance, and troubleshooting.

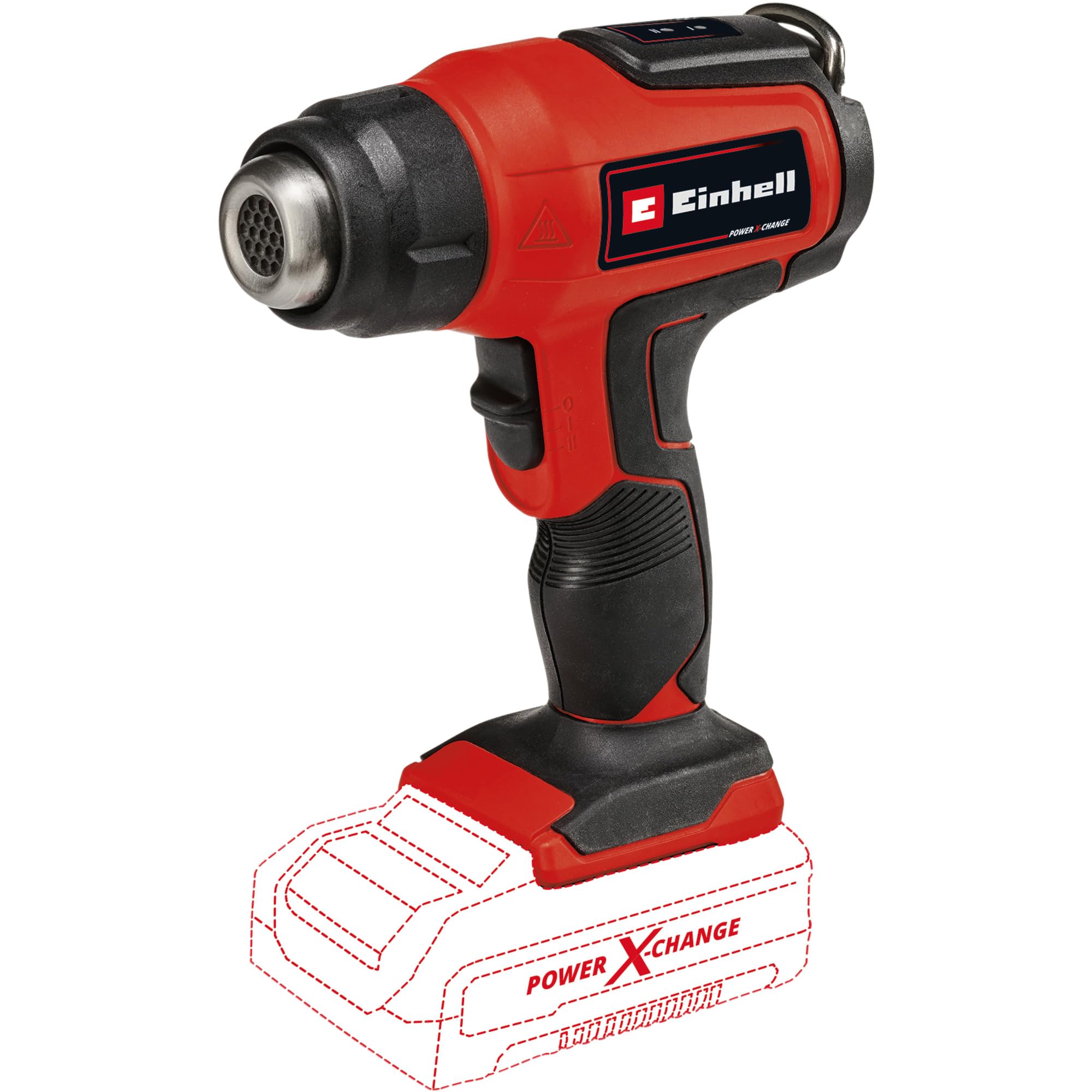

Figure 1: Einhell TE-HA 18 Li Cordless Hot Air Gun. This image shows the main unit of the hot air gun, highlighting its compact and ergonomic design.

As part of the Power X-Change series, this hot air gun is compatible with all Power X-Change batteries. Please note that the battery and charger are not included with this product and must be purchased separately.

Figure 2: Illustration indicating that the battery and charger are not included with the hot air gun. Users need to acquire these components separately for operation.

Figure 3: Diagram illustrating the Einhell Power X-Change system, showing various compatible tools and batteries. This hot air gun is part of this interchangeable battery system.

2. Awọn ilana aabo

IKILO: Ka gbogbo awọn ikilọ ailewu, awọn itọnisọna, awọn apejuwe, ati awọn pato ti a pese pẹlu irinṣẹ agbara yii. Ikuna lati tẹle gbogbo awọn ilana ti a ṣe akojọ rẹ si isalẹ le ja si mọnamọna, ina, ati/tabi ipalara nla.

• Keep Work Area Clean and Well Lit: Awọn agbegbe idamu tabi awọn agbegbe dudu n pe awọn ijamba.
• Maṣe Ṣiṣẹ ni Awọn Afẹfẹ Ibẹjadi: Do not use power tools in the presence of flammable liquids, gases, or dust.
• Duro Itaniji: Pay attention to what you are doing and use common sense when operating a power tool.
• Imura daradara: Do not wear loose clothing or jewelry. Keep hair and clothing away from moving parts.
• Use Personal Protective Equipment: Always wear eye protection. Use a dust mask, non-skid safety shoes, hard hat, or hearing protection for appropriate conditions.
• Yago fun Bibẹrẹ Lairotẹlẹ: Rii daju pe iyipada wa ni pipa-ipo ṣaaju asopọ si idii batiri kan, gbe soke tabi gbe ọpa naa.
• Maṣe Ṣe Aṣeju: Jeki ẹsẹ to dara ati iwọntunwọnsi ni gbogbo igba.
• Maintain Tools with Care: Keep cutting tools sharp and clean. Follow instructions for lubricating and changing accessories.
• Disconnect Battery Pack: Yọ batiri kuro ninu ohun elo naa ṣaaju ṣiṣe awọn atunṣe eyikeyi, yi awọn ẹya ẹrọ pada, tabi fifipamọ awọn irinṣẹ agbara.
• Ewu Ooru: The nozzle and accessories become extremely hot during and after use. Allow sufficient time for cooling before handling. Do not touch hot surfaces.
• Afẹfẹ: Ensure adequate ventilation when working, especially when stripping paint, as fumes can be toxic.
• Ewu ina: Do not direct hot air at flammable materials or surfaces. Be aware of hidden flammable materials behind work surfaces.
• Awọn ọmọde ati Awọn Oluduro: Pa awọn ọmọde ati awọn alafojusi kuro lakoko ti o nṣiṣẹ ohun elo agbara kan.

3. Ọja irinše

The Einhell TE-HA 18 Li hot air gun is designed for ease of use and versatility. Key components include:

• Hot Air Nozzle: The primary outlet for heated air.
• Ifihan Eto Iwọn otutu: An LED display to show the selected temperature level.
• Ergonomic Handle with Soft Grip: Provides a comfortable and secure hold during operation.
• Mechanical Nozzle Ejector: For easy and safe removal of accessories.
• Fold-out Metal Hook: For flexible work and convenient storage.
• Ilẹ Alapin: Allows for stable stationary use.

olusin 4: Isunmọ view of the hot air nozzle, showing its robust construction designed for efficient heat delivery.

Figure 5: The LED display on the hot air gun, which clearly indicates the currently selected temperature setting for precise control.

Figure 6: The integrated fold-out metal hook, providing a convenient option for hanging the tool during or after use, enhancing flexibility and storage.

4. Eto

4.1 Fifi sori batiri

1. Ensure the hot air gun is switched off.
2. Align the battery pack with the receptacle at the base of the tool.
3. Gbe idii batiri naa sinu ọpa titi yoo fi tẹ ni aabo sinu aaye.
4. Lati yọ kuro, tẹ bọtini itusilẹ batiri ki o rọra fa idii batiri naa jade.

4.2 Nozzle Asomọ

The hot air gun comes with various nozzles (reducer, wide jet, reflector) for different applications.

1. Ensure the tool is cool and the battery is removed before attaching or removing nozzles.
2. Yan nozzle ti o yẹ fun iṣẹ-ṣiṣe rẹ.
3. Slide the nozzle onto the hot air outlet until it is firmly seated.
4. To remove, use the mechanical nozzle ejector for safe detachment, especially when hot.

Figure 7: Visual guide demonstrating the process of attaching a nozzle to the hot air gun. Ensure the nozzle is securely fitted before operation.

5. Awọn ilana Iṣiṣẹ

5.1 Lilo Agbara ati Yiyan Iwọn otutu

1. Ensure a charged Power X-Change battery is installed.
2. Switch the tool on using the power switch.
3. Select the desired temperature setting using the control buttons:
   • Eto I: Approximately 350°C for gentle applications.
   • Eto II: Approximately 550°C for more intensive tasks.
4. The selected temperature level will be visible on the LED display.

5.2 Awọn ohun elo

The TE-HA 18 Li is suitable for a variety of tasks:

• Plastic Shaping: Ideal for model-making and bending plastic components.
• Adhesive Film Removal: Gently heat adhesive films for easy removal without damaging surfaces.
• Ìyọkúrò Àwọ̀: Effective for softening old lacquer and paint layers for removal.
• Resin Curing: Can be used for curing resin projects.
• Crafts: Suitable for various craft applications requiring controlled heat.

Figure 8: A user demonstrating the application of the hot air gun for removing adhesive film from a surface, showcasing its utility in delicate tasks.

5.3 Stationary Use

For tasks requiring both hands, the hot air gun can be placed on its flat surface for stable stationary operation. Ensure the surface is heat-resistant and stable.

6. Itọju

6.1 Ninu

1. Yọọ idii batiri nigba gbogbo ṣaaju ṣiṣe mimọ.
2. Clean the tool's housing with a soft, damp asọ. Maṣe lo awọn kẹmika ti o lewu tabi awọn afọmọ abrasive.
3. Ensure the air vents are free from dust and debris to prevent overheating. Use compressed air if necessary.
4. Clean nozzles after use, ensuring no residue builds up.

6.2 Ibi ipamọ

• Store the hot air gun in a dry, secure place, out of reach of children.
• Rii daju pe ohun elo naa dara patapata ṣaaju titoju.
• Ti o ba fipamọ fun awọn akoko ti o gbooro sii, yọ idii batiri kuro.

7. Laasigbotitusita

8. Awọn pato

• Awoṣe: TE-HA 18 Li - Solo
• Voltage: 18 V
• Orisun Agbara: Battery Powered (Power X-Change system)
• Awọn Eto otutu:
  • Setting I: Approx. 350°C
  • Setting II: Approx. 550°C
• Ìwọ̀n Nkan: 0.69 kilo
• Awọn iwọn ọja: 0.39"L x 0.39"W x 0.39"H (Note: These dimensions seem generic and might not represent the actual tool size accurately. Refer to manufacturer's official documentation for precise measurements.)
• Ohun elo ibaramu: Metal (for accessories/nozzles, tool itself is plastic/metal)
• Awọn eroja to wa: Hot Air Gun (Solo), Reducer Nozzle, Wide Jet Nozzle, Reflector Nozzle. (Battery and Charger Not Included)

9. Atilẹyin ọja ati Support

For warranty information, please refer to the documentation provided with your purchase or visit the official Einhell website. If you encounter any issues or require technical assistance, please contact Einhell customer support directly. Keep your proof of purchase for warranty claims.

Òṣìṣẹ́ Einhell Webojula: www.einhell.com
