Motorola Solutions HK2182A

Motorola Solutions TLK 150 Mobile Two-Way Radio User Manual

Model: HK2182A

Ọrọ Iṣaaju

The Motorola Solutions TLK 150 is a mobile two-way radio designed for rapid and reliable communication across a nationwide cellular network. This device offers ease of use and management, built for safe operation in vehicles with nationwide Push-to-Talk (PTT) capabilities. It allows teams to communicate instantly without the need for complex infrastructure setup or FCC licensing. The TLK 150 can integrate with compatible MOTOTRBO systems, LMR, and smartphones.

Awọn ẹya pataki pẹlu:

  • Nationwide Push-to-Talk: Instant communication with team members across broad coverage areas.
  • Safe In-Vehicle Operation: Designed for use while driving, featuring a one-button PTT microphone and support for hands-free accessories.
  • Reliable 4G LTE Network Coverage: Minimizes dropped calls and ensures connectivity.
  • Ikole ti o tọ: Built to withstand harsh working environments, resistant to rain, dust, and extreme temperatures.
  • Apẹrẹ Iwapọ: A powerful, small device suitable for various mounting locations within a vehicle.

Awọn ilana iṣeto

Follow these steps to set up your TLK 150 Mobile Two-Way Radio:

  1. Yọ Ẹrọ naa kuro: Carefully remove the TLK 150 radio and all accessories from the packaging. Ensure the microphone is present.
  2. Yan Ibi Igbesoke: Choose a secure and accessible location within your vehicle for mounting the radio. Consider visibility and ease of access to controls.
  3. Mount the Radio: Securely attach the TLK 150 to the chosen location using appropriate mounting hardware (not included unless specified).
  4. Asopọmọra Antenna: Connect the necessary antennas to the corresponding ports on the rear of the radio. The ports are typically labeled MAIN, DIV, and GNSS. Ensure connections are tight.

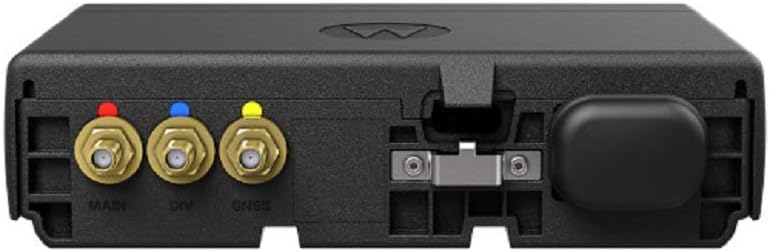

    Ẹyìn view of Motorola TLK 150 radio showing MAIN, DIV, and GNSS antenna ports

    Aworan: Ẹyin view of the TLK 150 radio, highlighting the MAIN (red), DIV (blue), and GNSS (yellow) antenna ports.

  5. So agbara: Connect the radio to your vehicle's power supply according to the installation guide provided with the mounting kit or power cable. Ensure proper voltage (3.7 Volts).
  6. Sopọ Gbohungbo: Plug the Push-to-Talk (PTT) microphone into its designated port on the radio.
  7. Agbara Ibẹrẹ Tan: Once all connections are secure, power on the device. The radio will connect to the nationwide cellular network automatically.
  8. Mu ṣiṣẹ fun iforukọsilẹ: Your TLK 150 requires an active subscription for nationwide Push-to-Talk services. Contact your service provider for activation and talk group management.

Awọn ilana Iṣiṣẹ

This section provides basic instructions for operating your TLK 150 radio.

Motorola TLK 150 Mobile Two-Way Radio front view

Aworan: Iwaju view of the Motorola TLK 150 Mobile Two-Way Radio with microphone.

  1. Titan/Apapa: Press and hold the power button (usually located on the front panel) to turn the radio on or off.
  2. Ṣatunṣe Iwọn didun: Use the volume control knob or buttons to adjust the listening volume to a comfortable level.
  3. Select Talk Group/Channel: Use the channel selector knob or buttons to navigate through the available talk groups or channels. The display will show the current selection. The radio supports up to 96 channels.
  4. Initiate Push-to-Talk (PTT): To transmit, press and hold the PTT button on the microphone. Speak clearly into the microphone. Release the PTT button to listen.
  5. Isẹ-Ọfẹ: If using hands-free accessories, ensure they are properly connected and configured. Refer to the accessory's manual for specific instructions.
  6. Gbigba Awọn ipe: When a call is received, the radio will automatically play the audio. Ensure your volume is adjusted appropriately.

Itoju

Proper maintenance ensures the longevity and optimal performance of your TLK 150 radio.

  • Ninu: Máa fọ ìta rédíò náà déédéé pẹ̀lú ohun èlò ìrọ̀rùn, d.amp cloth. Do not use harsh chemicals or abrasive cleaners. Ensure all ports are free from dust and debris.
  • Ayewo: Periodically inspect cables, connectors, and antennas for any signs of wear or damage. Replace damaged components immediately.
  • Awọn imudojuiwọn sọfitiwia: Keep the radio's software updated as recommended by Motorola Solutions to ensure optimal performance and access to new features. Consult your service provider for update procedures.
  • Itọju Batiri: The radio contains a Lithium Ion battery. While designed for durability, avoid exposing the device to extreme temperatures for prolonged periods when not in use.

Laasigbotitusita

If you encounter issues with your TLK 150 radio, refer to the following common troubleshooting steps:

IsoroOwun to le FaOjutu
Redio ko ṣiṣẹ.No power supply, loose power connection, or faulty power cable.Check power connections. Ensure the vehicle's ignition is on if connected to an accessory power source. Verify power cable integrity.
Ko le tan kaakiri tabi gba.No network signal, incorrect talk group selected, or subscription issue.Move to an area with better cellular coverage. Verify the correct talk group is selected. Contact your service provider to confirm subscription status.
Didara ohun afetigbọ.Low signal strength, microphone obstruction, or incorrect volume.Adjust volume. Ensure microphone is clear and not obstructed. Check antenna connections. Move to an area with stronger signal.
Ifihan ti ṣofo tabi tio tutunini.Àṣìṣe software tàbí àṣìṣe ìgbà díẹ̀.Perform a soft reset by powering the radio off and then on again. If the issue persists, contact support.

If the problem persists after trying these steps, please contact Motorola Solutions customer support or your authorized dealer.

Awọn pato

Below are the technical specifications for the Motorola Solutions TLK 150 Mobile Two-Way Radio (Model HK2182A):

  • Brand: Motorola
  • Nọmba awoṣe: HK2182A
  • Àwọ̀: Dudu
  • Nọmba awọn ikanni: 96
  • Awọn ẹya pataki: Long Range, Rechargeable, Waterproof
  • Iwọn Igbohunsafẹfẹ: 450-470 MHz
  • Ibiti o pọju Ọrọ sisọ: 35 maili
  • Voltage: 3.7 Volts
  • Ipele Resistance Omi: Mabomire
  • Nọmba Awọn Batiri: 1 Lithium Ion battery required (internal)
  • Ìwọ̀n Nkan: 1.41 iwon
  • Ariwo Ngbohun: 50 Decibels
  • Awọn ẹrọ ibaramu: Cellular Phones (for network connectivity)
  • Iru Tuner: UHF
  • Ilana Asopọmọra: LTE
  • Media ti a ṣe sinu: Gbohungbohun
  • Iṣiro Ẹka: 1.0 Iṣiro
  • Olupese: Motorola Solutions

Alaye atilẹyin ọja

Motorola Solutions products typically come with a standard manufacturer's warranty covering defects in materials and workmanship. The specific terms and duration of the warranty may vary by region and purchase agreement.

For detailed warranty information, please refer to the warranty card included with your product or visit the official Motorola Solutions webojula. Jeki ẹri rira rẹ fun awọn iṣeduro atilẹyin ọja.

Atilẹyin ati Olubasọrọ

If you require technical assistance, have questions about your TLK 150 radio, or need to report an issue, please contact Motorola Solutions customer support or your authorized dealer.

Motorola Solutions recommends only purchasing from an authorized dealer.

You can typically find contact information on the official Motorola Solutions webojula tabi nipasẹ ọja rẹ ká iwe.
