ELRO DL6000-LP Electric Door Opener Strike Plate Instruction Manual

1. Ifihan

Thank you for choosing the ELRO DL6000-LP Electric Door Opener Strike Plate. This accessory is designed to enhance the functionality of your ELRO DL6000 electric door opener, allowing it to be used effectively on doors equipped with a long plate or a standard latch and latch mechanism. This manual provides essential information for the correct installation, safe use, and maintenance of your strike plate.

Jọwọ ka awọn ilana wọnyi ni pẹkipẹki ṣaaju fifi sori ẹrọ ati mu wọn duro fun itọkasi ọjọ iwaju.

2. Alaye Aabo

Ṣe akiyesi awọn iṣọra ailewu atẹle lakoko fifi sori ẹrọ ati lilo:

• Always disconnect power to the electric door opener before performing any installation or maintenance.
• Ensure all components are securely fastened to prevent accidental detachment.
• Use appropriate tools for installation to avoid damage to the product or injury.
• This product is intended for indoor use with compatible ELRO DL6000 electric door openers only.
• Pa awọn ẹya kekere kuro lọdọ awọn ọmọde lati yago fun awọn eewu gbigbọn.

3. Package Awọn akoonu

Jẹrisi pe gbogbo awọn ohun kan wa ninu package:

• 1 x ELRO DL6000-LP Strike Plate (Stainless Steel)
• 1 x Instructions for Use (This manual)

4. Ọja Ipariview

The ELRO DL6000-LP is a robust strike plate made from stainless steel, designed to provide a secure and compatible interface for the ELRO DL6000 electric door opener. Its specific design accommodates doors that utilize a traditional latch and latch mechanism, ensuring seamless integration and reliable operation.

Nọmba 1: ELRO DL6000-LP Strike Plate. This image shows the front view of the stainless steel strike plate, highlighting its cutouts for the latch and deadbolt, and screw holes for mounting.

5. Eto ati fifi sori

The ELRO DL6000-LP strike plate is an accessory for the ELRO DL6000 electric door opener. Its installation involves replacing or modifying the existing strike plate on your door frame to ensure compatibility with the electric opener and the door's locking mechanism.

5.1. Ayẹwo ibamu

Ensure your door frame and existing lock mechanism are compatible with the dimensions of the DL6000-LP strike plate. This strike plate is specifically designed for doors with a latch and latch, and for use with the ELRO DL6000 electric door opener.

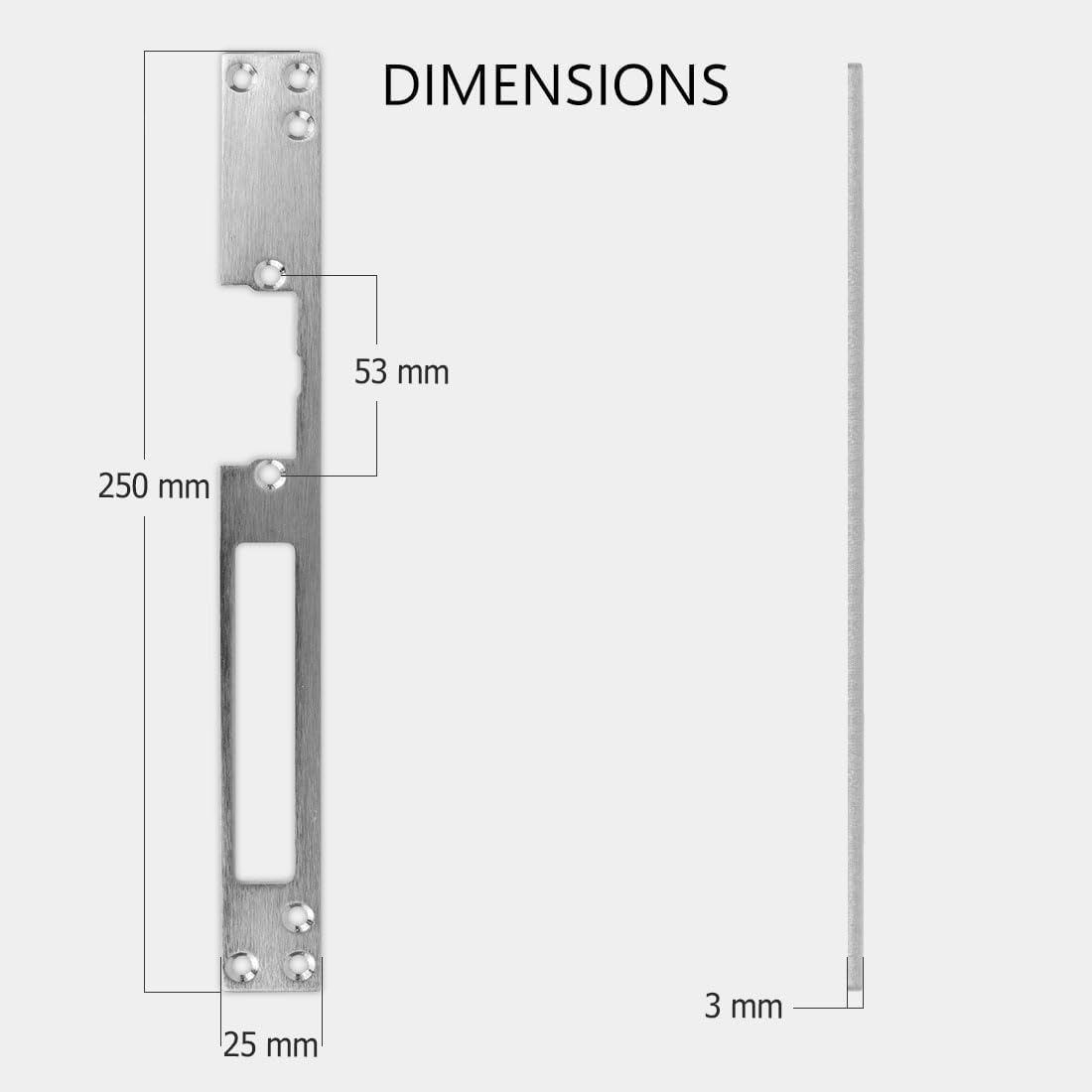

Nọmba 2: Dimensions of the ELRO DL6000-LP Strike Plate. This diagram illustrates the precise measurements of the strike plate, including its length (250 mm), width (25 mm), and thickness (3 mm), along with the spacing for the latch and deadbolt cutouts (53 mm).

5.2. Fifi sori Igbesẹ

1. Mura fireemu Ilekun: Carefully remove the existing strike plate from your door frame. Clean the area to ensure a smooth surface for the new installation.
2. Position the DL6000-LP: Align the ELRO DL6000-LP strike plate with the mortise in the door frame. Ensure that the cutouts for the latch and deadbolt align perfectly with the corresponding parts of your door's lock mechanism when the door is closed.
3. Samisi ati Gbigbe (ti o ba jẹ dandan): If the existing screw holes do not align, mark the new positions for drilling. Use an appropriate drill bit for your door frame material (wood, metal, etc.) and drill pilot holes.
4. Ṣe aabo Plate Kọlu naa: Fasten the DL6000-LP strike plate to the door frame using suitable screws. Ensure it is flush with the frame and securely tightened to prevent movement.
5. Iṣe idanwo: Close the door slowly and check that the latch and deadbolt engage smoothly with the strike plate. Verify that the ELRO DL6000 electric door opener functions correctly with the newly installed strike plate. Adjust if necessary.

6. Ṣiṣẹ

Once correctly installed, the ELRO DL6000-LP strike plate works in conjunction with your ELRO DL6000 electric door opener. It provides the necessary receiving mechanism for the door's latch and deadbolt, allowing the electric opener to control access by retracting the latch when activated. No direct user operation is required for the strike plate itself; its function is passive, facilitating the electric opener's action.

7. Itọju

The ELRO DL6000-LP strike plate requires minimal maintenance:

• Ninu: Periodically wipe the strike plate with a soft, damp cloth to remove dust and grime. Avoid abrasive cleaners or harsh chemicals that could damage the stainless steel finish.
• Ayewo: Regularly check the strike plate for any signs of wear, damage, or loosening of screws. Ensure it remains securely fastened to the door frame.
• Lubrication: If the latch or deadbolt experiences friction when engaging with the strike plate, a small amount of dry lubricant (e.g., graphite powder) can be applied to the moving parts of the lock, not directly to the strike plate.

8. Laasigbotitusita

If you encounter issues with the ELRO DL6000-LP strike plate, consider the following:

• Door Not Closing/Latching Properly:
  • Check the alignment of the strike plate with the door's latch and deadbolt. Minor adjustments to the strike plate's position or the door hinges may be required.
  • Ensure the strike plate is securely fastened and not loose.
• Electric Door Opener Malfunction:
  • If the electric door opener is not retracting the latch, verify that the strike plate is not obstructing its mechanism. Refer to the ELRO DL6000 electric door opener manual for specific troubleshooting steps related to the opener itself.
• Bibajẹ ti o han:
  • If the strike plate is bent or damaged, it may need to be replaced to ensure proper door function and security.

For persistent issues, contact ELRO customer support.

9. Awọn pato

10. Atilẹyin ọja ati Support

For information regarding warranty terms and conditions, please refer to the documentation provided with your ELRO DL6000 electric door opener or visit the official ELRO website. If you require technical assistance or have questions about the ELRO DL6000-LP strike plate, please contact ELRO customer support through their official channels.

ELRO Customer Support: Jọwọ ṣabẹwo www.elro.eu fun alaye olubasọrọ ati support oro.
