NovaStar H Series 1x HDMI2.0 + 1x DP1.2 Input Card User Manual

1. Ifihan

This manual provides detailed instructions for the installation, operation, and maintenance of the NovaStar H Series 1x HDMI2.0 + 1x DP1.2 Input Card. This input card is designed for use with compatible NovaStar H Series video processors, offering high-definition video input capabilities for professional display applications. Please read this manual thoroughly before using the product to ensure proper functionality and to prevent damage.

The NovaStar H Series input card supports one HDMI 2.0 input and one DisplayPort 1.2 input, enabling connection to various high-resolution video sources. It is engineered for reliable performance in demanding environments.

2. Alaye Aabo

Ṣe akiyesi awọn iṣọra ailewu atẹle lati yago fun ipalara ati ibajẹ si ohun elo:

• Aabo Itanna: Ensure the power supply is disconnected from the main video processor before installing or removing the input card. Only use power adapters and cables specified by NovaStar.
• Mimu: Always handle the input card by its edges. Avoid touching the electronic components or connectors directly to prevent electrostatic discharge (ESD) damage. Use an anti-static wrist strap if available.
• Ayika: Do not expose the card to moisture, extreme temperatures, or corrosive substances. Operate within the specified environmental conditions.
• Afẹfẹ: Ensure adequate ventilation around the video processor where the card is installed to prevent overheating.
• Ṣiṣẹ: Do not attempt to service the card yourself. Refer all servicing to qualified personnel.

3. Package Awọn akoonu

Jẹrisi pe gbogbo awọn ohun kan wa ninu package:

• NovaStar H Series 1x HDMI2.0 + 1x DP1.2 Input Card (1 unit)
• Quick Start Guide (1 copy)
• Anti-static bag (1 unit)

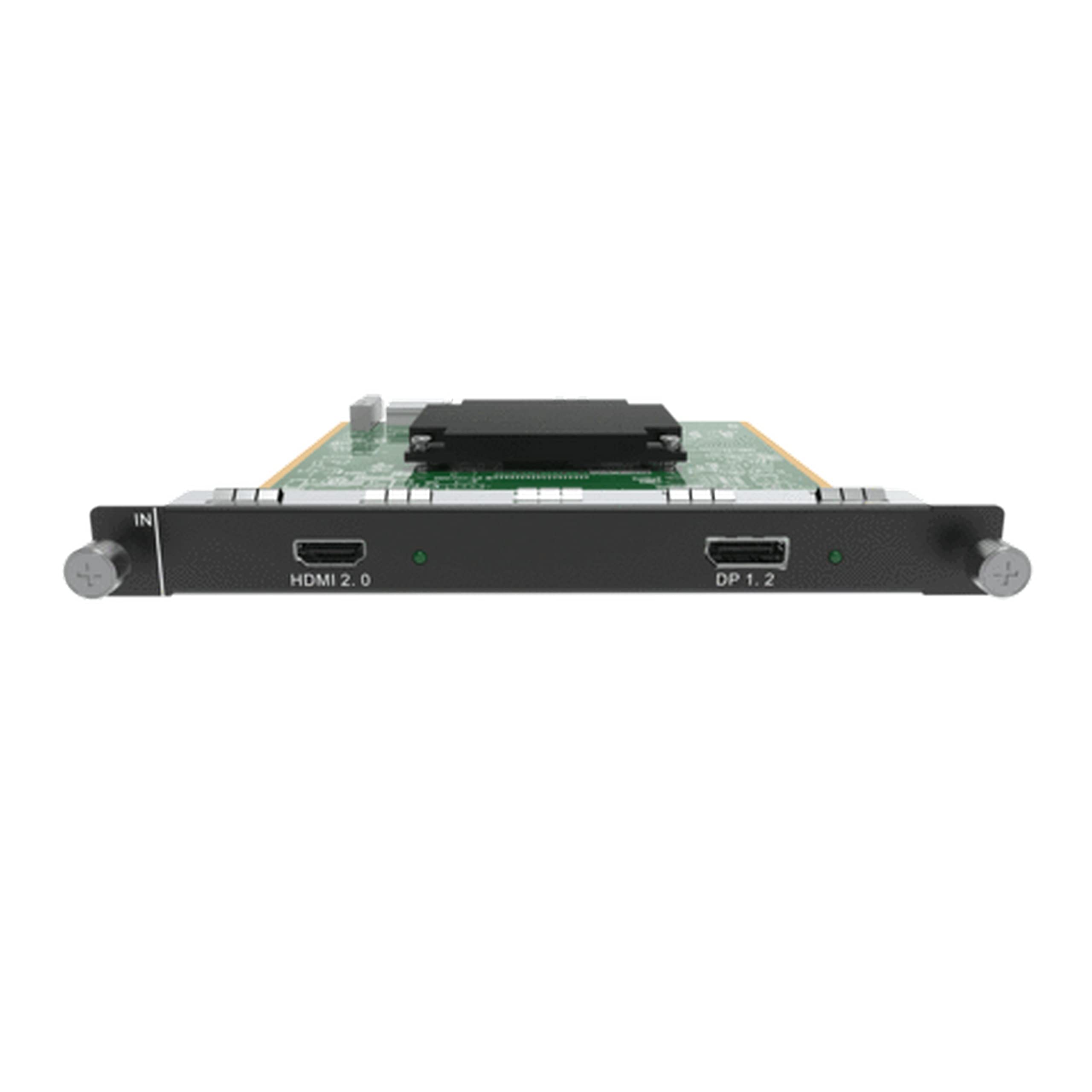

Figure 1: NovaStar H Series 1x HDMI2.0 + 1x DP1.2 Input Card. This image shows the front panel of the input card with its HDMI 2.0 and DisplayPort 1.2 connectors, along with the card's PCB and mounting bracket.

4. Eto ati fifi sori

Follow these steps to properly install the input card into a compatible NovaStar H Series video processor:

1. Agbara Pa: Ensure the NovaStar H Series video processor is completely powered off and disconnected from the main power supply.
2. Wa Iho: Identify an available input card slot on the rear panel of the video processor. Refer to your video processor's manual for slot locations.
3. Remove Blank Panel: If a blank panel covers the slot, carefully remove it by unscrewing any retaining screws and gently pulling it out.
4. Fi Kaadi sii: Align the input card with the chosen slot. Gently push the card firmly into the slot until it is fully seated. Ensure the connectors on the card align with the backplane of the processor. Do not force the card.
5. Kaadi to ni aabo: Once seated, secure the input card using the retaining screws provided with the video processor or the card itself.
6. Awọn okun Sopọ: Connect your HDMI 2.0 or DisplayPort 1.2 video sources to the corresponding ports on the newly installed input card.
7. Agbara Tan: Reconnect the power supply to the video processor and power it on. The system should detect the new input card automatically.

Figure 2: Illustrative diagram of input card installation. This image would typically show a step-by-step visual guide for inserting the input card into a compatible video processor slot.

5. Awọn ilana Iṣiṣẹ

After installation, configure and operate the input card through the NovaStar video processor's control software or front panel interface.

5.1. Aṣayan Orisun Input

Lati yan orisun igbewọle:

1. Access the input source management menu on your NovaStar video processor.
2. Identify the newly installed input card and its corresponding HDMI 2.0 or DisplayPort 1.2 ports.
3. Select the desired input port as your active video source.

5.2. Resolution and EDID Management

The input card supports various resolutions up to 1080p (as per product specifications). For optimal display, ensure the input source resolution matches the display's native resolution or a supported resolution by the video processor.

• Automatic EDID: The card typically uses automatic EDID (Extended Display Identification Data) to communicate with the source device and negotiate the best common resolution.
• EDID pẹlu ọwọ: If issues arise, you may need to manually configure EDID settings via the video processor's software. Refer to the video processor's manual for detailed EDID management procedures.

5.3. Signal Status Indicators

The input card may feature LED indicators on its front panel to show signal status:

• Green Green: Indicates a stable video signal is detected.
• Red/Orange LED: May indicate no signal, an unsupported signal, or an error.
• Paa: No power or card not detected.

Consult the video processor's manual for specific LED indicator meanings.

6. Itọju

The NovaStar H Series input card requires minimal maintenance. Follow these guidelines to ensure longevity and optimal performance:

• Ninu: Periodically clean the external connectors with a soft, dry, lint-free cloth. Do not use liquid cleaners or solvents. Ensure the video processor is powered off before cleaning.
• Awọn imudojuiwọn famuwia: Check the official NovaStar website for firmware updates for your H Series video processor and input card. Firmware updates can improve performance, add features, or fix bugs. Follow the update instructions provided by NovaStar carefully.
• Iṣakoso Ayika: Maintain a stable operating environment, avoiding excessive dust, humidity, and temperature fluctuations.

7. Laasigbotitusita

If you encounter issues with your input card, refer to the following common problems and solutions:

8. Awọn pato

Technical specifications for the NovaStar H Series 1x HDMI2.0 + 1x DP1.2 Input Card:

Note: Specifications are subject to change without prior notice. For the most current information, please refer to the official NovaStar website or product documentation. The "Video Capture Resolution: 1080p" from the product specifications might refer to a specific operational mode or a general compatibility statement, while HDMI 2.0 and DP 1.2 interfaces inherently support higher resolutions. Always verify compatibility with your specific video processor and source devices.

9. atilẹyin ọja Information

NovaStar products typically come with a limited manufacturer's warranty. The exact terms and duration of the warranty may vary by region and product. Please refer to the warranty card included with your product or visit the official NovaStar webaaye fun alaye atilẹyin ọja alaye.

The warranty generally covers:

• Awọn abawọn ninu awọn ohun elo ati iṣẹ-ṣiṣe labẹ lilo deede.

Atilẹyin ọja naa ko maa n bo:

• Damage caused by improper installation, misuse, abuse, neglect, or accident.
• Bibajẹ ti o ṣẹlẹ nipasẹ awọn iyipada laigba aṣẹ tabi awọn atunṣe.
• Bibajẹ nipasẹ awọn ajalu tabi awọn iṣe Ọlọrun.
• Awọn ẹya to wulo.

To claim warranty service, you may need to provide proof of purchase and contact NovaStar customer support or an authorized service center.

10. Onibara Support

For technical assistance, product inquiries, or warranty claims, please contact NovaStar customer support through the following channels:

• Osise Webojula: Ṣabẹwo si NovaStar official webojula for product documentation, FAQs, and support contact information.
• Imeeli Atilẹyin: Tọkasi awọn website for specific email addresses for technical support in your region.
• Atilẹyin foonu: Check the NovaStar website for regional phone numbers for direct support.
• Awọn oniṣowo ti a fun ni aṣẹ: Contact your local authorized NovaStar dealer or distributor for localized support and service.

When contacting support, please have your product model number (H_1xHDMI2.0+1xDP1.2) and proof of purchase readily available.
