Aquaphor RO-70S Reverse Osmosis Water Filter System User Manual

1. Ifihan

This manual provides detailed instructions for the installation, operation, and maintenance of your Aquaphor RO-70S Reverse Osmosis Water Filter System. Please read this manual thoroughly before installation and use to ensure proper functioning and longevity of your system. The Aquaphor RO-70S is designed to provide high-quality purified drinking water by effectively removing various contaminants.

Figure 1: Aquaphor RO-70S Reverse Osmosis Water Filter System, front view.

2. Alaye Aabo

Always follow basic safety precautions when installing or maintaining the Aquaphor RO-70S system to reduce the risk of fire, electric shock, and injury. Keep this manual for future reference.

• Rí i dájú pé gbogbo àwọn ìsopọ̀mọ́ra wà ní ààbò àti pé wọn kò ní omi láti bàjẹ́ láti dènà ìbàjẹ́ omi.
• Ma ṣe lo eto pẹlu omi ti o jẹ alailewu microbiologically tabi ti didara aimọ laisi ipakokoro to pe ṣaaju tabi lẹhin eto naa.
• Disconnect power before performing any maintenance or filter changes.
• Install the system in an area protected from freezing temperatures and direct sunlight.
• Only use genuine Aquaphor replacement filters and parts.

3. Package Awọn akoonu

Verify that all components listed below are present in your package. Refer to Figure 2 for a visual representation of the components.

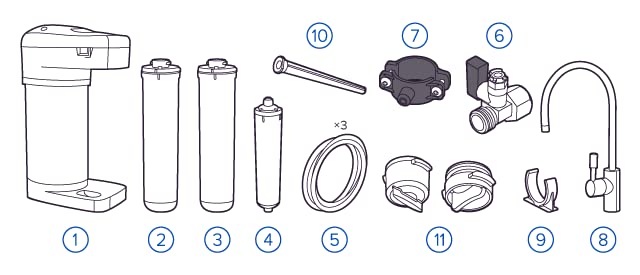

Figure 2: Aquaphor RO-70S System Components.

1. Main àlẹmọ kuro
2. Pre-filter cartridges (e.g., K5, K2)
3. RO membrane cartridge (e.g., RO-50S)
4. Post-filter cartridge (e.g., K7B)
5. Connection fittings and tubing
6. Water supply adapter with shut-off valve
7. Sisan gàárì, àtọwọdá
8. Drinking water faucet
9. Filter wrench (if applicable)
10. Itọsọna olumulo

4. Eto ati fifi sori

The Aquaphor RO-70S system is designed for under-sink installation. Professional installation is recommended, but if you choose to install it yourself, follow these general steps. Ensure you have adequate space as shown in Figure 3 and Figure 4.

Figure 3: Under-sink installation example.

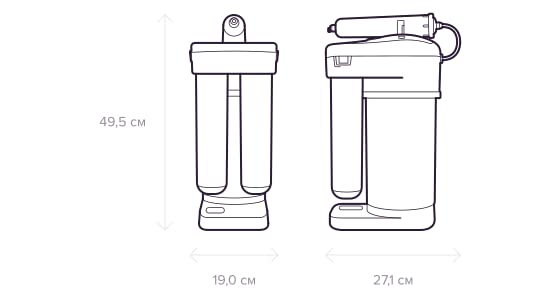

Figure 4: Dimensions of the Aquaphor RO-70S system (L x W x H: 27.1 x 19 x 49.5 cm).

4.1. Pre-Fifi sọwedowo

• Confirm water pressure is within the recommended range (check specifications).
• Ensure sufficient space under the sink for the unit and future filter changes.
• Pa ipese omi akọkọ ṣaaju ki o to bẹrẹ fifi sori ẹrọ.

4.2. Awọn Igbesẹ fifi sori ẹrọ (Gbogbogbo)

1. Fi sori ẹrọ Faucet: Drill a hole (if necessary) in the sink or countertop and mount the dedicated drinking water faucet.
2. Sopọ si Ipese Omi Tutu: Install the water supply adapter to the cold water line under the sink.
3. Install the Drain Saddle: Attach the drain saddle valve to the drain pipe to allow wastewater discharge.
4. Mount the Filter Unit: Place the main filter unit in the desired under-sink location.
5. Sopọ Tubing: Connect the appropriate tubing from the water supply adapter to the filter inlet, from the filter outlet to the faucet, and from the filter's drain port to the drain saddle.
6. Pa eto naa: Slowly turn on the water supply. Allow the system to flush for at least 10-15 minutes to remove air and carbon fines. Check for leaks.

5. Awọn ilana Iṣiṣẹ

The Aquaphor RO-70S system operates automatically once installed. It uses a multi-stage filtration process to provide clean drinking water.

5.1. Filtration Process

• Ṣíṣe àlẹ̀mọ́ ṣáájú: The CarbFiber Block technology in the pre-filters removes organic impurities, heavy metals, and chlorine, filtering particles down to 5 microns. This stage protects the RO membrane.
• Iyipada Osmosis Membrane: The RO-50S membrane acts as a barrier against toxic substances, heavy metals, pesticides, bacteria, and viruses, ensuring high-purity water.
• Post-filtration: A final filter polishes the water, improving taste and odor.

Figure 5: Aquaphor RO-70S filter cartridges.

5.2. Ojoojumọ Lilo

Simply open the dedicated drinking water faucet to dispense purified water. The system will automatically refill the internal tank (if applicable) as water is drawn.

6. Itọju

Regular maintenance is crucial for the optimal performance and longevity of your Aquaphor RO-70S system. This primarily involves replacing the filter cartridges.

6.1. Filter Rirọpo

• Pre-filters (K5, K2): Typically replaced every 3-6 months, depending on water quality and usage.
• RO Membrane (RO-50S): Generally replaced every 1-2 years.
• Post-filter (K7B): Typically replaced every 6-12 months.

Always refer to the specific filter replacement schedule provided with your filter cartridges or consult the Aquaphor webojula fun alaye alaye.

6.2. Replacement Procedure (General)

1. Pa ipese omi si eto RO.
2. Ṣii faucet lati yọkuro titẹ.
3. Remove the old filter cartridges by twisting or unscrewing them (refer to specific filter instructions).
4. Insert new cartridges, ensuring they are properly seated and sealed.
5. Laiyara tan-an ipese omi ati ṣayẹwo fun awọn n jo.
6. Flush the system for several minutes as per initial setup instructions.

7. Laasigbotitusita

If you encounter issues with your Aquaphor RO-70S system, consult the following common troubleshooting tips.

7.1. Low Water Flow from Faucet

• Awọn Ajọ Ti Dinamọ: Replace pre-filters or RO membrane if they are past their service life.
• Ipa Omi Kekere: Ensure the incoming water pressure meets the system's requirements.
• Titiipa afẹfẹ: Ensure the system has been properly flushed after installation or filter change.

7.2. Unusual Taste or Odor

• Expired Post-filter: Replace the post-carbon filter.
• New System Flush: Ensure the system was adequately flushed during initial setup.
• RO Membrane Failure: If taste issues persist, the RO membrane may need replacement.

7.3. jo

• Awọn isopọ alaimuṣinṣin: Check all tubing connections and fittings for tightness.
• Damaged O-rings: Inspect O-rings on filter housings and replace if damaged.

8. Awọn pato

9. Atilẹyin ọja ati Support

For warranty information, technical support, or to purchase replacement parts, please contact Aquaphor customer service or visit the official Aquaphor webojula. Tọju iwe-ẹri rira rẹ bi ẹri rira fun awọn iṣeduro atilẹyin ọja.

Olupese: AQUAPHOR

Wiwa Awọn apakan apoju: Information unavailable (as per product data, users should contact manufacturer directly)
