Carxtc Stereo Wire Harness Installation Manual

1. Ifihan

This manual provides detailed instructions for the installation and use of the Carxtc Stereo Wire Harness, Model twxh14/8112. This harness is designed to facilitate the installation of an aftermarket car radio into vehicles equipped with a factory amplified sound system. It ensures a direct connection without the need to cut or modify your vehicle's original wiring harness, simplifying the upgrade process.

2. Alaye Aabo

Please read all safety instructions before beginning installation. Failure to follow these instructions may result in electrical shock, injury, or damage to your vehicle's electrical system or the product.

• Always disconnect the vehicle's negative battery terminal before performing any electrical work to prevent short circuits.
• Rii daju pe gbogbo awọn asopọ wa ni aabo ati ni idayatọ daradara lati ṣe idiwọ awọn kukuru itanna.
• Tí o bá ní iyèméjì nípa apá kan nínú ìlànà ìfisílé, kan sí olùfisílé tó mọ̀ nípa iṣẹ́ náà.
• Do not force connectors. Ensure they are correctly aligned before pushing them together.
• Pa ọja naa mọ kuro ninu omi ati ooru pupọ.

3. Eto & Fifi sori

The Carxtc Stereo Wire Harness is designed for a straightforward installation, connecting your new aftermarket radio to your vehicle's existing factory amplified system without cutting factory wires.

3.1 Package Awọn akoonu

• Carxtc Stereo Wire Harness (Model twxh14/8112)
• Ilana Afowoyi (iwe yii)

3.2 fifi sori Igbesẹ

1. Ṣeto Ọkọ naa: Disconnect the negative terminal of your vehicle's battery. Carefully remove the factory radio from the dashboard, exposing the vehicle's wiring harness.
2. Ṣe idanimọ awọn isopọ: Locate the factory wiring harness that was connected to your original radio. This harness will be the connection point for the Carxtc wire harness.
3. Wire the Aftermarket Radio: Connect the wires from your new aftermarket car stereo to the corresponding wires on the Carxtc Stereo Wire Harness. The harness uses EIA standard color coding, which typically matches the wire colors on your new radio. Ensure each wire is securely connected (e.g., by soldering and heat-shrinking, or using crimp connectors).

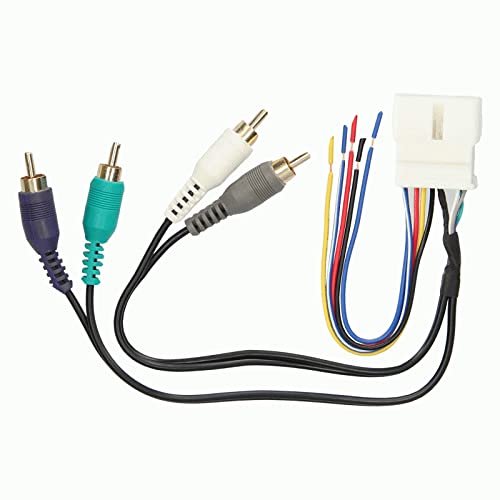

   Image 1: Carxtc Stereo Wire Harness. This image shows the harness with various colored wires, which correspond to standard EIA color codes for easy matching with your aftermarket radio's wiring.
4. Connect the Harness to Vehicle: Once the aftermarket radio's wires are securely connected to the Carxtc harness, plug the Carxtc harness directly into your vehicle's factory radio harness. This connection should be firm and secure.
5. Ṣe idanwo Eto naa: Before fully reassembling the dashboard, reconnect the vehicle's negative battery terminal. Turn on the vehicle and test the new aftermarket radio's functionality, including power, audio output, balance, fader, and any other features.
6. Apejọ ipari: If all functions are working correctly, carefully reassemble the dashboard, ensuring no wires are pinched or damaged.

4. Isẹ

Once correctly installed, the Carxtc Stereo Wire Harness operates passively, providing the necessary electrical connections between your aftermarket radio and the vehicle's factory amplified system. The operation of your audio system will then be controlled directly by your new aftermarket radio.

• Ensure the aftermarket radio powers on and off with the vehicle's ignition.
• Verify that all speakers are producing sound and that audio controls (volume, balance, fader) function correctly.

5. Itọju

The Carxtc Stereo Wire Harness requires minimal maintenance. Once installed, it is designed to be a reliable, long-term component of your vehicle's audio system.

• Keep the harness connections dry and free from dust or debris.
• Avoid exposing the harness to extreme temperatures or direct sunlight for prolonged periods.
• Do not pull on the wires forcefully, as this can damage the connections or the harness itself.

6. Laasigbotitusita

If you encounter issues after installing the Carxtc Stereo Wire Harness, refer to the following troubleshooting guide:

7. Awọn pato

8. Atilẹyin ọja & Atilẹyin

For warranty information and technical support regarding your Carxtc Stereo Wire Harness, please refer to the documentation provided with your purchase or contact Carxtc customer service directly. Keep your proof of purchase for warranty claims.

Ibi iwifunni: Please visit the official Carxtc webAaye fun awọn alaye olubasọrọ atilẹyin lọwọlọwọ julọ.
