1. Ifihan
This manual provides essential information for the safe assembly, operation, and maintenance of your ANPABO Licensed Mercedes-Benz G63 12V Ride-On Car. Please read all instructions carefully before use and retain this manual for future reference.
Image: The ANPABO Licensed Mercedes-Benz G63 12V Ride-On Car in red, showcasing apẹrẹ alaye rẹ.
2. Alaye Aabo
Your child's safety is paramount. Adhere to the following guidelines:
- Iṣeduro ọjọ ori: Dara fun awọn ọmọde ti o wa ni osu 24 ati si oke.
- Abojuto Agba: Máa ṣe àbójútó àwọn ọmọ nígbà gbogbo nígbà iṣẹ́ abẹ.
- Bẹ́líìtì ìjókòó: Ensure the child is securely fastened with the provided seatbelt before driving.
- Ibẹrẹ Rirọ: The vehicle features a soft start mechanism to prevent sudden acceleration, reducing the risk of startling the child.
- Iṣakoso Latọna jijin Obi: For younger children or added safety, parents can use the remote control to manage speed and direction, and activate the emergency stop function.
- Agbara Yi pada: The car will only start when the power switch is engaged, preventing accidental activation.
- Batiri Kekere: The vehicle provides a voice prompt when the battery is low, indicating it's time to recharge.
- Ayika: Use on flat, even surfaces. Avoid public roads, steep inclines, or hazardous areas.
Image: A child safely seated in the ride-on car, demonstrating the seatbelt and lockable doors for enhanced security.
3. Awọn ẹya Ọja
- Apẹrẹ ododo: Officially licensed Mercedes-Benz G63 replica with iconic grille and detailing.
- Awọn Ipo Iwakọ Meji: Operates via child-controlled pedal and steering wheel, or parent-controlled remote.
- Iṣe Alagbara: Equipped with two 35W motors and a 12V rechargeable battery, reaching speeds up to 3 MPH.
- Awọn kẹkẹ ti o tọ: Treaded wheels provide enhanced grip for various terrains, including grass and asphalt.
- Gígùn Dára: Features spring suspensions for a comfortable and stable driving experience.
- Interactive Dashboard: Includes LED headlights, horn, engine sounds, and a music player with USB and Bluetooth connectivity.
- Abojuto Batiri: Unique battery indicator with visual level display and low battery voice prompt.
- Gbigbe: Designed with a hidden handle for easy transportation.
Image: A visual comparison between the full-size Mercedes-Benz G63 and the ANPABO ride-on car, emphasizing its licensed and realistic design.
Aworan: Alaye view of the car's wheels, illustrating features like enhanced grip, wear-resistance, and integrated shock absorbers for a smoother ride across different surfaces.
Image: The ride-on car is shown with its hidden portable handle extended from the rear, demonstrating the 'Easy Dragging Design' for convenient transport.
4. Eto
Follow these steps to assemble your ANPABO Mercedes-Benz G63 Ride-On Car:
- Unboxing: Ni ifarabalẹ yọ gbogbo awọn paati kuro ninu apoti.
- Apejọ Kẹkẹ: Attach the wheels to the axles, securing them with the provided washers and nuts. Ensure they are firmly in place.
- Asopọ batiri: Locate the battery compartment, typically under the seat. Connect the red wire to the red terminal and the black wire to the black terminal. Ensure a secure connection.
- Fifi sori ijoko: Place the seat into its designated position and secure it with the screws.
- Asomọ Kẹkẹ idari: Connect the steering wheel to the steering column, ensuring all wires are properly connected before securing.
- Fifi sori ẹrọ oju afẹfẹ: Attach the windshield to the front of the car.
- Side Mirror Attachment: Secure the side mirrors to the designated slots on the doors.
- Spare Tire Cover: Attach the decorative spare tire cover to the rear of the vehicle.
Video: A step-by-step guide demonstrating the assembly process of the ANPABO 12V Ride-On Car, including attaching wheels, connecting the battery, and installing various components.
5. Awọn ilana Iṣiṣẹ
5.1 Titan / Pa a
- To turn on the car, press the red power button on the dashboard. You will hear engine startup sounds and the LED headlights will illuminate.
- To turn off the car, press the red power button again.
5.2 Àwọn Ìgbésẹ̀ Ìwakọ̀
- Ipo Afowoyi (Ọmọ ti n ṣiṣẹ): The child can press the foot pedal to accelerate and use the steering wheel to control direction.
- Ipo Iṣakoso Latọna jijin Obi: For younger children, an adult can use the remote control to drive the car. The remote allows control over forward/backward movement, left/right steering, and speed settings.

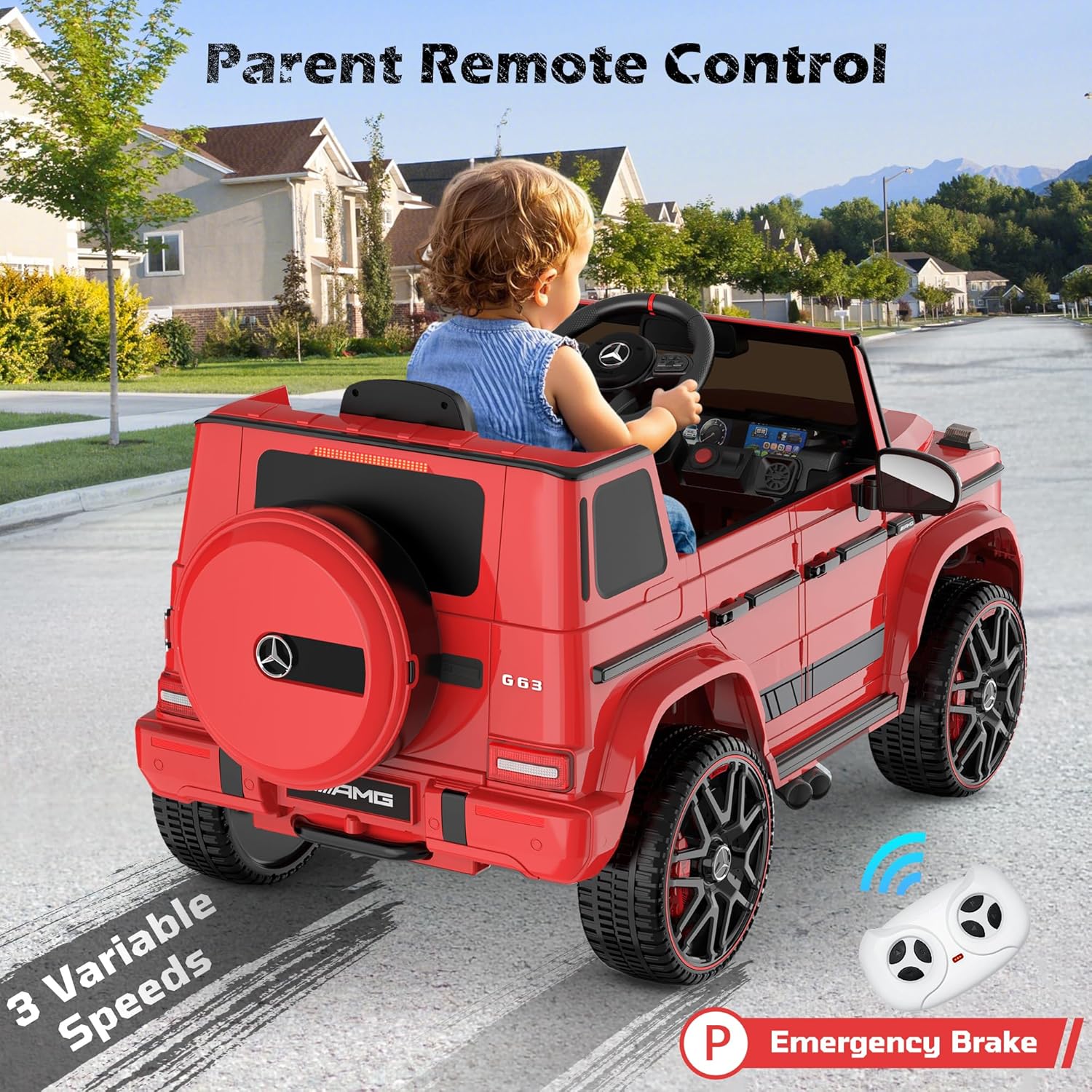

Image: A child is shown driving the ride-on car while a parent holds the remote control, illustrating the dual control feature with variable speeds and an emergency brake option.
5.3 Speed and Direction Control
- Use the forward/backward switch on the dashboard to select the desired direction.
- Press the foot pedal to move the car. Release the pedal to stop.
- The remote control also has buttons for forward, backward, left, and right movement.
5.4 Music and Sound Features
- Orin ti a ṣe sinu: The car comes with pre-loaded songs. Use the controls on the dashboard or steering wheel to play/pause and switch tracks.
- USB/Bluetooth: Connect a USB device or pair your phone via Bluetooth to play your own music through the car's speakers.
- Ìwo: Tẹ bọtini ipè lórí kẹ̀kẹ́ ìtọ́sọ́nà láti mu ìró ìpè náà ṣiṣẹ́.
- Awọn imọlẹ ina LED: The headlights automatically turn on when the car is powered on.
Image: A child enjoys driving the ride-on car, with visual cues indicating features like USB and Bluetooth connectivity for music, engine startup sounds, and LED display. A smartphone is shown connected, demonstrating music playback.
6. Itọju
6.1 Ngba agbara si Batiri naa
- Locate the charging port, typically on the dashboard or under the seat.
- Plug the charger into the port and then into a standard wall outlet.
- Charge the battery for the recommended duration (refer to specifications). Do not overcharge.
- The battery indicator will show the current charge level.
Image: The ride-on car is displayed with an overlay highlighting its 'Rechargeable Battery' (12V 7Ah) and indicating its speed range of 1.8-3.1 Mph.
Aworan: A alaye view of the car's dashboard, featuring a battery indicator with LED lights to show the battery level and a microphone icon indicating a low battery voice prompt.
6.2 Ninu ati Ibi ipamọ
- Clean the car with a damp asọ. Maṣe lo awọn kẹmika ti o lewu tabi awọn afọmọ abrasive.
- Tọju ọkọ ayọkẹlẹ naa ni ibi gbigbẹ, ti o tutu kuro lati orun taara ati ọrinrin.
- If storing for an extended period, ensure the battery is fully charged and disconnect it if recommended by the manufacturer.
7. Laasigbotitusita
| Isoro | Owun to le Fa | Ojutu |
|---|---|---|
| Ọkọ ayọkẹlẹ ko gbe | Battery is low or disconnected; Power switch is off; Fuse blown. | Charge battery; Check battery connections; Turn on power switch; Check and replace fuse if necessary. |
| Ọkọ ayọkẹlẹ n lọ laiyara | Low battery; Overload (too much weight); Rough terrain. | Recharge battery; Reduce load; Move to smoother terrain. |
| Isakoṣo latọna jijin ko ṣiṣẹ | Remote batteries dead; Not paired correctly. | Replace remote batteries (2*1.5 AAA batteries not included); Refer to remote pairing instructions in the full manual. |
| No sound/music | Volume too low; Device not connected properly. | Increase volume; Check USB/Bluetooth connection. |
8. Awọn pato
- Awọn iwọn ọja: 40 x 21 x 22 inches
- Ìwọ̀n Nkan: 39 iwon
- Nọmba Awoṣe Nkan: AMG G 63
- Ọjọ ori Ti a ṣeduro Olupese: 24 osu ati si oke
- Agbara iwuwo to pọ julọ: 66 lbs
- Giga ti o pọju: 3.9 ẹsẹ
- Batiri: 12V 7Ah Batiri gbigba agbara
- Awọn ọkọ ayọkẹlẹ: Two 35W motors
- Iyara: Titi di 3 MPH

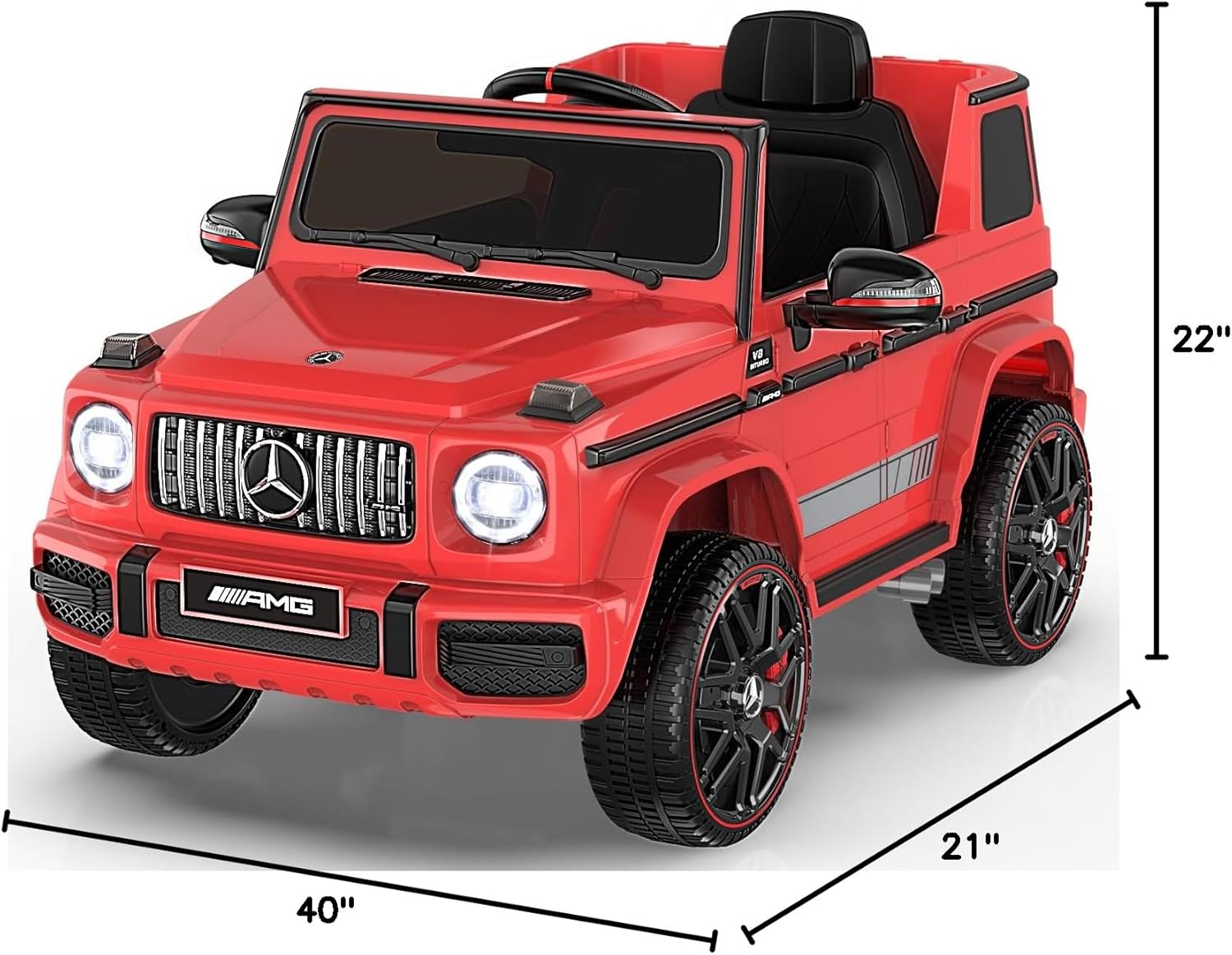

Image: A visual representation of the ride-on car's dimensions, indicating a length of 40 inches, a width of 21 inches, and a height of 22 inches.
Image: A child stands beside the ride-on car, accompanied by graphics detailing the recommended age range (2-5 years), maximum weight capacity (66 lbs), and height limit (3.9 feet) for safe use.
9. Atilẹyin ọja ati Support
For warranty information, product support, or to purchase replacement parts, please contact ANPABO customer service directly. Refer to the product packaging or the ANPABO official webaaye fun awọn alaye olubasọrọ.
