Ìwé Àgbékalẹ̀ Olùlò Afẹ́fẹ́ Afẹ́fẹ́ Hisense 12000-BTU

Ọrọ Iṣaaju

This manual provides essential information for the safe and efficient operation of your Hisense 12000-BTU DOE 115-Volt White Vented Wi-Fi enabled Portable Air Conditioner, model AP1222CW1W. This unit is designed for large rooms (up to 550 sq. ft.) and offers versatile comfort with cooling, fan, and dehumidifier modes. Its drain-free design simplifies maintenance, and quiet operation ensures peace of mind. For convenient control, the unit can be operated via the ConnectLife smart app or the included remote control.

Awọn ẹya pataki:

• 12,000 BTU Cooling Power
• Dara fun awọn yara to 550 sq.
• Four modes of comfort: Cooling, Fan, Dehumidifier
• Convenient drain-free design
• Išišẹ idakẹjẹ
• Wi-Fi enabled with ConnectLife smart app control
• Pẹlu isakoṣo latọna jijin

Ọja Pariview

Familiarize yourself with the components and appearance of your portable air conditioner.

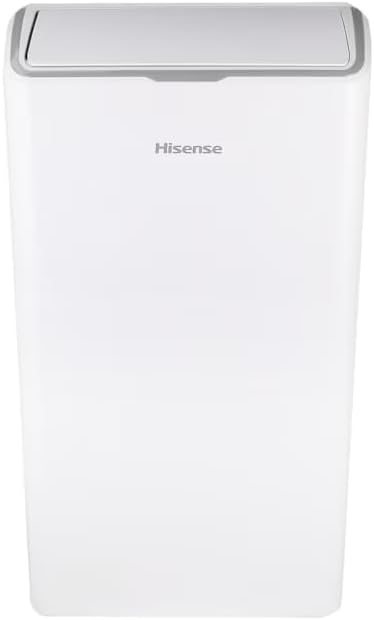

Iwaju view of the Hisense Portable Air Conditioner, showcasing its sleek white design.

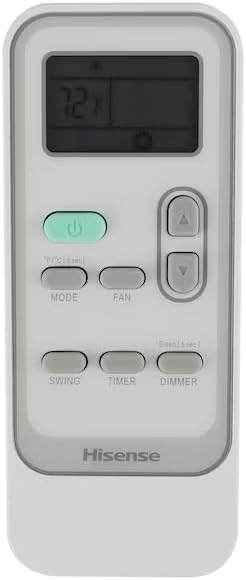

The included remote control for convenient operation, featuring temperature, mode, fan, timer, swing, and dimmer buttons.

Pro ẹgbẹfile of the air conditioner, showing its compact footprint.

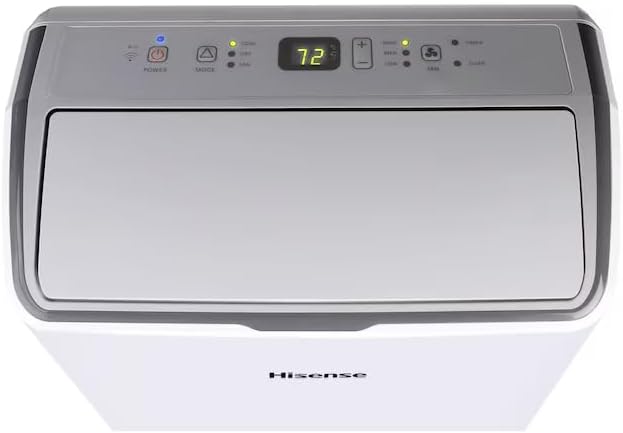

Oke view of the unit, highlighting the integrated digital control panel.

Ẹyìn view of the unit, showing the exhaust hose connection point and power cord.

A lifestyle image demonstrating the use of the remote control with the unit's digital display.

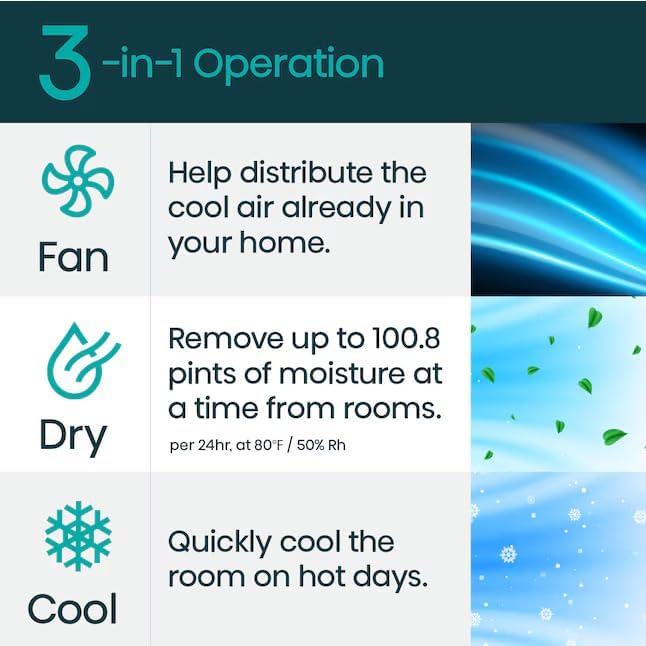

A graphic detailing the three operational modes: Fan for air circulation, Dry for dehumidification, and Cool for active cooling.

Eto ati fifi sori

Ṣii silẹ:

• Fara yọ kuro ati gbogbo awọn ẹya ẹrọ lati apoti.
• Retain packaging materials for future storage or transport.

Fifi sori ferese:

The portable air conditioner requires venting to the outside. The unit comes with a window panel kit for easy installation.

1. Open the window where the unit will be placed.
2. Insert the provided window panel into the window opening. Adjust the panel to fit securely within the window frame.
3. So okun eefin naa pọ si ibudo ti a yan ni ẹhin ẹrọ amúlétutù.
4. Connect the other end of the exhaust hose to the opening in the window panel. Ensure a tight seal to prevent air leakage.
5. Close the window firmly against the window panel to secure the installation.

Ensure the unit is placed on a stable, level surface and is within reach of a grounded electrical outlet.

Awọn ilana Iṣiṣẹ

Igbimọ Iṣakoso ati Iṣakoso Latọna jijin:

The unit can be controlled using the intuitive top-mounted control panel or the included remote control. The remote allows for convenient operation from a distance.

Awọn ọna ṣiṣe:

• Ipo itutu: Select this mode for active cooling. Adjust the desired temperature using the up/down arrows. The unit will cool the room to the set temperature.
• Ipo Ipele: Circulates air without cooling. Useful for improving air circulation. Fan speed can typically be adjusted (Low, Medium, High).
• Ipò Ìtújáde: Removes excess moisture from the air. This mode is ideal for humid environments and helps prevent mold and mildew growth. The unit features a convenient drain-free design, eliminating the need for frequent manual draining of condensed moisture.

Awọn iṣẹ afikun:

• Aago: Ṣeto akoko kan pato fun ẹrọ naa lati tan tabi pa laifọwọyi.
• Dimmer: Adjust the brightness of the display lights on the unit.
• Wiwa: Activates the automatic swing function of the air outlet louvers for wider air distribution.

Itoju

Itọju deede ṣe idaniloju iṣẹ ṣiṣe ti o dara julọ ati igbesi aye gigun ti afẹfẹ afẹfẹ rẹ.

Fifọ́ àlẹ̀:

The air filter should be cleaned regularly, typically every two weeks, or more often depending on usage and air quality. A dirty filter can reduce cooling efficiency and airflow.

1. Yọọ air kondisona kuro ninu iṣan agbara.
2. Locate and remove the air filter (refer to the diagram in the Product Overview section for filter location).
3. Clean the filter using a vacuum cleaner to remove dust and debris. For stubborn dirt, wash the filter gently with lukewarm water and a mild detergent.
4. Allow the filter to air dry completely before reinserting it into the unit. Do not expose the filter to direct sunlight or heat.

Ninu Ẹka:

Mu ese ita kuro pẹlu asọ, damp asọ. Ma ṣe lo awọn kẹmika lile, abrasives, tabi awọn nkanmimu.

Ibi ipamọ:

If storing the unit for an extended period, ensure it is completely dry. Drain any remaining water from the unit (if applicable, though this model is drain-free for condensed moisture, check manual for any specific long-term storage draining). Clean the filter and store the unit in a dry, cool place, preferably in its original packaging.

Laasigbotitusita

Ṣaaju ki o to kan si iṣẹ alabara, jọwọ tọka si awọn ọran ti o wọpọ ati awọn ojutu wọnyi:

Tí ìṣòro náà bá ń bá a lọ lẹ́yìn tí a bá ti gbìyànjú àwọn ìdáhùn wọ̀nyí, jọ̀wọ́ kan sí ìrànlọ́wọ́ oníbàárà Hisense.

Awọn pato

Atilẹyin ọja ati Support

Alaye Atilẹyin ọja:

The Hisense AP1222CW1W Portable Air Conditioner is backed by a 2-odun atilẹyin ọja on both parts and labor.

Atilẹyin Onibara:

For further assistance, technical support, or warranty claims, please visit the official Ile itaja Hisense lori Amazon or refer to the contact information provided in your product registration materials.
