ANPABO 24V 4X4 Ride-On Car Truck User Manual

1. Ifihan

This manual provides essential information for the safe assembly, operation, and maintenance of your ANPABO 24V 4X4 Ride-On Car Truck, Model HC-301. Please read all instructions carefully before use to ensure proper function and safety.

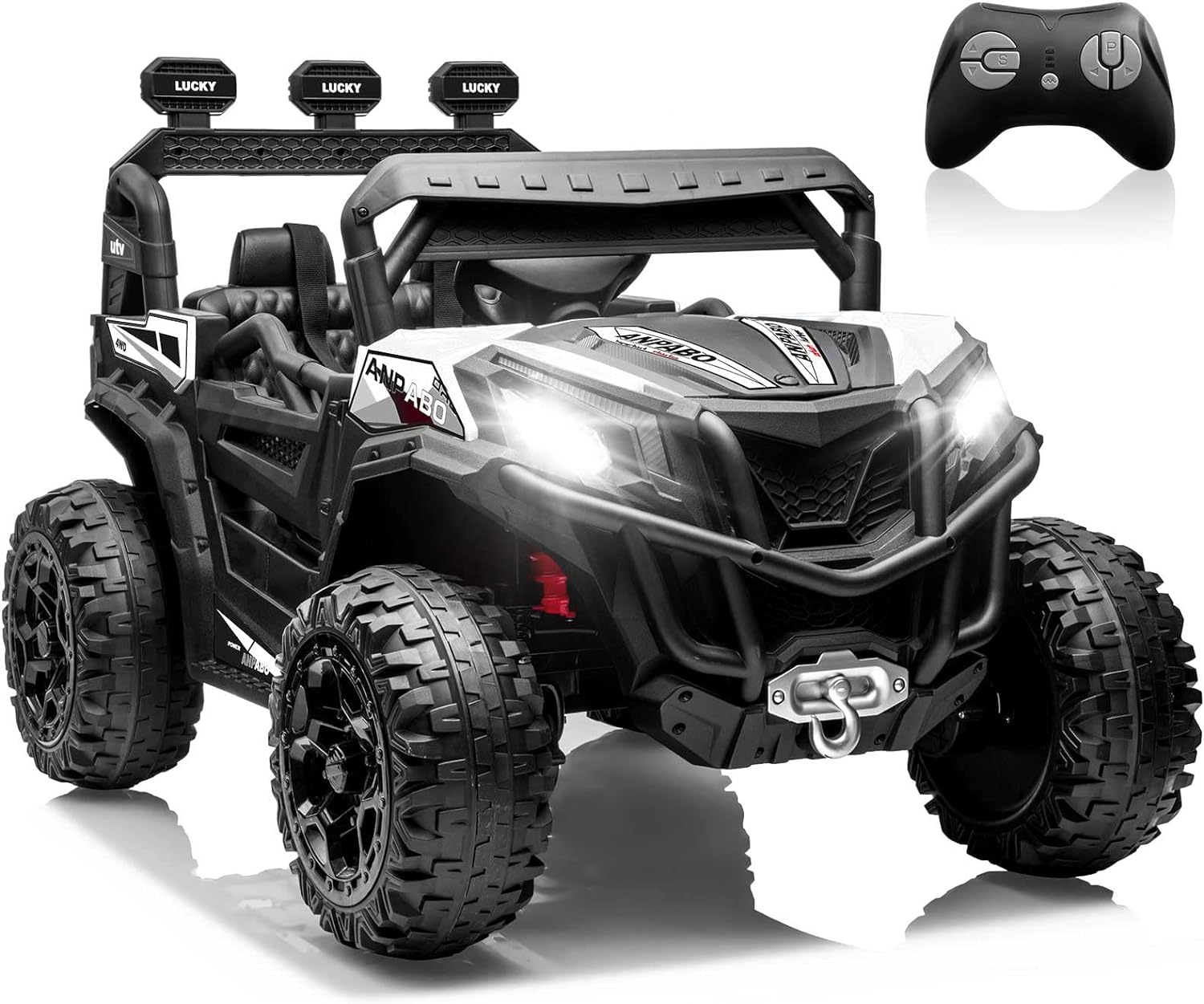

Image 1.1: The ANPABO 24V 4X4 Ride-On Car Truck.

2. Awọn Itọsọna Aabo

WARNING: Adult assembly required. Adult supervision is always necessary. Keep children away from moving parts during assembly.

• Ọjọ ori ati Awọn idiwọn iwuwo: Suitable for children aged 36 months to 8 years. Maximum weight capacity is 110 lbs (50 kg). Accommodates one child up to 4.5 ft tall or two smaller toddlers up to 3.4 ft tall.
• Seat Belt Use: Always ensure the adjustable 4-point seat belt is securely fastened before operation.
• Ayika Ṣiṣẹ: Use on flat, dry surfaces. Avoid slopes, uneven terrain, public roads, swimming pools, or other water bodies.
• Aabo Iṣakoso Latọna jijin: The parental remote control can override manual operation and features an emergency brake ('P' button) for immediate stopping.
• Aabo Batiri: Lo ṣaja ti a pese fun ọ nikan. Ma ṣe lo awọn ebute batiri naa fun igba diẹ.
• Awọn iwe-ẹri: This product is certified by ASTM F963 CPSIA, ensuring it meets safety standards for children's products.

Image 2.1: Lockable doors enhance safety during operation.

Image 2.2: The 19-inch seat includes a secure 4-point seat belt.

3. Apejọ Awọn ilana

Before starting, ensure all parts listed in the 'Package Contents' are present.

3.1 Package Awọn akoonu

• 1 x ANPABO 24V Ride-on car (Vehicle body, Steering Wheel, 2 Pair Drive Motors, 4 x Wheels and Wheel Covers, 1 x Front Windshield, 1 x Guide Frame, 2 x Guide Frame Base, 1 x Trunk Floor, 1 x Rear Axle)
• 1 x Ṣaja
• 1 Pair of Keys
• 1 x Isakoṣo latọna jijin
• Ẹru dabaru

3.2 Igbesẹ-nipasẹ-Igbese Apejọ

1. Fifi sori ẹrọ kẹkẹ: Attach the four wheels to the axles, securing them with the provided fasteners and wheel covers. Ensure they rotate freely.
2. Asomọ Kẹkẹ idari: Connect the steering wheel to the steering column. Ensure all electrical connections are secure before fastening the steering wheel in place.
3. Windshield and Frame: Install the front windshield and the guide frame components onto the vehicle body.
4. Asopọ batiri: Locate the battery compartment (often under the hood or seat). Connect the battery terminals as instructed.
5. Trunk Floor: Place the trunk floor in the rear storage area.
6. Awọn ayẹwo Ipari: Verify all screws are tightened and all parts are securely attached.

Image 3.1: Illustration of the 14-inch wheels and shock absorbers.

Image 3.2: Front storage compartment, often housing the battery.

Image 3.3: Rear storage compartment for carrying items.

4. Batiri Ngba agbara & Itoju

4.1 Gbigba agbara akọkọ

Before first use, charge the battery for a full 8-12 hours. Do not overcharge for more than 18 hours to prevent battery damage.

4.2 Gbigba agbara deedee

Recharge the battery after each use for approximately 8-12 hours. The charger indicator light will typically change color when charging is complete.

4.3 batiri Itọju

• Always use the original ANPABO 24V charger.
• Má ṣe jẹ́ kí bátírì náà gbẹ pátápátá kí ó tó tún gba agbára padà.
• If storing the vehicle for an extended period, charge the battery fully every 3 months to maintain its lifespan.
• Tọju batiri naa ni ibi ti o tutu, ti o gbẹ.

5. Awọn ilana Iṣiṣẹ

5.1 Bibẹrẹ Ọkọ naa

Insert the key into the ignition and turn it to the 'ON' position. The vehicle features a Asọ Bẹrẹ system for gradual acceleration, preventing sudden jolts.

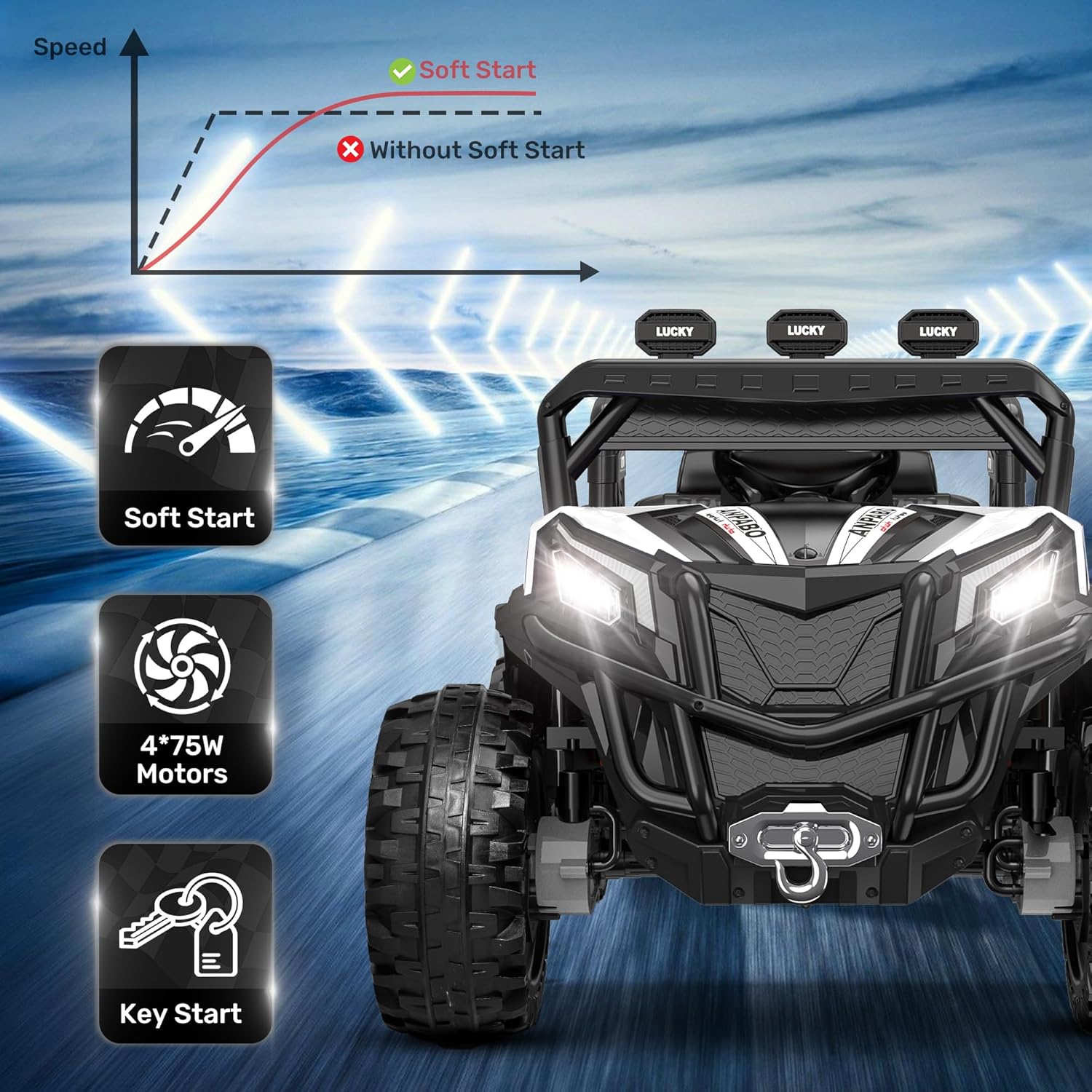

Image 5.1: Key start and soft start mechanism.

5.2 Àwọn Ìgbésẹ̀ Ìwakọ̀

The vehicle offers both manual and remote control driving options.

• Ipo afọwọṣe: The child operates the vehicle using the foot pedal for acceleration and the steering wheel for direction. A speed switch (High/Low) is available on the dashboard.
• Ipo Iṣakoso Latọna jijin: Parents can control the vehicle's direction and speed (3 variable speeds: 2.1-4.5 Mph) using the included remote control. The remote also features an emergency 'P' button to stop the vehicle instantly.

Image 5.2: Parental remote control functions.

5.3 2WD/4WD Switching

The vehicle is equipped with a switch to toggle between 2-wheel drive (2WD) and 4-wheel drive (4WD) modes. 4WD provides enhanced power for overcoming obstacles and rough terrain, while 2WD conserves battery for longer play on flat surfaces.

Image 5.3: 2WD/4WD switch location and function.

5.4 Multimedia System

The dashboard features a music player with USB and Bluetooth connectivity. Children can enjoy pre-installed music or play their favorite songs from a connected device. Volume adjustment and a low battery reminder are also integrated.

Image 5.4: Multifunction dashboard layout.

Aworan 5.5: alaye view of the music player interface.

5.5 Àwọn ìmọ́lẹ̀ àti ìwo

The vehicle is equipped with LED lights and a functional horn for a realistic driving experience. These can be activated via switches on the dashboard.

6. Itoju & Ibi ipamọ

6.1 Ninu

Mu ọkọ naa nu pẹlu asọ, damp asọ. Ma ṣe lo abrasive ose tabi epo. Yago fun fifa omi taara sori awọn paati itanna.

6.2 Gbogbogbo ayewo

Regularly check for loose screws, damaged wires, or worn parts. Pay attention to the steering rods, as they can vibrate loose over time. Replace any damaged components immediately.

6.3 Ibi ipamọ

Store the vehicle in a dry, covered area away from direct sunlight and moisture. If storing for extended periods, ensure the battery is fully charged and recharged every three months.

7. Laasigbotitusita

8. Awọn alaye ọja

Image 8.1: Key dimensions and capacity information.

9. Atilẹyin ọja & Onibara Support

9.1 atilẹyin ọja Alaye

ANPABO products typically come with a manufacturer's warranty covering defects in materials and workmanship. Please refer to your purchase documentation or contact ANPABO customer service for specific warranty terms and duration.

9.2 Onibara Support

For any questions, concerns, or assistance with your ANPABO 24V 4X4 Ride-On Car Truck, please contact ANPABO customer service. You can usually find contact information on the ANPABO official webaaye tabi nipasẹ alagbata ti o ti ra ọja naa.
