Homeleader Electric Infrared Quartz Space Heater IWH-01 User Manual

Ọja Pariview

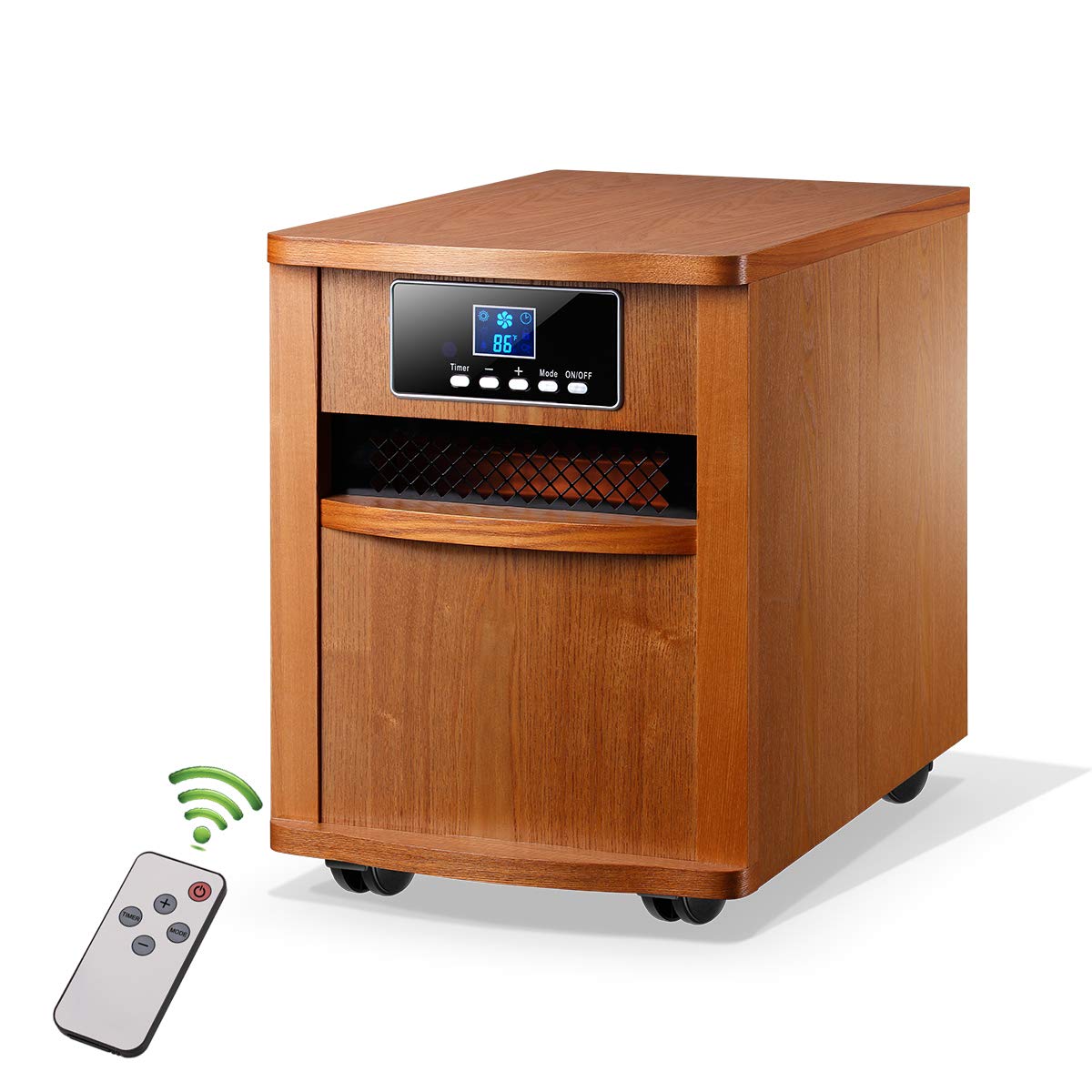

Aworan: Iwaju view of the Homeleader IWH-01 Electric Infrared Quartz Space Heater, showcasing its wooden cabinet design and digital control panel.

The Homeleader Electric Infrared Quartz Space Heater, Model WH-01, is a portable heating solution designed to provide efficient and comfortable warmth for indoor spaces. This 1500-watt heater features digital controls, a remote control, and multiple safety features to ensure reliable operation. Its compact design and swivel casters allow for easy relocation to different rooms as needed.

Awọn Itọsọna Aabo pataki

Please read all instructions carefully before using this heater. Failure to follow these instructions may result in fire, electric shock, serious injury, or death. Keep this manual for future reference.

• Do not use this heater outdoors. This heater is intended for indoor use only.
• This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Use handles or knobs when moving this heater.
• Pa àwọn ohun èlò tí ó lè jóná mọ́, bí àga ilé, ìrọ̀rí, aṣọ ìbusùn, ìwé, aṣọ àti aṣọ ìkélé tí ó wà ní ìwọ̀n ẹsẹ̀ mẹ́ta (0.9 mítà) sí iwájú ẹ̀rọ ìgbóná náà, kí o sì pa wọ́n mọ́ kúrò ní ẹ̀gbẹ́ àti ẹ̀yìn.
• Extreme caution is necessary when any heater is used by or near children or individuals with reduced physical, sensory, or mental capabilities, and whenever the heater is left operating and unattended.
• Yọọ ẹrọ igbona nigbagbogbo nigbati o ko ba wa ni lilo.
• Do not operate any heater with a damaged cord or plug, or after the heater malfunctions, has been dropped, or damaged in any manner. Contact customer service for examination, electrical or mechanical adjustment, or repair.
• Do not run the power cord under carpeting. Do not cover the cord with throw rugs, runners, or similar coverings. Arrange the cord away from traffic areas and where it will not be tripped over.
• To disconnect the heater, turn controls to the OFF position, then remove the plug from the electrical outlet.
• Ma ṣe fi sii tabi gba awọn ohun ajeji laaye lati wọ inu afẹfẹ eyikeyi tabi ṣiṣi eefin nitori eyi le fa ina mọnamọna, ina, tabi ibajẹ si ẹrọ igbona.
• Lati ṣe idiwọ ina ti o ṣeeṣe, maṣe dina awọn gbigbe afẹfẹ tabi eefi ni eyikeyi ọna. Ma ṣe lo lori awọn aaye rirọ, bii ibusun, nibiti awọn ṣiṣi le di dina.
• A ti ngbona ni gbona ati arcing tabi sparking awọn ẹya ara inu. Maṣe lo ni awọn agbegbe nibiti a ti lo epo epo, kikun, tabi awọn olomi flammable.
• Lo ẹrọ igbona yii nikan gẹgẹbi a ti ṣalaye ninu iwe afọwọkọ yii. Lilo eyikeyi miiran ti a ko ṣeduro nipasẹ olupese le fa ina, mọnamọna, tabi ipalara si awọn eniyan.
• This heater includes a safety temperature overheat cut-off switch and a safety tip-over power cut-off switch for enhanced safety.

Ọja Awọn ẹya ara ẹrọ

The Homeleader Electric Infrared Quartz Space Heater IWH-01 is equipped with several features for user convenience and safety:

• Lilo Agbara Giga: Features a digital thermostat with a temperature range of 59°F to 86°F, providing precise temperature control. The current temperature is displayed via a backlit LED display.
• Isẹ ipalọlọ: Designed with high-pressure and low-noise blowers to ensure quiet performance, suitable for use in various environments without disturbance.
• Isẹ Ailewu: Incorporates a 12-hour automatic on/off timer, a safety temperature overheat cut-off switch, and a safety tip-over power cut-off switch to ensure safe usage.
• High Quality Parts: Constructed with a long-lasting galvanized interior heat chamber and includes a lifetime washable intake air filter for durability and easy maintenance.
• Gbigbe: Equipped with swivel casters for easy movement and relocation from room to room.
• Remote Controllable: Comes with a remote control for convenient adjustment of settings from a distance.

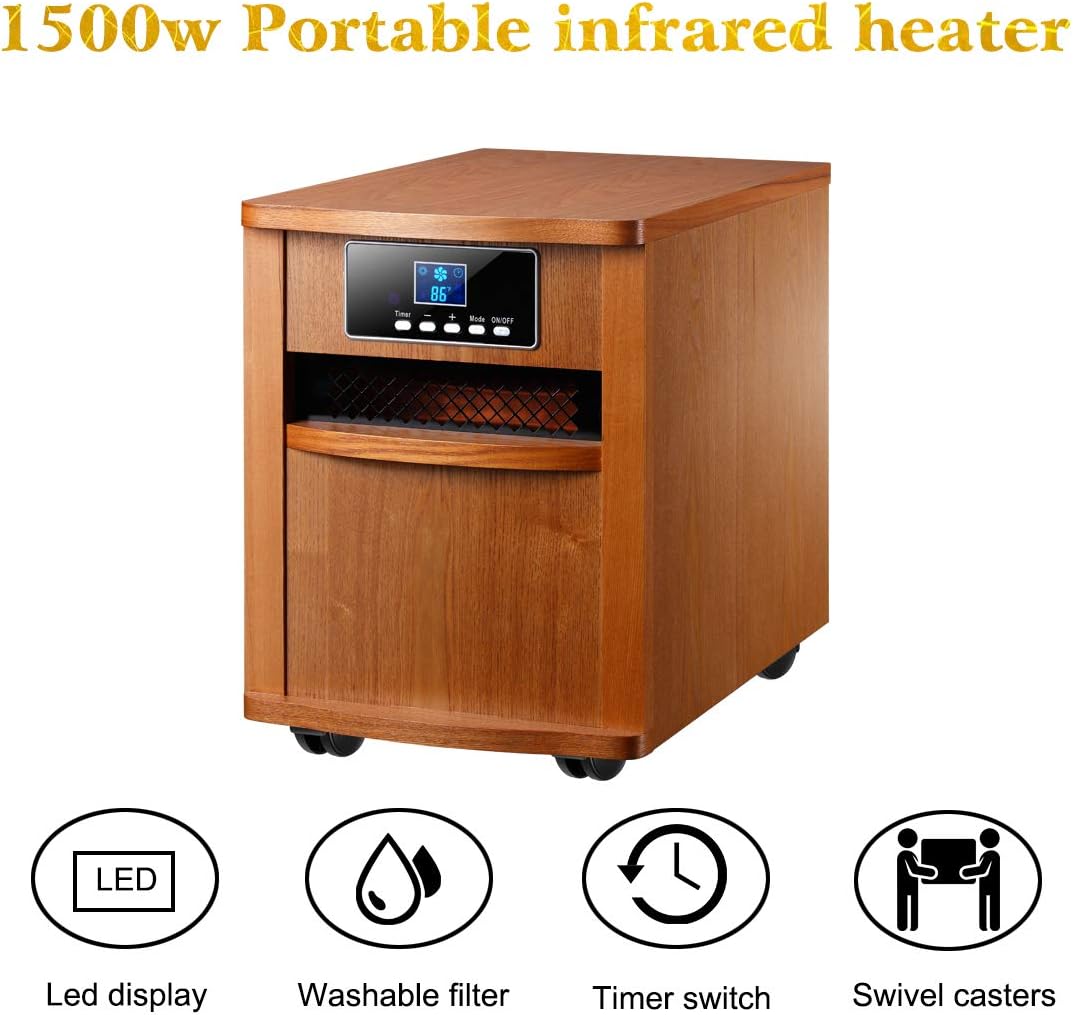

Aworan: Iwaju view of the Homeleader IWH-01 heater, visually indicating its key features: LED display, washable filter, timer switch, and swivel casters.

Package Awọn akoonu

Lẹhin ṣiṣi silẹ, jọwọ rii daju pe gbogbo awọn nkan wọnyi wa ninu package rẹ:

• 1 x Homeleader Space Heater (Model WH-01)
• 1 x Isakoṣo latọna jijin
• 1 x Ilana itọnisọna

Ṣeto

1. Ṣii silẹ: Carefully remove the heater and all accessories from the packaging. It is recommended to retain the packaging for future storage or transport.
2. Ibi: Place the heater on a firm, level surface. Ensure there is at least 3 feet (0.9 meters) of clear space around the front, sides, and rear of the heater to prevent fire hazards. Do not place the heater on soft surfaces like rugs or carpets that could block air vents.
3. Asopọ agbara: Ensure the heater is turned OFF before plugging it into a standard 120-volt AC, 60Hz grounded electrical outlet. Do not use extension cords or power strips with this appliance.
4. Caster Installation (if applicable): The heater is equipped with swivel casters for mobility. If they are not pre-installed, securely attach them to the designated points on the bottom of the unit.

Aworan: Ẹyin view of the heater, illustrating the power cord connection point and the location of the washable air filter for maintenance.

Awọn ilana Iṣiṣẹ

The Homeleader Electric Infrared Quartz Space Heater can be operated using the control panel located on the unit or the included remote control.

Ibi iwaju alabujutoview

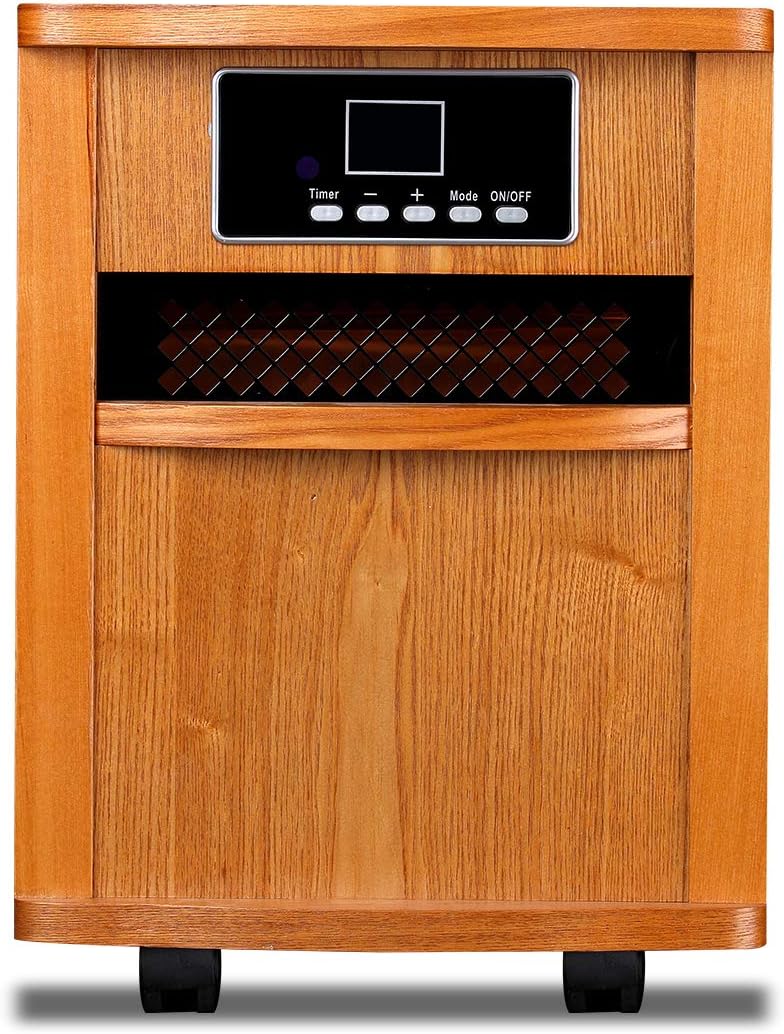

Aworan: Alaye view of the heater's control panel, highlighting the backlit LED display and the functions of each control button.

• Bọtini TAN/PA: Tẹ lati fi agbara mu ẹrọ naa tan tabi paa.
• Bọtini MODE: Press to cycle through available heating modes (e.g., High, Low, ECO).
• +/- Awọn bọtini: Use to adjust the desired temperature setting or timer duration.
• Bọtini TIMER: Press to activate and set the auto-on or auto-off timer function.
• Ifihan LED: Provides a clear visual indication of the current temperature, set temperature, and timer status.

Isakoṣo latọna jijin

Image: The remote control unit for the Homeleader IWH-01 heater, showing its layout and button functions.

The remote control provides convenient access to all functions available on the main control panel. Ensure batteries are correctly installed (batteries not included) and maintain a clear line of sight between the remote and the heater's sensor for optimal performance.

Gbogbogbo isẹ Igbesẹ

1. Agbara Tan: Tẹ awọn TAN/PA button on either the control panel or the remote control. The LED display will illuminate, showing the current room temperature.
2. Ṣeto iwọn otutu ti o fẹ: Lo awọn + or - buttons to adjust the desired temperature. The temperature can be set within a range of 59°F to 86°F. The heater will automatically cycle on and off to maintain the set temperature.
3. Set Timer (Auto-Off): While the heater is operating, press the Aago bọtini. Lo awọn + or - buttons to set the desired auto-off duration, up to 12 hours. The timer will begin counting down, and the heater will automatically turn off when the set time expires.
4. Set Timer (Auto-On): With the heater in the OFF state, press the Aago bọtini. Lo awọn + or - buttons to set the desired auto-on duration, up to 12 hours. The heater will automatically turn on after the set time.
5. Change Heating Mode: Tẹ awọn MODE button to cycle through available heating modes. The active mode will be indicated on the LED display.
6. Agbara Pa: Tẹ awọn TAN/PA button again to turn off the heater. For extended periods of non-use, always unplug the unit from the wall outlet.

Itoju

Regular maintenance is crucial for ensuring the optimal performance, efficiency, and longevity of your Homeleader heater. Always ensure the heater is turned off and unplugged before performing any maintenance.

• Ninu Ajọ Afẹfẹ: The heater is equipped with a lifetime washable intake air filter. Regular cleaning of this filter is essential to maintain proper airflow and heating efficiency.
  1. Ensure the heater is turned off and completely unplugged from the power outlet.
  2. Locate the air filter compartment at the rear of the unit (refer to the Setup section image for location).
  3. rọra fa àlẹmọ afẹfẹ jade.
  4. Wẹ àlẹmọ pẹlu gbona, omi ọṣẹ. Fi omi ṣan daradara lati yọ gbogbo iyokù ọṣẹ kuro.
  5. Allow the filter to air dry completely before reinserting it into the heater. Do not use the heater with a wet filter.
  6. Carefully slide the dry filter back into its slot until it is securely in place.
• Ode Ninu: Mu ese ita ita ti ẹrọ igbona pẹlu asọ, damp cloth. Do not use abrasive cleaners, chemical solvents, or flammable sprays, as these can damage the finish or pose a fire hazard.
• Ibi ipamọ: When storing the heater for extended periods, ensure it is clean and dry. Store it in a cool, dry place, preferably in its original packaging to protect it from dust and damage.

Laasigbotitusita

If you encounter any issues with your Homeleader heater, please consult the following troubleshooting guide before contacting customer service.

If the problem persists after attempting these solutions, please contact Homeleader customer support for further assistance.

Awọn pato

Atilẹyin ọja ati Onibara Support

Homeleader is dedicated to providing high-quality products and excellent customer service. Your heater is backed by comprehensive support:

• Iṣẹ onibara: Our support team is available to assist you with any questions or concerns. We aim to respond to all inquiries within a 24-hour timeframe.
• Ẹri Owo-pada Owo-ọjọ 30: If you are not completely satisfied with your purchase, you may be eligible for a full refund within 30 days.
• 12-Month Replacement Policy: In the event of a product defect, a replacement unit may be provided within 12 months of purchase.
• Atilẹyin igbesi aye: Homeleader offers lifetime technical support for your product.

Please retain your original purchase receipt or proof of purchase for all warranty and support claims. For assistance, visit the official Homeleader website or contact our customer service department directly.
