WWZMDiB RC522 RFID Reader Writer Module Kit User Manual

1. Ifihan

This manual provides comprehensive instructions for the WWZMDiB RC522 RFID Reader Writer Module Kit. This kit is designed for use with microcontrollers such as Arduino, Raspberry Pi, and STM32, enabling contactless communication for various applications. It operates at a frequency of 13.56MHz and supports multiple Mifare card types.

2. Alaye Aabo

• Ṣe idaniloju vol to daratage (3.3V) is supplied to the module to prevent damage.
• Handle electronic components with care to avoid electrostatic discharge.
• Ma ṣe fi module han si ọrinrin tabi awọn iwọn otutu to gaju.
• Always disconnect power before making or changing connections.

3. Package Awọn akoonu

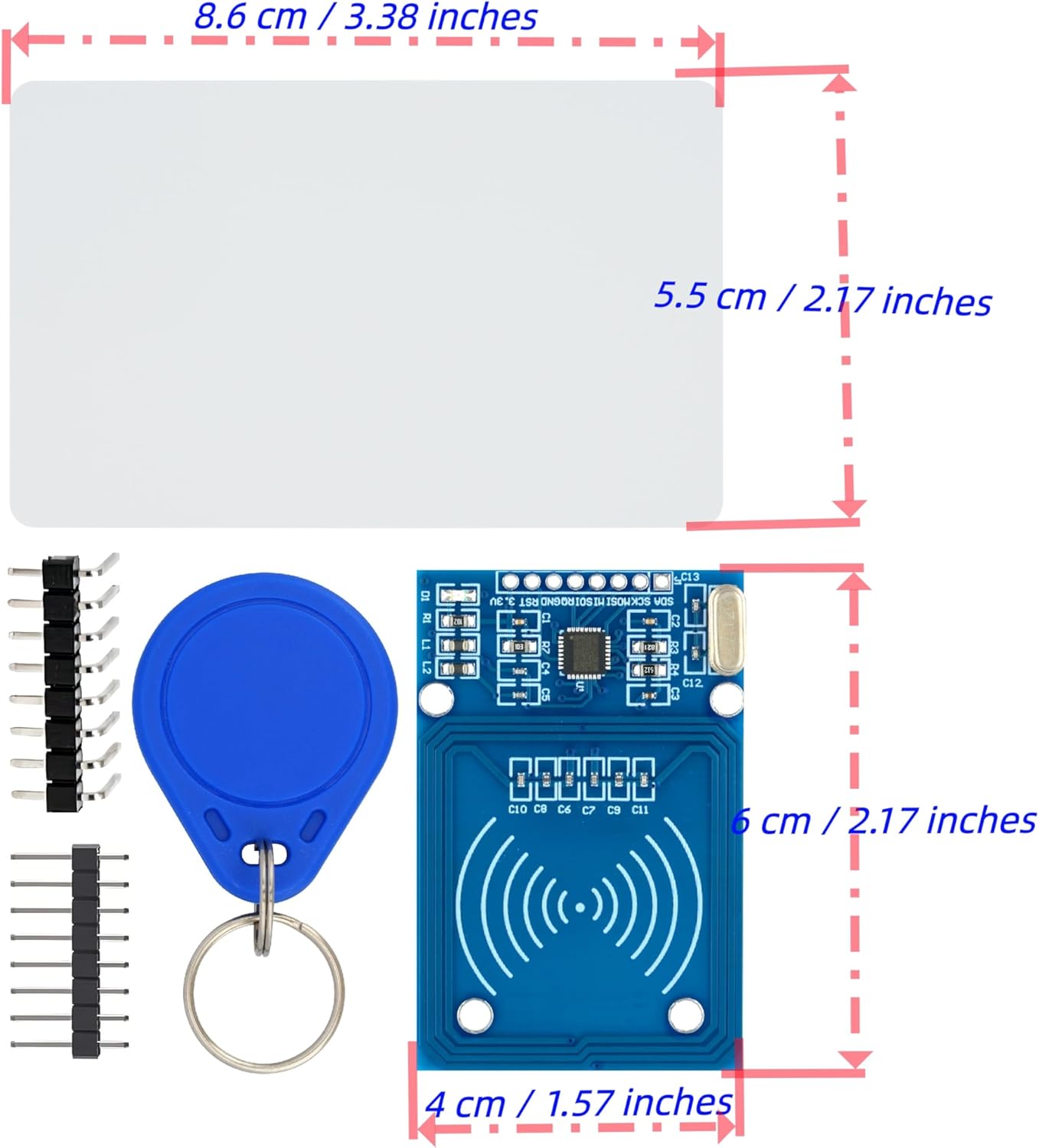

The WWZMDiB RC522 RFID Reader Writer Module Kit typically includes the following items:

• 2 x RC522 RFID Reader Writer Modules
• 2 x Standard S50 Blank Cards
• 2 x Key Fobs (Blue)
• 2 x Straight Pin Headers
• 2 x Bent Pin Headers

4. Ọja Ipariview

The RC522 module is a compact RFID reader/writer based on the MFRC522 chip. It is designed for easy integration into various embedded projects.

4.1. RC522 Module

The main component is the RC522 module, which handles the RFID communication. It features an integrated antenna and pin headers for connection to a microcontroller.

4.2. RFID Cards and Key Fobs

The kit includes blank S50 cards and key fobs, which are passive RFID tags compatible with the RC522 module. These can be programmed and read for various access control or identification projects.

5. Awọn pato

6. Eto

This section outlines the general steps for connecting the RC522 module to a microcontroller. Specific pinouts may vary slightly depending on your microcontroller board (Arduino, Raspberry Pi, STM32).

6.1. Pin Connections (SPI Interface)

The RC522 module communicates via the Serial Peripheral Interface (SPI). Connect the module to your microcontroller as follows:

• VCC (3.3V): Connect to the 3.3V power supply of your microcontroller.
• RST (Tunto): Connect to a digital pin on your microcontroller.
• GND (Ilẹ): Connect to the ground pin of your microcontroller.
• IRQ (Interrupt): Optional, connect to a digital pin for interrupt-driven operations.
• MISO (Master In Slave Out): Connect to the MISO pin of your microcontroller's SPI interface.
• MOSI (Ọga Jade Ẹrú Ninu): Connect to the MOSI pin of your microcontroller's SPI interface.
• SCK (Serial Clock): Connect to the SCK pin of your microcontroller's SPI interface.
• SDA (Slave Select / Chip Select): Connect to a digital pin on your microcontroller. This pin selects the RC522 module for SPI communication.

6.2. Software Oṣo

To use the RC522 module, you will need to install a compatible library for your chosen microcontroller platform. For Arduino, the MFRC522 library by Miguel Balboa is commonly used. For Raspberry Pi, Python libraries are available.

1. Install the appropriate library for your microcontroller IDE or environment.
2. Refer to the library's documentation and examples for specific code implementation.
3. Ensure your microcontroller's SPI interface is correctly configured.

7. Awọn ilana Iṣiṣẹ

Once the module is set up and the software is configured, you can begin reading and writing to RFID tags.

7.1. Reading RFID Tags

To read an RFID tag (card or key fob):

1. Power on your microcontroller with the RC522 module connected.
2. Run the reading sketch/program on your microcontroller.
3. Place an RFID card or key fob near the RC522 module's antenna.
4. The microcontroller will detect the tag and read its Unique ID (UID) and potentially other data stored on it. This data is typically displayed on a serial monitor or an attached display.

7.2. Writing to RFID Tags

To write data to a compatible RFID tag:

1. Ensure you have a writable Mifare tag (like the S50 cards or key fobs provided).
2. Load a writing sketch/program onto your microcontroller.
3. Gbe awọn tag near the RC522 module.
4. The program will attempt to write the specified data to the tag. Verify the write operation by reading the tag lehin.

Akiyesi: Writing to RFID tags requires understanding of Mifare Classic memory structure (sectors, blocks, keys). Refer to the MFRC522 library examples for detailed writing procedures.

8. Itọju

The RC522 module is a robust electronic component, but proper care can extend its lifespan.

• Jẹ́ kí module náà mọ́ tónítóní kí ó sì wà láìsí eruku àti ìdọ̀tí.
• Tọ́jú sí ibi gbígbẹ àti tútù nígbà tí a kò bá lò ó.
• Avoid bending or stressing the pin headers.
• Do not attempt to disassemble the module.

9. Laasigbotitusita

If you encounter issues with your RC522 module, consider the following troubleshooting steps:

• A ko ri Modulu:
  • Check all wiring connections, especially VCC, GND, and SPI pins (MISO, MOSI, SCK, SDA).
  • Ensure the module is receiving 3.3V power.
  • Verify that the correct SPI pins are defined in your software.
  • Confirm the library is correctly installed and initialized.
• Cannot Read Tags:
  • Rii daju pe tag is a compatible Mifare type (S50, S70, UltraLight, Pro, Desfire).
  • Gbe awọn tag very close to the module's antenna.
  • Ṣayẹwo fun kikọlu lati awọn ẹrọ itanna miiran.
  • Verify that the reading code is correctly implemented.
• Cannot Write to Tags:
  • Jẹrisi awọn tag is writable and not read-only.
  • Ensure correct authentication keys are used if the tag ni aabo.
  • Verify the writing code logic and data format.
• Iṣiṣẹ Laarin:
  • Check for loose connections or poor soldering.
  • Rii daju ipese agbara iduroṣinṣin.
  • Consider adding a capacitor across VCC and GND near the module for power stability.

10. Atilẹyin ọja ati Support

Fún àlàyé nípa àtìlẹ́yìn tàbí ìrànlọ́wọ́ ìmọ̀ ẹ̀rọ, jọ̀wọ́ wo ìwífún ìbánisọ̀rọ̀ olùtajà tí a pèsè ní àkókò tí o rà á. Jẹ́ kí ìwé ẹ̀rí ìrajà rẹ jẹ́ ẹ̀rí ìrajà náà.

For additional resources and community support, you can often find extensive documentation, tutorials, and forums related to RC522 modules and their use with Arduino, Raspberry Pi, and STM32 online.
