Relaxdays Heavy Duty Shelf Instruction Manual

1. Ifihan

This manual provides detailed instructions for the assembly, operation, and maintenance of your Relaxdays Heavy Duty Shelf, Model 10043645. This 5-tier metal shelving unit is designed for robust storage in environments such as garages, workshops, and cellars. Please read these instructions carefully before assembly and use to ensure safe and correct installation.

Image 1.1: Fully assembled Relaxdays Heavy Duty Shelf, showcasing its 5-tier structure.

The shelf measures approximately 180 cm (Height) x 100 cm (Width) x 50 cm (Depth) and has a total load capacity of 1250 kg, with each individual shelf supporting up to 250 kg. Its versatile design allows for configuration as a single tall unit or two separate smaller units.

2. Awọn ilana aabo

• Always assemble the shelf on a flat, stable surface.
• Ensure all components are securely connected before loading the shelf.
• Do not exceed the maximum load capacity of 250 kg per shelf or 1250 kg total.
• Distribute weight evenly across each shelf to prevent instability.
• Avoid climbing on the shelf.
• For added stability, especially with heavy loads or in areas prone to movement, consider anchoring the shelf to a wall (anchoring hardware not included).
• Pa awọn ẹya kekere kuro lọdọ awọn ọmọde lakoko apejọ.
• Wear appropriate safety gear, such as gloves, during assembly to prevent cuts or pinches.

3. Package Awọn akoonu

Before beginning assembly, verify that all parts are present and undamaged. If any parts are missing or damaged, contact customer support.

• Metal frame components (uprights, crossbeams)
• 5 MDF (engineered wood) shelves
• 16 Floor protectors
• Awọn ilana apejọ

4. Apejọ Awọn ilana

The Relaxdays Heavy Duty Shelf features a boltless slot-in system for quick and easy assembly. No special tools are required, but a rubber mallet may be helpful to ensure components are fully seated.

1. Ṣetan Agbegbe: Clear a spacious, flat area for assembly. Lay down a protective sheet if assembling on a delicate floor.
2. Assemble Upright Frames: Connect the shorter upright sections to form the full height uprights. Ensure the slots align correctly. The included floor protectors should be placed on the bottom ends of the uprights.
3. Attach Crossbeams: Begin by attaching the bottom and top crossbeams to two upright frames. The slot-in system allows for easy connection. Gently tap with a rubber mallet to secure.
4. Ṣe ipilẹ naa: Connect the remaining two upright frames with crossbeams to create a rectangular base.
5. Fi sori ẹrọ Awọn apoti: Place the MDF shelves onto the crossbeams. Ensure they sit flush and are stable.
6. Adjust Shelf Height (Optional): The shelves can be adjusted to your desired height by repositioning the crossbeams in the upright slots. Ensure all four corners of a shelf are at the same height.
7. Ṣayẹwo Ipari: Once assembled, gently shake the shelf to ensure stability. If any part feels loose, re-secure it.

Image 4.1: Detail of the boltless slot-in connection system, showing how components interlock.

Image 4.2: Close-up illustrating the design of the metal uprights and the secure connection points for the crossbeams.

5. Awọn ilana Iṣiṣẹ

5.1. Ṣíṣe àtúnṣe Gíga Sẹ́ẹ̀lì

The height of each MDF shelf can be customized to accommodate items of various sizes. To adjust a shelf:

1. Yọ gbogbo àwọn ohun tí o fẹ́ ṣe àtúnṣe kúrò nínú àpótí ìpamọ́ náà.
2. Carefully lift the MDF board out of its position.
3. Disengage the crossbeams from the uprights by gently lifting and pulling them out of their slots.
4. Re-insert the crossbeams into the desired slots on the uprights, ensuring they are level and securely seated.
5. Place the MDF board back onto the re-positioned crossbeams.

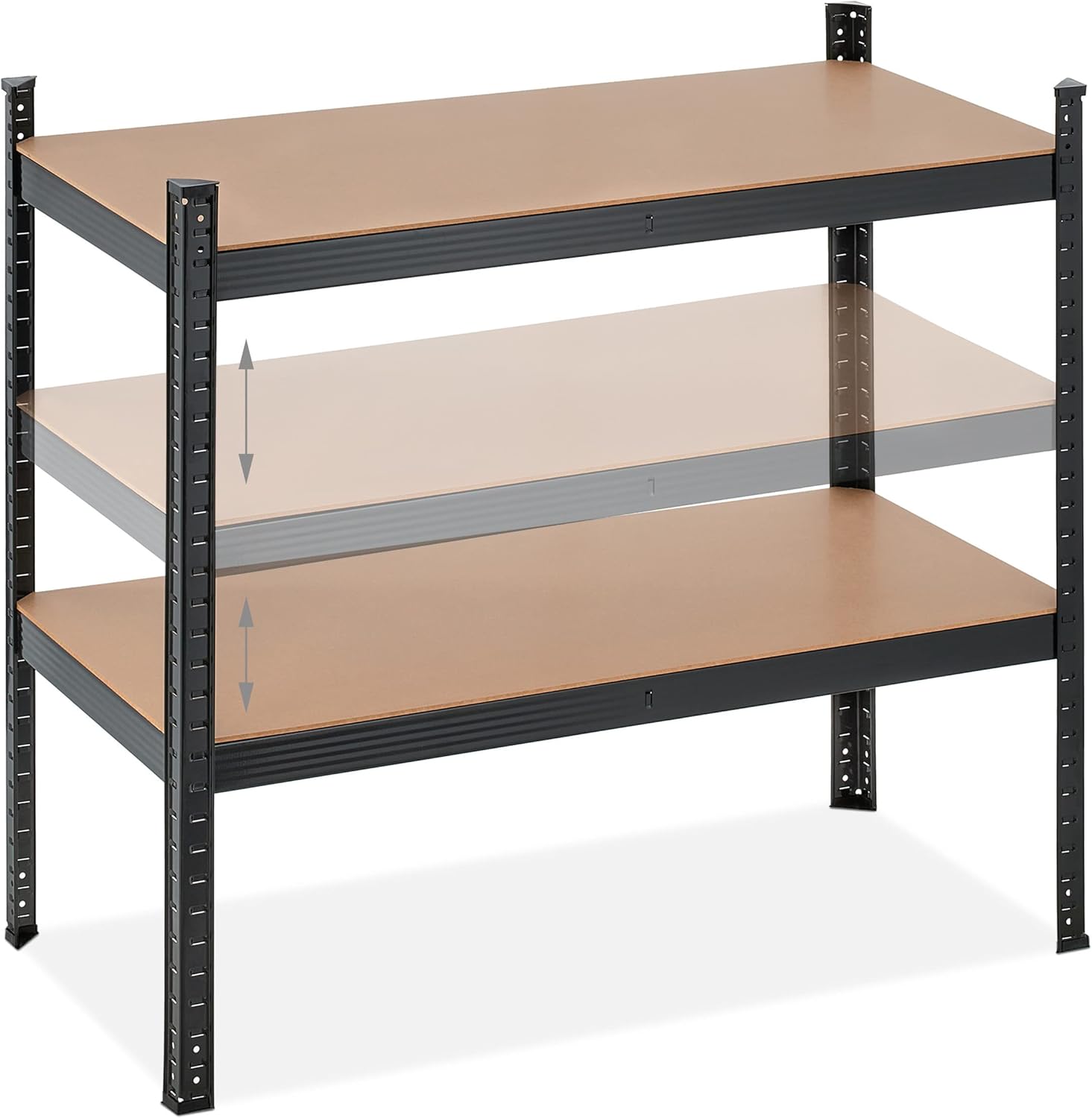

Image 5.1: Demonstrates the flexibility of adjusting shelf heights to suit different storage needs.

5.2. Converting to Two Smaller Units

This heavy-duty shelf can be divided into two separate, shorter shelving units. This is useful for creating a workbench or two smaller storage solutions.

1. Ensure the shelf is empty and stable.
2. Identify the middle connection point where the uprights are joined.
3. Carefully separate the uprights at this connection point. This will result in two shorter upright sections for each side.
4. Re-assemble the top crossbeams and shelves onto the newly formed shorter uprights to create two independent units. Ensure each new unit has its own set of floor protectors.

Image 5.2: The heavy-duty shelf can be configured as a single tall unit or two separate, shorter units for increased versatility.

6. Itọju

• Ninu: Wipe down metal parts with a damp cloth and mild detergent. Dry thoroughly. For MDF shelves, use a dry or slightly damp cloth and avoid excessive moisture to prevent swelling or damage.
• Ayewo: Periodically check all connections to ensure they remain secure. Re-tap with a rubber mallet if any components feel loose.
• Isakoso fifuye: Always adhere to the specified weight limits to prevent structural fatigue or failure.

7. Laasigbotitusita

8. Awọn pato

• Nọmba awoṣe: 10043645
• Brand: Àwọn ọjọ́ ìsinmi
• Awọn iwọn (H x W x D): 180 x 100 x 50 cm (isunmọ)
• Ìwúwo: 19.98 kg (isunmọ)
• Ohun elo: Metal (steel frame), Engineered Wood (MDF shelves)
• Nọmba awọn selifu: 5
• Maximum Total Load Capacity: 1250 kg
• Agbara Gbigbe to pọ julọ fun selifu kọọkan: 250 kg
• Àwọ̀: Black frame, natural wood-look MDF shelves
• Apejọ: Required (boltless slot-in system)
• Awọn ẹya pataki: Adjustable shelf height, convertible into two smaller units, includes floor protectors.

Aworan 8.1: Onisẹpo loriview of the Relaxdays Heavy Duty Shelf.

9. Atilẹyin ọja ati Support

For information regarding warranty coverage, returns, or technical support, please refer to your purchase documentation or contact the retailer where the product was purchased. You may also visit the official Relaxdays webaaye fun alaye atilẹyin gbogbogbo.

Manufacturer: Relaxdays, Germany.
