COSTWAY 3-in-1 Outdoor Swing Set Instruction Manual

1. Ifihan

Thank you for choosing the COSTWAY 3-in-1 Outdoor Swing Set. This manual provides important information regarding the safe assembly, operation, and maintenance of your swing set. Please read it thoroughly before assembly and retain it for future reference.

This multifunctional swing set is designed to provide endless fun for children aged 3 to 10 years, featuring a single swing, a face-to-face glider, and gymnastic rings. Its robust metal construction and stable design ensure a safe and enjoyable play experience.

2. Alaye Aabo

IKILO: Àìtẹ̀lé àwọn ìlànà ààbò wọ̀nyí lè yọrí sí ìpalára tàbí ikú ńlá.

• Abojuto Agba Nilo: Always supervise children while they are using the swing set.
• Ọjọ ori ati Awọn idiwọn iwuwo: Suitable for children aged 3-10 years. The maximum weight capacity for each single swing is 50 kg (110 lbs). The maximum weight capacity for the glider is 100 kg (220 lbs). The total maximum weight recommendation for the entire structure is 200 kg (440 lbs), accommodating up to 4 children simultaneously.
• Fifi sori daradara: Ensure the swing set is assembled correctly according to the instructions and securely anchored to the ground using the provided stakes.
• Agbegbe Play ailewu: Install the swing set on level ground, at least 2 meters (6.5 feet) away from any structures, fences, trees, or other obstacles. The ground beneath the swing set should be soft, such as grass, sand, or wood chips, to absorb falls.
• Ayẹwo igbagbogbo: Before each use, check all nuts, bolts, ropes, and connections to ensure they are tight and secure. Replace any worn or damaged parts immediately.
• Awọn ipo oju ojo: Do not use the swing set during strong winds, rain, or other adverse weather conditions.
• Ko si awọn iyipada: Do not modify the swing set or attach any accessories not approved by COSTWAY.
• Lilo daradara: Instruct children to sit properly on swings, not to stand on them, and to avoid jumping off while in motion. Only one child per swing seat, and two children on the glider.

3. Package Awọn akoonu

Please verify that all parts are present before beginning assembly. If any parts are missing or damaged, contact customer service.

• 1 x Metal Frame for Swing Set
• 1 x Single Swing Seat with Ropes
• 1 x Face-to-Face Glider with Footrests and Ropes
• 2 x Gymnastic Rings with Ropes
• 4 x Ilẹ okowo
• 1 x Apejọ Ilana Itọsọna
• All necessary hardware (nuts, bolts, washers, etc.)

4. Apejọ Awọn ilana

Assembly requires two adults. Please follow the detailed step-by-step instructions provided in the separate assembly manual included in your package. Ensure all components are correctly identified and securely fastened.

1. Yọ awọn ohun elo kuro: Lay out all parts on a clean, flat surface and compare them with the parts list in the assembly manual.
2. Ṣe akojọpọ fireemu akọkọ: Connect the metal tubes to form the A-shaped frame structure. Ensure all connections are tight.
3. Attach Swings and Glider: Securely attach the single swing, face-to-face glider, and gymnastic rings to the main frame using the provided hardware.
4. Adjust Swing Height: The height of the swing seats can be adjusted between 88cm and 128cm. Refer to the manual for specific adjustment mechanisms.
5. Anchor to Ilẹ: Once assembled, position the swing set in its desired location. Use the four ground stakes to firmly anchor the swing set to the lawn or soft ground. This is crucial for stability and safety.
6. Ṣayẹwo Ipari: Before first use, double-check all nuts, bolts, and connections to ensure they are fully tightened and secure.

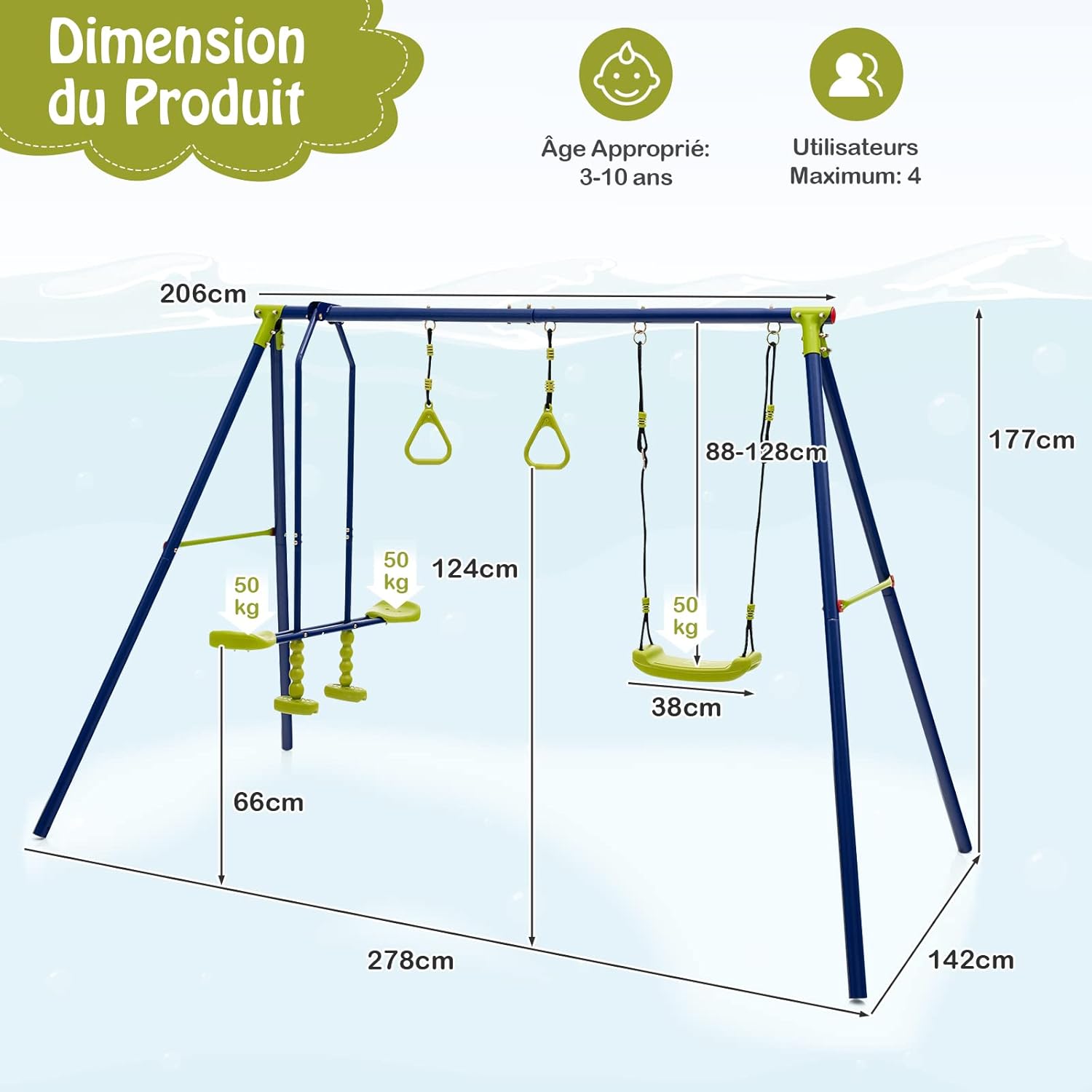

Image: Product dimensions diagram, illustrating the overall length, width, height, and individual component measurements.

Aworan: Alaye view of the swing set's construction features, highlighting reinforced connections, a robust crossbar, durable multi-layer braided ropes, and the four ground stakes for secure anchoring.

5. Awọn ilana Iṣiṣẹ

The COSTWAY 3-in-1 Outdoor Swing Set offers multiple play options:

• Single Swing: One child can use the single swing. Ensure they sit securely and hold onto the ropes.
• Face-to-Face Glider: Two children can use the glider, sitting opposite each other and pushing off the ground to create motion.
• Àwọn Òrùka Gymnastic: Children can use the gymnastic rings for hanging and developing balance and upper body strength.

Adjusting Swing Height

The height of the swing seats can be adjusted to suit different children's heights. To adjust, locate the adjustment mechanism on the ropes (usually a buckle or clip system). Carefully raise or lower the swing seat to the desired height between 88cm and 128cm, ensuring it is securely locked in place before use. Always check that both sides of the swing are adjusted to the same height to prevent uneven swinging.

Image: A child enjoying the single swing. An inset image demonstrates the adjustable height feature of the swing ropes, allowing customization between 88cm and 128cm.

Image: Children engaging with the multi-functional swing set, illustrating the use of the two-person glider, gymnastic rings, and a single swing.

6. Itọju

Regular maintenance is essential to ensure the longevity and safety of your swing set.

• Lojoojumọ/Ṣaaju Lilo Kọọkan: Visually inspect the swing set for any loose parts, sharp edges, or damaged components. Ensure the ground stakes are firmly in place.
• Osẹ-ọsẹ: Check all nuts, bolts, and connections for tightness. Tighten any loose hardware. Inspect ropes and seats for signs of wear, fraying, or cracks.
• Oṣooṣu: Clean the metal frame and plastic components with a mild soap and water solution. Rinse thoroughly and dry. Check the powder coating for any chips or rust spots and touch up if necessary to prevent further corrosion.
• Seasonal: Before and after periods of heavy use or storage, perform a thorough inspection of the entire structure. Consider lubricating moving parts if they become stiff or squeaky (use a non-toxic, outdoor-safe lubricant).
• Ibi ipamọ: If storing the swing set for an extended period, especially during winter, disassemble it and store components in a dry, protected area to prevent weather damage.

7. Laasigbotitusita

8. Awọn pato

Image: The swing set shown in different outdoor settings, emphasizing its suitability for gardens, yards, and parks.

9. Atilẹyin ọja ati Support

COSTWAY products are designed for quality and durability. For warranty information, please refer to the specific warranty card included with your purchase or visit the official COSTWAY website. If you encounter any issues, require replacement parts, or have questions not covered in this manual, please contact COSTWAY customer support.

Atilẹyin Onibara: Jọwọ ṣabẹwo www.costway.com fun alaye olubasọrọ ati support oro.
