COSTWAY 4 Pieces Patio Rattan Furniture Set Instruction Manual

Ọrọ Iṣaaju

This manual provides detailed instructions for the assembly, operation, and maintenance of your COSTWAY 4 Pieces Patio Rattan Furniture Set. Please read all instructions carefully before assembly and use to ensure proper function and longevity of your furniture.

Package Awọn akoonu

Jọwọ rii daju pe gbogbo awọn eroja ti a ṣe akojọ si isalẹ wa ṣaaju ki o to bẹrẹ ikojọpọ.

• 1 x Loveseat
• 2 x Aga aga
• Tábìlì Kọfí 1 x
• 1 x Ilana itọnisọna
• Awọn irọri ijoko meji
• 4 x Awọn idọti afẹyinti
• Assembly Hardware: Bolts (M6x80mm, M6x60mm, M6x45mm, M6x35mm, M6x30mm), Washers (M6), Nuts (M6), Allen Key (M4), Wrench (M10)

Awọn ilana Apejọ

Please follow these instructions carefully. It is recommended to keep all bolts loosely fastened until all components are in place, then tighten them securely. Refer to the assembly video for a visual step-by-step guide.

Step 1: Assemble the Single Chairs (x2)

Each single chair consists of a back panel (A), a seat panel (B), a front panel (C), and two side panels (G, H).

1. Connect the seat panel (B) to the back panel (A) using M6x35mm bolts and M6 washers.
2. Attach the front panel (C) to the seat panel (B) using M6x35mm bolts and M6 washers.
3. Secure the side panels (G and H) to the assembled back, seat, and front panels using a combination of M6x45mm, M6x60mm, and M6x35mm bolts, M6 washers, and M6 nuts. Ensure all connection points are aligned before tightening.
4. Once all connections are made, fully tighten all bolts using the provided Allen key and wrench.
5. Repeat these steps for the second single chair.

Step 2: Assemble the Loveseat

The loveseat consists of a back panel (D), a seat panel (E), a front panel (F), and two side panels (G, H).

1. Connect the seat panel (E) to the back panel (D) using M6x35mm bolts and M6 washers.
2. Attach the front panel (F) to the seat panel (E) using M6x35mm bolts and M6 washers.
3. Secure the side panels (G and H) to the assembled back, seat, and front panels using a combination of M6x45mm, M6x60mm, and M6x35mm bolts, M6 washers, and M6 nuts. Ensure all connection points are aligned before tightening.
4. Fully tighten all bolts using the provided Allen key and wrench.

Step 3: Assemble the Coffee Table

The coffee table consists of a main frame (I), side panels (K), shelf panels (L), and a tempered glass top (O).

1. Connect the side panels (K) to the shelf panels (L) using M6x30mm bolts and M6 washers.
2. Attach the assembled side and shelf panels to the main frame (I) using M6x35mm bolts and M6 washers.
3. Place the tempered glass top (O) onto the table frame. Ensure the integrated suction cups secure the glass in place.
4. Fully tighten all bolts using the provided Allen key and wrench.

Apejọ Video Itọsọna

For a comprehensive visual walkthrough of the assembly process, please watch the official video below.

Awọn ilana Iṣiṣẹ

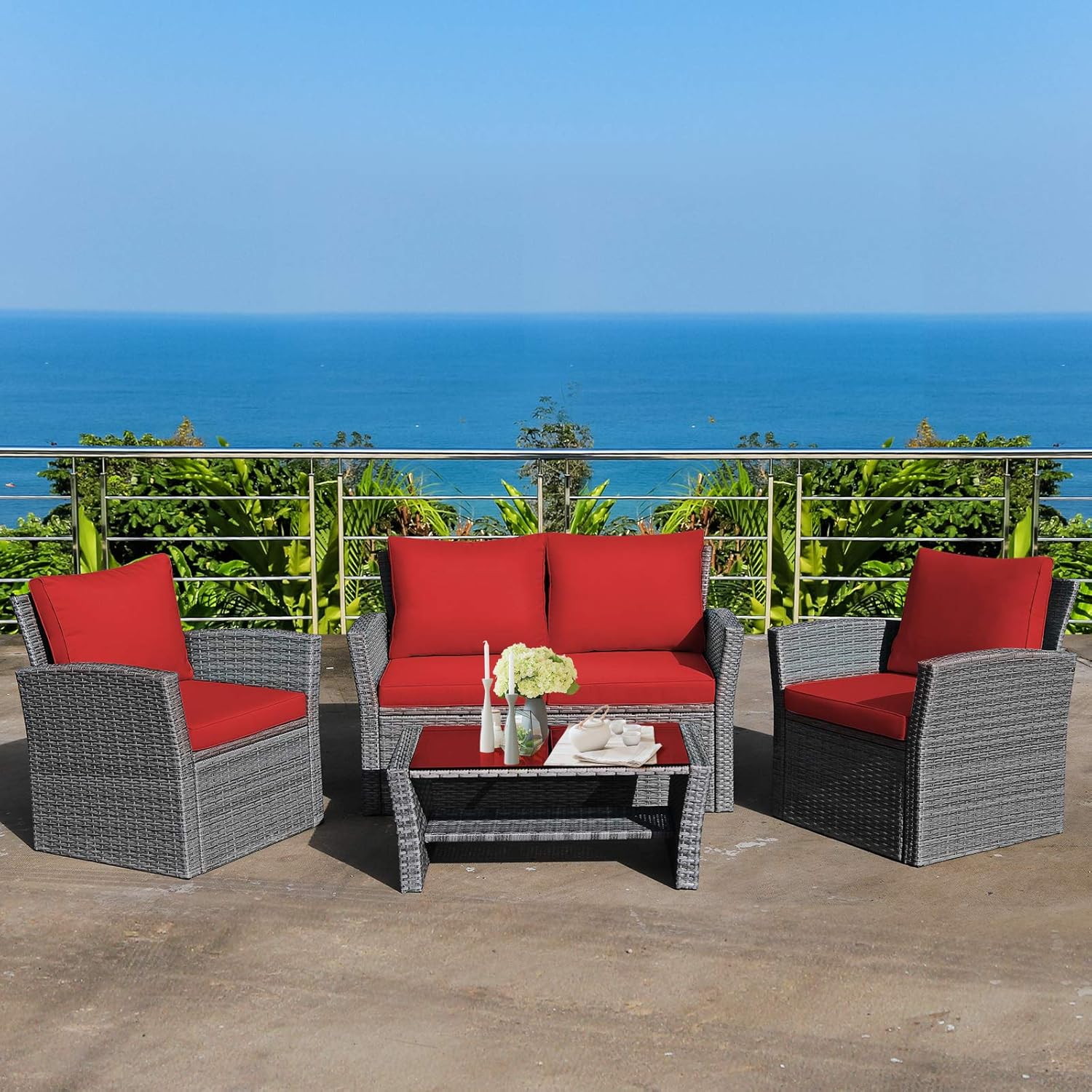

Your COSTWAY patio furniture set is designed for outdoor use.

• Arrange the loveseat, single chairs, and coffee table in your desired configuration.
• Place the seat and back cushions on the chairs for comfort.
• Use the coffee table for placing drinks, snacks, or other small items. The tempered glass top is designed for easy cleaning.

Itoju

Proper care will extend the life of your patio furniture set.

• Ninu: Wipe the rattan surfaces with a dry cloth or a damp cloth as needed. The tempered glass tabletop is smooth and easy to clean.
• Abojuto timutimu: The cushion covers feature smooth zippers for easy removal and maintenance. Clean covers according to fabric care instructions.
• Idaabobo oju ojo: While the PE rattan is designed for all-weather use, it is recommended to avoid prolonged exposure to heavy rain or extreme weather conditions to ensure a longer service life.
• Ayewo: Periodically inspect the furniture for any signs of wear or damage, especially after exposure to outdoor conditions. Ensure all anti-slip foot pads are in place to prevent sliding.

Laasigbotitusita

• Iṣoro pẹlu Apejọ: If screw holes do not align easily, ensure all bolts are only loosely fastened until all parts are connected. Then, gradually tighten all screws. Refer to the assembly video for visual guidance.
• Awọn ẹya ti o padanu: If any components are missing from the package, please contact COSTWAY customer support with your model number and a description of the missing part.
• Awọn ọran iduroṣinṣin: Ensure all bolts are fully tightened. Check that the furniture is placed on a flat, even surface.

Awọn pato

Atilẹyin ọja ati Support

For warranty information or customer support, please refer to the official COSTWAY webojula tabi kan si wọn onibara iṣẹ taara.
