Ọrọ Iṣaaju
Thank you for choosing the Gorenje AF1409DB Air Fryer. This appliance utilizes hot air circulation to cook your favorite foods with little to no oil, offering a healthier alternative to traditional frying. It is designed for versatility, allowing you to bake, roast, and fry a wide range of dishes. Please read this manual thoroughly before first use to ensure safe and optimal operation.
Awọn Itọsọna Aabo pataki
Nigbati o ba nlo awọn ohun elo itanna, awọn iṣọra aabo ipilẹ yẹ ki o tẹle nigbagbogbo, pẹlu atẹle naa:
- Ka gbogbo awọn ilana ṣaaju lilo.
- Maṣe fi ọwọ kan awọn aaye ti o gbona. Lo awọn ọwọ tabi awọn koko.
- Lati daabobo lodi si mọnamọna ina, maṣe fi okun, awọn pilogi, tabi ohun elo sinu omi tabi omi miiran.
- Abojuto sunmọ jẹ pataki nigbati eyikeyi ohun elo ba lo nipasẹ tabi sunmọ awọn ọmọde.
- Yọọ kuro lati inu iṣan nigbati ko si ni lilo ati ṣaaju ṣiṣe mimọ. Gba laaye lati tutu ṣaaju fifi si tabi mu awọn ẹya kuro.
- Ma ṣe ṣiṣẹ ohun elo eyikeyi pẹlu okun ti o bajẹ tabi pulọọgi tabi lẹhin aṣiṣe ohun elo tabi ti bajẹ ni eyikeyi ọna.
- Lilo awọn asomọ ẹya ẹrọ ti a ko ṣeduro nipasẹ olupese ohun elo le fa awọn ipalara.
- Maṣe lo ni ita.
- Ma ṣe jẹ ki okun duro lori eti tabili tabi counter, tabi fi ọwọ kan awọn aaye ti o gbona.
- Ma ṣe gbe sori tabi sunmọ gaasi ti o gbona tabi ina ina, tabi ni adiro ti o gbona.
- Išọra to gaju gbọdọ ṣee lo nigba gbigbe ohun elo ti o ni epo gbona tabi awọn olomi gbona miiran.
- Nigbagbogbo so plug to ohun elo akọkọ, ki o si pulọọgi okun sinu ogiri iṣan. Lati ge asopọ, tan eyikeyi iṣakoso si “pa”, lẹhinna yọ plug kuro ni iṣan ogiri.
- Ma ṣe lo ohun elo fun miiran ju lilo ti a pinnu lọ.
Ọja Pariview
Familiarize yourself with the components of your Gorenje Air Fryer.
Nọmba 1: Iwaju view of the Gorenje AF1409DB Air Fryer, showing the main unit with its sleek black finish and digital control panel.
Nọmba 2: Apa view of the Gorenje AF1409DB Air Fryer, highlighting its compact design and handle for the frying basket.
Nọmba 3: Bugbamu view of the Gorenje AF1409DB Air Fryer, showing the main unit, the outer basket, and the removable non-stick frying basket with handle.

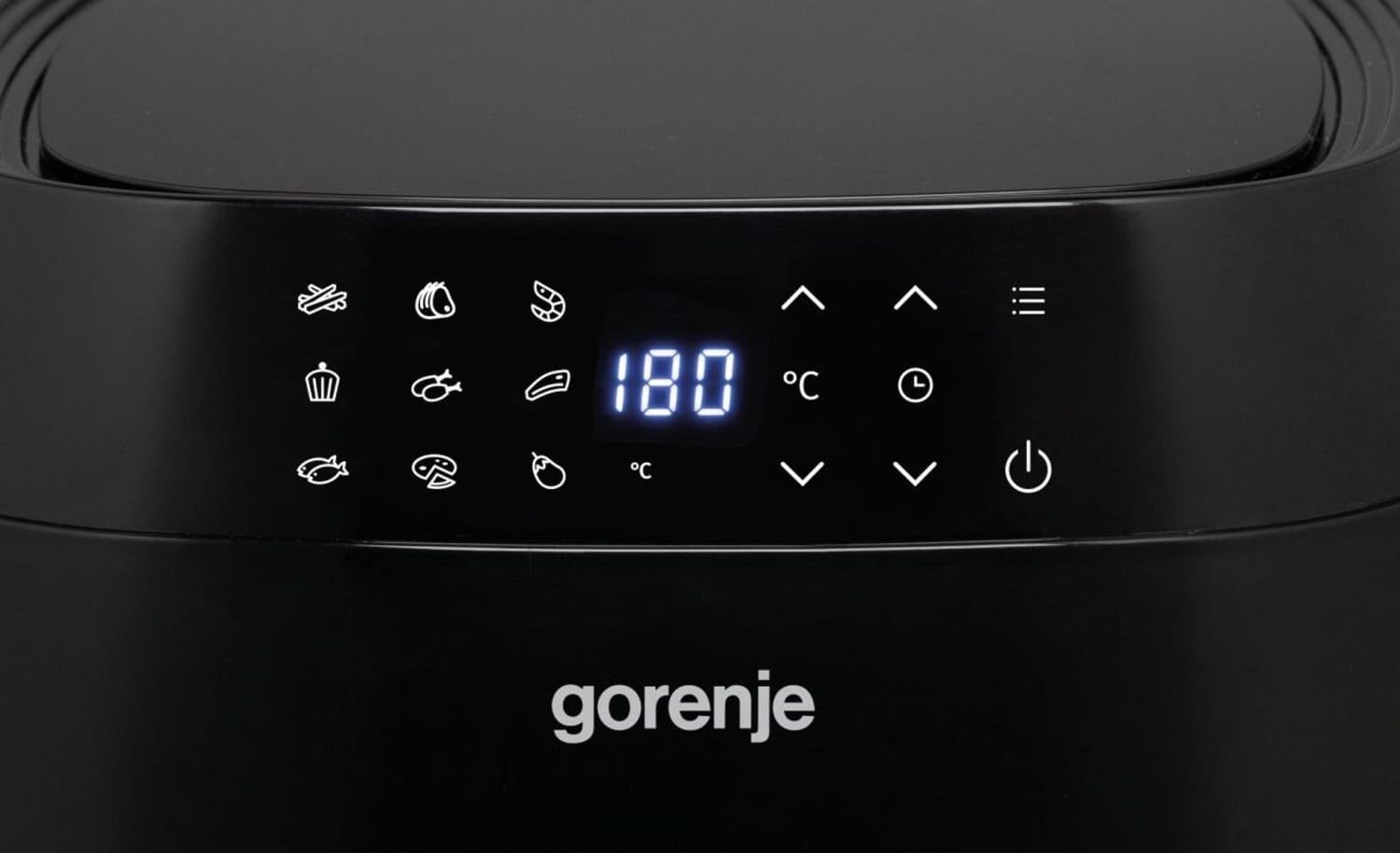

Nọmba 4: Close-up of the LED digital control panel, displaying temperature, time, and various preset program icons.
Awọn eroja:
- Ẹka akọkọ: Awọn ile alapapo ano ati àìpẹ.
- Ibi iwaju alabujuto: LED display with touch controls for temperature, timer, and preset programs.
- Agbọn didin: Agbọ̀n tí a lè yọ kúrò tí kì í lẹ̀ mọ́ ara rẹ̀ fún gbígbé oúnjẹ.
- Outer Basket/Drawer: Holds the frying basket and slides into the main unit.
- Mu: For safely pulling out the outer basket.
Eto ati Lilo akọkọ
- Ṣii silẹ: Farabalẹ yọ gbogbo awọn ohun elo apoti ati awọn ohun ilẹmọ kuro ninu ohun elo naa.
- Ninu: Wash the frying basket and outer basket with hot water, dish soap, and a non-abrasive sponge. Wipe the inside and outside of the main unit with a damp asọ.
- Ibi: Place the air fryer on a stable, heat-resistant surface, away from walls or other appliances to allow for proper air circulation. Ensure there is at least 10 cm of free space on the back and sides, and 10 cm above the appliance.
- Pre-heating (Optional but Recommended): For the first use, it is recommended to run the air fryer empty for about 10-15 minutes at 180°C (356°F) to eliminate any manufacturing odors. A slight smell may be present, which is normal and will dissipate.
Awọn ilana Iṣiṣẹ
Isẹ ipilẹ:
- Wọle: Connect the power cord to a grounded wall outlet. The display will light up.
- Ṣetan Ounjẹ: Fi awọn eroja rẹ sinu agbọn frying. Ma ṣe ṣaju agbọn naa lati rii daju pe sise paapaa.
- Fi Agbọn sii: Slide the outer basket with the frying basket back into the main unit until it clicks into place.
- Agbara Tan: Tẹ awọn Bọtini agbara lati tan ohun elo naa.
- Ṣeto iwọn otutu ati akoko:
- Lo awọn Temperature Up/Down arrows to adjust the temperature from 80°C to 200°C.
- Lo awọn Timer Up/Down arrows to set the cooking time from 1 to 60 minutes.
- Bẹrẹ Sise: Tẹ awọn Bọtini agbara again to start the cooking process. The fan and heating element will activate.
- Shaking (Optional): For some foods, shaking the basket halfway through cooking ensures even browning. Pull out the outer basket, shake the contents, and then slide it back in. The air fryer will resume cooking automatically.
- Ipari: The air fryer will beep when the set time has elapsed. Carefully pull out the outer basket and remove the food.
Lilo awọn eto tito tẹlẹ:
The Gorenje AF1409DB features 9 preset programs for common dishes. To use a preset:
- Lẹhin ti agbara, tẹ bọtini naa Menu/Preset button repeatedly to cycle through the available programs. Each press will display a different icon and its default temperature/time settings.
- Once you select the desired program, you can optionally adjust the temperature and time using the respective Up/Down arrows if needed.
- Tẹ awọn Bọtini agbara lati bẹrẹ eto ti o yan.
Examples of food being cooked in the air fryer:
Nọmba 5: The air fryer basket filled with diced potatoes and bell peppers, ready for cooking.
Nọmba 6: Delicious muffins, demonstrating the air fryer's baking capabilities.
Itọju ati Cleaning
Wíwẹ̀ déédéé yóò mú kí ẹ̀rọ afẹ́fẹ́ rẹ pẹ́ sí i, yóò sì mú kí iṣẹ́ rẹ̀ dára sí i.
- Yọọ kuro ki o tutu: Yọọ ohun elo nigbagbogbo ki o jẹ ki o tutu patapata ṣaaju ṣiṣe mimọ.
- Agbọ̀n àti Drawer tí ó mọ́: The frying basket and outer basket have a non-stick coating. Clean them with hot water, dish soap, and a non-abrasive sponge. For stubborn residue, soak them in hot water for about 10 minutes. They are also dishwasher safe.
- Inu inu mimọ: Pa inu ohun elo naa nu pẹlu ipolowoamp cloth. For stubborn food particles, use a soft brush. Do not use abrasive cleaners or steel wool.
- Ode mimọ: Mu ese ita ti afẹfẹ fryer pẹlu ipolowoamp asọ.
- Ibi ipamọ: Rii daju pe gbogbo awọn ẹya jẹ mimọ ati ki o gbẹ ṣaaju titoju ohun elo naa ni ibi ti o tutu, ti o gbẹ.
Laasigbotitusita
| Isoro | Owun to le Fa | Ojutu |
|---|---|---|
| Afẹfẹ fryer ko ni tan. | Ohun elo ko ṣafọ sinu. | Rii daju pe okun agbara ti wa ni edidi ni aabo sinu iṣan ti ilẹ. |
| Ounjẹ kii ṣe boṣeyẹ. | Agbọ̀n náà kún fún ẹrù púpọ̀; oúnjẹ kò mì. | Má ṣe fi àpò kún àpò náà. Mi apẹ̀rẹ̀ náà gbọ̀n ní àárín ìgbà tí a bá ti sè é kí ó lè rí bí ó ti yẹ. |
| Ẹfin funfun n bọ lati inu ohun elo. | Aloku girisi lati lilo iṣaaju; ọra eroja. | Clean the basket and heating element thoroughly. For fatty foods, use a paper towel to absorb excess oil. |
| Ounje ko crispy. | Not enough oil (if applicable); temperature too low; cooking time too short. | Fi epo kun ounjẹ naa tabi fi kun un die. Mu iwọn otutu tabi akoko sise pọ si. |
Awọn pato
- Awoṣe: AF1409DB
- Brand: Gorenje
- Agbara: 1400 W
- Agbara: 3.5 liters
- Voltage: 230 V
- Iwọn otutu: 80°C - 200°C
- Aago: Titi di iṣẹju 60
- Ohun elo: Plastic (exterior)
- Awọn iwọn ọja: 30.6 x 28 x 34 cm (L x W x H)
- Ìwọ̀n Nkan: 4.5 kilo
Nọmba 7: Diagram showing the dimensions of the Gorenje AF1409DB Air Fryer: 30.6cm depth, 28cm width, and 34cm height.
Atilẹyin ọja ati Support
Gorenje products are manufactured to the highest standards. For warranty information and customer support, please refer to the warranty card included with your purchase or visit the official Gorenje webojula. Jeki ẹri rira rẹ fun awọn iṣeduro atilẹyin ọja.
For technical assistance or service, please contact Gorenje customer service through their official channels. Do not attempt to repair the appliance yourself.
