1. Ifihan
The CRAFTSMAN 15pc 6x SpeedDrive Ratcheting Screwdriver (CMHT68134) is designed for efficient fastening and loosening of screws. It incorporates advanced Speed Drive technology to enhance productivity and an ergonomic design for user comfort and control. This manual provides essential information for the proper use and care of your screwdriver.
Awọn ẹya pataki:
- 6X Faster: Advanced Speed Drive technology delivers up to 6 times the speed of a standard ratcheting screwdriver.
- Dual Drive Ratcheting Action: The Speed Drive technology continuously drives or loosens fasteners with each left and right turn of the handle.
- In-Handle Storage: A twist-and-lock cap provides convenient storage for up to 6 bits, ensuring quick access.
- Aabo Bit: An in-shaft snap ring engages and securely locks bits in place during use.
2. Ọja Ipariview
Familiarize yourself with the components of your CRAFTSMAN 15pc 6x SpeedDrive Ratcheting Screwdriver.

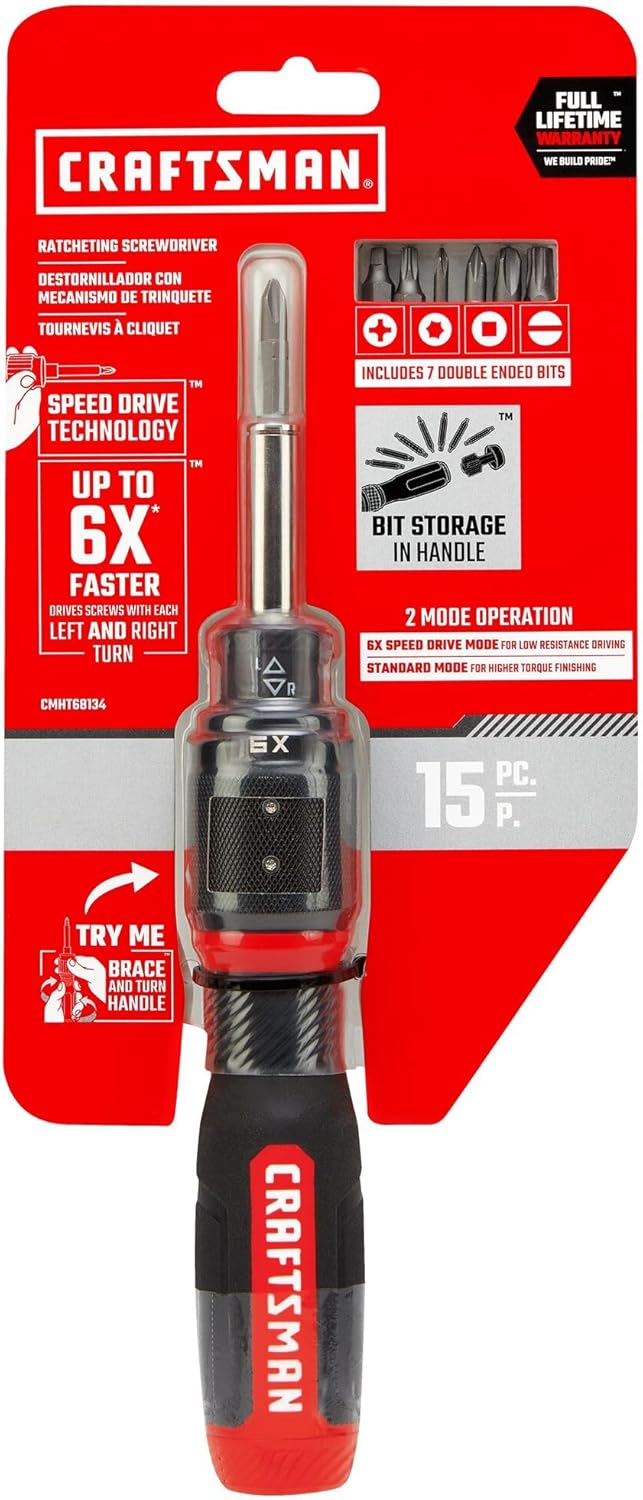

Nọmba 2.1: The CRAFTSMAN 15pc 6x SpeedDrive Ratcheting Screwdriver, illustrating the main body, bit shaft, and the removable cap with stored bits.

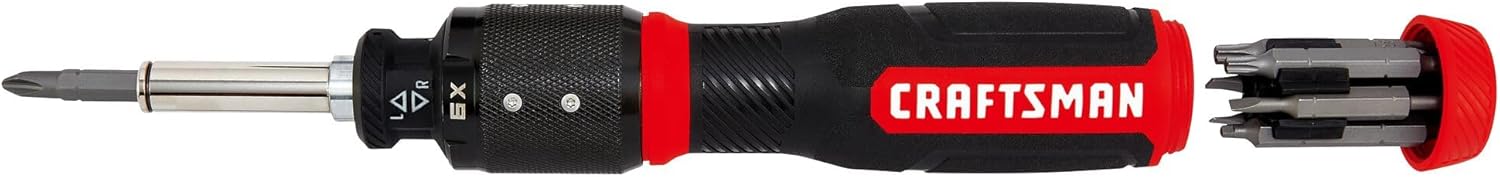

Nọmba 2.2: Sun mo tipetipe view of the screwdriver, highlighting the in-handle bit storage accessible by twisting and removing the end cap.
Nọmba 2.3: The screwdriver ready for use, displaying the bit securely in the shaft and the textured grip for enhanced control.
Nọmba 2.4: The complete set of double-ended bits provided with the screwdriver, offering versatility for various fastening tasks.
Ọja Pariview Fidio:
Fidio 2.1: Ohun osise ọja loriview demonstrating the features and functionality of the CRAFTSMAN 15pc 6x SpeedDrive Ratcheting Screwdriver.
3. Eto
3.1 Inserting and Changing Bits
- Select the appropriate double-ended bit for your task from the in-handle storage.
- Insert the desired end of the bit into the screwdriver shaft.
- Ensure the bit is fully seated and the internal snap ring engages to lock it securely in place. A slight pull on the bit will confirm it is locked.
- To remove a bit, simply pull it firmly from the shaft.
3.2 Accessing In-Handle Bit Storage
- Locate the red end cap at the base of the screwdriver handle.
- Twist the cap counter-clockwise to unlock and remove it.
- The cap contains a bit holder with slots for storing the included double-ended bits.
- After selecting or returning bits, replace the cap and twist clockwise to lock it securely.
4. Awọn ilana Iṣiṣẹ
4.1 Selecting Drive Direction
The screwdriver features a directional selector ring located near the shaft. Rotate this ring to choose between:
- Forward (R): For driving screws (clockwise rotation).
- Reverse (L): For loosening screws (counter-clockwise rotation).
- Locked (Center): For fixed operation without ratcheting, useful for initial breaking of tight fasteners or final tightening.
4.2 Using 6x SpeedDrive Technology
To engage the 6x SpeedDrive feature, hold the textured collar located just below the directional selector ring with your non-dominant hand while rotating the handle with your dominant hand. This action activates the internal gearing, allowing the bit to rotate up to 6 times faster than a standard ratcheting screwdriver, significantly speeding up fastening and loosening tasks, especially for screws that are not heavily torqued.
For initial breaking of very tight screws or for final high-torque tightening, it is recommended to use the screwdriver in the standard ratcheting mode (without holding the collar) or the locked mode to prevent excessive strain on the speed drive mechanism.
5. Itọju
- Ninu: Mu awọn screwdriver nu pẹlu kan gbẹ tabi die-die damp aṣọ lẹ́yìn lílo kọ̀ọ̀kan. Yẹra fún lílo àwọn kẹ́míkà líle tàbí àwọn ohun ìfọmọ́ tí ó máa ń pa ara.
- Itọju Bit: Keep bits clean and free of debris. Store them in the in-handle storage to prevent loss and corrosion. Replace worn or damaged bits to ensure optimal performance and prevent damage to fasteners.
- Ibi ipamọ: Store the screwdriver in a dry environment, away from extreme temperatures and direct sunlight.
6. Laasigbotitusita
- Bit Slipping: Ensure the bit is fully inserted and locked into the shaft. Check if the bit or fastener head is stripped or worn. Replace bits as necessary.
- Ilana Ratcheting Ko Ṣiṣepo: Verify the directional selector ring is set to either forward (R) or reverse (L) and not in the locked (center) position.
- SpeedDrive Not Engaging/Working Effectively: Ensure you are firmly holding the textured collar while rotating the handle. If the screw is excessively tight, the SpeedDrive may not engage effectively; switch to standard ratcheting or locked mode for initial loosening/tightening.
7. Awọn pato
| Ẹya ara ẹrọ | Ẹ̀kúnrẹ́rẹ́ |
|---|---|
| Brand | oníṣẹ́ ọnà |
| Orukọ awoṣe | CRAFTSMAN 15pc 6x SpeedDrive Ratcheting Screwdriver |
| Nọmba awoṣe | CMHT68134 |
| Nọmba ti Awọn nkan | 1 (Screwdriver) |
| Ori Style | Apapo |
| Ohun elo | Irin Irin |
| Àwọ̀ | White (Product image shows black/red) |
| Iwọn Nkan | 0.4 kilo |
| Pataki Ẹya | Rirọ Mu |
| Awọn irinše to wa | SpeedDrive 6X Ratcheting Screwdriver; (7) 2" Ph, SL, SQ, Torx double-ended bits |
| Niyanju Lilo | Auto Repair, Construction, Furniture Assembly, Home Improvement |
8. Atilẹyin ọja ati Support
CRAFTSMAN products are manufactured to high-quality standards and are backed by a manufacturer's warranty. For specific warranty details, claims, or technical support, please refer to the warranty information provided with your product packaging or visit the official CRAFTSMAN webojula. Tọju iwe-ẹri rira rẹ bi ẹri rira.
For further assistance, you may contact CRAFTSMAN customer service through their official channels.
