Samsung RT38A5930BS Refrigerator User Manual

1. Ọja Ipariview

O ṣeun fun riraasing the Samsung RT38A5930BS Refrigerator. This 14 cubic feet appliance, finished in graphite, is designed to provide efficient and reliable food preservation. It features advanced technologies such as Twin Cooling Plus and a multi-flow air system to maintain optimal conditions for your food. The intuitive LED display on the door allows for easy control and monitoring of settings.

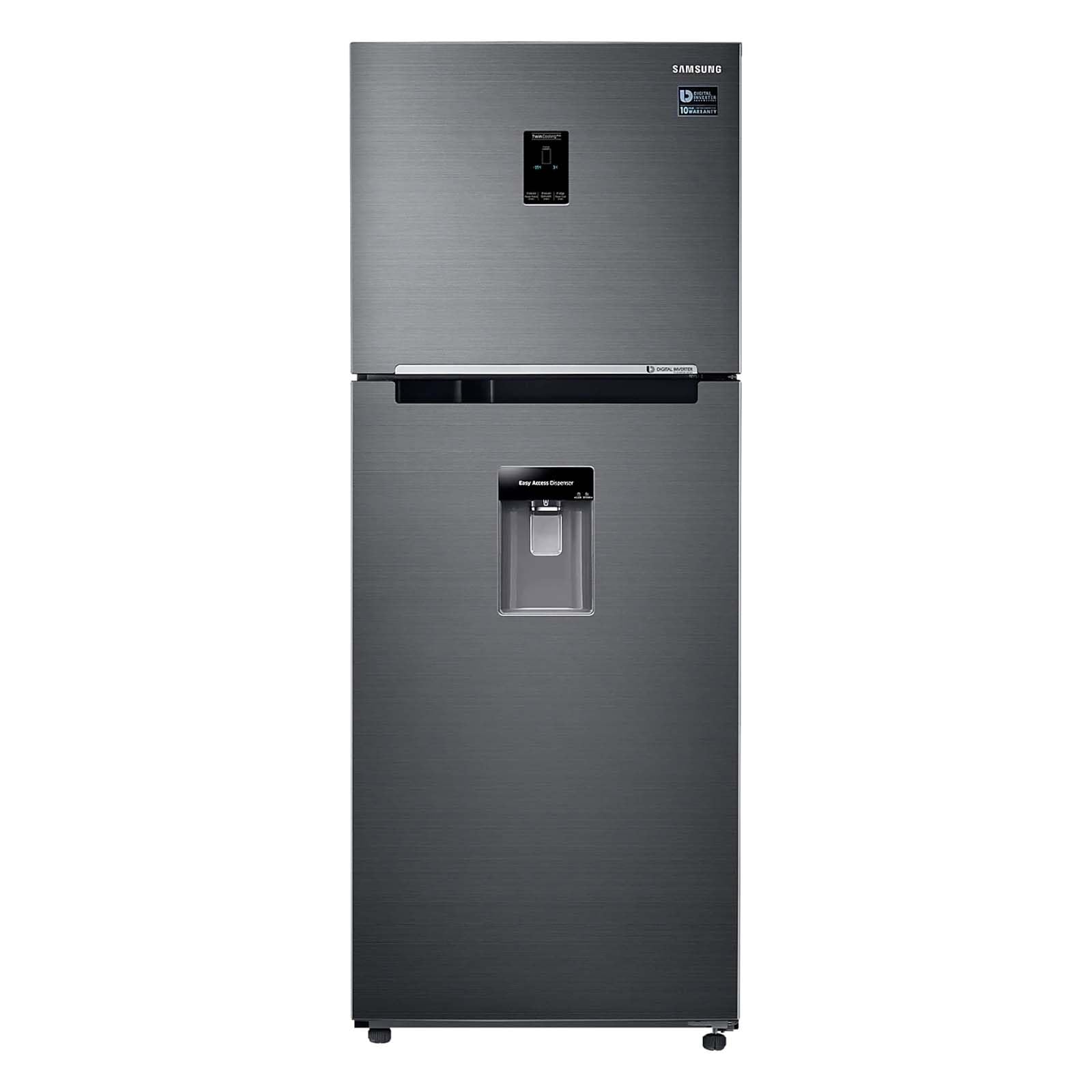

olusin 1.1: Iwaju view of the Samsung RT38A5930BS Refrigerator with water dispenser.

2. Alaye Aabo

Before operating your new refrigerator, please read all safety instructions carefully to prevent personal injury or property damage. Keep this manual for future reference.

2.1 Itanna Abo

• Ensure the refrigerator is connected to a grounded 127 Volt AC outlet.
• Maṣe lo awọn okun itẹsiwaju tabi awọn alamuuṣẹ ti ko ni ipilẹ.
• Má ṣe yọ ẹ̀rọ náà kúrò nípa fífà okùn agbára náà. Máa di pulọọgi náà mú dáadáa nígbà gbogbo.

2.2 fifi sori Aabo

• Fi firiji sori ẹrọ ti o duro, ipele ipele.
• Allow adequate clearance around the appliance for proper ventilation (refer to Section 3.2).
• Jeki awọn ohun elo apoti kuro ni arọwọto awọn ọmọde.

2.3 Gbogbogbo Abo

• Ma ṣe fi awọn nkan ibẹjadi pamọ gẹgẹbi awọn agolo aerosol pẹlu awọn ategun ina ninu ohun elo yii.
• Ma ṣe gba awọn ọmọde laaye lati ṣere pẹlu tabi inu firiji.
• Yẹra fún fífi ọwọ́ tí ó tutu kan àwọn ibi tí ó tutù láti dènà ìgbóná òtútù.

3. Eto

Proper setup ensures optimal performance and longevity of your refrigerator.

3.1 Ṣiṣii silẹ

• Yọ gbogbo awọn ohun elo apoti kuro, pẹlu teepu ati awọn fiimu aabo.
• Ṣayẹwo awọn firiji fun eyikeyi sowo bibajẹ. Jabọ eyikeyi ibaje lẹsẹkẹsẹ si alagbata rẹ.

3.2 Ibi ati Ipele

• Place the refrigerator on a flat, stable floor away from direct sunlight or heat sources.
• Ensure at least 5 cm (2 inches) of clearance on the sides and back, and 10 cm (4 inches) at the top for proper air circulation.
• Level the refrigerator by adjusting the front leveling feet. Use a spirit level to ensure it is perfectly balanced.

3.3 Itanna Asopọ

• Plug the power cord into a dedicated 127V, 60Hz, 3-prong grounded outlet.
• Ma ṣe pin iṣan jade pẹlu awọn ohun elo miiran.

3.4 Initial Cleaning and Power-On

• Before first use, clean the interior with a mild detergent and warm water. Wipe dry thoroughly.
• After plugging in, allow the refrigerator to run for at least 2-3 hours to reach its operating temperature before storing food.

Figure 3.1: Refrigerator dimensions for proper placement: 72cm (Depth) x 70cm (Width) x 186cm (Height).

4. Awọn ilana Iṣiṣẹ

This section details how to use the various features of your Samsung refrigerator.

4.1 otutu Iṣakoso

• The LED display on the door allows you to adjust the temperature settings for both the refrigerator and freezer compartments.
• Press the 'Fridge' button to cycle through available refrigerator temperatures.
• Press the 'Freezer' button to cycle through available freezer temperatures.
• Recommended settings are typically 3°C (37°F) for the refrigerator and -18°C (0°F) for the freezer.

4.2 Twin Cooling Plus Technology

Your refrigerator is equipped with Twin Cooling Plus, which uses two separate evaporators to cool the refrigerator and freezer compartments independently. This prevents odor mixing and maintains optimal humidity levels, keeping food fresher for longer and ensuring odor-free frozen foods.

4.3 Multi-Flow Air System

The multi-flow air system ensures that cold air is distributed evenly throughout the refrigerator compartment, reaching every shelf and corner. This helps maintain a consistent temperature and quickly cools newly added items.

4.4 Lilo Omi Dispenser

• The refrigerator features an Easy Access Dispenser for cold water.
• To dispense water, place a glass or container under the dispenser nozzle and press the lever.
• Ensure the internal water tank is filled for continuous cold water supply.

4.5 inu ilohunsoke Awọn ẹya ara ẹrọ

Figure 4.1: Interior layout of the refrigerator compartment, including adjustable shelves and the Movable Ice Maker.

• Awọn selifu ti o le ṣatunṣe: The refrigerator compartment includes 6 shelves that can be adjusted to accommodate items of various sizes.
• Big Box Drawer: A large drawer at the bottom is ideal for storing fruits and vegetables, helping to maintain their freshness.
• Ẹlẹda Ice gbigbe: The freezer compartment includes a movable ice maker for convenient ice production and storage.

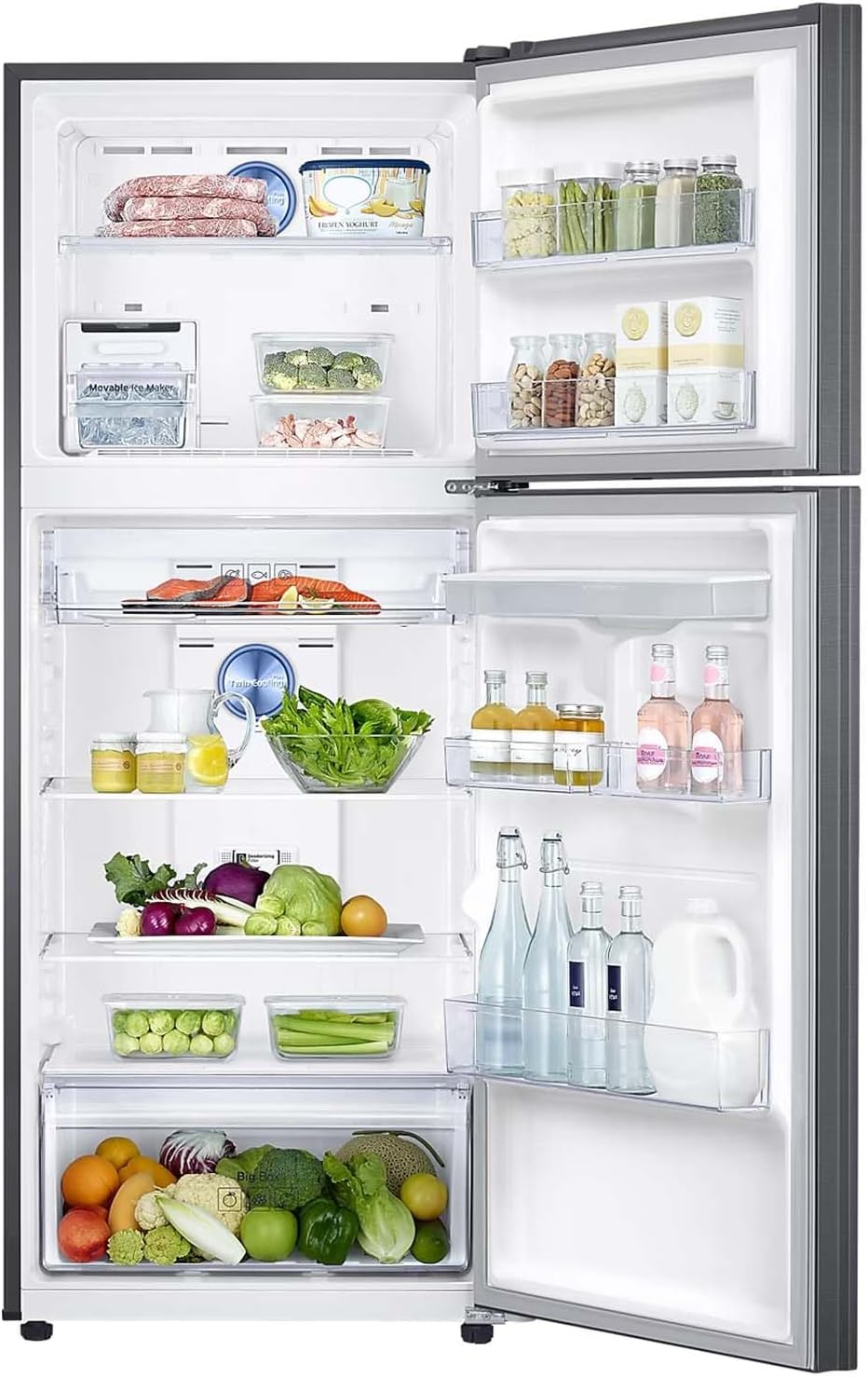

Olusin 4.2: Example of organized food storage within the refrigerator.

5. Itọju

Regular maintenance helps keep your refrigerator operating efficiently and extends its lifespan.

5.1 Ninu ilohunsoke

• Yọọ firiji ṣaaju ki o to sọ di mimọ.
• Yọ gbogbo àwọn ohun èlò oúnjẹ, àwọn selifu, àti àwọn àpótí kúrò.
• Wash interior surfaces with a solution of mild detergent and warm water. Rinse and dry thoroughly.
• Clean removable parts in warm soapy water, rinse, and dry.

5.2 Ninu Ode

• Pa awọn ita ita pẹlu asọ asọ dampened pẹlu omi ati ki o kan ìwọnba detergent.
• For the graphite finish, avoid abrasive cleaners or harsh chemicals that could damage the surface.
• Clean the door gaskets regularly with warm soapy water to ensure a tight seal.

5.3 Ètò Ìyọ́kúrò Àìfọwọ́ṣe

Firiji yii ṣe ẹya eto gbigbo laifọwọyi, imukuro iwulo fun yiyọkuro afọwọṣe ti iyẹwu firisa. Frost buildup ti wa ni laifọwọyi yo ati ki o drained.

5.4 Rirọpo Ajọ omi (ti o ba wulo)

If your water dispenser's flow rate decreases significantly, it may be time to replace the water filter. Refer to the specific instructions provided with your water filter for replacement procedures. (Note: This model has a water dispenser, so filter replacement is a likely maintenance item).

6. Laasigbotitusita

Before contacting service, try these simple solutions for common issues.

6.1 Fíríìjì Kò Tútù

• Ṣayẹwo Agbara: Ensure the refrigerator is plugged in and the circuit breaker has not tripped.
• Awọn Eto otutu: Verify that the temperature settings are not too high.
• Igbẹhin ilẹkun: Ṣàyẹ̀wò bóyá ilẹ̀kùn náà ti sé pátápátá àti pé gasket náà ń dí i dáadáa.
• Afẹfẹ: Ensure adequate clearance around the refrigerator for proper airflow.

6.2 Àwọn ariwo àìdára

• Awọn gbigbọn: Ensure the refrigerator is level. Adjust leveling feet if necessary.
• Compressor Noise: A humming or buzzing sound from the compressor is normal.
• Sisan omi: Gurgling or dripping sounds are normal as the automatic defrost system operates.

6.3 Water Dispenser Not Working

• Ipese Omi: Check if the internal water tank is filled.
• Ajọ omi: A clogged water filter can reduce water flow. Consider replacement.

7. Awọn pato

Detailed technical specifications for the Samsung RT38A5930BS Refrigerator.

8. Atilẹyin ọja ati Support

8.1 Atilẹyin ọja

This Samsung RT38A5930BS Refrigerator comes with a 1-odun atilẹyin ọja directly from the manufacturer. Please retain your proof of purchase for warranty claims.

8.2 Onibara Support

For technical assistance, service requests, or further information, please contact Samsung customer support. Visit the official Samsung webaaye tabi tọka si alaye olubasọrọ ti a pese ninu iwe rira rẹ.
