WWZMDiB XH-M543 TPA3116D2 Digital Audio Amplifier Module olumulo Afowoyi

1. Ifihan

This manual provides detailed instructions for the setup, operation, and maintenance of the WWZMDiB XH-M543 High Power Digital Amplifier Board. This module features the TPA3116D2 chip, offering dual-channel high-power audio amplification with efficient Class D operation.

Aworan 1.1: Pariview of the WWZMDiB XH-M543 Digital Amplifier Board. This image displays the top view of the blue circuit board with a central black heatsink, various capacitors, inductors, and terminal blocks for connections. A grey cable with white connectors is also visible.

2. Awọn ẹya Ọja

• AmpChip lifier: Utilizes TI's TPA3116D2 for efficient stereo digital amplification.
• Agbara Ijade: Capable of driving up to 120W per channel (2x120W) in dual-channel stereo mode.
• Iṣiṣẹ: High efficiency Class D operation (greater than 90% power efficiency) with low idle loss, minimizing heat generation.
• PSRR: Feedback power level architecture with high Power Supply Rejection Ratio (PSRR) reduces power supply requirements.
• Idaabobo: Integrated self-protection circuits including overvoltage, undervoltage, overheat, DC detection, and short circuit protection.
• Gbẹkẹle: Features large capacity filter capacitors and relay protection diodes for enhanced reliability.
• Awọn ikanni: Two-channel stereo output.

3. Awọn pato

Image 3.1: Dimensions of the WWZMDiB XH-M543 Digital Amplifier Board. This image shows the amplifier board with measurements indicating its length (92mm / 3.62in) and width (68mm / 2.68in).

4. Eto ati awọn isopọ

Follow these steps to correctly set up your WWZMDiB XH-M543 ampbọ́ọ̀dù ìfọ́mọ́ra:

1. Iṣagbewọle agbara: Connect a DC power supply ranging from 12V to 26V to the power input terminal. A 24V DC power supply is recommended for optimal performance. Ensure correct polarity (+ and -).
2. Iṣawọle Olohun: Connect your audio source (e.g., MP3 player, mobile phone, computer) to the audio input terminal. The board includes a TLO74C amplifier chip for pre-amplification of the input signal.
3. Agbejade Agbọrọsọ: Connect your speakers to the audio output terminals. Pay close attention to the positive (+) and negative (-) poles for each channel. For best results, it is recommended to use professional stage speakers rated at more than 120W.

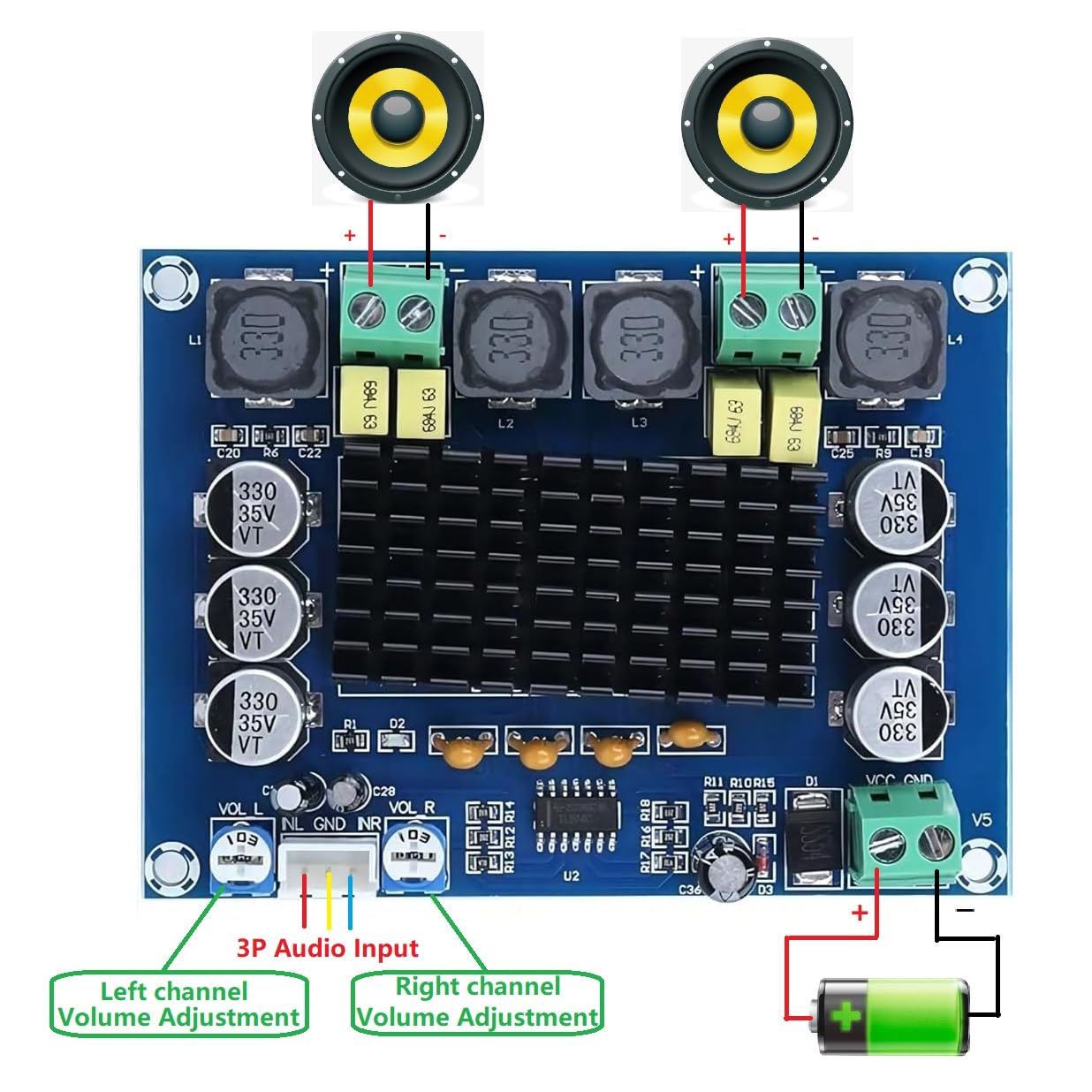

Image 4.1: Connection diagram for the WWZMDiB XH-M543 Digital Amplifier Board. This diagram illustrates how to connect the power source (battery), 3P audio input, and two speakers to the amplifier board, clearly marking left and right channel volume adjustments.

5. Awọn ilana Iṣiṣẹ

Once all connections are securely made and verified, you can begin operating the ampbọ́ọ̀dù ìfọ́mọ́ra:

• Agbara Tan: Apply power to the DC input terminal. The amplifier should power on.
• Atunse iwọn didun: The board features separate volume adjustment potentiometers for the left and right channels. Rotate these potentiometers to adjust the output volume to your desired level.
• Sisisẹsẹhin ohun: Start playing audio from your connected source. Sound should be output through the connected speakers.
• Agbara Pa: Disconnect the DC power supply when the amplifier ko si ni lilo.

6. Laasigbotitusita

Ti o ba pade awọn iṣoro rẹ amplifier board, refer to the following common problems and solutions:

• Ko si Ijade ohun:
  • Ensure the power supply is connected correctly and providing the specified voltage (DC 12-26V).
  • Verify that the audio input source is active and properly connected.
  • Ṣàyẹ̀wò àwọn ìsopọ̀ agbọ́hùnsọ̀ fún polarity tó tọ́ àti ìfọwọ́sowọ́pọ̀ tó ní ààbò.
  • Confirm that the volume potentiometers are not set to minimum.
• Ohun Yiyi:
  • Reduce the input audio level from your source.
  • Ensure the power supply is stable and within the recommended voltage ibiti.
  • Check speaker impedance compatibility with the amplifier.
• Igbóná púpọ̀:
  • Rii daju deedee fentilesonu ni ayika amplifier board, especially the heatsink.
  • Verify that the speaker load is within the amplifier's specifications (e.g., not too low impedance).
  • If operating at high power for extended periods, consider adding active cooling (e.g., a small fan).
• Ohun Àdánwò:
  • Check all wiring connections for looseness or poor contact.
  • Inspect the power supply for stability.

7. Itọju

Lati rii daju awọn longevity ati ti aipe iṣẹ ti rẹ ampIgbimọ lifier, tẹle awọn itọsọna itọju wọnyi:

• Ninu: Jẹ́ kí pákó náà wà ní ìpamọ́ kúrò nínú eruku àti ìdọ̀tí. Lo búrọ́ọ̀ṣì rírọ̀, gbígbẹ tàbí afẹ́fẹ́ tí a ti fún ní ìfọ́mọ́. Má ṣe lo omi.
• Ayika: Ṣiṣẹ awọn amplifier in a dry, well-ventilated area, away from extreme temperatures, humidity, and direct sunlight.
• Mimu: Handle the board by its edges to avoid touching components, especially when powered.
• Agbara Paa Nigbati Ko Si Lo: Disconnect power when the module is not actively being used to prevent unnecessary wear and power consumption.

8. Atilẹyin ọja ati Support

For warranty information or technical support regarding your WWZMDiB XH-M543 Digital Amplifier Board, please refer to the purchase documentation or contact WWZMDiB customer service through the platform where the product was purchased. Please provide your model number (XH-M543) and purchase details when seeking support.
