1. Ifihan
Thank you for choosing the Morphy Richards Supreme PRO 750W Mixer Grinder. This appliance is designed for efficient blending, grinding, and pureeing tasks in your kitchen. Please read this manual carefully before using the appliance for the first time to ensure safe and optimal performance. Keep this manual for future reference.
Image 1.1: The Morphy Richards Supreme PRO 750W Mixer Grinder main unit with a jar attached.
2. Awọn Ilana Aabo pataki
Nigbagbogbo tẹle awọn iṣọra aabo ipilẹ nigba lilo awọn ohun elo itanna lati dinku eewu ina, mọnamọna, ati ipalara.
- Ka gbogbo awọn ilana ṣaaju lilo.
- Ma ṣe fi mọto si inu omi tabi omi miiran.
- Rii daju voltage itọkasi lori ohun elo ibaamu awọn mains agbegbe rẹ voltage ṣaaju ki o to sopọ.
- Má ṣe jẹ́ kí ọwọ́ àti ohun èlò má ṣe gbé abẹ́ nígbà tí a bá ń ṣiṣẹ́ kí ó má baà farapa.
- Always ensure the lid is securely fastened before operating the mixer grinder.
- Yọ kuro ninu iho ina nigbati ko ba si ni lilo, ṣaaju ki o to ko tabi tu awọn ẹya kuro, ati ṣaaju ki o to nu.
- Ma ṣe ṣiṣẹ ohun elo eyikeyi pẹlu okun tabi pulọọgi ti o bajẹ, tabi lẹhin aiṣe ohun elo tabi ti bajẹ ni eyikeyi ọna.
- Ohun elo yii jẹ fun lilo ile nikan. Maṣe lo ni ita.
- Awọn ọmọde yẹ ki o wa ni abojuto lati rii daju pe wọn ko ṣere pẹlu ohun elo naa.
- The appliance features an Yipada Paarẹ function for motor protection against overload. If activated, allow the unit to cool down before restarting.
3. Ọja Ipariview ati irinše
The Morphy Richards Supreme PRO 750W Mixer Grinder comes with a powerful motor unit and a set of versatile jars for various kitchen tasks.
Awọn eroja to wa:
- Ẹka mọto: The main power unit with a 750W copper motor and 3-speed control knob.
- 1.5L Liquidizing Jar: For blending liquids, making shakes, and purees.
- 1.0L Dry/Wet Grinding Jar: Suitable for grinding spices, batters, and chutneys.
- 0.4L Chutney Grinding Jar: Ideal for small quantities of chutneys and pastes.
- 1.5L Flexi Jar with Fruit Filter: Designed for juicing and filtering pulp.
Image 3.1: The Morphy Richards Supreme PRO Mixer Grinder with its four accompanying jars, highlighting features like leak-proof lids and overload protection.

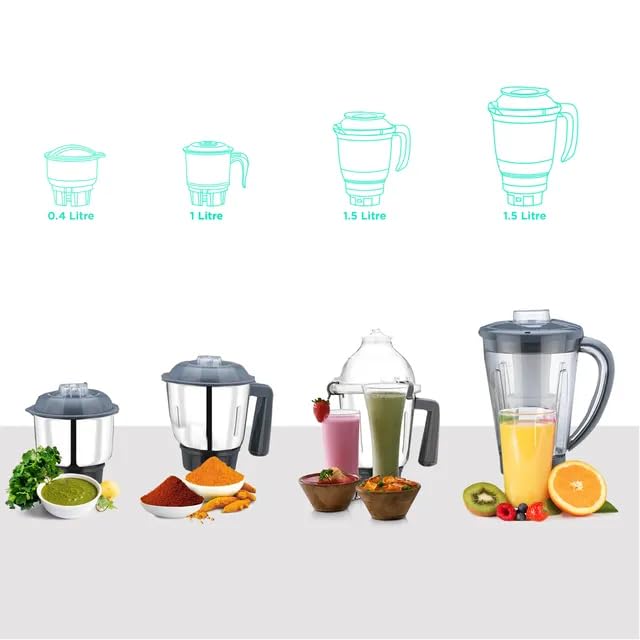

Image 3.2: Visual representation of the different jar capacities (0.4L, 1L, 1.5L) and their typical uses, such as grinding spices, making smoothies, and juices.
4. Eto ati First Lo
- Ṣii silẹ: Fi ìṣọ́ra tú gbogbo àwọn èròjà náà kí o sì yọ gbogbo ohun èlò ìdìpọ̀ kúrò.
- Ninu: Before first use, wash all jars, lids, and blades with warm soapy water. Rinse thoroughly and dry. Wipe the motor unit with a damp asọ.
- Ibi: Place the motor unit on a stable, flat, and dry surface, such as a kitchen countertop. Ensure adequate ventilation around the unit.
- Apejọ: Select the appropriate jar for your task. Place the ingredients into the jar. Secure the lid firmly onto the jar.
- Mounting the Jar: Place the assembled jar onto the motor unit, aligning the locking tabs. Twist the jar clockwise until it locks securely into place.
- Asopọ agbara: Plug the power cord into a suitable 230V AC power outlet.
5. Awọn ilana Iṣiṣẹ
The Morphy Richards Supreme PRO 750W Mixer Grinder is designed for blending, grinding, ice crushing, mixing, and pureeing. It features a 3-speed control knob.
- Igbaradi: Ensure the jar is correctly assembled and locked onto the motor unit.
- Yiyan Iyara: Turn the control knob to the desired speed setting (1, 2, or 3). Start with a lower speed and gradually increase if needed.
- Iṣẹ́ Ọwọ́: For short bursts of power, turn the knob to the 'Pulse' setting and release. This is useful for coarse grinding or quick mixing.
- Akoko isẹ: Do not operate the mixer grinder continuously for more than 5 minutes. Allow a cooling period of at least 2 minutes between cycles to prevent motor overheating.
- Idaabobo Apọju: The appliance is equipped with an overload protection mechanism. If the motor stops due to overload, switch off the appliance, unplug it, and allow it to cool down for 10-15 minutes. Press the reset button (usually located at the bottom of the motor unit) before restarting.
- Ipari: Once processing is complete, turn the control knob to the 'OFF' position. Unplug the appliance from the power outlet.
- Removing the Jar: Yí ìgò náà padà sí òdìkejì láti ṣí i láti inú ẹ̀rọ amúlétutù, lẹ́yìn náà gbé e sókè.
6. Itọju ati Cleaning
Regular cleaning and maintenance will ensure the longevity and efficient performance of your mixer grinder.
- Ẹka mọto: Pa mọto kuro pẹlu asọ, damp asọ. Maṣe lo awọn afọmọ abrasive tabi fi omi bọ inu omi.
- Àwọn ìgò àti àwọn ìbòrí: Wash jars, lids, and blades immediately after use to prevent food from drying and sticking. Use warm soapy water and a brush for thorough cleaning. Be extremely careful when handling blades as they are sharp.
- Gbigbe: Rii daju pe gbogbo awọn ẹya ti gbẹ patapata ṣaaju titoju.
- Ibi ipamọ: Store the mixer grinder and its accessories in a clean, dry place, away from direct sunlight and moisture. Utilize the cord winding facility for neat storage.
7. Laasigbotitusita
If you encounter any issues with your mixer grinder, refer to the following common problems and solutions:
| Isoro | Owun to le Fa | Ojutu |
|---|---|---|
| Mọto ko bẹrẹ | Ko edidi ni; Agbara otage; Jar not locked correctly; Overload protector tripped. | Check power connection; Check power supply; Ensure jar is securely locked; Press the reset button after cooling. |
| Motor ma duro nigba isẹ ti | Overload; Continuous operation for too long. | Reduce ingredients; Allow motor to cool and press reset button. |
| Jíjò láti inú ìgò | Lid not properly secured; Gasket not in place or damaged; Overfilling the jar. | Ensure lid is tight; Check and reposition/replace gasket; Do not fill beyond maximum level. |
| Ariwo dani tabi olfato | Overload; Foreign object in jar; Motor issue. | Reduce load; Check for obstructions; If problem persists, contact customer support. |
Ti iṣoro naa ba wa lẹhin igbiyanju awọn solusan wọnyi, jọwọ kan si atilẹyin alabara.
8. Awọn pato
Detailed technical specifications for the Morphy Richards Supreme PRO 750W Mixer Grinder.
- Awoṣe: SUPREME PRO 750W
- Brand: Morphy Richards
- Agbara: 750 Wattis
- Voltage: 230 Volts
- Nọmba Awọn Iyara: 3
- Àwọn ìgò tí a fi kún un: 1.5L Liquidizing, 1.0L Dry/Wet Grinding, 0.4L Chutney, 1.5L Flexi Jar with Fruit Filter
- Ohun elo: Plastic (body), Stainless Steel (blades, jars)
- Ẹya Pataki: Auto Shut Off, Overload Protection
- Awọn iwọn Ọja (D x W x H): 19.5D x 54W x 33H
- Awọn lilo ti a ṣe iṣeduro: Blending, Grinding, Ice Crush, Mixing, Pureeing
Image 8.1: Graphic detailing key technical specifications including dimensions, voltage, motor power, blade material, and warranty.

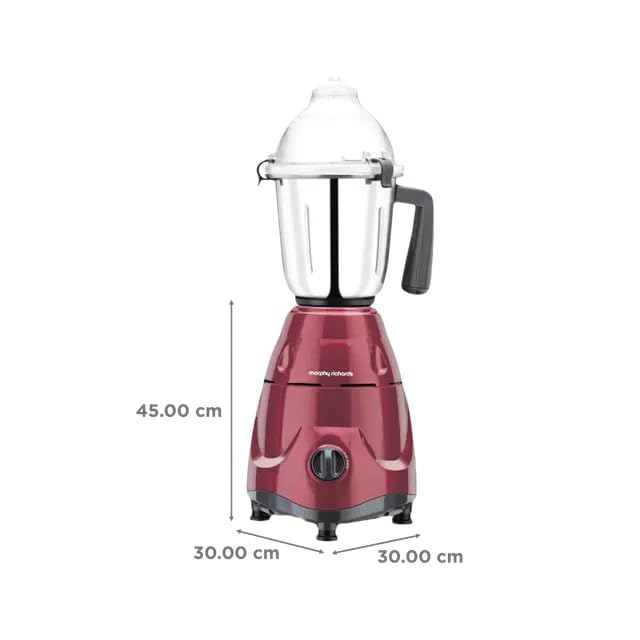

Image 8.2: Diagram illustrating the physical dimensions of the Morphy Richards Supreme PRO 750W Mixer Grinder.
9. atilẹyin ọja Information
Your Morphy Richards Supreme PRO 750W Mixer Grinder comes with a comprehensive warranty:
- Atilẹyin ọja mọto: ọdun meji 5
- Atilẹyin ọja: ọdun meji 2
Please retain your purchase receipt for warranty claims. The warranty covers manufacturing defects under normal household use. It does not cover damage caused by misuse, neglect, accident, alteration, or unauthorized repair.
Aworan 9.1: Pariview of the Morphy Richards Supreme PRO 750W Mixer Grinder, highlighting the 5-year motor warranty and 2-year product warranty.
10. Onibara Support
For any queries, service requests, or further assistance, please contact Morphy Richards customer support. Refer to the contact information provided with your product packaging or visit the official Morphy Richards website for the latest support details.
