SMEG STL281DS Fully Integrated Dishwasher User Manual

1. Ifihan

This manual provides essential information for the safe and efficient use of your SMEG STL281DS fully integrated dishwasher. Please read these instructions carefully before installation, operation, or maintenance to ensure optimal performance and to prevent damage.

The SMEG STL281DS is a 60 cm fully integrated dishwasher designed for 13 place settings. It features 5 washing programs, 3 temperature settings (50, 65, and 70 °C), and Flexifit hinges for seamless integration into your kitchen cabinetry.

2. Eto ati fifi sori

The SMEG STL281DS is a fully integrated appliance, meaning it is designed to be concealed behind a kitchen cabinet door (not included). Proper installation is crucial for performance and safety.

2.1 Mefa ati Placement

• Awọn iwọn Ọja (H x W x D): 81.8 cm x 59.8 cm x 54.5 cm
• Ensure adequate space for ventilation and access to water and electrical connections.
• The appliance features Flexifit hinges for flexible door panel installation.

2.2 Omi ati Itanna Awọn isopọ

• Ipese Omi: Connect to a single water supply (cold or hot). Maximum hot water temperature is 60°C. Using hot water (up to 60°C) can save up to 35% energy.
• Lile Omi: The dishwasher includes an electronic water softener. Adjust it according to your local water hardness (maximum 100°fH; 58°dH).
• Asopọmọra itanna: The appliance operates at 120 Volts. Ensure the electrical supply meets local regulations.

olusin 1: Apa view of the dishwasher, illustrating its integrated design and potential connection areas.

3. Awọn ilana Iṣiṣẹ

Your SMEG STL281DS dishwasher is equipped with electronic controls and various programs to suit different washing needs.

3.1 Iṣakoso igbimo Loriview

The control panel features program pictograms/symbols, an on/off indicator, salt indicator, rinse aid indicator, and an end-of-cycle sound signal.

Figure 2: The electronic control panel, showing program selection and status indicators.

3.2 Nkojọpọ ẹrọ ifọṣọ

Proper loading ensures optimal cleaning results and efficient use of water and energy. The dishwasher has two baskets and a cutlery basket.

olusin 3: inu ilohunsoke view with dishes loaded, demonstrating typical loading capacity.

• Agbọn oke: Features fixed central inserts and a glass holder. Adjustable in three height levels. Maximum plate size: 25.0 cm.
• Agbọn isalẹ: Equipped with fixed supports and a drip-breaker insert. Maximum plate size: 30.0 cm.
• Agbọn Cutlery: For forks, knives, and spoons.

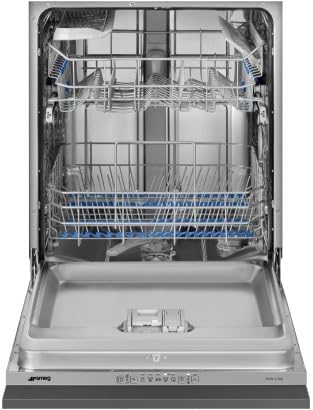

Àwòrán 4: Inu òfo view, highlighting the basket design and layout.

3.3 Eto Aṣayan

The dishwasher offers 5 programs and 3 washing temperatures (50°C, 65°C, 70°C):

• Rẹ: For pre-washing dishes that will be washed later.
• ECO: Eto agbara-agbara fun awọn ounjẹ ti o ni idoti deede.
• lekoko: Fun awọn ikoko ti o bajẹ pupọ, awọn pan ati awọn ounjẹ.
• Ojoojumọ: Eto boṣewa fun lilo ojoojumọ.
• Ẹru idaji: Fun awọn ẹru kekere, fifipamọ omi ati agbara.

3.4 Awọn aṣayan

• Ibẹrẹ Idaduro: Set a delayed start for 3, 6, or 9 hours, with automatic pre-soak.
• Afikun Gbẹ: Enhances drying performance, especially for plastic items.

4. Itọju

Itọju deede ṣe idaniloju gigun ati ṣiṣe ti ẹrọ fifọ ẹrọ rẹ.

4.1 Cleaning Ajọ

Periodically check and clean the filters located at the bottom of the dishwasher to prevent blockages and ensure proper drainage.

4.2 Salt and Rinse Aid

Monitor the salt and rinse aid indicators on the control panel. Refill as necessary to maintain water softening and drying performance.

4.3 inu ilohunsoke Cleaning

Wipe down the interior and door seal regularly with a damp cloth. The dishwasher features a natural condensation drying system with Dry Assist+ (automatic door opening at the end of the cycle) and plastic steam protection to minimize moisture buildup.

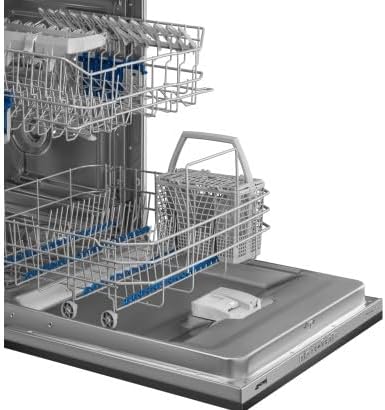

Nọmba 5: Alaye view of the baskets and cutlery holder, important for regular cleaning.

4.4 Leak Protection

The appliance is equipped with a leak-proof water damage safety system. In case of any issues, consult the troubleshooting section.

5. Laasigbotitusita

Ṣaaju ki o to kan si iṣẹ alabara, jọwọ ṣayẹwo awọn ọran ti o wọpọ wọnyi:

• Apoti ẹrọ ko bẹrẹ: Ensure the power cord is plugged in, the door is fully closed, and the on/off button has been pressed. Check the circuit breaker.
• Awọn abajade mimọ ti ko dara: Verify that dishes are loaded correctly, spray arms are not blocked, and detergent dispenser is not obstructed. Check salt and rinse aid levels. Select an appropriate program for the soil level.
• Omi ti ko gbẹ: Inspect the drain hose for kinks or blockages. Clean the filters at the bottom of the dishwasher.
• Awọn ariwo ti ko wọpọ: Ensure dishes are not interfering with the spray arms. Check for foreign objects in the tub or pump area.
• Awọn koodu aṣiṣe: Refer to the full product manual (if provided separately) for specific error code interpretations.

6. Awọn pato

Figure 6: Energy label for the SMEG STL281DS dishwasher.

7. Atilẹyin ọja ati Support

For warranty information, please refer to the documentation provided with your purchase or contact Smeg customer service directly. Keep your proof of purchase for any warranty claims.

For technical assistance, spare parts, or further inquiries, please visit the official Smeg webaaye tabi kan si awọn ile-iṣẹ iṣẹ ti a fun ni aṣẹ.
