1. Ifihan
This manual provides essential information for the safe and efficient operation, maintenance, and care of your Morphy Richards Tetragrind 750W Mixer Grinder. Please read these instructions carefully before using the appliance for the first time and keep them for future reference.
The Morphy Richards Tetragrind is a powerful mixer grinder equipped with a 750W UltronMax motor, designed for various kitchen tasks including liquidizing, wet grinding, dry grinding, and chutney making. It comes with three stainless steel jars to cater to different needs.
2. Awọn Ilana Aabo pataki
Lati dinku eewu ina, mọnamọna, tabi ipalara, nigbagbogbo tẹle awọn iṣọra aabo ipilẹ wọnyi:
- Ka gbogbo awọn ilana ṣaaju lilo ohun elo naa.
- Rii daju voltage tọka lori ohun elo naa ni ibamu si awọn mains agbegbe rẹ voltage ṣaaju ki o to sopọ.
- Má ṣe fi ẹ̀rọ mọ́tò, okùn, tàbí kí o so omi tàbí omi mìíràn mọ́ ọn.
- Máa yọ ẹ̀rọ náà kúrò nínú ibi tí a ti ń lo agbára nígbàkúgbà tí a kò bá lò ó, kí a tó kó àwọn ẹ̀yà ara jọ tàbí kí a tó tú wọn, àti kí a tó sọ wọ́n di mímọ́.
- Má ṣe jẹ́ kí ọwọ́ àti ohun èlò ìkọ́lé wà nínú ìgò náà nígbà tí o bá ń ṣiṣẹ́ kí ó má baà jẹ́ kí ohun èlò náà farapa tàbí kí ó ba á jẹ́.
- Never operate the appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
- Ohun elo yii jẹ fun lilo ile nikan. Maṣe lo ni ita.
- Ma ṣe jẹ ki okun naa duro lori eti tabili tabi counter, tabi fi ọwọ kan awọn aaye ti o gbona.
- Ensure the lid is securely locked in place before operating the mixer grinder.
- Yago fun olubasọrọ pẹlu gbigbe awọn ẹya ara.
- Do not overload the motor. Refer to the capacity guidelines for each jar.
- Awọn ọmọde yẹ ki o wa ni abojuto lati rii daju pe wọn ko ṣere pẹlu ohun elo naa.
3. Ọja irinše
Your Morphy Richards Tetragrind 750W Mixer Grinder comes with the following components:
- Main Motor Unit (750W)
- 1.5 Litre Liquidising Jar with Lid and Blade
- 1 Litre Dry/Wet Grinding Jar with Lid and Blade
- 0.4 Litre Chutney Jar with Lid and Blade
- Ilana itọnisọna
- Kaadi atilẹyin ọja
Nọmba 1: Morphy Richards Tetragrind 750W Mixer Grinder main unit with the 1.5 Litre liquidising jar attached.
Nọmba 2: Iwaju view of the Morphy Richards Tetragrind 750W Mixer Grinder, showcasing the control knob and overall design.
Nọmba 3: Apa view of one of the stainless steel jars, featuring a sturdy handle and a black lid.
Nọmba 4: A different perspective of a stainless steel jar, highlighting its design and lid.

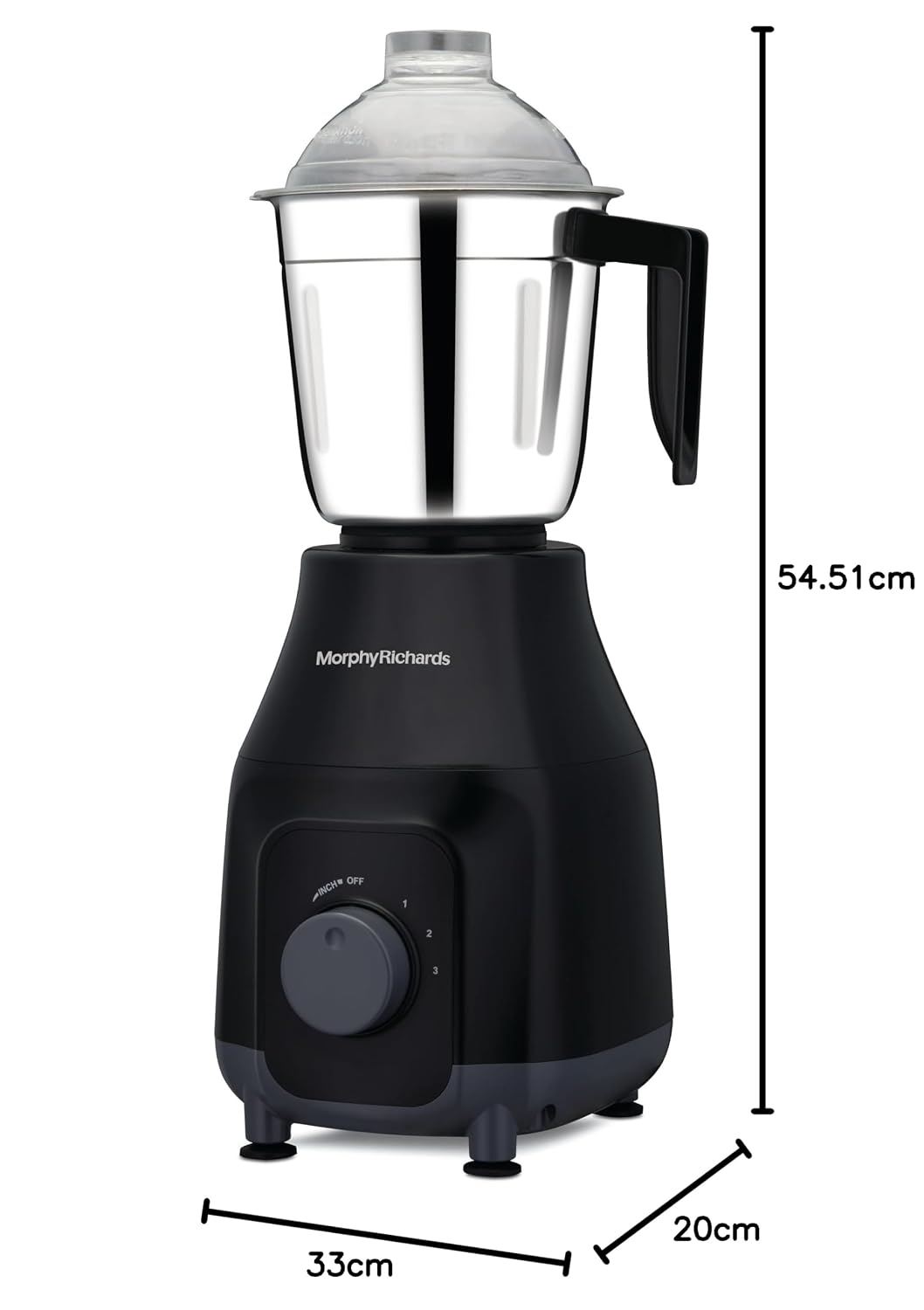

Nọmba 5: Diagram illustrating the dimensions of the Morphy Richards Tetragrind 750W Mixer Grinder: 20cm (depth), 54.51cm (height), 33cm (width).
4. Eto
- Ṣii silẹ: Fi ìṣọ́ra yọ gbogbo àwọn èròjà kúrò nínú àpótí náà. Pa àpótí náà mọ́ fún ìtọ́jú tàbí gbígbé lọ síbi tí ó yẹ lọ́jọ́ iwájú.
- Ninu Ṣaaju Lilo akọkọ: Wash the stainless steel jars, lids, and blades with warm soapy water. Rinse thoroughly and dry completely. Wipe the main motor unit with a damp asọ. Ma ṣe fi mọto si inu omi.
- Ibi: Place the mixer grinder on a stable, flat, and dry surface, away from heat sources and direct sunlight. Ensure there is adequate ventilation around the unit.
- Àkójọpọ̀ ìgò:
- Select the appropriate jar for your task.
- Ensure the blade assembly is securely fitted at the bottom of the jar.
- Place the ingredients into the jar, ensuring not to exceed the maximum fill line.
- Ni aabo gbe ideri lori idẹ naa.
- Mounting the Jar: Place the assembled jar onto the main motor unit, aligning the jar's base with the coupler on the motor unit. Twist gently clockwise until it locks securely into position.
- Asopọ agbara: Plug the power cord into a suitable 230V AC power outlet.
5. Awọn ilana Iṣiṣẹ
The Morphy Richards Tetragrind 750W Mixer Grinder features a 3-speed control knob with an incher facility for precise operation.
- Igbaradi: Ensure the mixer grinder is properly set up as described in Section 4. Add ingredients to the chosen jar and secure the lid.
- Bibẹrẹ Isẹ: Turn the control knob clockwise to select the desired speed (1, 2, or 3).
- Iyara 1: For light mixing and blending.
- Iyara 2: For general grinding and blending tasks.
- Iyara 3: For heavy-duty grinding and tough ingredients.
- Incher Facility: For momentary operation or to achieve a coarse grind, turn the knob to the "HIGH" position and release. The motor will run as long as the knob is held in this position. This is useful for pulsing ingredients.
- Iṣe idaduro: To stop the mixer grinder, turn the control knob to the "OFF" position.
- Igo yiyọ kuro: After the blades have completely stopped, unplug the appliance. Twist the jar counter-clockwise to unlock it from the motor unit, then lift it off.
- Ise Tesiwaju: The appliance is designed for flawless functioning for up to 30 minutes. For longer tasks, allow the motor to cool down for a few minutes after each 30-minute cycle to prevent overheating.
Awọn imọran fun Awọn esi to dara julọ:
- For wet grinding, add a small amount of water to facilitate smoother operation.
- Fún lílọ gbígbẹ, rí i dájú pé àwọn èròjà náà gbẹ pátápátá kí ó lè ní ìyẹ̀fun díẹ̀.
- Do not overfill the jars. Always adhere to the maximum capacity markings.
- If the motor strains, switch off the appliance, remove some ingredients, and restart.
6. Itọju ati Cleaning
Ìmọ́tótó àti ìtọ́jú déédéé yóò mú kí ẹ̀rọ ìṣiṣẹ́ ẹ̀rọ ìṣiṣẹ́ àdàpọ̀ rẹ pẹ́ títí àti pé ó ń ṣiṣẹ́ dáadáa.
- Ṣaaju ki o to sọ di mimọ: Always unplug the mixer grinder from the power outlet before cleaning.
- Ẹka mọto: Nu ẹ̀rọ amúlétutù àkọ́kọ́ pẹ̀lú ìrọ̀rùn, damp asọ. Ma ṣe lo awọn olutọpa abrasive tabi fi omi mọlẹ kuro ninu omi.
- Àwọn ìgò àti àwọn ìbòrí:
- Remove the blades from the jars carefully. The jars, lids, and blades are dishwasher safe.
- Alternatively, wash them with warm soapy water using a soft brush or sponge.
- Rinse thoroughly under running water and dry immediately to prevent water spots or corrosion.
- Rii daju pe gbogbo awọn ẹya ti gbẹ patapata ṣaaju iṣakojọpọ tabi titoju.
- Itọju abẹfẹlẹ: Handle blades with extreme care as they are sharp. Do not touch the cutting edges directly.
- Ibi ipamọ: Tọ́jú ẹ̀rọ ìfọṣọ onírin àti àwọn ohun èlò rẹ̀ sí ibi tí ó mọ́ tónítóní tí ó sì gbẹ nígbà tí a kò bá lò ó.
7. Laasigbotitusita
If you encounter any issues with your mixer grinder, refer to the following common problems and solutions:
| Isoro | Owun to le Fa | Ojutu |
|---|---|---|
| Ohun elo ko bẹrẹ. | Ko edidi ni; agbara otage; jar not properly locked; motor overloaded. | Check power connection; check fuse/circuit breaker; ensure jar is securely locked; reduce ingredients and restart. |
| Motor makes unusual noise or smells burnt. | Overloading; prolonged use; motor overheating. | Switch off immediately, unplug, and allow to cool for at least 30 minutes. Reduce load. If problem persists, contact customer service. |
| Àwọn èròjà tí kò ní lọ̀ dáadáa. | Insufficient liquid (for wet grinding); blades dull; jar overloaded. | Add more liquid; check blades for sharpness (replace if necessary); reduce quantity of ingredients. |
| Jíjò láti inú ìgò. | Lid not properly secured; rubber gasket worn out; jar overloaded. | Ensure lid is tightly closed; check and replace gasket if damaged; do not overfill the jar. |
Ti iṣoro naa ba wa lẹhin igbiyanju awọn solusan wọnyi, jọwọ kan si atilẹyin alabara.
8. Awọn pato
| Ẹya ara ẹrọ | Ẹ̀kúnrẹ́rẹ́ |
|---|---|
| Brand | Morphy Richards |
| Orukọ awoṣe | Tetragrind 750W mixer grinder |
| Nọmba awoṣe | 640149 |
| Wattage | 750 Watts (UltronMax motor) |
| Voltage | 230 Volts |
| Nọmba ti Awọn iyara | 3 Speed Control with Incher Facility |
| Awọn iṣakoso Iru | Iṣakoso koko |
| Liquidising Jar Capacity | 1.5 lita |
| Dry/Wet Grinding Jar Capacity | 1 lita |
| Agbara Ikoko Chutney | 0.4 lita |
| Ohun elo idẹ | Irin ti ko njepata |
| Blade elo | Irin Alagbara Ti A Le |
| Ohun elo ara | Plastic (Shock proof insulated body) |
| Àwọ̀ | Dudu ati Grey |
| Awọn iwọn Ọja (D x W x H) | 20D x 54.5W x 33H |
| Iwọn Nkan | 4175 giramu |
| Pataki Awọn ẹya ara ẹrọ | Dishwasher Safe Jars, Non-slip feet |
| Ọdun iṣelọpọ | 2024 |
9. Atilẹyin ọja ati Support
Your Morphy Richards Tetragrind 750W Mixer Grinder comes with a comprehensive warranty:
- Atilẹyin ọja: ọdun meji 2
- Atilẹyin ọja mọto: ọdun meji 5
Please refer to the included warranty card for detailed terms and conditions. Keep your purchase receipt as proof of purchase for warranty claims.
For any service, support, or warranty-related queries, please contact Morphy Richards customer service. Contact details can typically be found on the warranty card or the official Morphy Richards webojula.
