SEPOX Large Outdoor Padlock Instruction Manual

1. Ọja Ipariview

The SEPOX Large Outdoor Padlock (Model HD-AW-HS) is a heavy-duty, all-weather keyed padlock designed for enhanced security in various outdoor and indoor applications. It features a robust 50mm (2-inch) solid steel body and a hardened steel shackle, providing resistance against cutting, sawing, and prying. The padlock is equipped with a waterproof blue cover, offering protection against corrosion and harsh weather conditions.

Image 1.1: SEPOX Large Outdoor Padlock with its two keys.

Awọn ẹya pataki:

• Unmatched Security Design: Robust 2-inch solid steel body and hardened steel shackle for superior protection.
• Durable Blue Coating: Enhances resistance to corrosion and harsh weather.
• Lilo Wapọ: Suitable for doors, sheds, lockers, toolboxes, gates, and chains.
• Fifi sori Rọrun: User-friendly design for straightforward application.
• Ultimate Waterproof Protection: Crafted with waterproof materials to resist moisture.

2. Eto ati Ayẹwo Ibẹrẹ

Upon receiving your SEPOX padlock, perform a brief inspection to ensure all components are present and in good condition.

Kini To wa:

• 1 x SEPOX Large Outdoor Padlock
• 2 x awọn bọtini

Awọn Igbesẹ Ibẹrẹ:

1. Remove the padlock and keys from their packaging.
2. Inspect the padlock body and shackle for any visible damage.
3. Insert one of the provided keys into the keyway and turn it to ensure smooth operation. The shackle should open and close freely.

Aworan 2.1: Isunmọ view of the padlock's keyhole, showing the brass cylinder.

3. Awọn ilana Iṣiṣẹ

Using your SEPOX padlock is straightforward. Follow these steps to secure and unlock your belongings.

Lati Tii:

1. Rí i dájú pé ẹ̀wọ̀n náà wà ní ipò tí ó ṣí sílẹ̀.
2. Position the padlock around the items or through the hasp/chain you wish to secure.
3. Tú pádì náà mọ́ ara pádì náà dáadáa títí tí yóò fi tẹ ibi tí ó wà. A ti ti pádì náà pa báyìí.
4. Yọ bọtini kuro.

Lati Ṣii silẹ:

1. Fi bọtini naa sinu bọtini naa patapata.
2. Yí kọ́kọ́rọ́ náà padà sí ọwọ́ ọ̀tún (tàbí sí ọwọ́ òsì, ó sinmi lórí bí ẹ̀rọ ìdènà náà ṣe rí) títí tí ìdè náà yóò fi ṣí.
3. Remove the padlock from the secured items.
4. Yọ bọtini kuro.

Image 3.1: The SEPOX padlock securing a heavy chain, demonstrating typical usage.

Image 3.2: The padlock in use on a metal gate, highlighting its suitability for outdoor security.

4. Itọju

Proper maintenance will extend the lifespan and ensure the smooth operation of your SEPOX padlock.

Gbogbogbo Itọju:

• Ninu: Fi aṣọ rirọ, d nu ara padlock naaamp aṣọ láti mú ẹ̀gbin àti ìdọ̀tí kúrò. Yẹra fún àwọn ohun ìfọṣọ tí a fi ń pa ara.
• Ọrinrin: Although waterproof, if moisture gets into the lock cylinder, wipe it off with a towel to prevent potential long-term issues and extend service life.
• Lubrication: Periodically apply a small amount of graphite lubricant or a silicone-based spray into the keyway and around the shackle mechanism. This helps maintain smooth operation, especially in dusty or humid environments. Avoid oil-based lubricants as they can attract dirt.

Image 4.1: The padlock exposed to rain, illustrating its waterproof design.

5. Laasigbotitusita

If you encounter issues with your padlock, refer to the following common problems and solutions.

Awọn ọrọ to wọpọ:

• Ó ṣòro láti fi bọtini náà sí i tàbí láti yí i padà:
  • Rí i dájú pé kọ́kọ́rọ́ náà ti wà ní ìsàlẹ̀ dáadáa, tí a sì gbé e kalẹ̀ dáadáa.
  • Fi iye kekere ti epo graphite sinu ọna bọtini naa.
  • Check for any debris in the keyway and carefully remove it.
• Ṣọ́ọ̀kì náà ti di mọ́lẹ̀ tàbí ó ṣòro láti ṣí/tí pa:
  • Apply a silicone-based lubricant to the shackle where it enters the padlock body.
  • Ensure the key is turned completely to the unlock position.
  • Ṣàyẹ̀wò fún àwọn ìdènà èyíkéyìí tí ó lè dènà ìdè náà láti má ṣe rìn fàlàlà.
• Padlock does not lock:
  • Ensure the shackle is fully depressed into the lock body until you hear a click.
  • Verify that the key is removed after attempting to lock.

6. Awọn pato

Detailed specifications for the SEPOX Large Outdoor Padlock (Model HD-AW-HS).

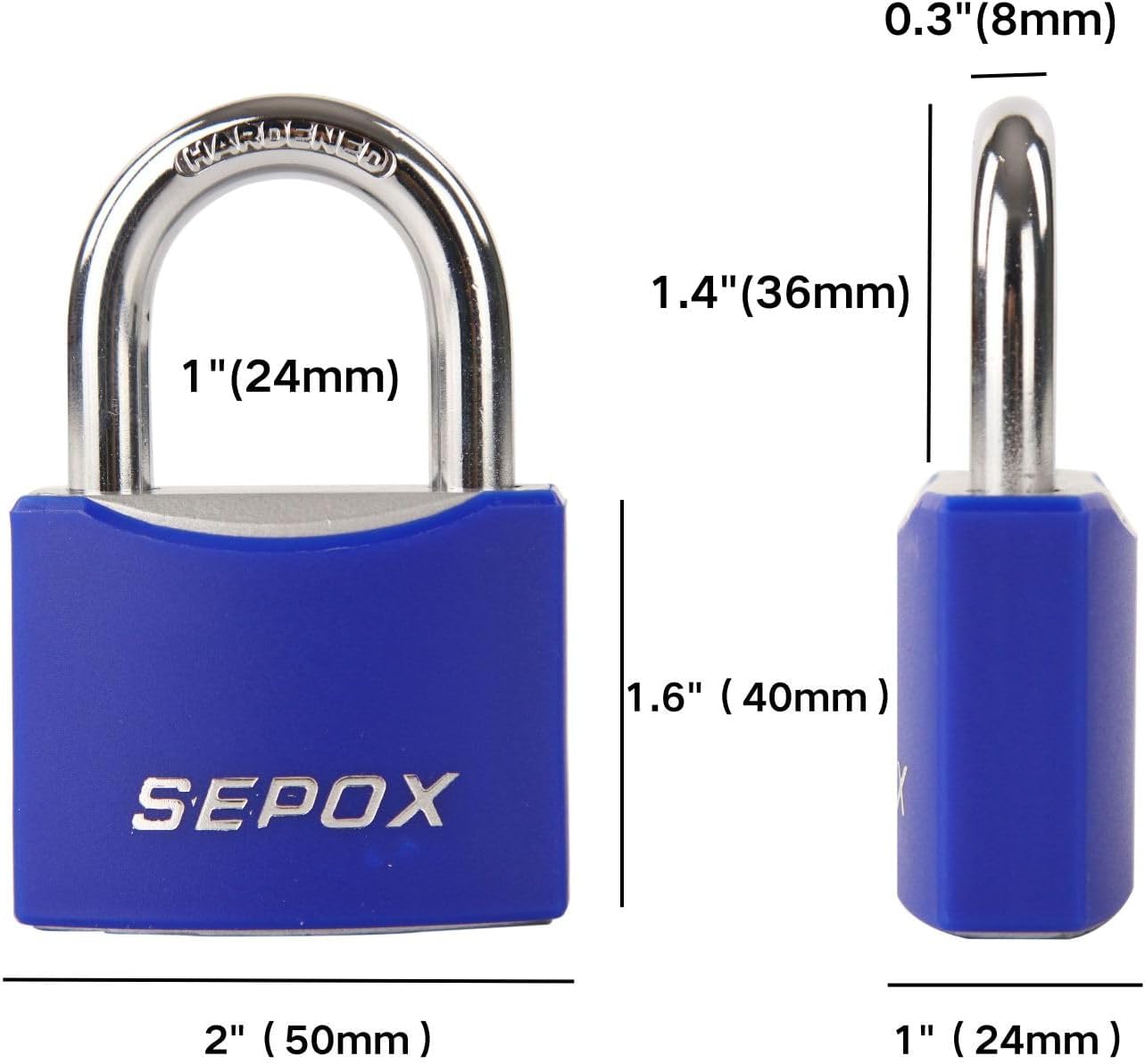

Image 6.1: Dimensional diagram of the SEPOX padlock.

7. Atilẹyin ọja ati Support

SEPOX stands behind the quality of its products.

Atilẹyin ọja ti Olupese:

This SEPOX padlock is covered by a 5-odun olupese ká atilẹyin ọja. Atilẹyin ọja yi ni wiwa awọn abawọn ninu awọn ohun elo ati iṣẹ ṣiṣe labẹ lilo deede.

Atilẹyin Onibara:

For warranty claims, technical assistance, or any questions regarding your SEPOX padlock, please contact the manufacturer, SEPOX leading manufacturer of lock, through their official channels or the retailer where the product was purchased.

8. Fidio ọja

Watch the official SEPOX product video for a visual demonstration of the padlock's features and applications.

Video 8.1: Official SEPOX video demonstrating the features and durability of their outdoor padlocks.
