Hoberg Pollen Protection Window Screen with Magnetic Attachment

Ọrọ Iṣaaju

The Hoberg Pollen Protection Window Screen provides an effective barrier against pollen and insects, allowing for fresh air circulation without unwanted intrusions. Featuring a fine mesh of approximately 25 µm, this screen is designed to filter out various pollens, making ventilation during allergy season more comfortable. Its innovative magnetic attachment system ensures easy installation and removal without the need for drilling or screws.

This manual provides detailed instructions for the proper setup, operation, and maintenance of your Hoberg window screen. Please read all instructions carefully before installation and use.

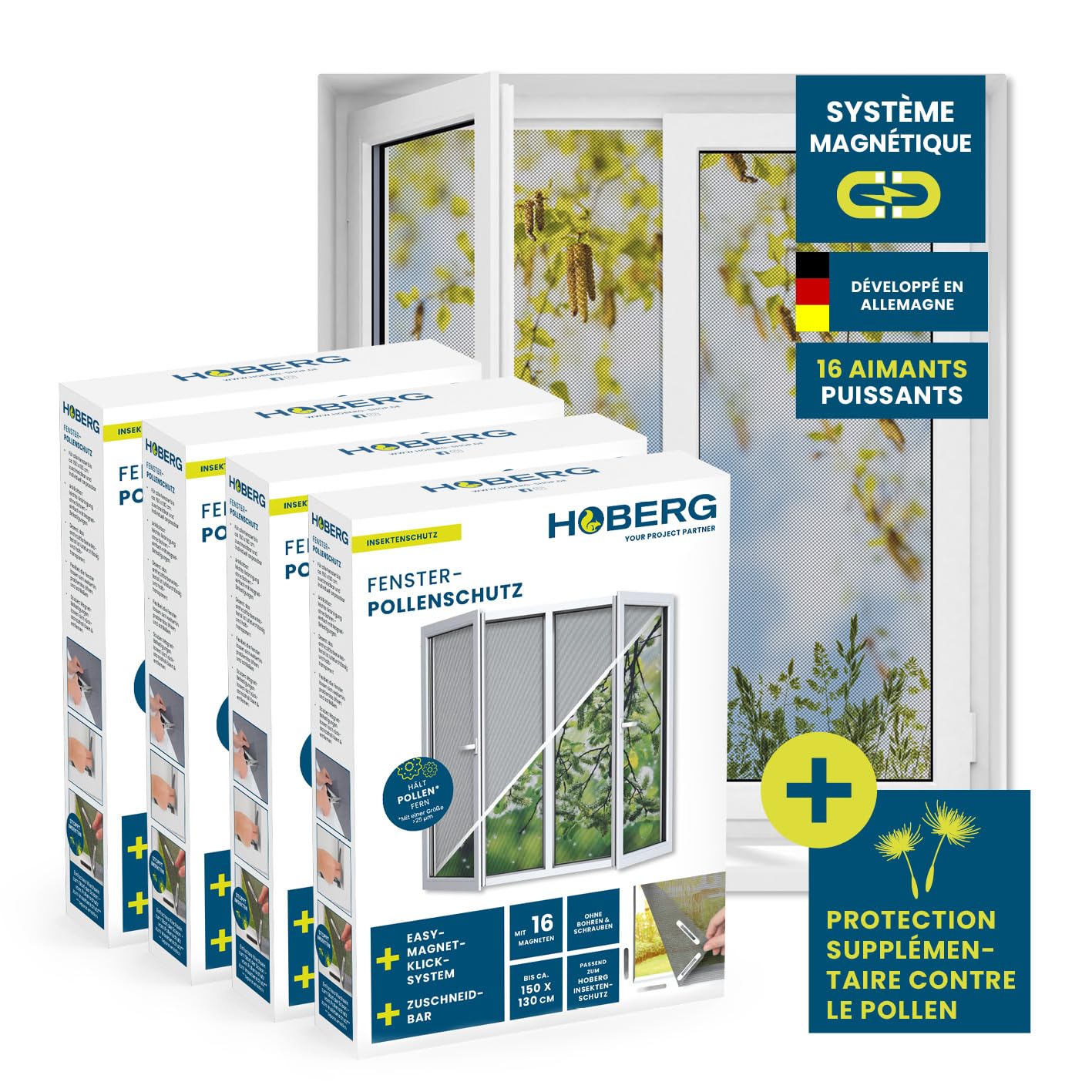

Image: Hoberg Pollen Protection Window Screen, showcasing its design and magnetic attachment system.

Awọn ilana iṣeto

Follow these steps to correctly install your Hoberg Pollen Protection Window Screen:

1. Wọn Ferese Rẹ: Measure the inner dimensions of your window frame where the screen will be installed. The screen is suitable for windows up to a maximum size of 150 x 130 cm.
2. Cut the Screen to Size: Carefully cut the pollen protection net to match your window's measured dimensions. Use sharp scissors for a clean edge.


Image: A person cutting the mesh material with scissors, illustrating the customizable size feature.

3. Clean the Window Frame: Ensure the window frame surface is clean, dry, and free of dust or grease. This is crucial for the adhesive magnetic strips to bond effectively.
4. Attach Magnetic Holders to Frame: Peel the protective backing from the 16 adhesive metal plates and firmly press them onto the clean window frame. Ensure even spacing for optimal hold.
5. Attach Magnetic Counterparts to Screen: Place the 16 magnetic holders with tenons onto the screen, aligning them with the metal plates on the frame. The tenons should pierce the mesh to secure the screen. Some users find using pliers helpful to press the plastic lugs through the mesh.

Image: A hand demonstrating the attachment of a magnetic clip to the window screen mesh.
6. Install the Screen: Align the screen with the window frame, ensuring the magnetic holders on the screen snap securely onto the metal plates on the frame. The magnetic system provides a strong and reliable attachment without drilling or screwing.


Image: A white window frame with the Hoberg screen installed, showing the magnetic system symbols.

7. Ṣayẹwo Ibamu: The screen is compatible with various window frame materials including PVC, aluminum, and wood, provided the frame width is at least 9 mm.


Image: A diagram illustrating compatibility with PVC, aluminum, and wood window frames, highlighting the minimum frame width requirement.

Awọn ilana Iṣiṣẹ

Once installed, the Hoberg Pollen Protection Window Screen operates seamlessly:

• Iṣẹ́ Fèrèsé: The design allows windows to be opened and closed without obstruction, even with the screen in place.
• Iyika afẹfẹ: The semi-transparent, air-permeable material ensures reliable air passage, maintaining good ventilation while keeping pollen and insects out.
• Hihan: The anthracite color and fine mesh offer good transparency, preserving your view ti awọn gbagede.

Image: A woman stretching by a window with the Hoberg screen, illustrating comfortable ventilation without pollen.

Itoju

To ensure the longevity and effectiveness of your Hoberg Pollen Protection Window Screen, follow these maintenance guidelines:

• Ninu iboju: The screen can be easily detached from the magnetic frame for cleaning. Gently wipe the mesh with a damp cloth to remove accumulated dust and pollen. Avoid harsh chemicals or abrasive materials.
• Cleaning the Window: The magnetic attachment allows for easy removal of the screen, facilitating regular window cleaning without leaving adhesive residues on the glass or frame.
• Ibi ipamọ: When not in use, especially during off-seasons, clean the screen thoroughly, allow it to dry completely, and store it in a clean, dry place away from direct sunlight to prevent material degradation.

Laasigbotitusita

If you encounter any issues with your Hoberg Pollen Protection Window Screen, refer to the following common problems and solutions:

• Difficulty Attaching Magnets/Net:
  • Ensure the window frame surface is thoroughly cleaned and dry before applying the adhesive metal plates.
  • If the plastic lugs on the magnetic holders are difficult to pierce the mesh, use a pair of pliers to gently press them through.
• Magnets Detaching from Frame:
  • Poor adhesion can occur if the surface was not clean or if exposed to high heat. Re-clean the surface and reapply new adhesive metal plates if necessary.
  • For stronger hold, especially in high-temperature environments, consider using additional adhesive strips or a stronger adhesive for the metal plates.
• Insects or Pollen Passing Through:
  • Verify that the screen was cut precisely to the window dimensions and that there are no gaps between the screen and the frame.
  • Ensure all magnetic points are securely attached, creating a complete seal around the window opening.
  • While the mesh is fine (25 µm), extremely small insects like thrips might still pass through. For such specific concerns, additional measures might be required.
• Screen Appears Saggy or Uneven:
  • This may indicate imprecise cutting or uneven tension during installation. Re-measure and re-cut if necessary, ensuring the screen is taut when attached.
  • Ensure magnetic holders are evenly distributed and applied with consistent pressure.

Awọn pato

Alaye atilẹyin ọja

Specific warranty details for the Hoberg Pollen Protection Window Screen are not provided in this manual. For information regarding warranty coverage, duration, and claims, please refer to the documentation included with your purchase or contact the retailer from whom you purchased the product. You may also visit the official Hoberg website for general warranty policies.

Onibara Support

Should you require further assistance, have questions about installation, or need to report a product issue, please contact customer support through the following channels:

• Atilẹyin alagbata: Contact the customer service department of the retailer where you purchased the Hoberg Pollen Protection Window Screen.
• Olupese Webojula: Visit the official Hoberg website for FAQs, product information, and potential contact options.
