Ọrọ Iṣaaju
This manual provides essential information for the proper installation, operation, and maintenance of your Secura Blade Holder, designed for MTD Opti 3813 18B-S0F-631 lawn mowers. The blade holder, also known as a blade hub, is a critical component that connects the mower blade to the motor shaft, ensuring efficient and safe cutting performance. Please read these instructions carefully before proceeding with installation or maintenance.
Alaye Aabo
Always prioritize safety when working with lawn mowers and their components. Failure to follow these safety guidelines may result in serious injury or damage to equipment.
- Ge Agbara: Before performing any installation, maintenance, or inspection, always ensure the lawn mower's spark plug wire is disconnected or the battery is removed (for electric models) to prevent accidental starting.
- Wọ Ohun elo Idaabobo: Always wear heavy-duty gloves and eye protection to guard against sharp edges and debris.
- Agbegbe Iṣẹ Iduroṣinṣin: Work on a flat, stable surface. Use appropriate blocking or stands to secure the mower if it needs to be tilted.
- Lo Awọn irinṣẹ Titọ: Ensure you have the correct tools for the job to prevent stripping fasteners or damaging parts.
- Ṣayẹwo Awọn ohun elo: Before installation, inspect all components for damage or defects. Do not install damaged parts.
Awọn pato
The Secura Blade Holder (Model: 7204219) is engineered to precise dimensions for compatibility with MTD Opti 3813 18B-S0F-631 lawn mowers.
- Bore Diameter for Motor Shaft: 12 mm
- Screw Bore Diameter: 6 mm
- Distance Between Drive Pins/Bore: 50 mm
- Motor Shaft Insertion Depth: 20 mm
- Apapọ Giga: 30 mm
- Nọmba Abala Olupese: 7204219
- Ilu isenbale: Jẹmánì
Eto ati fifi sori
Follow these steps to correctly install the Secura Blade Holder on your MTD Opti 3813 18B-S0F-631 lawn mower.
- Mura Mower: Ensure the lawn mower is turned off, the spark plug wire is disconnected, and the mower is on a stable, level surface. If tilting the mower, ensure the carburetor side is up to prevent fuel leakage.
- Remove Old Blade and Holder: Using a wrench, carefully remove the bolt securing the blade and the old blade holder to the motor shaft. Note the orientation of the blade and holder for correct reassembly.
- Clean the Motor Shaft: Thoroughly clean any debris, rust, or grass clippings from the motor shaft to ensure a snug fit for the new blade holder.
- Install New Blade Holder: Slide the new Secura Blade Holder onto the motor shaft. Ensure the drive pins on the blade holder align with any corresponding grooves or flats on the motor shaft. The blade holder should sit flush against the motor.
- So Blade naa: Place the lawn mower blade onto the blade holder, ensuring the cutting edge faces the correct direction (typically towards the ground when the mower is upright). The blade's center hole should align with the blade holder's bore, and the blade's mounting holes should align with the blade holder's drive pins.
- Secure with Bolt: Insert the blade bolt through the blade and blade holder, then thread it into the motor shaft. Tighten the bolt securely using a torque wrench to the manufacturer's specified torque (refer to your mower's original manual for exact torque specifications). Overtightening or undertightening can cause damage or unsafe operation.
- Ṣayẹwo Ipari: Once installed, manually rotate the blade to ensure it spins freely and is properly seated without wobble. Reconnect the spark plug wire.

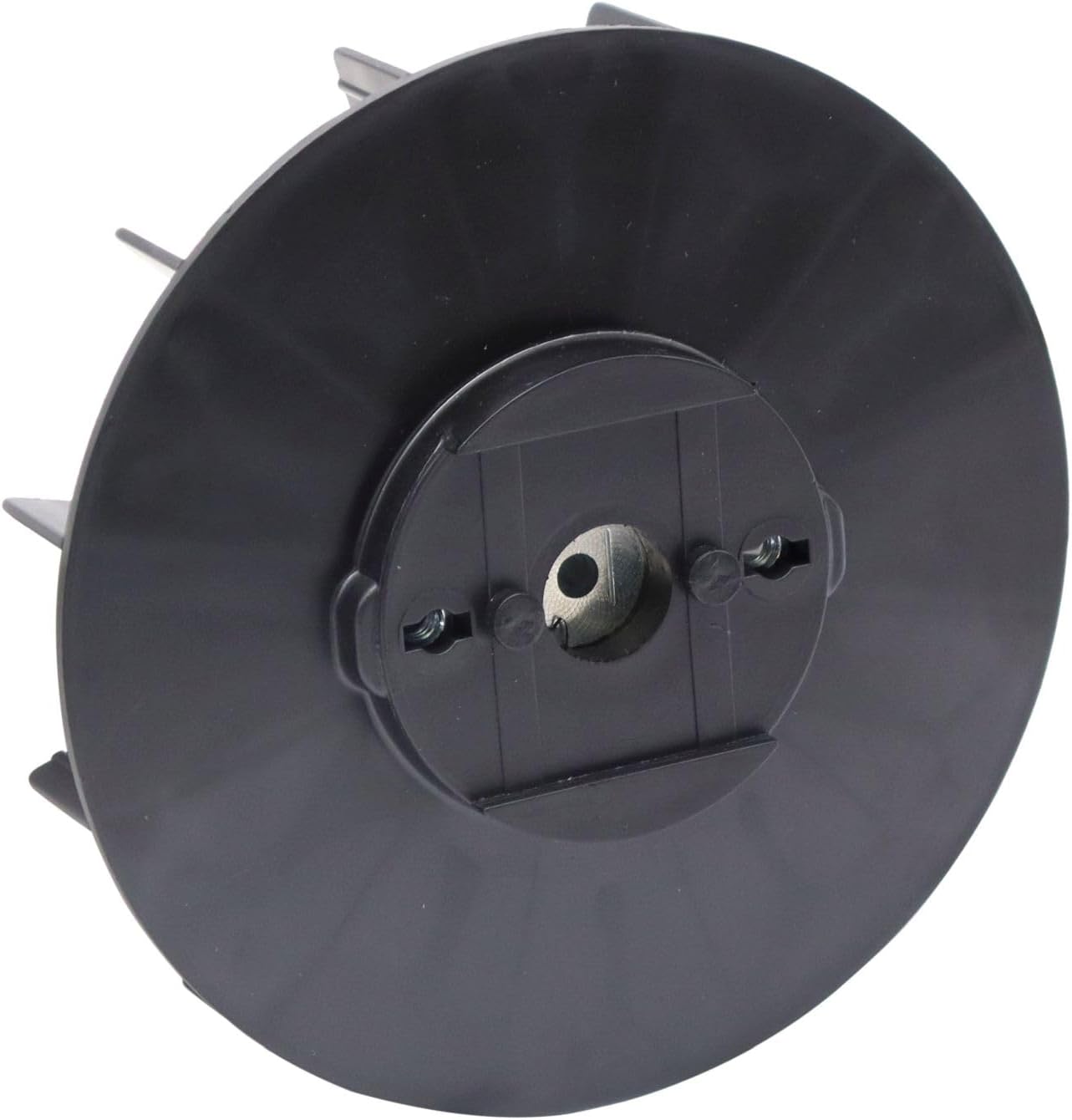

Aworan 1: Oke view of the Secura blade holder, illustrating the central bore for the motor shaft and the screw holes for blade attachment.
Aworan 2: Isalẹ view of the Secura blade holder, showing the integrated cooling fins designed to create airflow.

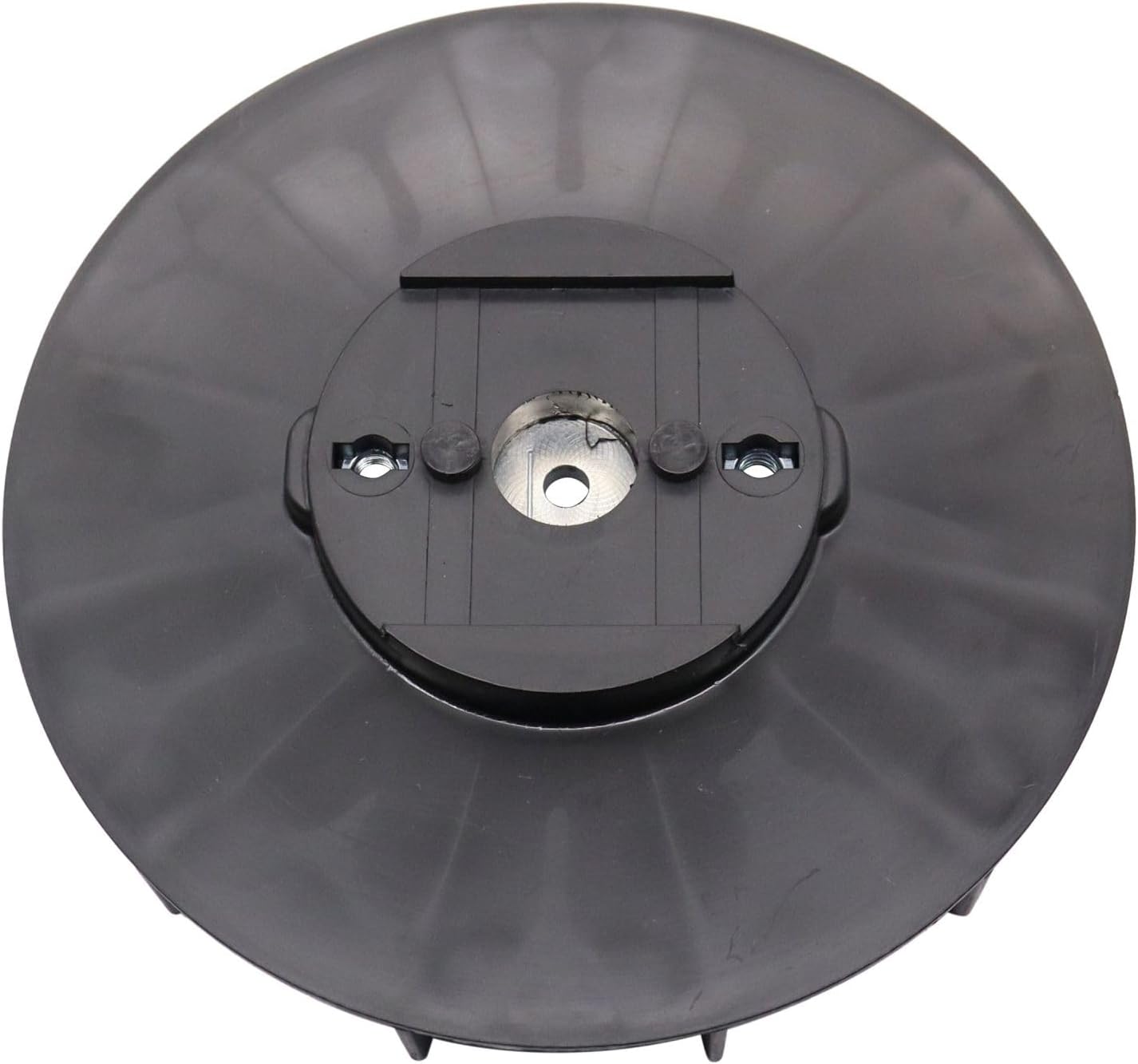

Aworan 3: Apa view of the Secura blade holder, providing a perspective on its total height and the depth for motor shaft insertion.
Ṣiṣẹ
Once properly installed, the Secura Blade Holder functions as the crucial link between your lawn mower's engine and the cutting blade. It is designed to securely hold the blade in place and transfer rotational power from the motor shaft to the blade, enabling efficient grass cutting. Proper installation ensures balanced operation and minimizes vibration.
Itoju
Regular inspection and maintenance of the blade holder are essential for safe operation and extending the life of your lawn mower.
- Ṣayẹwo fun ibajẹ: Before each mowing season or after hitting an obstruction, inspect the blade holder for cracks, bends, or excessive wear. A damaged blade holder can lead to blade imbalance, excessive vibration, and potential blade detachment.
- Ṣayẹwo wiwọn: Periodically check the tightness of the blade bolt. It should be securely fastened to the manufacturer's specified torque.
- Mọ nigbagbogbo: Remove accumulated grass clippings and debris from around the blade holder and motor shaft area. This prevents imbalance and corrosion.
- Replace if Worn: If the blade holder shows signs of significant wear, such as enlarged mounting holes or a loose fit on the motor shaft, it should be replaced immediately.
Laasigbotitusita
If you experience issues related to your lawn mower's blade assembly, consider the following troubleshooting steps:
- Blade Wobble or Excessive Vibration:
- Ensure the blade bolt is tightened to the correct torque.
- Check if the blade is bent or damaged and needs replacement.
- Inspect the blade holder for cracks, bends, or wear that might prevent the blade from seating properly.
- Verify that the motor shaft is not bent.
- Blade Not Spinning or Slipping:
- Ensure the blade holder is correctly seated on the motor shaft and its drive pins are engaged.
- Check for obstructions preventing the blade from rotating.
- Inspect the blade holder for stripped splines or a damaged bore that would prevent it from gripping the motor shaft.
- Unusual Noises from Blade Area:
- Immediately stop the mower and disconnect power.
- Inspect the blade, blade holder, and motor shaft for any signs of damage, loose parts, or foreign objects.
Atilẹyin ọja ati Support
Specific warranty information for this Secura Blade Holder is not provided within this manual. For details regarding warranty coverage, returns, or technical support, please refer to the product packaging or contact Secura customer service directly. Keep your purchase receipt as proof of purchase.
