BEIYI 3-Handle Tub Shower Faucet Matte Black

Ọrọ Iṣaaju

This instruction manual provides detailed guidance for the installation, operation, and maintenance of your BEIYI 3-Handle Tub Shower Faucet, Model BY3HSTB-1. Please read these instructions thoroughly before beginning installation or use to ensure proper function and longevity of your product.

Figure 1: Installed BEIYI 3-Handle Tub Shower Faucet.

Ọja Awọn ẹya ara ẹrọ

• Apẹrẹ Imudara: The 3-handle back panel is designed to conceal existing wall imperfections or holes from previous installations, providing a clean aesthetic.
• Ikole Didara Ere: Manufactured from high-quality brass, ensuring resistance to corrosion and long-term durability.
• Iṣakoso Rọrun: Features three knobs for independent control of water flow and temperature, allowing for a personalized shower experience.
• Fifi sori Rọrun: Designed for U.S. standard plumbing with 1/2 NPT connections, including all necessary accessories and instructions for a straightforward installation.
• Versatile Spray Function: The 4-inch shower head offers 5 adjustable spray settings, including massage spray and power spray, to suit various preferences.

Package Awọn akoonu

Verify that all components are present and undamaged before beginning installation. The package should include:

• 3 Awọn imudani
• Shower Head
• Iwe àtọwọdá
• Ọpọn iwẹ
• Installation Hardware (screws, anchors, Allen wrench, plumber's tape)

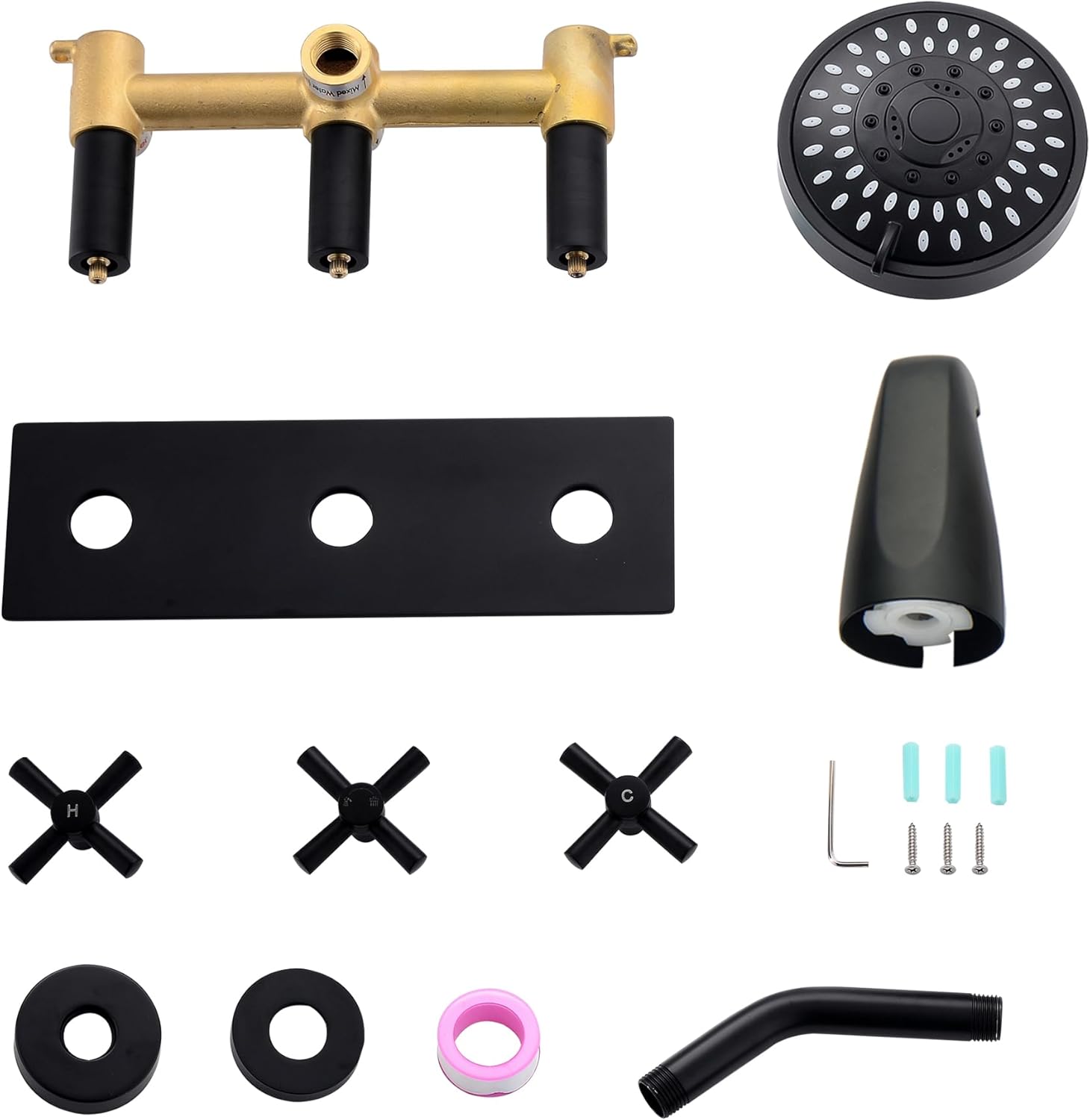

Àwòrán 2: Àkóónú Àpò.

Eto ati fifi sori

Professional installation is recommended. Ensure the main water supply is turned off before starting. This faucet uses U.S. standard 1/2 NPT connections.

Awọn irinṣẹ ti a beere (Ko si):

• adijositabulu wrench
• Screwdriver (Phillips ati flathead)
• Teepu ìdènà páìpù (teepu Teflon)
• Drill (if new holes are required)
• Ipele

Awọn igbesẹ fifi sori ẹrọ:

1. Mura agbegbe fifi sori ẹrọ: Turn off the main water supply. Remove any existing fixtures. Clean the wall surface.
2. Install the Shower Valve: Mount the shower valve body securely within the wall, ensuring it is level and at the correct depth for the trim. Connect the hot and cold water lines to the appropriate inlets on the valve using pipe sealant tape.
3. Àwọn Pípù Ìjáde Sopọ̀: Connect the shower head and tub spout outlet pipes to the valve. Ensure all connections are tight and leak-free.
4. Install the Trim Plate: Secure the large back panel (trim plate) over the valve, aligning it with the valve stems. This panel helps cover any existing wall imperfections.
5. Attach Handles and Tub Spout: Install the three control handles onto their respective valve stems. Attach the tub spout to its connection point.
6. Fi Orí Ìwẹ̀ Sílẹ̀: Screw the shower arm into the wall connection, then attach the shower head to the shower arm. Ensure a tight seal.
7. Idanwo fun Leaks: Slowly turn on the main water supply and check all connections for leaks. Operate the faucet to ensure proper water flow and temperature control.

Awọn ilana Iṣiṣẹ

Your BEIYI 3-Handle Tub Shower Faucet provides precise control over water temperature, flow, and spray settings.

Mu Isẹ lọwọ:

• Awọn osi mu controls the hot water flow.
• Awọn ọtun mu controls the cold water flow.
• Awọn center handle acts as a diverter, allowing you to switch water flow between the shower head and the tub spout. Turn to activate the shower head or tub spout as desired.

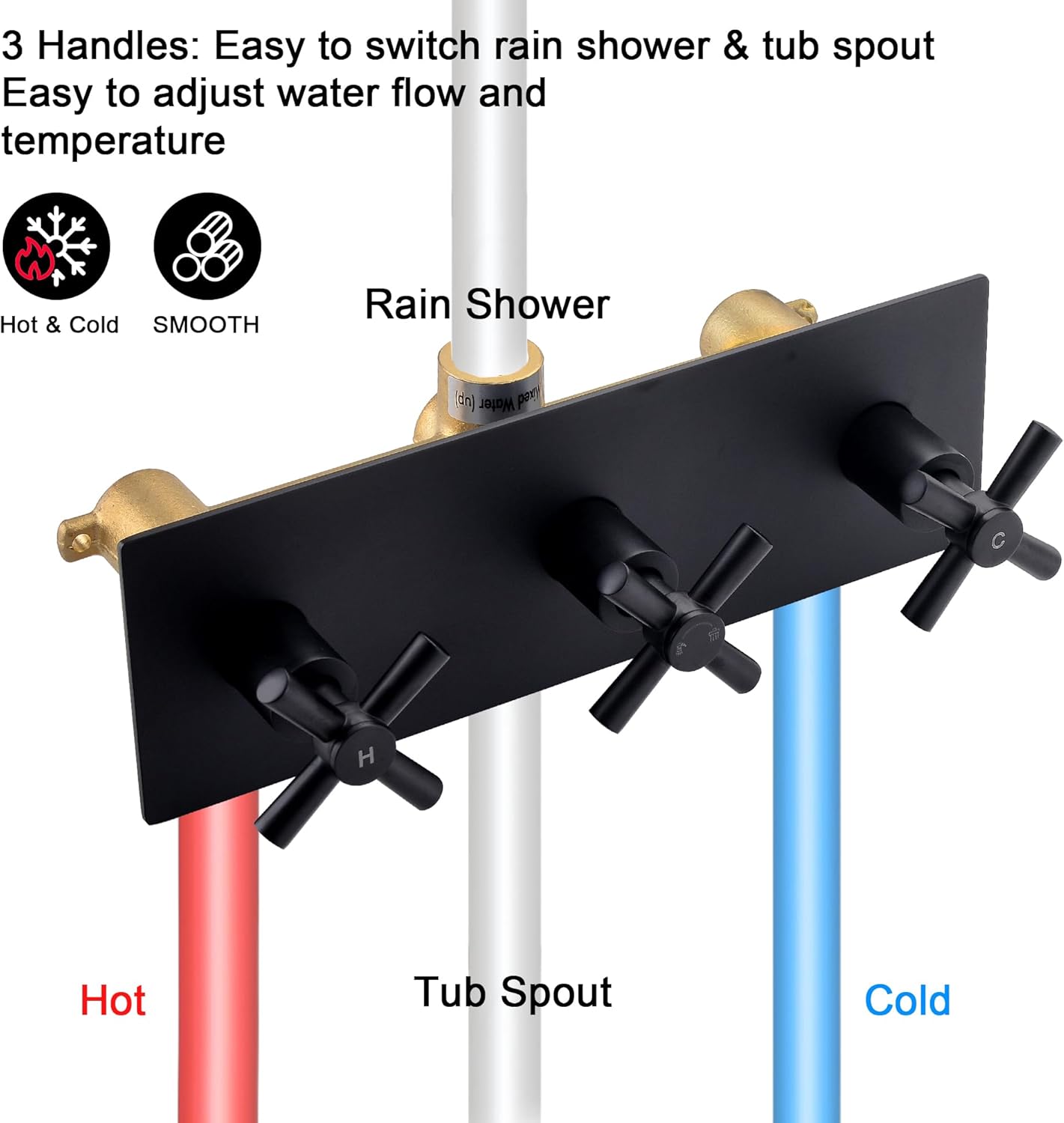

Figure 3: Hot, Cold, and Diverter Handles.

Shower Head Spray Settings:

The 4-inch shower head features 5 adjustable spray modes. To change the spray pattern, rotate the lever or dial on the face of the shower head until the desired mode is selected.

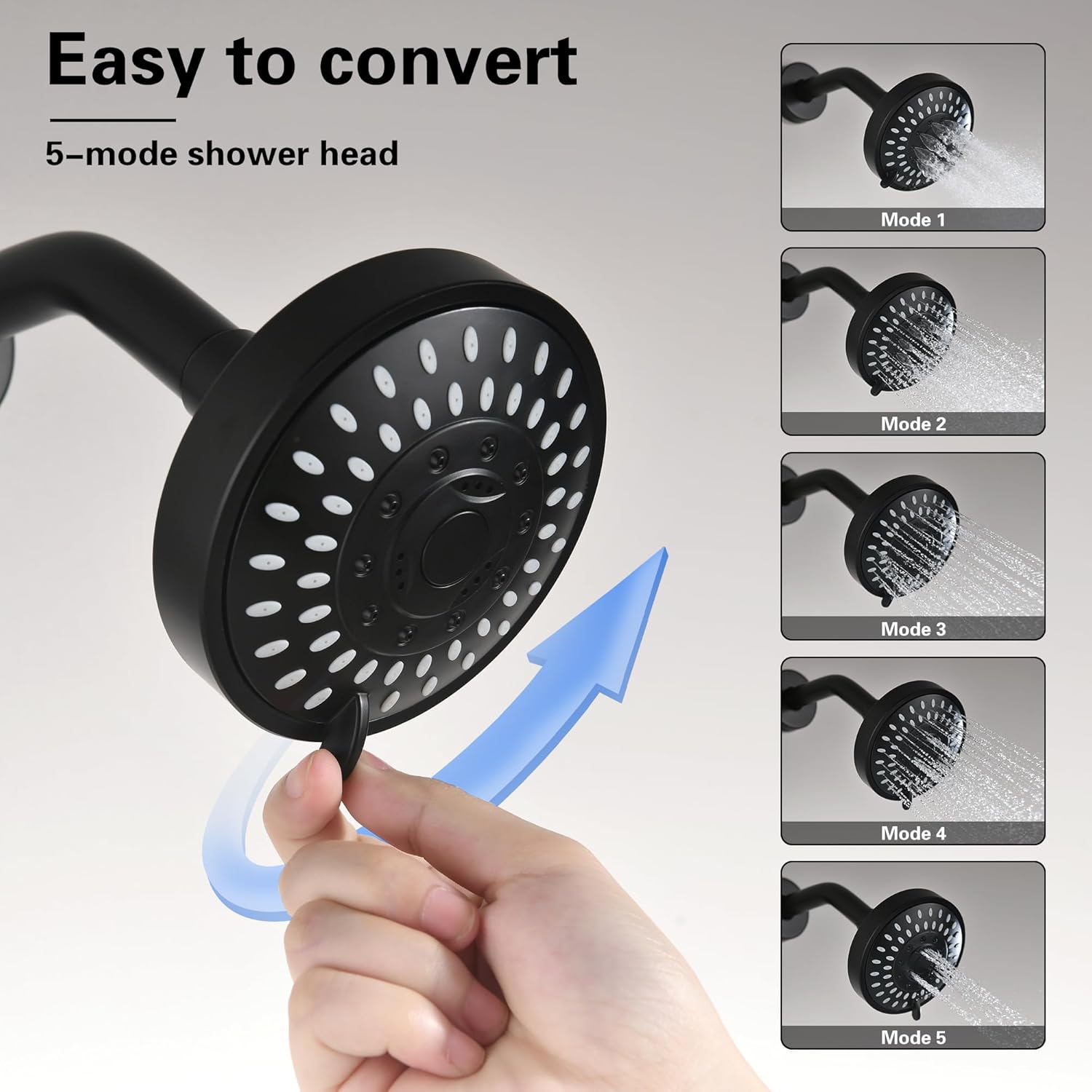

Figure 4: Adjusting Shower Head Spray Modes.

Itoju

Ìmọ́tótó àti ìtọ́jú déédéé yóò ran ọ́ lọ́wọ́ láti pa gbogbo ìparí àti iṣẹ́ páìpù omi rẹ mọ́.

• Ninu Ipari naa: Lo asọ, damp cloth and mild soap to clean the matte black finish. Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the finish.
• Fifọ Ori Iwẹ: Periodically clean the rubber nozzles on the shower head to remove mineral buildup. Gently rub the nozzles with your fingers or a soft brush to dislodge deposits. For stubborn buildup, a solution of equal parts white vinegar and water can be used.
• Gbogbogbo Itọju: Ensure all connections remain tight. If any leaks occur, tighten the connections carefully.

Laasigbotitusita

Awọn pato

Figure 5: Product Dimensions and Body Valve Specification.

Alaye atilẹyin ọja

Warranty details for this product are not explicitly provided in the available information. Please refer to the product packaging or contact the seller directly for specific warranty terms and conditions.

Onibara Support

For technical assistance, replacement parts, or any questions regarding your BEIYI 3-Handle Tub Shower Faucet, please contact the seller or manufacturer directly. Keep your purchase receipt and model number (BY3HSTB-1) handy for faster service.

Olupese: BEIYI
