1. Ifihan
This manual provides essential information for the safe installation, operation, and maintenance of your vidaXL Retractable Awning, Model 3216128. Designed to provide shade and protection, this awning features a durable aluminum frame and UV-resistant fabric. Please read these instructions thoroughly before assembly and use.

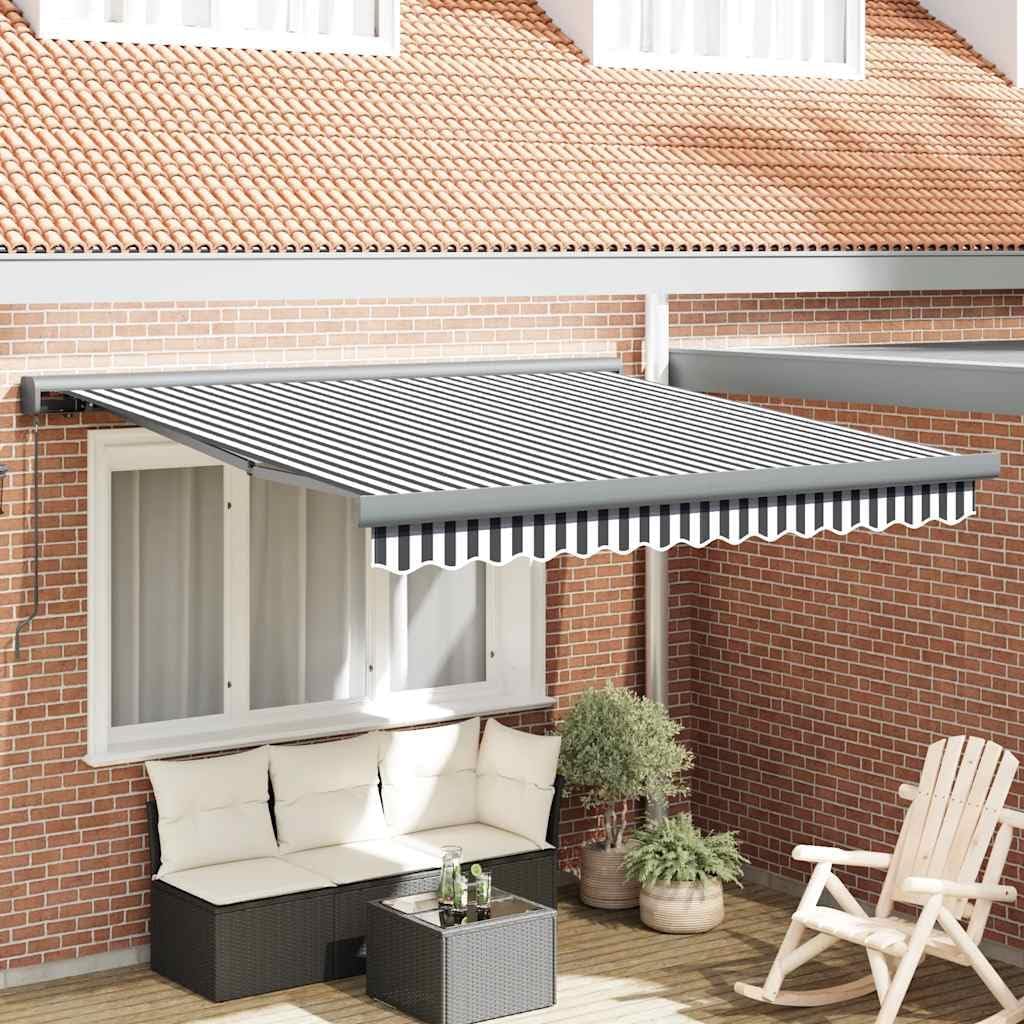

Image 1.1: The vidaXL Retractable Awning providing shade over a patio area.
2. Alaye Aabo
Láti rí i dájú pé iṣẹ́ náà wà ní ààbò àti láti dènà ìpalára tàbí ìbàjẹ́, ẹ jọ̀wọ́ ẹ tẹ̀lé àwọn ìlànà ààbò wọ̀nyí:
- Nigbagbogbo tẹle awọn koodu ile agbegbe ati ilana lakoko fifi sori ẹrọ.
- Ensure the mounting surface is structurally sound and capable of supporting the awning's weight, including potential wind loads.
- Do not operate the awning in strong winds, heavy rain, or snow. Retract the awning fully during adverse weather conditions.
- Keep children and pets away from the awning during extension and retraction.
- Regularly inspect all components for wear, damage, or loose fasteners. Do not use the awning if any part is damaged.
- Yẹra fún gbígbé àwọn nǹkan sí ara férémù tàbí aṣọ ìbòrí.
3. Package Awọn akoonu
Before beginning assembly, verify that all components are present and undamaged. If any parts are missing or damaged, contact vidaXL customer support.
- Awning frame assembly
- Fabric canopy (pre-attached to frame)
- Awọn akọmọ iṣagbesori Odi
- Ibẹrẹ ọwọ
- Fasteners (screws, anchors)
- Ilana itọnisọna
Image 3.1: Close-up of awning components, showing fabric, frame, and bracket detail.
4. Eto ati fifi sori
The vidaXL Retractable Awning requires assembly and secure wall mounting. Professional installation is recommended if you are unsure about any steps.
- Yan Ibi: Select a suitable wall location that can support the awning's weight and provides adequate clearance for extension. Consider sunlight exposure and desired shade area. The awning is designed for wall mounting.
- Iwọn ati Samisi: Use the provided dimensions (refer to Image 4.1 below) to accurately mark the drilling points for the wall mounting brackets. Ensure marks are level and correctly spaced according to the assembly instructions.
- Fi sori ẹrọ Awọn akọmọ: Drill holes at the marked points and securely fasten the wall mounting brackets to the wall using the appropriate fasteners for your wall type (e.g., concrete, brick, wood). Ensure all brackets are firmly attached.
- Ààbò Òkè: With assistance, carefully lift and attach the awning frame to the installed wall brackets. Secure all connections according to the detailed assembly diagrams provided with your product.
- Awọn atunṣe ipari: Ensure the awning is level and all fasteners are tightened. Test the retraction and extension mechanism to confirm smooth operation.

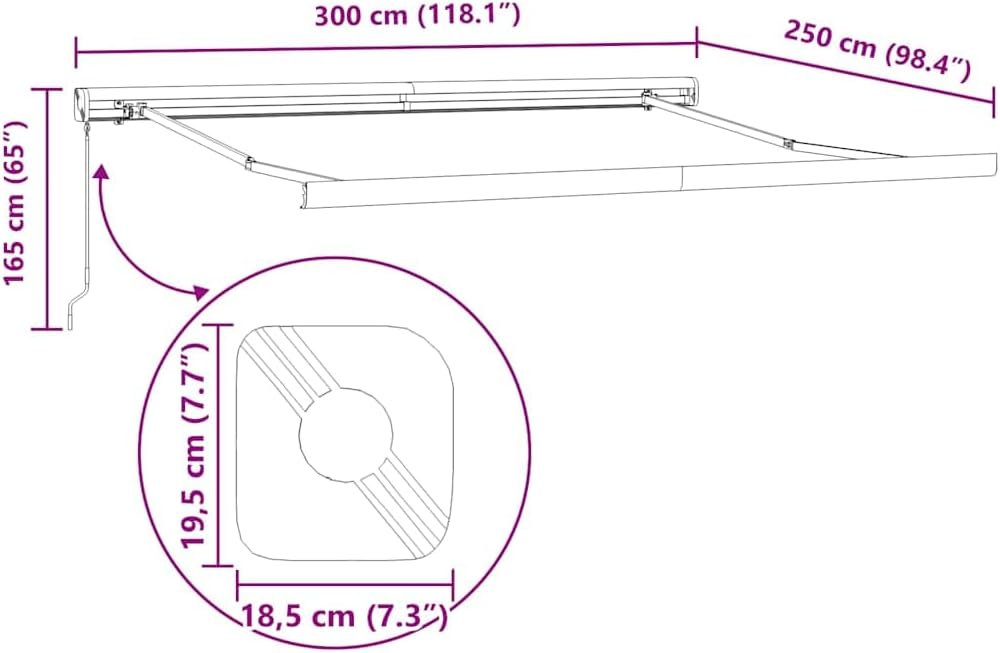

Image 4.1: Awning dimensions diagram (300 x 250 cm).
5. Awọn ilana Iṣiṣẹ
Your vidaXL Retractable Awning operates manually using the provided crank handle.
- Lati Faagun Awning naa: Insert the crank handle into the designated loop or hook on the awning mechanism. Turn the handle clockwise to extend the canopy to your desired length. Do not over-extend the fabric beyond its maximum projection.
- Lati Yipada Awning pada: Turn the crank handle counter-clockwise to retract the canopy fully. Ensure the awning is completely retracted when not in use or during adverse weather conditions to protect it from damage.
Image 5.1: Awning in retracted position, indicating manual operation.
Image 5.2: Awning in extended position, showing canopy deployment.
6. Itọju
Regular maintenance ensures the longevity and proper function of your awning.
- Fifọ aṣọ mọ: Clean the UV-resistant polyester fabric with mild soap and water. Use a soft brush or sponge. Rinse thoroughly with clean water and allow the fabric to air dry completely before retracting. Do not use harsh chemicals, bleach, or abrasive cleaners, as these can damage the fabric's coating.
- Firemu nu: Wipe the powder-coated aluminum frame with a damp cloth to remove dirt and debris. Avoid abrasive materials that could scratch the finish.
- Ayewo: Periodically check all bolts, screws, and moving parts for tightness and wear. Tighten any loose fasteners. Lubricate moving parts if necessary with a silicone-based lubricant to ensure smooth operation.
- Ibi ipamọ igba otutu: In areas with harsh winters, it is recommended to keep the awning fully retracted and covered, or remove it for storage indoors to protect it from snow, ice accumulation, and extreme cold.
7. Laasigbotitusita
Tí o bá ní ìṣòro pẹ̀lú àmùrè rẹ, wo àwọn ìṣòro àti ìdáhùn tí ó wọ́pọ̀ wọ̀nyí:
| Isoro | Owun to le Fa | Ojutu |
|---|---|---|
| Awning ko ni fa / faseyin laisiyonu. | Mechanism is dirty or dry; obstruction in the arms or roller. | Clean and lubricate moving parts with a silicone-based spray. Check for and remove any debris. |
| Fabric sags or wrinkles when extended. | Fabric tension not properly adjusted; fabric stretched over time. | Consult a professional for tension adjustment. Ensure the awning is fully retracted when not in use. |
| Awning feels unstable after installation. | Mounting brackets not securely fastened; incorrect fasteners used for wall material. | Immediately cease use. Re-check all mounting points and fasteners. Ensure they are appropriate for the wall material and tightened to specifications. Seek professional assistance if needed. |
| Crank handle is difficult to turn. | Mechanism requires lubrication; handle connection is stiff. | Lubricate the crank mechanism and connection points. Ensure no debris is obstructing movement. |
8. Awọn pato
The following are the technical specifications for the vidaXL Retractable Awning, Model 3216128:
| Ẹya ara ẹrọ | Ẹ̀kúnrẹ́rẹ́ |
|---|---|
| Brand | vidaXL |
| Nọmba awoṣe | 3216128 |
| Ohun elo (Fireemu) | Aluminiomu ti a bo lulú |
| Ohun elo (Aṣọ) | 100% Polyester with PU surface treatment |
| Àwọ̀ | Anthracite and Black |
| Iwọn (Ipari x Isọtẹlẹ) | 300 cm x 250 cm (118.1 inches x 98.4 inches) |
| Iwọn Nkan | 37.86 kilo |
| Ipo Isẹ | Afowoyi |
| Apejọ ti a beere | Bẹẹni |
9. Atilẹyin ọja ati Support
For warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. Warranty terms may vary based on region and purchase location.
For further assistance, technical support, or to inquire about replacement parts, please contact vidaXL customer service through their official webAaye (www.vidaxl.com) or the retailer where the product was purchased. Please have your model number (3216128) and purchase details ready when contacting support.
