Vonia V177TG

Vonia Spot Cleaner Instruction Manual

Model: V177TG

Brand: Vonia

1. Ifihan

Thank you for choosing the Vonia Spot Cleaner. This manual provides essential information for the safe and effective use, maintenance, and troubleshooting of your new appliance. Please read these instructions carefully before first use and retain them for future reference.

2. Awọn ilana aabo

Láti dín ewu iná, ìkọlù iná mànàmáná, tàbí ìpalára kù, máa tẹ̀lé àwọn ìlànà ààbò pàtàkì nígbà tí o bá ń lo ohun èlò iná mànàmáná.

  • Ka gbogbo awọn ilana ṣaaju lilo ohun elo naa.
  • Maṣe fi ohun elo naa bọ inu omi tabi awọn olomi miiran.
  • Do not use with a damaged cord or plug. If the cord is damaged, it must be replaced by the manufacturer or a qualified service agent.
  • Jeki irun, aṣọ alaimuṣinṣin, awọn ika ọwọ, ati gbogbo awọn ẹya ara kuro lati awọn ṣiṣi ati awọn ẹya gbigbe.
  • Lo nikan gẹgẹbi a ti ṣalaye ninu itọnisọna yii. Lo awọn asomọ iṣeduro olupese nikan.
  • Ma ṣe lo lati gbe awọn olomi ina tabi ina, gẹgẹbi petirolu, tabi lo ni awọn agbegbe nibiti wọn le wa.
  • Maṣe gbe ohunkohun ti o njo tabi ti nmu siga, gẹgẹbi awọn siga, awọn ere-kere, tabi eeru gbigbona.
  • Yọọ pulọọgi kuro ni ijade nigbati ko si ni lilo ati ṣaaju ṣiṣe mimọ tabi ṣiṣe.
  • Ṣe abojuto abojuto pupọ nigbati o ba sọ di mimọ lori awọn pẹtẹẹsì.
  • Ohun elo yii kii ṣe ipinnu fun lilo nipasẹ awọn eniyan (pẹlu awọn ọmọde) pẹlu idinku ti ara, imọlara tabi awọn agbara ọpọlọ, tabi aini iriri ati imọ, ayafi ti wọn ba ti fun wọn ni abojuto tabi itọnisọna nipa lilo ohun elo nipasẹ eniyan ti o ni iduro fun aabo wọn.

3. Package Awọn akoonu

Daju pe gbogbo awọn nkan wa ati ni ipo ti o dara nigbati ṣiṣi silẹ.

  • Vonia Spot Cleaner Main Unit
  • Cleaning Nozzle (Small)
  • Cleaning Nozzle (Large)
  • Ilana itọnisọna

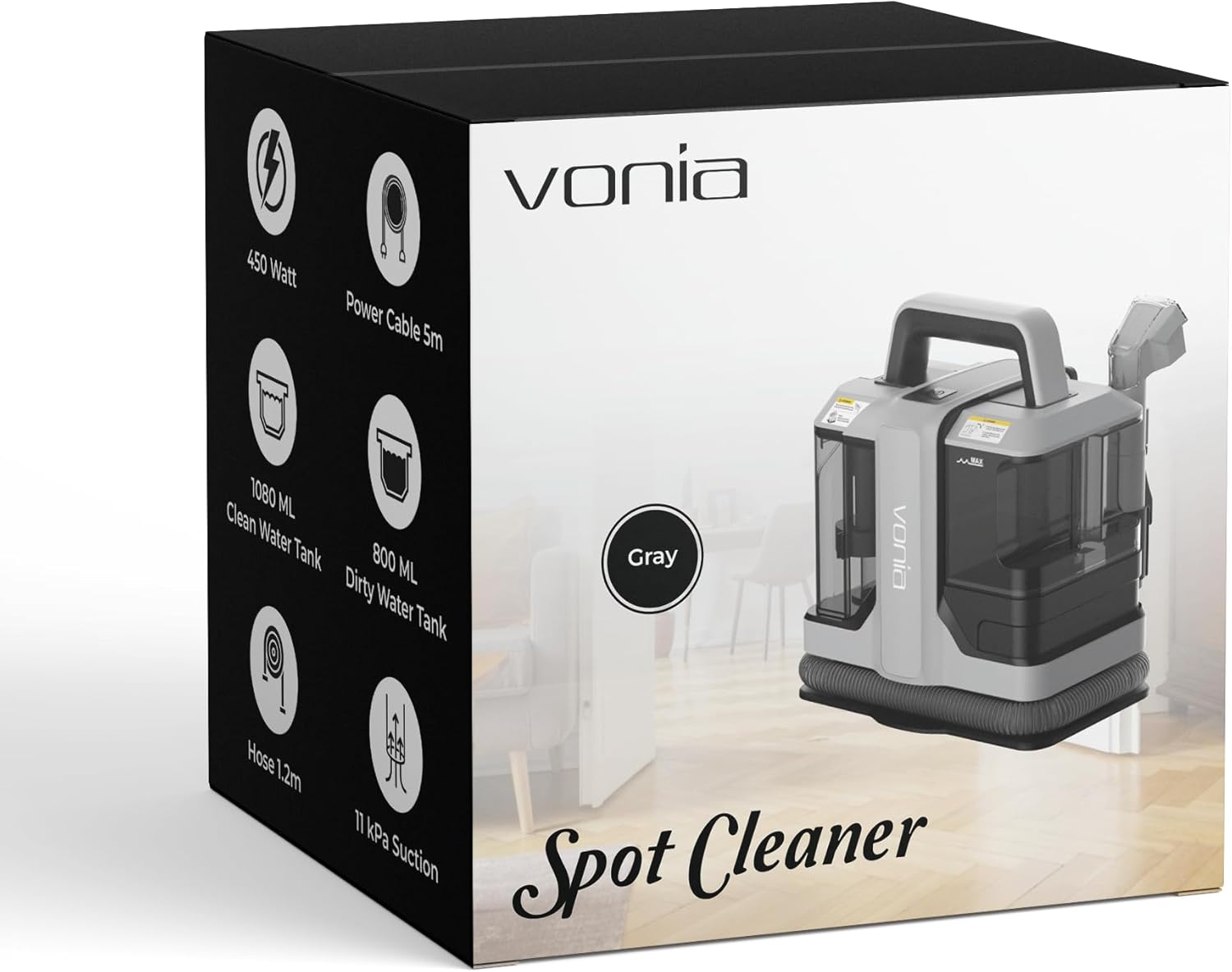

Vonia Spot Cleaner packaging box showing the main unit and accessories.
Image: The Vonia Spot Cleaner packaging box, illustrating the main unit and included accessories.

4. Ọja Ipariview

Familiarize yourself with the components of your Vonia Spot Cleaner.

  • Omi omi mimọ: Holds fresh water and cleaning solution. Capacity: 1080 ml.
  • Omi omi idọti: Collects extracted dirty water. Capacity: 850 ml.
  • okun: Flexible hose for directing cleaning nozzles. Length: 1.2 meters.
  • Awọn nozzles ti o sọ di mimọ: Two attachments for different cleaning tasks.
  • Okun Agbara: For electrical connection. Length: 5 meters.
  • Bọtini agbara: Activates the cleaner.
Vonia Spot Cleaner main unit with two cleaning attachments.
Image: The Vonia Spot Cleaner main unit, showcasing its design and the two included cleaning attachments.

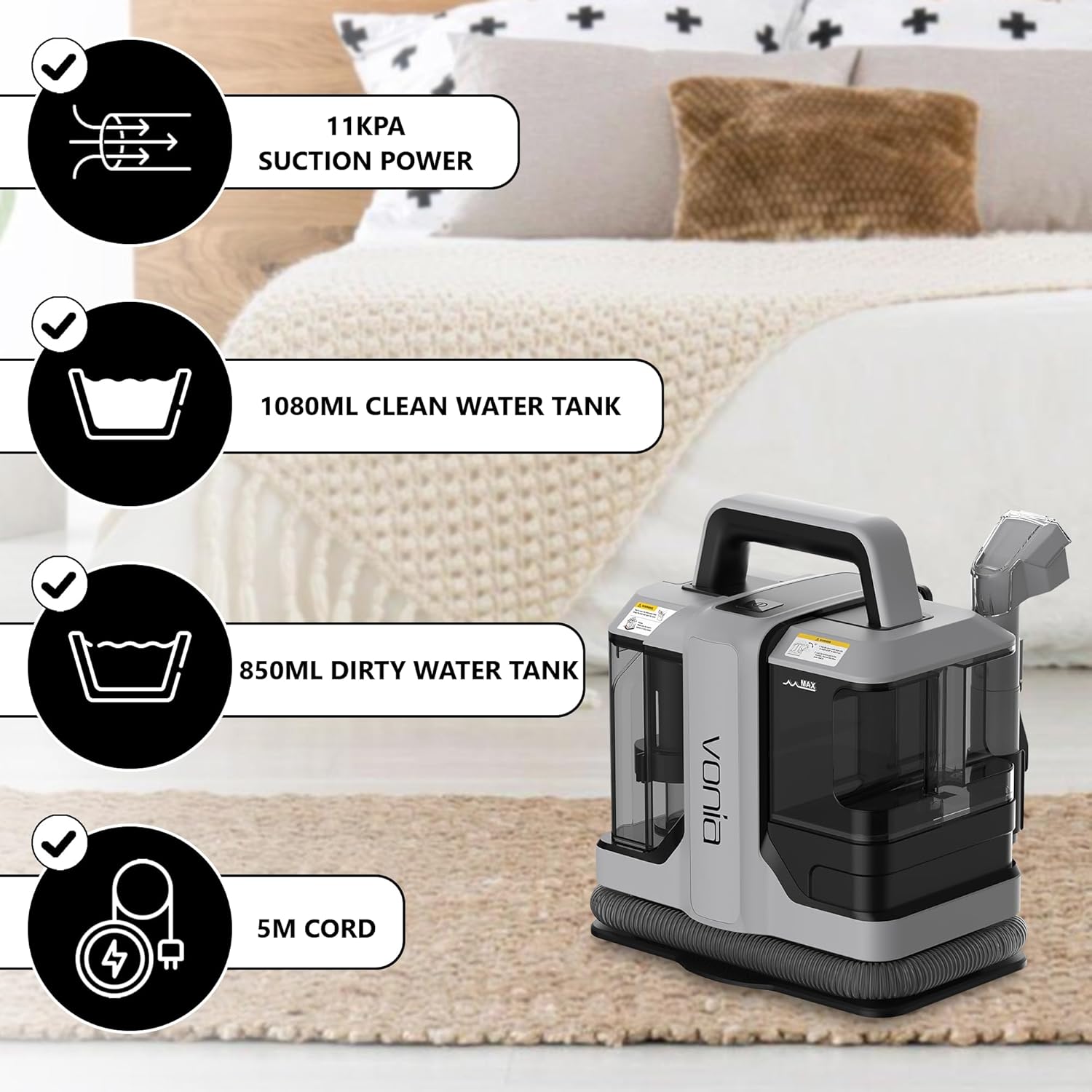

Vonia Spot Cleaner highlighting its features: 11KPa suction, 1080ml clean water tank, 850ml dirty water tank, and 5m power cord.
Image: A visual representation of the Vonia Spot Cleaner's key features, including its suction power, tank capacities, and cord length.

5. Eto

Follow these steps to prepare your Vonia Spot Cleaner for use.

  1. Yọọ kuro: Ni ifarabalẹ yọ gbogbo awọn paati kuro ninu apoti.
  2. So Nozzle: Select the appropriate cleaning nozzle for your task and securely attach it to the end of the hose.
  3. Kun Omi Omi mimọ: Remove the clean water tank. Fill it with warm water (max 40°C) and a suitable carpet/upholstery cleaning solution according to the solution's instructions. Do not overfill. Securely reattach the tank.
  4. Ipo: Place the spot cleaner on a stable, flat surface near the area to be cleaned.
  5. Wọle: Fi okùn agbára náà sínú ihò iná mànàmáná tí a fi ilẹ̀ ṣe.

6. Awọn ilana Iṣiṣẹ

The Vonia Spot Cleaner is designed for effective cleaning of carpets, rugs, upholstery, and car interiors.

Vonia Spot Cleaner being used on car upholstery, carpeted stairs, a rug, and a couch.
Aworan: Examples of surfaces suitable for cleaning with the Vonia Spot Cleaner, including car upholstery, carpeted stairs, rugs, and couches.
  1. Itọju-tẹlẹ (aṣayan): For stubborn stains, pre-treat the area with a suitable stain remover before using the spot cleaner. Allow it to sit for a few minutes as per the pre-treatment product's instructions.
  2. Agbara Tan: Tẹ bọtini agbara lati tan ẹrọ naa.
  3. Sokiri ati Scrub: Hold the cleaning nozzle over the stained area. Press the trigger on the nozzle to spray the cleaning solution onto the fabric. Gently scrub the stain with the brush on the nozzle.
  4. Jade: Release the spray trigger and slowly pull the nozzle over the wet area, applying downward pressure. This will suction up the dirty water. Repeat this step until the water being extracted appears clean.
  5. Gbẹ Continue to suction the area without spraying to remove as much moisture as possible. This helps to speed up drying time.
  6. Tun: For heavily soiled areas, you may need to repeat the spray, scrub, and extract process.
  7. Agbara Pa: Ni kete ti mimọ ba ti pari, pa ohun elo naa kuro ki o yọọ kuro ni iṣan agbara.
Close-up of the Vonia Spot Cleaner nozzle cleaning a brown stain on a carpet.
Image: The cleaning nozzle in action, demonstrating its ability to spray solution and extract stains from carpet.
Illustration showing the Vonia Spot Cleaner effectively removing various types of stains and odors from fabric.
Image: The spot cleaner's effectiveness against different types of stains and unpleasant odors.
Before and after comparison of a carpet stain, showing significant improvement after using the Vonia Spot Cleaner.
Image: A visual comparison demonstrating the cleaning results achieved with the Vonia Spot Cleaner.

7. Itọju

Itọju deede ṣe idaniloju iṣẹ ṣiṣe ti o dara julọ ati fa igbesi aye mimọ ti iranran rẹ pọ si.

  1. Sofo ati Fi omi ṣan omi Idọti: After each use, remove the dirty water tank, empty its contents, and rinse it thoroughly with clean water. Allow it to air dry before reattaching.
  2. Fi omi ṣan omi mimọ: If any cleaning solution remains, empty and rinse the clean water tank.
  3. Nu Nozzles ati Hose: Detach the cleaning nozzle and rinse it under running water to remove any debris. Flush the hose with clean water by running the cleaner with only clean water in the tank for a few seconds.
  4. Parẹ́: Mu ese ita ohun elo naa pẹlu asọ, damp asọ.
  5. Ibi ipamọ: Store the spot cleaner in a dry, cool place, away from direct sunlight and out of reach of children. Ensure all tanks are empty and dry before storage.

8. Laasigbotitusita

Tọkasi apakan yii fun awọn ọran ti o wọpọ ati awọn ojutu wọn.

IsoroOwun to le FaOjutu
Ko si afamoraDirty water tank full; hose or nozzle clogged; tank not properly seated.Empty dirty water tank; clear any clogs; ensure tanks are securely in place.
Ko si sokiriClean water tank empty; spray nozzle clogged; tank not properly seated.Refill clean water tank; clean spray nozzle; ensure tanks are securely in place.
Iṣẹ ṣiṣe mimọ ti ko daraIncorrect cleaning solution; heavily soiled area; slow extraction speed.Use recommended cleaning solution; pre-treat stubborn stains; move nozzle slower for better extraction.
Omi jijoAwọn tanki ko ni edidi daradara; bajẹ ojò tabi asiwaju.Ensure tanks are correctly installed and sealed; inspect tanks and seals for damage.

9. Awọn pato

Ẹya ara ẹrọSipesifikesonu
BrandVonia
Nọmba awoṣeV177TG
Agbara450W
Agbara afamora11 KPa (110000 Pa)
Mọ Omi ojò Agbara1080 milimita
Idọti Omi ojò Agbara850 milimita
Agbara Okun Ipari5 mita
Hose Gigun1.2 mita
Awọn iwọn Ọja (L x W x H)30 x 16 x 26 cm
Iwọn Nkan2 kilo
Ilu isenbaleChina
Vonia Spot Cleaner highlighting its compact design, 450W power, and 1.2m hose.
Image: Key features of the Vonia Spot Cleaner, including its power, compact size, and hose length.

10. Atilẹyin ọja ati Support

The Vonia Spot Cleaner is designed for durability and performance. Spare parts availability is supported for 1 year from the date of purchase. For any questions, technical assistance, or warranty claims, please refer to your purchase documentation or contact the retailer where the product was purchased.
