Ọrọ Iṣaaju
This manual provides comprehensive instructions for the safe and efficient use of your ENGEL MT35 34 Quart Portable Fridge-Freezer and the ENGEL Tilt Fridge Slide. Please read this manual thoroughly before operating the product to ensure proper setup, operation, and maintenance. Retain this manual for future reference.

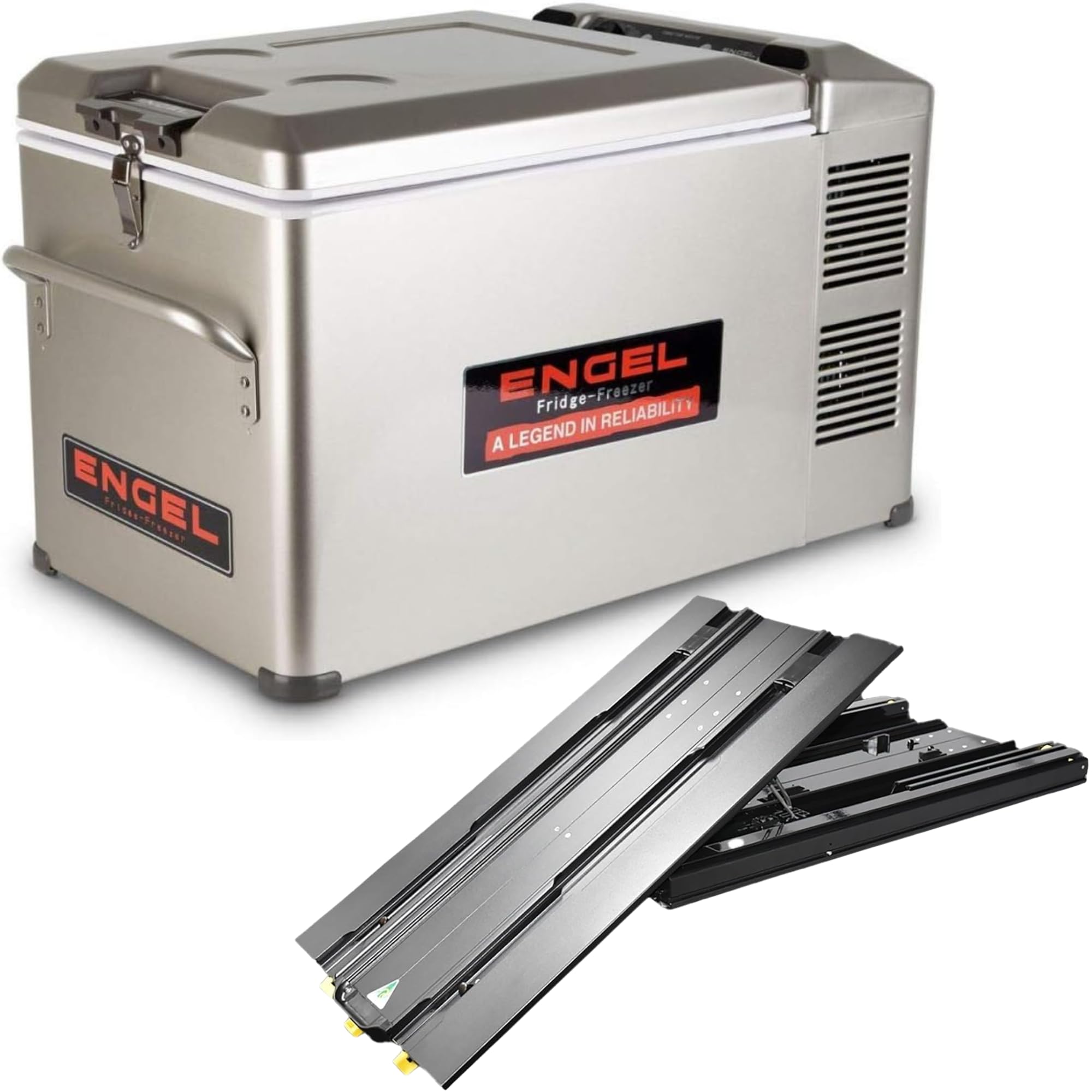

Image: The ENGEL MT35 34 Quart Portable Fridge-Freezer and the ENGEL Tilt Fridge Slide, shown together as a complete unit.
Key Awọn ẹya ara ẹrọ
- Imọ-ẹrọ Itutu Ilọsiwaju: Equipped with a highly efficient "Swing Motor" Compressor, consuming only 1-2 Amps per hour for reliable cooling and reduced energy use.
- Awọn iṣakoso ore-olumulo: Features a digital control with LED display, a built-in battery monitor, and automatic switching between 12V and 120V power sources.
- Innovative Fridge Slide: The ENGEL Tilt Fridge Slide includes a unique locking system that secures the fridge by its feet, eliminating the need for additional tie-down straps.
- Wiwọle Lailagbara: The tilt function of the slide provides easy access to fridge contents.
- Ikole ti o tọ: The fridge slide is constructed from 304 Grade Stainless Steel, designed to withstand rugged outdoor conditions.
- Apẹrẹ fifipamọ aaye: The compact and easy-to-install slide optimizes vehicle space for organized travel.
Ṣeto
Fridge-Freezer Placement and Power Connection
Place the ENGEL MT35 Fridge-Freezer on a stable, level surface, ensuring adequate ventilation around the unit. Connect the appropriate power cord (12V DC or 110/120V AC) to the unit and then to the power source. The unit will automatically detect and switch between power sources.
Image: The ENGEL MT35 Fridge-Freezer with its lid open, showing the interior compartment.
Tilt Fridge Slide Installation
- Iṣagbesori: Securely mount the ENGEL Tilt Fridge Slide to a flat, sturdy surface in your vehicle using appropriate fasteners (not included). Ensure the slide is level and stable.
- Fridge Placement: Carefully place the ENGEL MT35 Fridge-Freezer onto the slide. The innovative locking system will secure the fridge by its feet, eliminating the need for additional tie-down straps.
- Idanwo: Before travel, ensure the fridge is firmly locked in place and the slide operates smoothly.
Image: The ENGEL Tilt Fridge Slide in its low-profile, closed position, designed to maximize space for other gear.

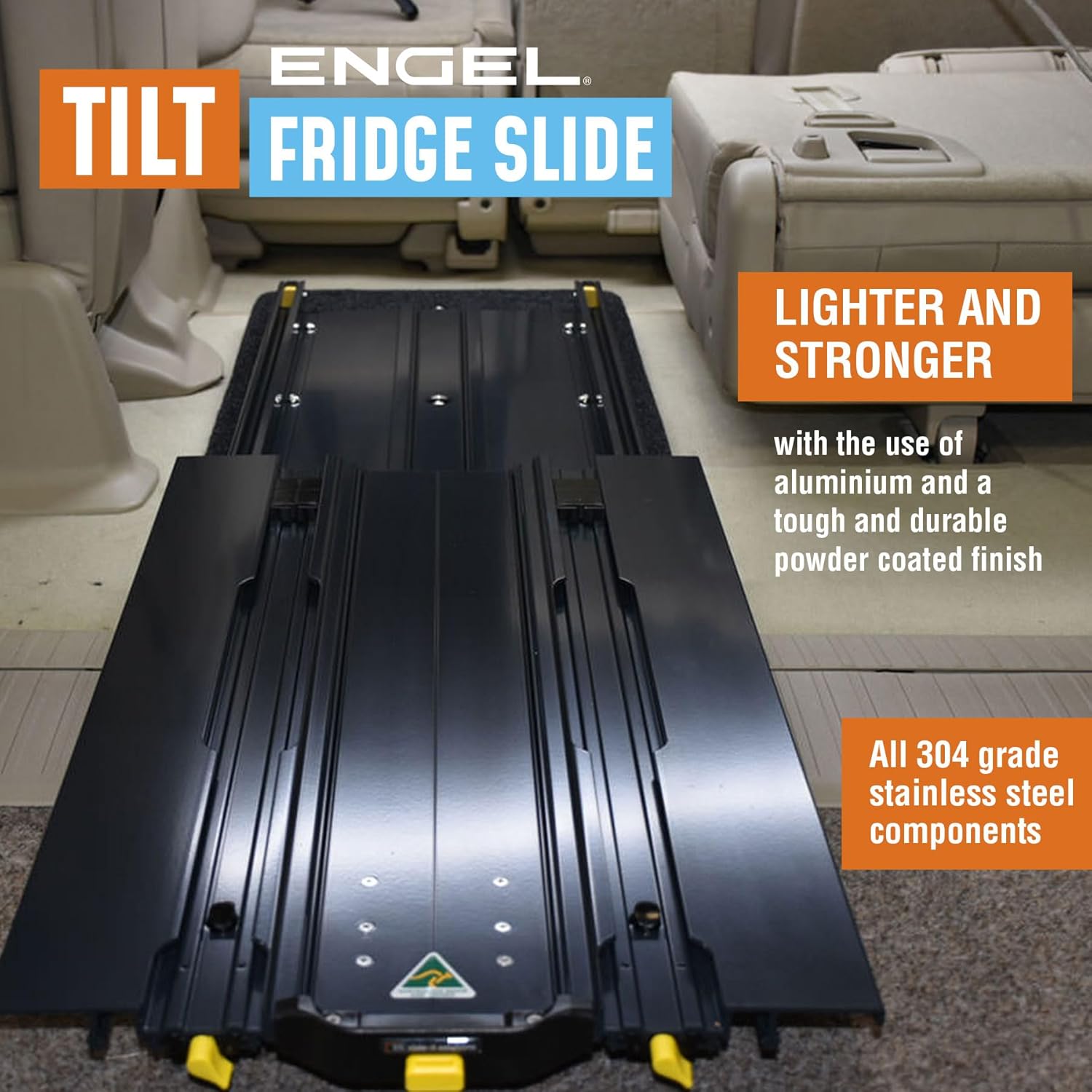

Aworan: A sunmọ-soke view of the ENGEL Tilt Fridge Slide, highlighting its robust construction from aluminum and 304-grade stainless steel components with a powder-coated finish.
Awọn ilana Iṣiṣẹ
Titan / Pipa agbara
Once connected to a power source, the fridge-freezer will automatically power on. Use the digital control panel to adjust settings. To turn off, disconnect from the power source.
Iṣakoso iwọn otutu
The digital control panel with LED display allows for precise temperature adjustments. Refer to the on-screen indicators for current temperature and settings. Adjust the temperature using the designated buttons on the control panel.
Atẹle batiri
The built-in battery monitor displays the current battery status, helping you manage power consumption, especially when operating on 12V/24V DC power.
Using the Tilt Fridge Slide
To access the contents of your fridge-freezer, press the single-handed locking and release button on the slide. This will allow you to pull the fridge out and tilt it down for easier access. To return the fridge to its stowed position, push it back until it locks securely in place.
Image: A user accessing the contents of the ENGEL fridge-freezer while it is tilted down on the slide, demonstrating the ease of access.
Image: A child demonstrating the use of the single-handed locking and release button with an integrated handle on the ENGEL Tilt Fridge Slide.
Image: The ENGEL fridge-freezer tilted outwards from a vehicle, showcasing the functionality of the tilt slide for convenient access in outdoor settings.
Itoju
- Cleaning the Fridge-Freezer: Regularly clean the interior and exterior of the fridge-freezer with a damp asọ ati ìwọnba detergent. Rii daju pe ẹyọ kuro ti yọọ kuro ṣaaju ṣiṣe mimọ. Maṣe lo awọn afọmọ abrasive.
- Cleaning the Slide: Wipe down the fridge slide with a damp cloth to remove dirt and debris. Periodically check for any obstructions in the slide mechanism.
- Afẹfẹ: Ensure the ventilation grilles on the fridge-freezer are kept clear of dust and obstructions to maintain optimal cooling performance.
- Ibi ipamọ: When storing the fridge-freezer for extended periods, ensure it is clean, dry, and the lid is slightly ajar to prevent odors and mildew.
Laasigbotitusita
| Isoro | Owun to le Fa | Ojutu |
|---|---|---|
| Ẹka ti ko ni agbara lori | Kò sí ìpèsè agbára; ìsopọ̀ tí ó dẹ́kun; fiusi tí ó fẹ́. | Check power source and connections. Inspect vehicle's fuse or unit's fuse. |
| Itutu agbaiye ti ko to | Poor ventilation; overloaded unit; door not sealed properly; ambient temperature too high. | Ensure clear ventilation. Do not overload. Check door seal. Operate in cooler environment if possible. |
| Ifihan oni-nọmba ko ṣiṣẹ | Oro agbara; ti abẹnu ẹbi. | Check power supply. If problem persists, contact customer support. |
| Fridge slide not moving smoothly | Debris in tracks; mechanism obstruction. | Clean tracks and remove any obstructions. |
For issues not listed here, or if troubleshooting steps do not resolve the problem, please contact ENGEL customer support.
Awọn pato
| Ẹya ara ẹrọ | Ẹ̀kúnrẹ́rẹ́ |
|---|---|
| Brand | ENGEL |
| Awoṣe | MT35 |
| Agbara | 34 mẹẹdogun |
| Agbara Input | 12V/24V DC, 110/120V AC (Auto-switching) |
| Ọna Itutu | "Swing Motor" Compressor |
| Lilo Agbara | 1-2 Amps per hour |
| Fridge Slide Material | 304 Grade Stainless Steel, Aluminum (powder coated) |
| Pataki Awọn ẹya ara ẹrọ | Portable, Digital Control, LED Display, Built-in Battery Monitor, Tilt Function Slide, Feet Locks |
Compatibility (Tilt Fridge Slide)
The ENGEL Tilt Fridge Slide is designed for broad compatibility with various portable fridge-freezers. It is compatible with:
- ENGEL MT35, MT45, and MR040 fridges.
- DOMETIC / WAEC O – CFX 35/45/50
- DOMETIC / WAEC O – CFX55
- DOMETIC / WAEC O – CFX3 35/50/55IM
- DOMETIC / WAEC O – CFX65
- ARB – 35/47 CLASSIC (BLUE)
- ARB – 35/47 SERIES 2 (CHARCOAL)
Note: Some models may require an adapter plate for optimal fit.

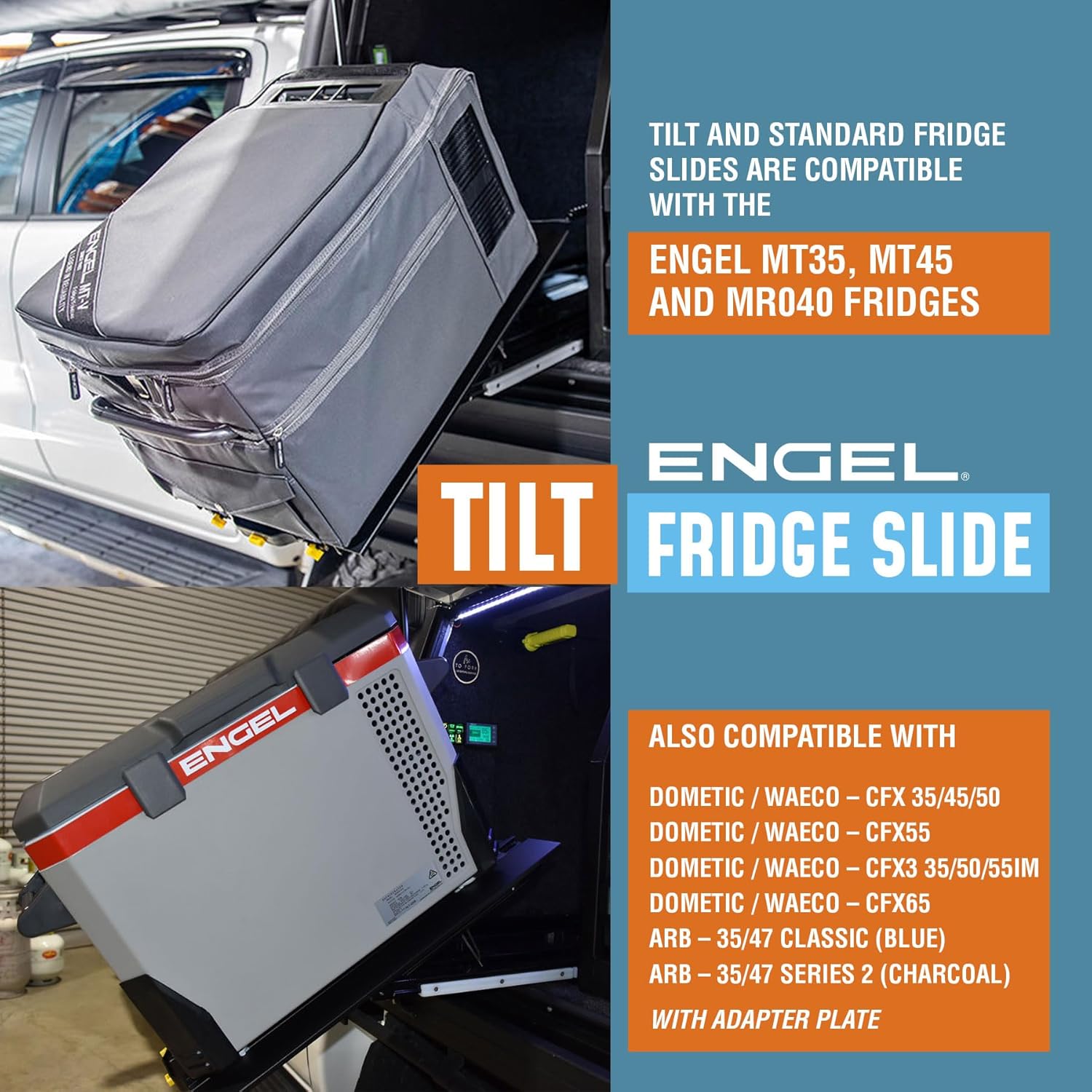

Image: A visual representation of the ENGEL Tilt Fridge Slide's compatibility with various ENGEL and other brand fridge models, including the MT35, MT45, and MR040.
Atilẹyin ọja ati Support
For warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or visit the official ENGEL webojula. Tọju iwe-ẹri rira rẹ bi ẹri rira fun awọn iṣeduro atilẹyin ọja.
