1. Ifihan
Thank you for choosing the ANPABO 24V Riding Toy. This manual provides essential information for the safe assembly, operation, and maintenance of your new riding toy. Please read it thoroughly before use and retain it for future reference.
2. Alaye Aabo
IKILO: Adult assembly is required. Please keep children away from all small parts during assembly. Always supervise children when they are operating the riding toy. Ensure the child wears appropriate safety gear, including a helmet, at all times. Do not use near stairs, on public roads, or on uneven terrain.
- Iwọn iwuwo ti o pọju: 110 lbs.
- Recommended age: 3-12 years.
- Always use on smooth, hard surfaces. Avoid thick carpets, grass, or wet areas.
- Ensure the hand brake is functional before each use.
- Ma ṣe yi ọja pada ni ọna eyikeyi.
3. Ọja Ipariview
The ANPABO 24V Riding Toy is designed for an engaging and safe riding experience for children. It features a powerful yet quiet brushless motor, anti-tip wheels for stability, and a hand brake for controlled stops.

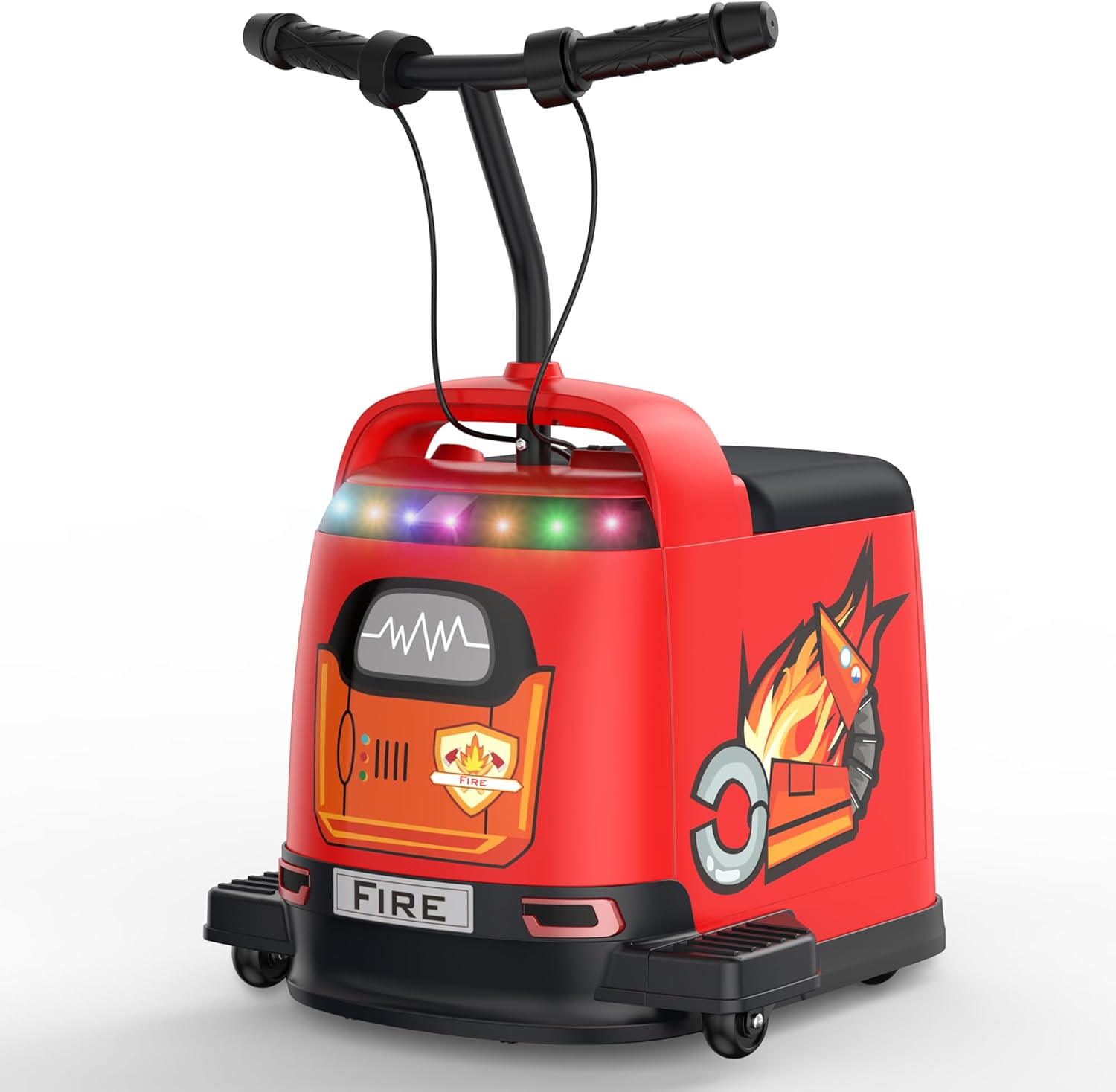

Nọmba 3.1: Lapapọ view of the ANPABO 24V Riding Toy.
Awọn ẹya pataki:
- 180W Mọto Alailowaya: Provides quiet operation and efficient power.
- Àwọn Kẹ̀kẹ́ Àìtọ́-Típì: Two specially designed anti-rollover wheels on both sides enhance stability.
- Brake Ọwọ: Allows for safe and controlled stopping.
- Ikole ti o tọ: Made from high-quality, non-toxic PP material.
- Iṣẹ ṣiṣe lọpọlọpọ: Includes a music player, shining rainbow lights, and a storage compartment under the seat.
- Awọn ohun ilẹmọ DIY: Comes with cartoon and luminous stickers for personalization.
Figure 3.2: Illustration comparing the 180W quiet brushless motor to traditional motors, highlighting lower noise and higher power output.
Olusin 3.3: Pariview of additional features including under-seat storage, EVA cushion, DIY stickers, and LED flashing lights.
4. Apejọ Awọn ilana
The ANPABO 24V Riding Toy features a modular design for quick and easy assembly, typically completed in under 10 minutes with few parts.
- Ṣii gbogbo awọn paati ati rii daju lodi si atokọ awọn apakan (ko pese ninu iwe yii, tọka si apoti).
- Connect the handlebar assembly to the main body. Ensure all connections are secure.
- Attach any auxiliary wheels or support components as indicated in the product-specific assembly guide.
- Ensure all electrical connectors are properly seated.
- Confirm all screws and fasteners are tightened before first use.
Figure 4.1: Visual guide for the modular assembly process.
5. Awọn ilana Iṣiṣẹ
Starting the Toy:
- Rii daju pe ohun isere ti gba agbara ni kikun.
- Sit comfortably on the seat.
- Press the power button to turn on the toy.
- Gently press the stepless speed throttle on the handlebar to begin moving.
Iduro ohun isere:
- Tu awọn finasi.
- Engage the hand brake lever on the handlebar for a controlled stop.
Figure 5.1: Detail of the handlebars, illustrating the stepless speed throttle and hand brake for easy operation.
Iṣakoso iyara:
The riding toy features a speed limit switch located under the seat. This allows parents to adjust the maximum speed for younger children.
- 'O' Position: Disables high-speed driving, limiting the toy to low speed (0-2.5 mph).
- 'I' Position: Cancels the speed limit, allowing the toy to reach its maximum speed (2.5-5 mph).
Figure 5.2: Location of the speed limit switch under the seat for adjusting speed settings.
6. Gbigba agbara
To charge the ANPABO 24V Riding Toy, locate the charging port (refer to the product-specific diagram in your packaging). Connect the provided 24V charger to the port and plug it into a standard electrical outlet. The battery typically provides 90-150 minutes of runtime on a full charge. Ensure the toy is turned off during charging.
7. Itọju
Ninu:
- Pa nkan isere nu pẹlu ipolowoamp asọ. Yẹra fun lilo awọn kẹmika lile tabi awọn afọmọ abrasive.
- Maṣe fi nkan isere naa bọ inu omi.
Ibi ipamọ:
- Store the toy in a dry, cool place away from direct sunlight.
- If storing for an extended period, charge the battery fully before storage and recharge every 3 months to maintain battery health.
8. Laasigbotitusita
| Isoro | Owun to le Fa | Ojutu |
|---|---|---|
| Toy ko ni tan | Battery is low or discharged; Power connection loose | Charge the battery; Check all power connections |
| Ohun-iṣere n lọ laiyara | Battery is low; Speed limit switch is on low speed; Overload | Charge the battery; Check speed limit switch position; Ensure weight is within limits |
| Ariwo dani nigbati isẹ | Loose component; Obstruction in wheels | Inspect for loose parts and tighten; Check wheels for debris |
9. Awọn pato
- Awọn iwọn ọja: 17.5 x 16.5 x 26 inches
- Ìwọ̀n Nkan: 26 iwon
- Mọto: 180W Brushless
- Batiri: 24V
- Iyara ti o pọju: 5 mph
- Akoko ṣiṣe: 90-150 minutes (depending on usage)
- Agbara fifuye: 110 lbs
- Ọjọ ori Ti a ṣeduro Olupese: 8 - 12 years (Note: Product features suggest suitability for 3-12 years with speed control)
10. Atilẹyin ọja ati Support
For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official ANPABO website. Please have your product model and purchase date available when contacting support.
