ANPABO 24V 2 Seater Ride On Dump Truck User Manual

1. Alaye Aabo pataki

Please read this entire manual before assembling or operating the ANPABO 24V 2 Seater Ride On Dump Truck. Failure to follow these instructions may result in serious injury or property damage. Keep this manual for future reference.

  • Abojuto Agba Nilo: This product is intended for children aged 3-8 years (one child) or 2-4 years (two toddlers) and must always be operated under direct adult supervision.
  • Opin iwuwo: The maximum load capacity for this vehicle is 110 lbs (50 kg). Do not exceed this weight limit.
  • Safety Belts: Ensure children are securely fastened with the independent safety belts provided for each seat before operation.
  • Ayika Ṣiṣẹ: Operate the vehicle on flat, level surfaces away from traffic, swimming pools, steep inclines, or other hazards. Avoid operating in wet conditions.
  • Ohun elo Idaabobo: Always ensure children wear appropriate protective gear, such as a helmet, when operating the vehicle.
  • Gbigba agbara: Only use the provided charger and battery. Do not attempt to modify the electrical system.

2. Package Awọn akoonu

Rii daju pe gbogbo awọn paati wa ṣaaju ki o to bẹrẹ apejọ. Ti eyikeyi awọn ẹya ba sonu tabi bajẹ, kan si atilẹyin alabara.

  • ANPABO 24V 2 Seater Ride On Dump Truck (Main Body)
  • Iṣakoso Latọna jijin Obi
  • 24V Ṣaja
  • Shovel
  • Hardware Apejọ (skru, washers, bbl)
  • Ilana itọnisọna

3. Apejọ Awọn ilana

Assembly of the ANPABO 24V 2 Seater Ride On Dump Truck requires adult assembly. Follow the detailed step-by-step instructions provided in the separate assembly guide included with your product. Ensure all connections are secure and all parts are correctly installed before first use.

Awọn Igbesẹ Apejọ bọtini:

  1. So awọn kẹkẹ ati awọn axles.
  2. Install the steering wheel and dashboard components.
  3. So awọn ebute batiri pọ.
  4. Secure the seats and roll bar.
  5. Install the electric dump bed and ensure its functionality.
ANPABO 24V 2 Seater Ride On Dump Truck

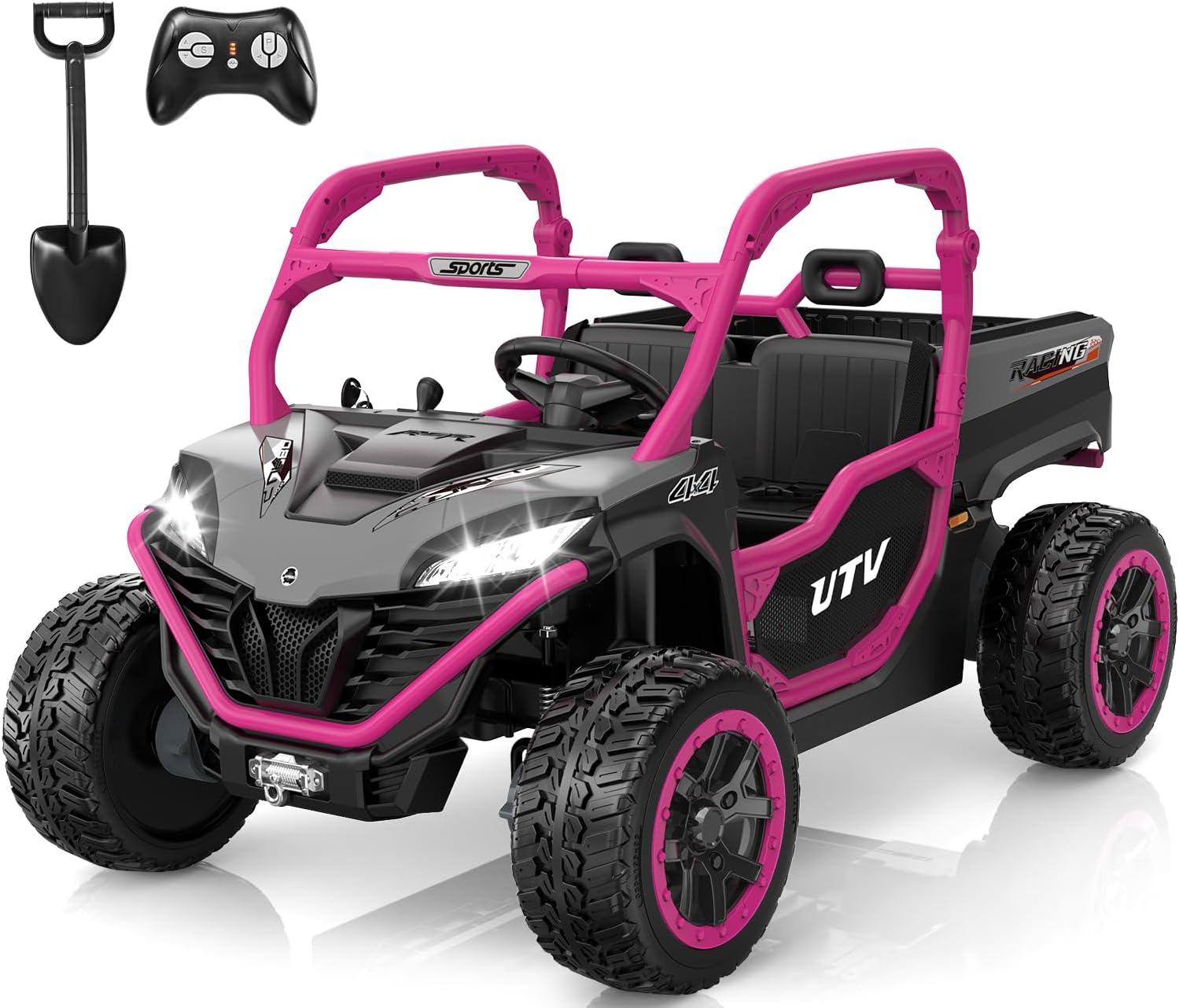

Image 3.1: Fully assembled ANPABO 24V 2 Seater Ride On Dump Truck in Rose Red, showcasing its robust design, large wheels, and included shovel and remote control.

4. Ngba agbara si Batiri naa

The vehicle is powered by a 24V 7Ah rechargeable battery. Proper charging is essential for battery longevity and safe operation.

  • Idiyele akọkọ: Before initial use, charge the battery for a minimum of 8-12 hours, but no longer than 18 hours.
  • Gbigba agbara deede: After each use, recharge the battery for 8-12 hours. Do not overcharge.
  • Ilana gbigba agbara:
    1. Wa ibudo gbigba agbara lori ọkọ.
    2. Pulọọgi ṣaja sinu boṣewa ogiri iṣan.
    3. Connect the charger plug to the vehicle's charging port.
    4. Ina Atọka ṣaja yoo han pupa ni igbagbogbo lakoko gbigba agbara ati tan alawọ ewe nigbati o ba gba agbara ni kikun.
  • Itọju Batiri: If the vehicle will not be used for an extended period, charge the battery once a month to maintain its health.
Key start and towing switch
Image 4.1: Detail showing the key start mechanism, towing switch, and an extra shovel. The towing switch should be in the 'off' position during charging.

5. Awọn ilana Iṣiṣẹ

5.1 Wíwakọ̀ ọkọ̀ ayọ́kẹ́lẹ́

  • Ibẹrẹ: Insert the key into the ignition and turn it to the 'ON' position. The vehicle will produce realistic start-up sounds.
  • Isare: Tẹ pedal ẹsẹ̀ láti yára. Tú pedal náà sílẹ̀ kí ó lè jábọ́.
  • Itọnisọna: Lo kẹkẹ idari lati ṣakoso itọsọna ti ọkọ.
  • Yiyan Iyara: Use the speed buttons on the dashboard to select between different speed settings (3.7-5 mph).
  • Siwaju/ Yipada: Use the gear selector to switch between forward and reverse modes.
  • Towing Switch: Ensure the towing switch is in the 'drive' position for the vehicle to move. If it is in '0' gear, the vehicle will not move.
ANPABO 24V Powerful Off-Road Ride On Toy
Image 5.1: The ANPABO 24V Ride On Dump Truck in an off-road setting, highlighting its 24V 7Ah battery, 4x75W motors, and speed up to 5.1 MPH, suitable for various terrains.
4-Wheel Drive Climbing Capability
Image 5.2: Illustration of the vehicle's 4-wheel drive system, demonstrating its ability to climb inclines up to 20 degrees, powered by 75W 5-coil motors for high torque and strong climbing ability.

5.2 Operating the Electric Dump Bed

The electric dump bed allows for interactive play, enabling children to load and unload items.

  1. Release Handle: Pull out the handle located under the seat to unlock the dump bed mechanism.
  2. Iṣakoso tẹlọrun: Use the joystick to tilt the dump bed up or down.
  3. Ẹnu-ìtalẹ̀: The tailgate is openable for easy unloading.
  4. Use the included shovel to load lightweight items such as leaves, sand, or toys into the 1.19 Cu.ft capacity dump bed.
Child operating large tiltable dump bed
Image 5.3: A child using the included shovel to load material into the large, tiltable dump bed of the ride-on truck, demonstrating the joystick control for tilting.
How to tilt dump bed instructions
Image 5.4: Visual instructions detailing how to operate the electric dump bed: 1. Pull out the handle under the seat. 2. Push the joystick to tilt the dump bed. 3. The tailgate is openable.

5.3 Music and Entertainment

The vehicle features a built-in music system with connectivity options.

  • Bluetooth: Connect your smartphone or other Bluetooth-enabled device wirelessly to play music.
  • USB/AUX: Use the USB port or AUX input to connect external media players and enjoy favorite songs or stories.

6. Parental Remote Control

The 2.4G parental remote control allows adults to safely guide the vehicle, especially for younger children, or to intervene in case of potential hazards.

  • Pipọpọ: Refer to the separate remote control pairing instructions for initial setup.
  • Awọn iṣẹ:
    • Siwaju/Pada: Controls the vehicle's movement.
    • Osi/Ọtun: Controls steering.
    • Iyara: Adjusts the vehicle's speed settings.
    • 'P' Button (Brake): Press this button for an emergency stop. Press again to release the brake.
  • Iṣe Pari: The remote control can override the child's manual driving input for enhanced safety.
Dual Drive Modes and Remote Control
Image 6.1: Illustration of the dual drive modes: Manual Mode (child driving) and Parent Remote Control. The remote control displays buttons for Forward, Back, Speed, Brake (P), Right, and Left.

7. Itọju

Regular maintenance helps ensure the longevity and safe operation of your ride-on truck.

  • Ninu: Mu ọkọ naa nu pẹlu asọ, damp asọ. Ma ṣe lo abrasive ose tabi epo. Yago fun fifa omi taara sori awọn paati itanna.
  • Ipamọ Batiri: Store the battery in a cool, dry place. If storing the vehicle for an extended period, disconnect the battery and recharge it monthly.
  • Ayẹwo Taya: Regularly check the EVA tires for wear and tear. Ensure they are free from debris that could affect performance.
  • Ayẹwo gbogbogbo: Lojoojumọ, máa ṣàyẹ̀wò gbogbo àwọn skru, èso àti àwọn ìsopọ̀ láti rí i dájú pé wọ́n ní ìdè tí wọ́n sì wà ní ààbò.

8. Laasigbotitusita

If you encounter issues with your ANPABO Ride On Dump Truck, refer to the following common problems and solutions.

IsoroOwun to le FaOjutu
Ọkọ ko gbeBattery is low or not connected; Towing switch in '0' gear; Loose wire connection; Overload protection activated.Charge the battery; Check battery connections; Ensure towing switch is in 'drive'; Check all wire connections; Reduce load.
Ọkọ ayọkẹlẹ n lọ laiyaraBatiri kekere; O ti kun ju; O n ṣiṣẹ lori ilẹ ti ko nira.Recharge battery; Reduce load; Operate on smoother surfaces.
Isakoṣo latọna jijin ko ṣiṣẹRemote not paired; Remote battery low; Interference.Re-pair remote control (refer to remote manual); Replace remote batteries; Move to an area with less interference.
Dump bed not tiltingHandle not pulled out; Motor issue; Overloaded.Ensure handle is fully pulled out; Check for obstructions; Reduce load in dump bed.

If the problem persists after attempting these solutions, please contact ANPABO customer support.

9. Awọn pato

  • Awoṣe: 24V 2 Seater Ride On Dump Truck
  • Brand: ANPABO
  • Awọn iwọn ọja: 55.9 x 31.7 x 30.3 inches (142 x 80.5 x 77 cm)
  • Ìwọ̀n Nkan: 74 poun (33.5 kg)
  • Batiri: 24V 7Ah Rechargeable
  • Awọn ọkọ ayọkẹlẹ: 4 x75W
  • Iyara ti o pọju: Titi di 5 mph (8 km/h)
  • Agbara fifuye ti o pọju: 110 lbs (50 kg)
  • Agbara ijoko: 2 omo
  • Ọjọ ori ti a ṣeduro: 3-8 years (one child), 2-4 years (two toddlers)
  • Taya: EVA (Ethylene-vinyl acetate)
  • Awọn ẹya: Electric auto-lifting dump bed (1.19 Cu.ft capacity), Parental 2.4G remote control, Key ignition, Music system (Bluetooth/USB/AUX), 4-wheel drive, Spring shock absorbers.
ANPABO Ride On Truck dimensions and age/weight limits
Image 9.1: Visual representation of the ANPABO Ride On Truck's dimensions (55.9" L x 31.7" W x 30.3" H) and recommended usage: one child aged 3-8 years, two toddlers aged 2-4 years, with a maximum load of 110 lbs.
ANPABO 2-seater ride on truck with children
Image 9.2: Two children seated comfortably in the ANPABO 2-seater ride on truck, highlighting the 21.2-inch wide seating area designed for shared play.
Durable EVA wheels and shock absorbers
Aworan 9.3: Isunmọ view of the durable EVA wheels and the 4x spring shock absorbers, illustrating the vehicle's capability to handle various terrains like pavement, asphalt, grass, and gravel.

10. Atilẹyin ọja ati Support

ANPABO is committed to providing quality products. For warranty information, technical support, or to order replacement parts, please contact ANPABO customer service through the retailer where the product was purchased or visit the official ANPABO website. Please have your product model number and purchase date available when contacting support.
