Aigo Q2507 Mini-Tower PC Case Instruction Manual

Ọrọ Iṣaaju

This manual provides detailed instructions for the installation, operation, and maintenance of your Aigo Q2507 Mini-Tower PC Case. Please read this manual thoroughly before beginning any installation to ensure proper assembly and safe usage. This PC case is designed to house standard desktop components, supporting M-ATX and ITX motherboards.

Alaye Aabo

• Máa yọ agbára iná kúrò nínú ihò ògiri kí o tó fi àwọn ohun èlò mìíràn sí i tàbí kí o yọ wọ́n kúrò láti dènà ìkọlù iná mànàmáná.
• Wọ okun ọwọ-atako-aimi lati ṣe idiwọ isọjade elekitirotatiki (ESD) ibajẹ si awọn paati ifura.
• Handle components carefully. Avoid touching pins or circuit boards directly.
• Ensure all cables are routed properly and do not obstruct airflow or moving parts.
• Keep the case away from sources of heat, direct sunlight, and moisture.
• Do not attempt to modify the case structure, as this may void your warranty and pose safety risks.

Package Awọn akoonu

Jọwọ rii daju pe gbogbo awọn ohun kan wa ninu apo rẹ:

• Aigo Q2507 Mini-Tower PC Case
• Accessory kit (screws, standoffs, cable ties)
• Afowoyi Olumulo (iwe-ipamọ yii)

Ṣeto

1. Ngbaradi Ọran naa

Before installation, remove both side panels of the case. Typically, these are secured with thumbscrews at the rear of the case.

Aworan: Angled view of the Aigo Q2507 Mini-Tower PC Case, showing the front panel and the side panel removed, revealing the internal structure.

2. Modaboudu fifi sori

1. Install the necessary motherboard standoffs onto the motherboard tray. The Q2507 supports M-ATX and ITX motherboards.
2. Fi pẹ̀lẹ́pẹ̀lẹ́ gbé mótábódì rẹ sí orí àwọn ibi tí wọ́n ti ń dì í, kí o sì ṣe àtúnṣe àwọn ihò skru náà.
3. Fi àwọn skru tí a pèsè so mọ́ motherboard náà. Má ṣe fún un ní okun jù.

Aworan: Ti abẹnu view of the Aigo Q2507 PC Case, highlighting the motherboard tray area with pre-drilled holes for standoffs.

3. Fifi sori ẹrọ Awakọ Ibi ipamọ

The case supports 1 x SSD and 1 x HDD.

1. Locate the drive bays. SSDs typically mount on the motherboard tray or dedicated brackets, while HDDs use a cage.
2. Secure your SSD(s) and HDD(s) using the appropriate screws from the accessory kit.

Aworan: Ti abẹnu view of the Aigo Q2507 PC Case, showing the designated areas for installing storage drives (SSD and HDD).

4. Expansion Card Installation (VGA)

The case features 4 expansion slots.

1. Remove the necessary slot covers from the rear of the case.
2. Insert your graphics card (VGA) or other expansion cards into the corresponding PCIe slots on your motherboard.
3. Secure the card(s) with screws. The maximum VGA length supported is 250 mm.

Image: Rear internal view of the Aigo Q2507 PC Case, showing the four expansion slots and the rear fan mount.

5. Fifi sori ẹrọ afẹ́fẹ́ itutu

The case supports one 120 mm fan on the side and one 80 mm fan on the rear.

1. Mount the fans to their designated positions using fan screws.
2. Connect the fan power cables to your motherboard or power supply.

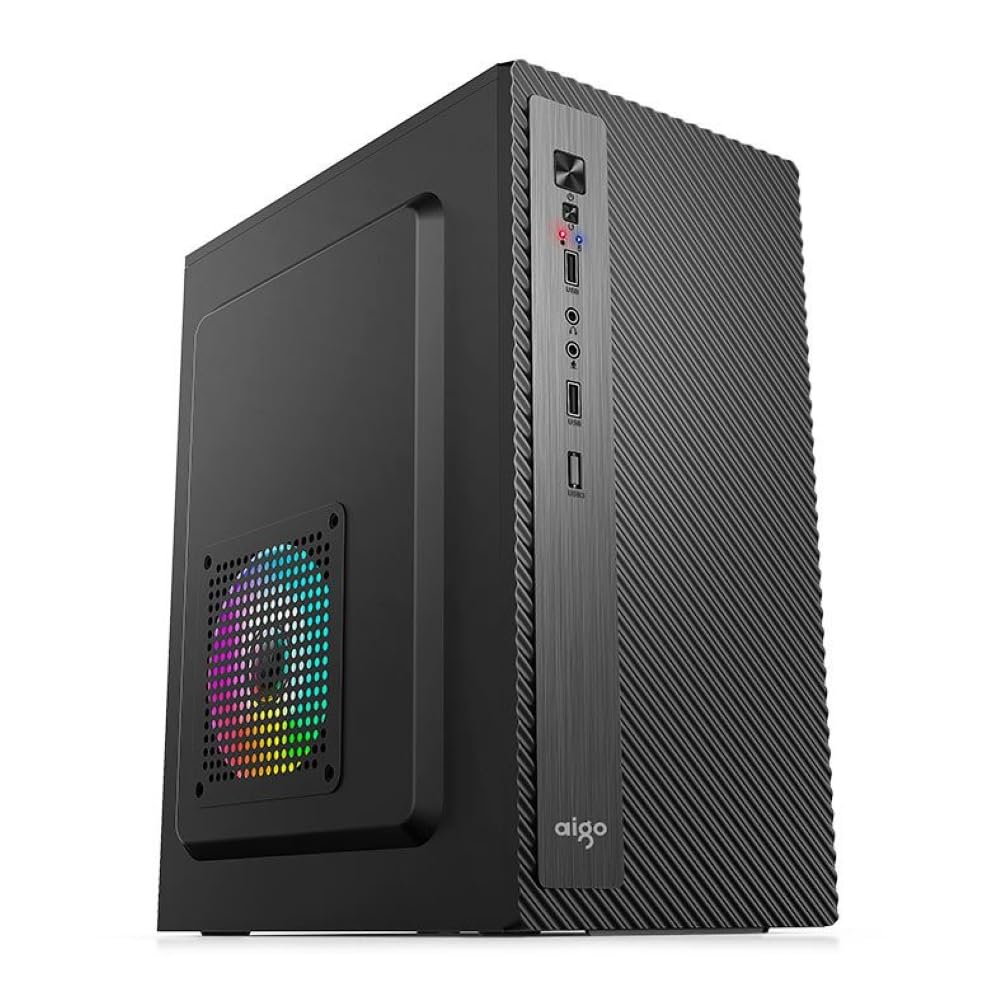

Image: Angled front-side view of the Aigo Q2507 PC Case, with an internal fan visible through the side panel vent.

6. Iwaju Panel Awọn isopọ

Connect the front panel cables (USB 2.0, Audio, Microphone, Power button, Reset button, Power LED, HDD LED) to the corresponding headers on your motherboard. Refer to your motherboard manual for header locations.

Aworan: Iwaju isunmọ view of the Aigo Q2507 PC Case, showing the front I/O panel with USB 2.0 ports, audio jacks, and power/reset buttons.

7. Iṣakoso USB

Route all cables neatly behind the motherboard tray or through designated cutouts to improve airflow and aesthetics. Use cable ties if necessary.

8. Tilekun Ọran naa

Once all components are installed and cables are managed, reattach the side panels and secure them with the thumbscrews.

Ṣiṣẹ

After completing the setup, connect your monitor, keyboard, mouse, and power cable to your assembled PC. Press the power button on the front panel to start your system. Ensure all peripherals are functioning correctly.

Itoju

• Ninu: Regularly clean dust from the case interior and fan filters using compressed air or a soft brush. Dust buildup can impede airflow and lead to overheating.
• Fife ategun: Ensure the case has adequate ventilation. Do not block the air intake or exhaust vents.
• Iṣakoso USB: Periodically check cable routing to ensure no cables are interfering with fans or obstructing airflow.

Laasigbotitusita

• Ètò kò ṣiṣẹ́: Check all power connections, including the power supply to the wall, motherboard 24-pin, and CPU 8-pin connectors. Ensure front panel power switch cable is correctly connected to the motherboard.
• Igbóná púpọ̀: Verify that all fans are spinning correctly and are not obstructed. Clean any dust buildup. Ensure proper thermal paste application on the CPU cooler.
• Ko si ifihan: Confirm that your graphics card is properly seated in its PCIe slot and that the monitor cable is securely connected to the graphics card.
• Awọn ibudo USB ko ṣiṣẹ: Check the front panel USB cable connection to the motherboard header.

Awọn pato

Image: Diagram illustrating the dimensions of the Aigo Q2507 Mini-Tower PC Case: 26.5 cm (depth) x 16.5 cm (width) x 34 cm (height).

Atilẹyin ọja

This Aigo Q2507 Mini-Tower PC Case comes with a 12-osu atilẹyin ọja from the date of purchase. This warranty covers manufacturing defects and material faults under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or improper installation. Please retain your proof of purchase for warranty claims.

Atilẹyin

For technical assistance, warranty claims, or further inquiries, please contact your retailer or visit the official Aigo website for support resources. When contacting support, please have your product model (Q2507) and proof of purchase readily available.

Awọn orisun Ayelujara: www.aigo.com (Eksampọna asopọ le, jọwọ ṣayẹwo osise naa webaaye)
