Casio G-Shock GA010-1A Analog-Digital Watch Instruction Manual

Ọrọ Iṣaaju

This manual provides detailed instructions for the proper use and maintenance of your Casio G-Shock GA010-1A analog-digital watch. Please read this manual thoroughly to ensure correct operation and to maximize the lifespan of your timepiece. The GA010-1A is designed for durability and functionality, featuring a 10-year battery and robust construction.

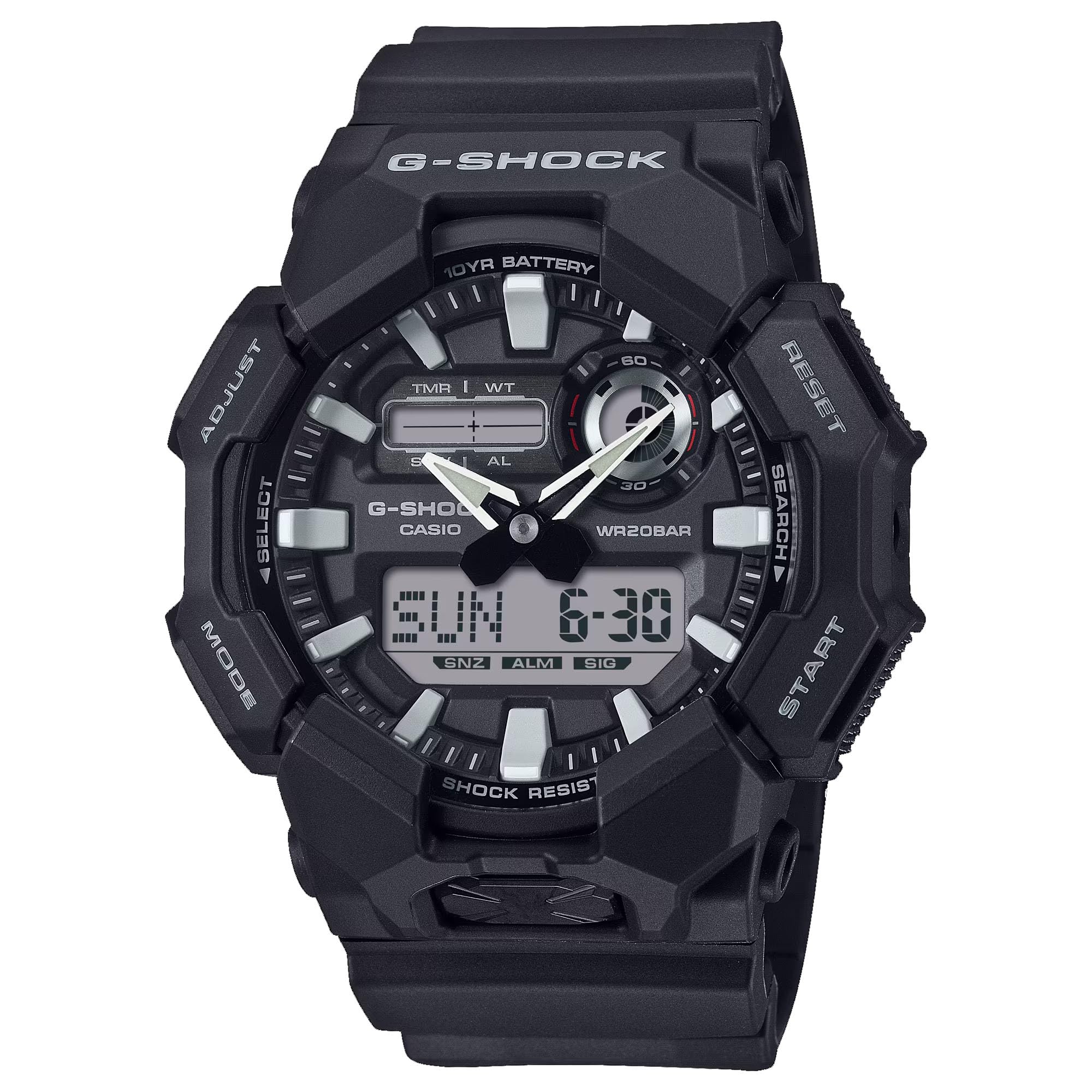

Aworan: Iwaju view of the Casio G-Shock GA010-1A watch, showcasinàpapọ afọwọṣe àti ti oni-nọmba rẹ̀.

Awọn ẹya ara ẹrọ

• Resistant Shock: Designed to withstand impacts and vibrations.
• LED Light (Super Illuminator): Provides illumination for the display in low-light conditions. Selectable illumination duration (1.5 seconds or 3 seconds).
• Àkókò Àgbáyé: Displays the current time in 31 time zones (48 cities + Coordinated Universal Time). Includes daylight saving on/off and home city/world time city swapping.
• 1/100-Aago iṣẹju-aaya: Measures elapsed time, split time, and 1st-2nd place times.
• 5 Daily Alarms: Independent daily alarms.
• Hand Shift Feature: Hands move out of the way to provide an unobstructed view of digital display contents.
• Button Operation Tone On/Off: Allows muting of button operation tones.
• Igbesi aye batiri Ọdun 10: Powered by a CR2025 lithium metal battery.
• Omi Resistance: 200 meters (20 bar). Suitable for recreational scuba diving.
• Ifihan Analog-Digital: Combines traditional analog hands with a digital display for versatile timekeeping.

Aworan: Apa view of the Casio G-Shock GA010-1A watch, highlighting its robust case design.

Ṣeto

Aago Ibẹrẹ ati Eto Ọjọ

1. Enter Timekeeping Mode: Ensure the watch is in the Timekeeping Mode. Press the MODE button (usually bottom left) to cycle through modes until the current time and date are displayed.
2. Tẹ Ipo Eto: Tẹ mọlẹ ṢAtunṣe button (usually top left) until the city code starts flashing on the digital display. This indicates the setting mode.
3. Select City Code: Lo awọn Siwaju (oke apa ọtun) ati Yipada (bottom right) buttons to select your home city code.
4. Configure Daylight Saving Time (DST): Tẹ awọn MODE button to move to the DST setting. Use the Siwaju bọtini lati tan tabi pa DST.
5. Ṣeto Aago ati Ọjọ: Tẹ awọn MODE button to cycle through settings: 12/24-hour format, seconds, hour, minute, year, month, day. Use the Siwaju ati Yipada awọn bọtini lati ṣatunṣe kọọkan iye.
6. Jade Ipo Eto: Tẹ awọn ṢAtunṣe button to exit the setting mode. The digital display will stop flashing, and the analog hands will automatically adjust to the set digital time.

Batiri Alaye

The GA010-1A is equipped with a CR2025 lithium metal battery, providing an approximate 10-year battery life under normal usage conditions. When the battery power is low, the display may become dim or functions may become unstable. Battery replacement should be performed by a qualified technician to ensure water resistance and proper function are maintained.

Awọn ilana Iṣiṣẹ

Ipo Lilọ kiri

Tẹ awọn MODE button (bottom left) to cycle through the different modes: Timekeeping Mode, World Time Mode, Stopwatch Mode, Timer Mode, and Alarm Mode.

Ipo Aago Agbaye

In World Time Mode, you can view the current time in 48 cities (31 time zones) around the globe. Use the Siwaju (oke apa ọtun) ati Yipada (bottom right) buttons to scroll through city codes. To swap your Home City time with the World Time City time, press and hold the ṢAtunṣe button (top left) for approximately three seconds.

Ipo Aago iṣẹju-aaya

Àwọn ìwọ̀n aago ìdádúró náà ti kọjá àkókò tó tó wákàtí mẹ́tàlélógún, ìṣẹ́jú mẹ́sàn-án, ìṣẹ́jú àádọ́ta àti àádọ́ta ìṣẹ́jú àádọ́ta.

• Tẹ awọn Siwaju bọtini lati bẹrẹ ati da aago idaduro duro.
• Nigba ti aago iṣẹju-aaya ti duro, tẹ awọn ṢAtunṣe bọtini lati tun o si odo.
• Lati ṣe igbasilẹ awọn akoko pipin, tẹ awọn ṢAtunṣe button while the stopwatch is running. Press ṢAtunṣe lẹẹkansi lati tu pipin naa silẹ ki o si tẹsiwaju akoko naa.

Ipo itaniji

The watch features 5 independent daily alarms. In Alarm Mode:

• Lo awọn Siwaju button to scroll through the alarms (AL1 to AL5) and the hourly akoko ifihan agbara (SIG).
• To set an alarm, select the desired alarm (e.g., AL1), then press and hold the ṢAtunṣe bọtini titi ti akoko itaniji yoo bẹrẹ ìmọlẹ.
• Lo awọn MODE button to move between hour and minute settings, and the Siwaju ati Yipada awọn bọtini lati ṣatunṣe awọn iye.
• Tẹ awọn ṢAtunṣe button to confirm the alarm setting.
• To turn an alarm on/off, select the alarm and press the Siwaju button. An indicator will show if the alarm is active.

LED Light (Super Illuminator)

Press the large button located at the 6 o'clock position on the front of the case to activate the LED light. The illumination duration can be set to 1.5 seconds or 3 seconds in the Timekeeping Mode settings.

Hand Shift Feature

If the analog hands obstruct the digital display, press the MODE ati Siwaju buttons simultaneously. The hands will temporarily move to a position that allows clear viewing of the digital display. Press any button to return the hands to their normal timekeeping position.

Button Operation Tone On/Off

To toggle the button operation tone on or off, navigate to the Timekeeping Mode. Press and hold the MODE button for approximately three seconds. The "MUTE" indicator will appear or disappear on the digital display, indicating the tone status.

Itoju

Ninu Rẹ Watch

Regularly wipe the watch case and band with a soft, dry cloth to remove dirt and moisture. For resin bands, you can use a mild soap solution and rinse thoroughly with water, then dry completely. Avoid using harsh chemicals or abrasive cleaners, as these can damage the watch's materials.

Omi Resistance

The GA010-1A is water resistant to 200 meters (20 bar). This means it is suitable for everyday use, showering, swimming, and recreational scuba diving. Ma ṣe ṣiṣẹ awọn bọtini lakoko aago naa jẹ tutu tabi wọ inu omi. After exposure to saltwater, rinse the watch thoroughly with fresh water and dry it with a soft cloth.

Batiri Rirọpo

The watch uses a CR2025 battery. While it has a 10-year life, eventual replacement will be necessary. It is highly recommended to have the battery replaced by an authorized Casio service center or a qualified watch technician. This ensures that the watch's water resistance and shock resistance are maintained after the case back is opened.

Aworan: Pada view of the Casio G-Shock GA010-1A watch, showing the stainless steel case back and resin band attachment.

Laasigbotitusita

• Ifihan oni-nọmba jẹ Ofo tabi Dim: Batiri naa le jẹ kekere. Ro ọjọgbọn rirọpo batiri.
• Awọn ọwọ Analog Ko Baramu Aago oni-nọmba: Perform a hand alignment correction. Refer to the full Casio module manual for detailed steps, or try re-setting the time as described in the "Initial Time and Date Setting" section. The hands should automatically synchronize.
• Buttons Are Unresponsive: Ensure the watch is not in a locked mode (if applicable, though GA010-1A typically does not have a button lock). If submerged, ensure it is dry before operating buttons. If the issue persists, a reset or professional inspection may be required.
• Watch Stops Functioning: This could indicate a battery issue or internal malfunction. Seek professional service.

Awọn pato

Atilẹyin ọja ati Support

Your Casio G-Shock GA010-1A watch is covered by a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms, conditions, and duration. For technical support, service, or warranty claims, please contact Casio customer service or visit their official webojula. Jeki ẹri rira rẹ fun ijẹrisi atilẹyin ọja.

For further assistance, you may visit the official Casio webojula: www.casio.com
