Ìwé Ìtọ́ni fún kọ̀ǹpútà ẹ̀rọ ìfọṣọ DTK pẹ̀lú ṣẹ́ẹ̀lì (Àwòṣe DTK-WDC)

1. Ifihan

Thank you for choosing the DTK Washer Dryer Countertop with Shelf, Model DTK-WDC. This product is designed to enhance your laundry space by providing a functional and organized surface over your washer and dryer. It offers additional storage, a convenient folding area, and helps maintain a tidy environment. Please read this manual carefully before assembly and use to ensure proper installation and long-term satisfaction.

DTK Washer Dryer Countertop with Shelf installed over a white washer and dryer, showing laundry supplies and plants. — This image displays the DTK Washer Dryer Countertop with Shelf in a laundry room setting. It is positioned over two white laundry machines, providing a flat surface for folding clothes and organizing laundry essentials. The upper shelf holds additional items, and a plant adds a decorative touch.

2. Awọn ilana aabo

Láti rí i dájú pé a lo ó dáadáa àti láti dènà ìbàjẹ́, ẹ jọ̀wọ́ ẹ tẹ̀lé àwọn ìlànà ààbò wọ̀nyí:

Always place the countertop on a stable, level surface.
Do not exceed the maximum weight capacity of 200 pounds for the main countertop and 22 pounds for the upper shelf.
Pa awọn ọmọde kekere ati awọn ohun ọsin kuro ni agbegbe apejọ.
Ensure all screws and fasteners are securely tightened during assembly. Periodically check for tightness.
Avoid placing hot items directly on the surface without protection, despite its heat-resistant properties.
Do not use abrasive cleaners or harsh chemicals, as they may damage the melamine laminate finish.

3. Package Awọn akoonu

Jọwọ rii daju pe gbogbo awọn paati wa ṣaaju ki o to bẹrẹ apejọ. Ti eyikeyi awọn ẹya ba sonu tabi bajẹ, kan si atilẹyin alabara.

Main Countertop Panel
Oke selifu Panel
Side Support Frames (2)
Edge Rails (3)
3M Anti-Slip Strips (2)
Awọn ìkọ (4)
Hardware Apejọ (skru, Allen wrench)
Ilana itọnisọna

Bugbamu view diagram of the DTK Washer Dryer Countertop components, illustrating easy assembly. — This image presents an exploded view of the DTK Washer Dryer Countertop with Shelf, showing all individual components separated. It visually demonstrates the simple structure and indicates that assembly is straightforward and quick.

4. Awọn alaye ọja

Ẹya ara ẹrọ	Sipesifikesonu
Nọmba awoṣe	DTK-WDC
Ohun elo	High-Quality Melamine Laminate Wood
Apapọ Awọn iwọn (L x W x H)	53.9" x 27.6" x 18.9" (136.9cm x 70.1cm x 48cm)
Main Countertop Depth	27.6" (70.1cm)
Edge Rail Height	2.4" (6.1cm)
Upper Shelf Load Capacity	22 lbs (10 kg)
Main Countertop Load Capacity	200 lbs (90.7 kg)
Iwọn Nkan	36.3 lbs (16.5 kg)
Pataki Awọn ẹya ara ẹrọ	Waterproof, Heat-Resistant, Anti-Slip Strips, Edge Rails, Integrated Shelf, 4 Hooks

Diagram showing the dimensions of the DTK Washer Dryer Countertop with Shelf: 53.9 inches width, 27.6 inches depth, 16.5 inches height, and 2.4 inches edge rail height. Also indicates 22lb load capacity for the shelf. — This diagram provides precise measurements of the DTK Washer Dryer Countertop with Shelf. It details the overall width (53.9 inches), depth (27.6 inches), and total height (16.5 inches). The edge rail height is shown as 2.4 inches, and the upper shelf is indicated to support up to 22 pounds.

5. Eto ati Apejọ

Assembly of your DTK Washer Dryer Countertop is designed to be straightforward. Follow these steps:

Yọ awọn ohun elo kuro: Carefully remove all parts from the packaging and lay them out on a clean, soft surface to prevent scratches. Refer to the 'Package Contents' section to ensure all parts are present.
Attach Edge Rails: Secure the three edge rails to the main countertop panel using the provided screws. Ensure they are aligned correctly to form a protective barrier.
Assemble Side Support Frames: Connect the side support frames to the main countertop. These frames will support the upper shelf.
Install Upper Shelf: Place the upper shelf panel onto the assembled side support frames and secure it with the designated screws.
So Hooks: Insert the four hooks into the pre-drilled holes on the side support frames as desired for hanging items.
Apply Anti-Slip Strips: Turn the assembled countertop upside down. Peel the backing from the two 3M anti-slip strips and firmly press them onto the underside of the main countertop, ensuring they will make contact with your washer and dryer surfaces. These strips help prevent movement during machine operation.
Position Countertop: Carefully lift and place the assembled countertop over your washer and dryer units. Ensure it is centered and stable.

Fun itọnisọna wiwo, jọwọ wo fidio apejọ ni isalẹ:

Official product video demonstrating the features, dimensions, and stability of the DTK Washer Dryer Countertop with Shelf. It highlights the anti-slip design and overall functionality.

6. Lilo ati isẹ

The DTK Washer Dryer Countertop with Shelf is designed for versatile use in your laundry area:

Folding Surface: Utilize the spacious main countertop for folding clothes directly out of the dryer, saving time and effort.
Ibi ipamọ: Place laundry detergents, fabric softeners, dryer sheets, and other supplies on the main countertop or the upper shelf for easy access and organization. The 2.4-inch edge rails help prevent items from falling off.
Anti-Slip Stability: The included 3M anti-slip strips ensure the countertop remains stable even during the vibration of washing machine spin cycles, preventing items from shifting or falling.
Hanging Storage: Use the four integrated hooks to hang brushes, lint rollers, or other small laundry accessories.

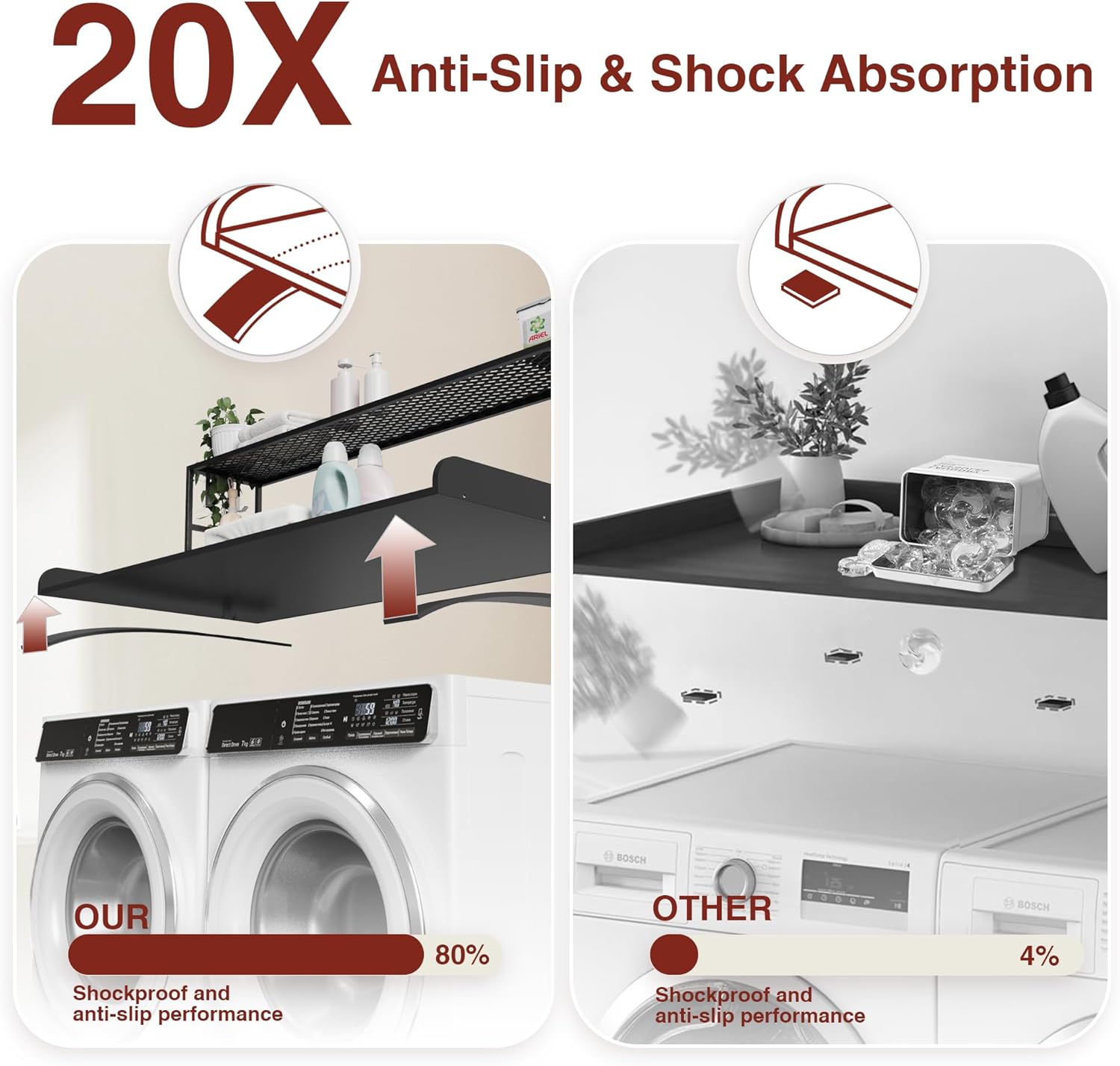

Comparison of DTK countertop's anti-slip and shock absorption performance versus a rival product. — This image illustrates the superior anti-slip and shock absorption capabilities of the DTK countertop. It shows how the DTK countertop remains stable during washer operation, preventing items from falling, in contrast to a less stable rival product.

Image showing the DTK Washer Dryer Countertop with Shelf providing double storage space in a laundry room. — This image demonstrates the double storage capacity provided by the DTK Washer Dryer Countertop with Shelf. It shows how both the main countertop and the upper shelf can be utilized to organize various laundry items and decorative elements, maximizing space efficiency.

7. Itọju ati Itọju

Maintaining your DTK Washer Dryer Countertop is simple due to its high-quality, easy-to-clean surface:

Ninu: Pa dada nu pẹlu ipolowoamp cloth and mild soap as needed. For spills, wipe immediately to prevent staining.
Gbigbe: After cleaning, dry the surface thoroughly with a clean, soft cloth.
Yago fun Kemikali lile: Do not use abrasive cleaners, scouring pads, or strong chemical detergents, as these can damage the melamine laminate finish.
Ayewo: Lokọọkan ṣayẹwo gbogbo awọn skru ati awọn asopọ lati rii daju pe wọn wa ni wiwọ ati aabo.

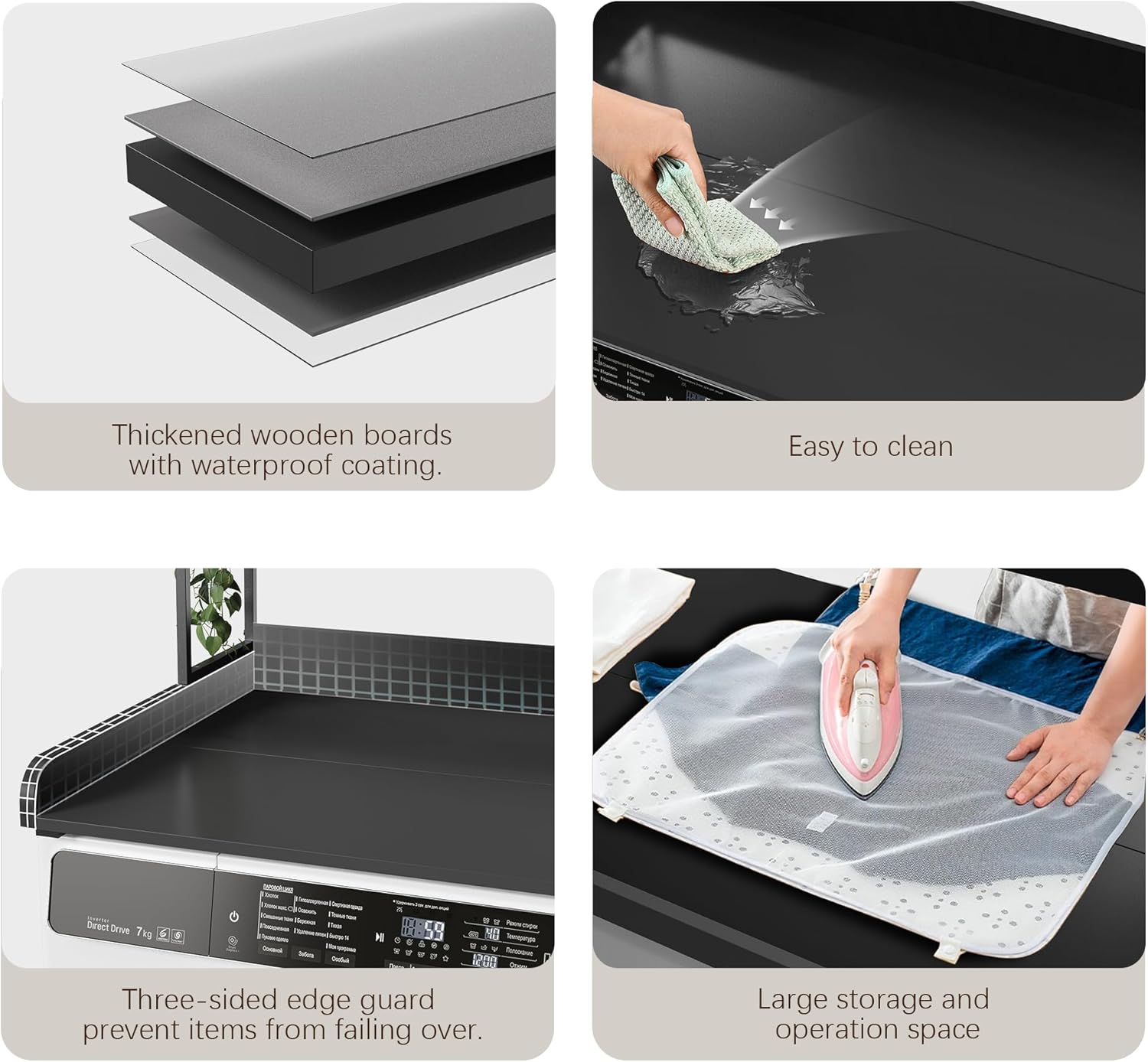

Four panels showing key features: thickened wooden boards, easy cleaning, three-sided edge guard, and large storage space. — This composite image highlights several key features: 1) Thickened wooden boards with a waterproof coating for durability. 2) A hand wiping a spill, demonstrating the easy-to-clean surface. 3) A close-up of the three-sided edge guard designed to prevent items from falling. 4) A person ironing on the countertop, showcasing the large storage and operation space.

8. Laasigbotitusita

If you encounter any issues with your DTK Washer Dryer Countertop, please refer to the following common problems and solutions:

Isoro	Owun to le Fa	Ojutu
Countertop is unstable or wobbles.	Loose assembly screws or uneven placement.	Ensure all assembly screws are tightened. Verify the countertop is placed evenly across both machines and the floor is level. Reapply anti-slip strips if they have shifted.
Items slide off the countertop during washer/dryer operation.	Anti-slip strips not properly applied or worn out. Excessive vibration from machines.	Check that the 3M anti-slip strips are firmly attached to the underside of the countertop and making good contact with the machines. Replace strips if worn. Ensure machines are level and balanced to minimize vibration.
Surface appears stained or discolored.	Spills left for extended periods or use of harsh cleaners.	Mọ spills lẹsẹkẹsẹ pẹlu ipolongoamp cloth and mild soap. Avoid using abrasive or chemical cleaners. For stubborn stains, a gentle, non-abrasive household cleaner may be used sparingly, followed by thorough rinsing and drying.
Iṣoro pẹlu apejọ.	Incorrect part identification or steps missed.	Review the 'Package Contents' and 'Setup and Assembly' sections carefully. Ensure each step is followed in order. If issues persist, contact customer support.

9. Atilẹyin ọja ati Support

DTK stands behind the quality of its products. This DTK Washer Dryer Countertop with Shelf is covered by a limited warranty against manufacturing defects. For specific warranty terms and conditions, please refer to the documentation included with your purchase or contact DTK customer support.

If you have any questions, require assistance with assembly, or need to report a missing or damaged part, please contact our customer support team:

Imeeli: [Fi Imeeli Atilẹyin Onibara sii Nibi]
Foonu: [Fi Nọ́mbà Foonu Atilẹyin Onibara sii Nibi]
Webojula: Visit the DTK Store on Amazon

Please have your model number (DTK-WDC) and purchase information ready when contacting support.

DTK DTK-WDC
