1. Ifihan
The Ashly EcoTour™ 500.2 is a high-efficiency touring power amplifier designed for professional audio applications. It delivers 2 x 500W at 2/4 Ohms, 250W at 8 Ohms, and 1000W bridged at 70V. This amplifier is engineered for optimal performance, minimizing electricity usage, and reducing energy costs. This manual provides essential information for the safe and efficient operation of your EcoTour™ 500.2 amplifier.
2. Alaye Aabo
Jọ̀wọ́ ka gbogbo ìlànà ààbò kí o sì lóye rẹ̀ kí o tó lo ẹ̀rọ yìí. Pa ìwé ìtọ́ni yìí mọ́ fún ìtọ́kasí ọjọ́ iwájú.
- WARNING: RISK OF HAZARDOUS ENERGY. Refer to the operating manual for detailed safety procedures.
- IKIRA: Lati dinku eewu ina tabi mọnamọna, maṣe fi ohun elo yi han si ojo tabi ọrinrin.
- Ẹrọ yii ni ibamu pẹlu Apá 15 ti Awọn ofin FCC. Isẹ jẹ koko ọrọ si awọn ipo meji wọnyi: (1) Ẹrọ yii le ma fa kikọlu ipalara, ati (2) ẹrọ yii gbọdọ gba kikọlu eyikeyi ti o gba, pẹlu kikọlu ti o le fa iṣẹ ti ko fẹ.
- Rii daju pe fentilesonu to dara lati ṣe idiwọ igbona. Ma ṣe dina awọn ṣiṣi atẹgun.
- Always disconnect the power cord before performing any maintenance or making connections.
3. Ọja Ipariview
The Ashly EcoTour™ 500.2 is a robust and efficient power amplifier designed for professional touring and fixed installations. It features a durable 19-inch rack-mountable chassis.
3.1 Iwaju Panel Awọn ẹya ara ẹrọ

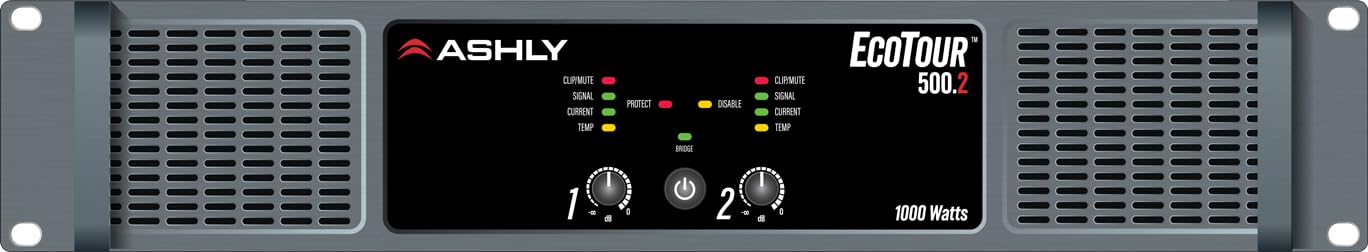

Nọmba 1: Front panel of the Ashly EcoTour™ 500.2 amplifier, showing the power switch on the left and individual channel gain controls with LED indicators on the right.
- Agbara Yi pada: Located on the left side of the front panel, used to turn the amplifier ON / PA.
- Channel Gain Controls: Individual rotary knobs for adjusting the volume/gain of each channel (CH-A, CH-B, CH-C, CH-D).
- Awọn itọkasi LED: Each channel features LIMIT and SIG LEDs to indicate signal presence and clipping.
3.2 Ru Panel Awọn ẹya ara ẹrọ

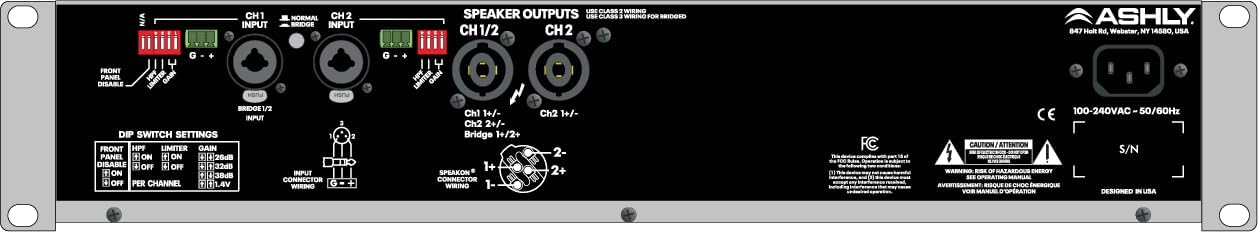

Nọmba 2: Rear panel of the Ashly EcoTour™ 500.2 amplifier, detailing input/output connections, DIP switches, and power input.
- Input Connectors (CH1/CH2): Dual XLR and 1/4-inch (TRS/TS) input jacks for each channel.
- Speaker Outputs (CH1/2, CH2): SpeakON connectors for speaker connections. Supports CH1 1+/-, CH2 2+/-, and Bridge 1+/2+.
- Bridge/Normal Switch: Selects between normal stereo operation and bridged mono operation for increased power output.
- Awọn Eto Yipada DIP: Configurable switches for Front Panel Disable, High-Pass Filter (HPF), Limiter, and Gain settings (26dB, 32dB, 38dB, 1.4V).
- Iṣawọle AC: Standard IEC power inlet for the detachable AC power cord.
- Voltage Aṣayan: A switch to select between 115V and 230V operation for international use.
- Awọn ololufẹ Itutu: Two cooling fans provide front-to-rear airflow for thermal management.
4. Eto
Follow these steps to properly set up your Ashly EcoTour™ 500.2 amplifier.
- Ṣii silẹ: Fara yọ awọn amplífó láti inú àpò rẹ̀. Ṣàyẹ̀wò bóyá àmì ìbàjẹ́ kan wà.
- Igbesoke agbeko: Awọn amplifier is designed for 19-inch rack mounting. Secure it using appropriate rack screws. Ensure adequate space for airflow around the unit.
- Voltage Aṣayan: Before connecting to power, verify the voltage selector yipada lori ru nronu ti ṣeto si awọn ti o tọ voltage fún agbègbè rẹ (115V tàbí 230V). Voltagàṣàyàn e le ba ẹ̀rọ náà jẹ́.
- Awọn isopọ ti nwọle: So orísun ohùn rẹ pọ̀ (adapọ, ṣaajuamplifier, etc.) to the CH1 and CH2 INPUTs on the rear panel using XLR or 1/4-inch cables.
Nọmba 3: Detail of input connector wiring (XLR and 1/4-inch) on the rear panel.
- Awọn isopọ Iṣjade: Connect your speakers to the SPEAKER OUTPUTS using SpeakON cables. Ensure correct polarity.
Nọmba 4: Detail of SpeakON connector wiring on the rear panel.
- Iṣeto Yipada DIP: Adjust the DIP switches on the rear panel according to your system requirements.
Table 1: DIP Yipada Eto Eto LORI Ipo PA Ipo Iwaju Panel Pa Ti ṣiṣẹ Alaabo HPF (Àlẹmọ-Pass giga) Ti ṣiṣẹ Alaabo Opin Ti ṣiṣẹ Alaabo jèrè 26dB, 32dB, 38dB, 1.4V (per channel, specific switch combinations) Default/Other Gain Setting Refer to the detailed diagram on the rear panel for specific gain switch combinations.
- Asopọ agbara: Connect the supplied AC power cord to the AC Input on the rear panel and then to a suitable power outlet.
5. Awọn ilana Iṣiṣẹ
Ni kete ti awọn amplifier is properly set up, follow these steps for operation.
- Agbara Tan: Ensure all gain controls are set to minimum. Press the Power Switch on the front panel to turn on the amplifier. The power indicator LED will illuminate.
- Ṣatunṣe Ere: Slowly increase the individual Channel Gain Controls (CH-A, CH-B, CH-C, CH-D) to achieve the desired output level.
- Abojuto Awọn LED:
- LED SIG: Illuminates when an audio signal is present on the channel.
- LED OPIN: Itanna nigbati awọn amplifier is approaching or reaching its maximum output. Reduce the gain if this LED is constantly lit to prevent clipping and distortion.
- Bridge Mode (Optional): If higher power output is required for a single speaker, set the Bridge/Normal switch to BRIDGE. Ensure your speaker is rated for bridged operation and connected to the designated bridged output.
- Agbara Pa: Before powering off, reduce all gain controls to minimum. Then, press the Power Switch to turn off the amplifier.
6. Itọju
Itọju deede ṣe idaniloju gigun ati iṣẹ ṣiṣe ti o dara julọ ti rẹ amplifier.
- Ninu: Lo asọ, gbẹ asọ lati nu awọn ode ti awọn amplifier. Má ṣe lo àwọn ohun ìfọṣọ omi tàbí àwọn ohun èlò ìfọṣọ omi.
- Afẹfẹ: Ensure the cooling fans and ventilation grilles are free from dust and obstructions. Periodically clean the grilles with a soft brush or vacuum cleaner.
- Awọn Isopọ USB: Periodically check all input and output cable connections for secure fit and signs of wear.
- Ibi ipamọ: Ti o ba titoju awọn amplifier for an extended period, ensure it is in a dry, dust-free environment and protected from extreme temperatures.
7. Laasigbotitusita
Abala yii n ṣalaye awọn ọran ti o wọpọ ti o le ba pade rẹ amplifier.
| Isoro | Owun to le Fa | Ojutu |
|---|---|---|
| Ko si agbara | Power cord disconnected, outlet fault, voltage selector ti ko tọ. | Check power cord connection, try a different outlet, verify voltage selector setting. |
| Ko si ohun jade | Input/output cables disconnected, gain set to minimum, source device off, speaker fault. | Check all cable connections, increase gain, ensure audio source is active, test speakers. |
| Distorted sound / LIMIT LED constantly on | Ifihan titẹ sii ga ju, amplifier overloaded, speaker impedance mismatch. | Reduce input signal level, lower channel gain, ensure speaker impedance matches amplifier's rating. |
| Gbigbona pupọ | Blocked ventilation, excessive load. | Ensure clear airflow around the unit, reduce load, check fan operation. |
8. Awọn pato
- Awoṣe: ECOTOUR500.2-120V-U
- Ijade agbara: 2 x 500W @ 2/4 Ohms, 250W @ 8 Ohms, 1000W bridged @ 70V
- Awọn ikanni: 2
- Awọn ọna asopọ igbewọle: XLR, 1/4-inch (TRS/TS)
- Awọn Asopọ Ijade: Sọ
- Voltage: 100-240VAC, 50/60Hz (selectable)
- Awọn iwọn: 16 x 19 x 3.5 inches (40.64 x 48.26 x 8.89 cm)
- Ìwọ̀n Nkan: 18.5 poun (8.39 kg)
- Awọn ẹya: Ultra High-Efficiency Amplification, Eco-friendly design, Stable down to 0.2 Ohms.
9. Atilẹyin ọja ati Support
For warranty information or technical support, please contact Ashly customer service or visit the official Ashly webojula.
